GE AWCS05BWB2 room air conditioner Parts

A 5,000 BTU room air conditioner like the GE AWCS05BWB2 typically cools about 150 to 250 sq. ft. best results are usually in the 150 to 200 sq. ft. range when the room is reasonably insulated and the unit’s air filter is clean.

• Best comfort range: 150 to 200 sq. ft.
• Upper limit (light load): up to about 250 sq. ft.
• Typical room examples: small bedroom, office, nursery
• Works best when: doors are kept closed and blinds reduce sun load
• Struggles when: high ceilings, lots of sun, poor insulation, frequent door opening

A “square footage” estimate assumes average conditions. These factors can push you toward the lower end of the range:

• Strong afternoon sun or large west-facing windows
• Poor insulation or lots of air leaks
• High ceilings (more air volume)
• Heat-producing electronics (PCs, TVs) or multiple occupants
• Dirty filter restricting airflow (check the filter WJ85X33815)

Right-sizing prevents constant running, weak cooling, and excess humidity. If the room is too large for 5,000 BTU, the unit can run nonstop and still feel warm, especially during peak outdoor temperatures.

For more sizing and setup tips, we recommend room air conditioner installation and operation tips.

Last updated: February 2026

You can identify your GE room air conditioner model by finding the model and serial tag on the unit itself. On GE window and room air conditioners, the tag is commonly behind the front grille or front cover, along the front edge, near the bottom, or on either side of the cabinet.

Check these spots first (power off the unit before reaching inside):

• Behind the front grille or front cover (often near the air filter area)
• Along the front edge of the cabinet, near the bottom
• On the right side panel of the unit
• On the left side panel of the unit
• Near the control panel area (inside the front opening)

If your unit is GE model AWCS05BWB2, the model tag will show AWCS05BWB2 exactly (letters and numbers).

1. Turn the air conditioner off and unplug it.
2. Remove the front grille if needed.
3. Look for a printed sticker or metal tag with Model and Serial.
4. Write the model number exactly as shown.

The exact model number ensures you get the right GE replacement parts and diagrams. Even small model-number differences can change which items fit, such as the front grille WJ71X33835 or the filter WJ85X33815.

For additional troubleshooting help once you have the model number, use our GE error codes reference to match any display code to the right repair path.

Last updated: February 2026

For the GE AWCS05BWB2 room air conditioner, AC spare-part pricing typically ranges from under $10 for small items to $100+ for electrical components; cosmetic panels and rails often land in the middle. We recommend comparing the part cost plus labor against the age and condition of the unit.

• Filters and small plastic pieces: about $10 to $40
• Grilles, rails, and trim: about $30 to $100
• Electrical items (cords, plugs, boards): about $10 to $200+
• Motors, fan blades, sensors (model dependent): often $50 to $300+
• Sealed-system parts (compressor/coils): usually not cost-effective on a room AC

• If the unit is cooling well and the issue is a wear item (filter, grille, rail), repair usually makes sense.
• If the problem is power-related, fix the obvious safety issue first (cord/plug) before chasing controls.
• If the unit is running but not cooling, start with airflow and basic checks before buying major parts.
• If multiple expensive parts are needed, replacement is often the better value for a room air conditioner.

Room air conditioners are compact systems; a low-cost part like a filter can restore airflow and prevent icing, while higher-cost electrical or sealed-system repairs can quickly exceed the value of the unit.

For troubleshooting costs tied to error displays, use GE error codes to narrow the failure before ordering parts.

Last updated: February 2026

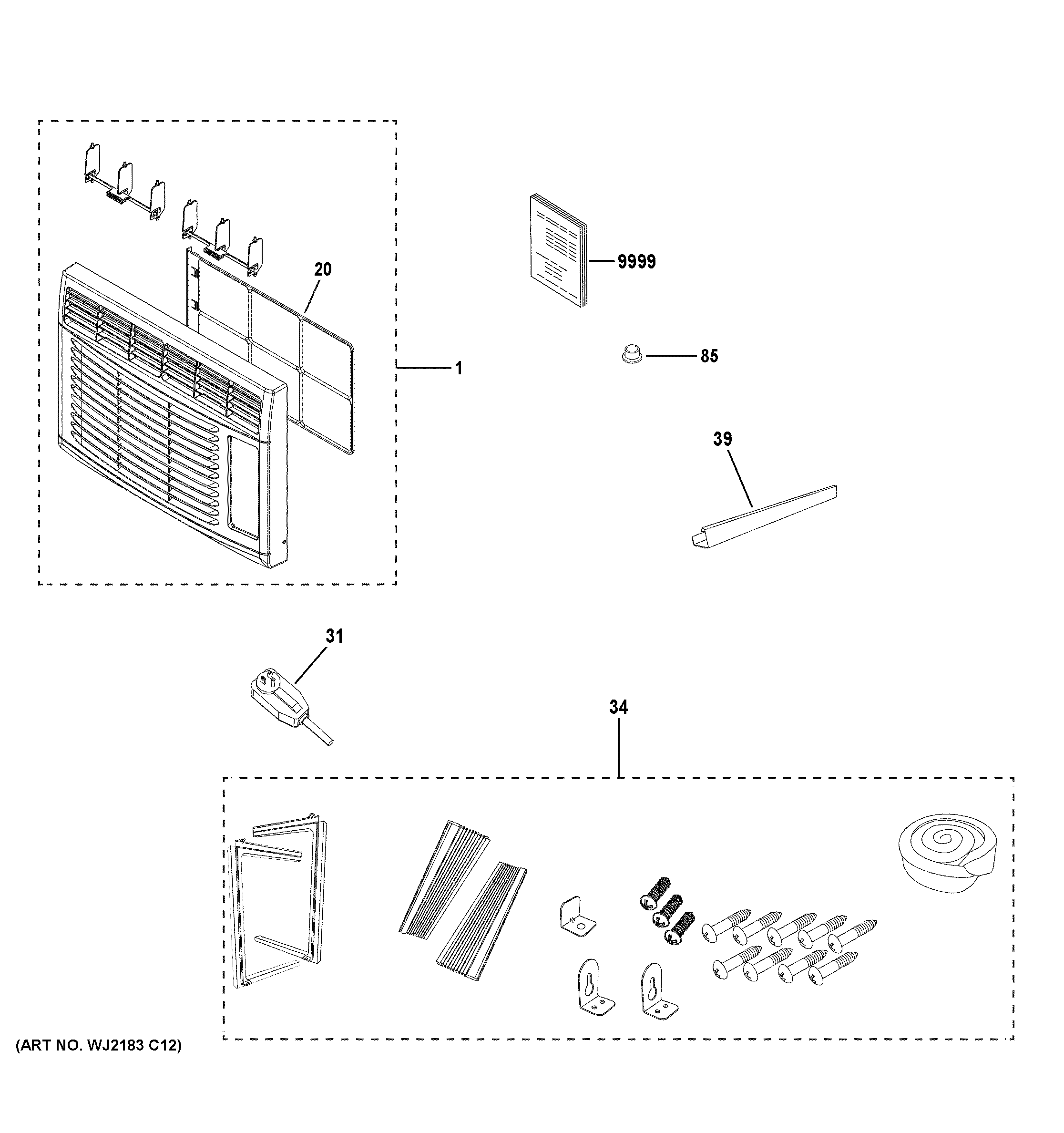

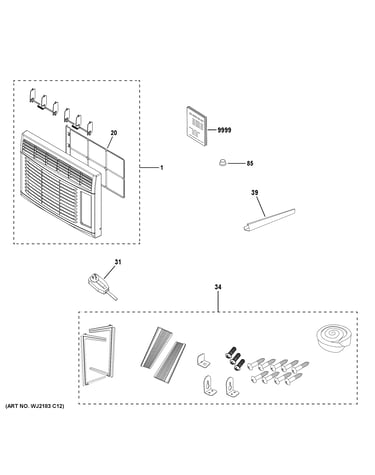

For the GE AWCS05BWB2 room air conditioner, the main parts include the air filter, front grille, fan system, coils (evaporator and condenser), controls, and the power supply components. On this model, common serviceable items include the filter WJ85X33815 and front grille WJ71X33835.

Most window and room air conditioners are built around these core systems:

• Airflow path: return air intake, filter, evaporator, supply air outlet
• Cooling system: evaporator coil (indoor side), condenser coil (outdoor side), compressor
• Fans: blower wheel (moves indoor air) and condenser fan (moves outdoor air)
• Condensate handling: drain pan and channels that route water outside
• Electrical and controls: user interface, sensors, wiring, and power cord

Some parts are designed to be removed for cleaning or replaced if damaged:

• Filter WJ85X33815 (helps keep the evaporator coil clean and airflow strong)
• Front grille WJ71X33835 (covers the intake area and supports the filter access)
• Top rail (mounting and stability component)
• Power cord (power supply to the unit)
• Plug (connection component for the cord set)

Knowing the major parts helps you troubleshoot faster. For example, a clogged filter can reduce airflow enough to cause evaporator icing, which then makes the unit “run but not cool” even though it is operating.

If your display shows a code or the unit is acting abnormal, use GE error codes to match the code to likely causes and next steps.

Last updated: February 2026

GE portable air conditioners typically use a single exhaust hose that’s about 5 feet long and about 5.9 inches (roughly 6 inches) in diameter. Your GE AWCS05BWB2 is a window room air conditioner, so it does not use an exhaust hose at all.

AWCS05BWB2 vents heat directly through the back of the unit when it’s mounted in a window; a portable unit vents through a flexible hose to a window panel.

• Check whether the unit sits in the window opening (window unit) or sits on the floor (portable).
• Look for a round exhaust port on the back (portable); AWCS05BWB2 won’t have one.
• Match parts by model number AWCS05BWB2, not by brand alone.
• If airflow is weak on AWCS05BWB2, start with cleaning or replacing the air filter.
• Inspect the front grille and filter area for dust buildup that restricts airflow.

If the issue is cooling performance (not a missing hose), these model-matched parts are the first ones we check:

• Filter WJ85X33815 (clogged filter reduces airflow and cooling)
• Front grille WJ71X33835 (damage can affect air intake and filter fit)

Buying a portable-AC exhaust hose for a window air conditioner leads to a mismatch and doesn’t solve cooling or venting problems. For AWCS05BWB2, airflow and installation fit are the key performance drivers.

Last updated: February 2026

If your GE AWCS05BWB2 room air conditioner is running but not blowing cold air, the most common causes are restricted airflow (dirty filter or blocked grille), a dirty condenser, or an operating condition like a recent power interruption. Start with airflow and cleaning checks before suspecting sealed-system issues.

• Set mode to Cool and lower the set temperature at least 5°F below room temperature.
• Make sure the air filter is clean; wash or replace the filter WJ85X33815.
• Confirm the front grille is fully seated and not blocked by curtains or furniture; inspect the front grille WJ71X33835.
• Let the unit run 10 to 15 minutes after changes; cooling can lag after cycling.
• Verify the room is sized reasonably for the unit; oversized rooms can feel like “no cooling.”

1. Unplug the air conditioner.
2. Remove and clean the filter; reinstall when fully dry.
3. Vacuum dust from the front intake and grille openings.
4. If accessible, gently clean the outdoor (condenser) coil fins with a soft brush and vacuum.

If airflow is strong and the filter and coils are clean but cooling is still poor, use our model-family troubleshooting resources:

• GE error codes
• Window air conditioner running but not cooling
• Window air conditioner evaporator fins are ice up

A dirty filter or restricted airflow can make the evaporator get too cold and ice up, which reduces cooling even more and can stress the compressor. Keeping airflow and coils clean restores performance and helps prevent repeat failures.

Last updated: February 2026
