GE
Countertop Microwave

Model # JE1453WH01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1453WH01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Latch Switch WB24X5227
#1448

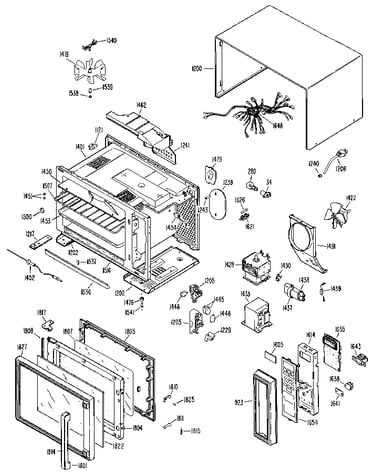

Microwave parts diagram

Latch switch

Part #WB24X5227

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X5227. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Latch Switch WB24X5228
#1445

Microwave parts diagram

Latch switch

Part #WB24X5228

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X5228. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Flame Sensor WB20X0141
#1121

Microwave parts diagram

Flame sensor

Part #WB20X0141

Replaced by #WB27X10195

?
Manufacturer substitution
This part replaces WB20X0141. Substitute parts can look different from the original.
$22.40 |
18% OFF Phone Price : $27.40
In Stock
Diode WB27X5386
#1439

Microwave parts diagram

Diode

Part #WB27X5386

The manufacturer no longer makes this part, and there's no substitute part

Magnetron WB27X5387
#1428

Microwave parts diagram

Magnetron

Part #WB27X5387

The manufacturer no longer makes this part, and there's no substitute part

Cook Book 39-4566

#NI

All parts diagram

Cook book

Part #39-4566

$28.04
In Stock
User's Manual 49-4919

#NI

All parts diagram

User's manual

Part #49-4919

This item is not returnable
$2.29
In Stock
Choke Liner WB55X5305
#1804

Microwave parts diagram

Choke liner

Part #WB55X5305

Replaced by #WB55X5305

?
Manufacturer substitution
This part replaces WB55X5305. Substitute parts can look different from the original.
$91.99
In Stock
Triac WB27X5391
#1638

Microwave parts diagram

Triac

Part #WB27X5391

Replaced by #WB27X5391

?
Manufacturer substitution
This part replaces WB27X5391. Substitute parts can look different from the original.
$57.49
In Stock
Fuse WB27X0007
#1626

Microwave parts diagram

Fuse

Part #WB27X0007

The manufacturer no longer makes this part, and there's no substitute part
