KitchenAid
Wall Oven/Microwave Combo

Model # KEMC377KWH0 Official KitchenAid built-in oven with microwave

Here are the diagrams and repair parts for Official KitchenAid KEMC377KWH0 built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

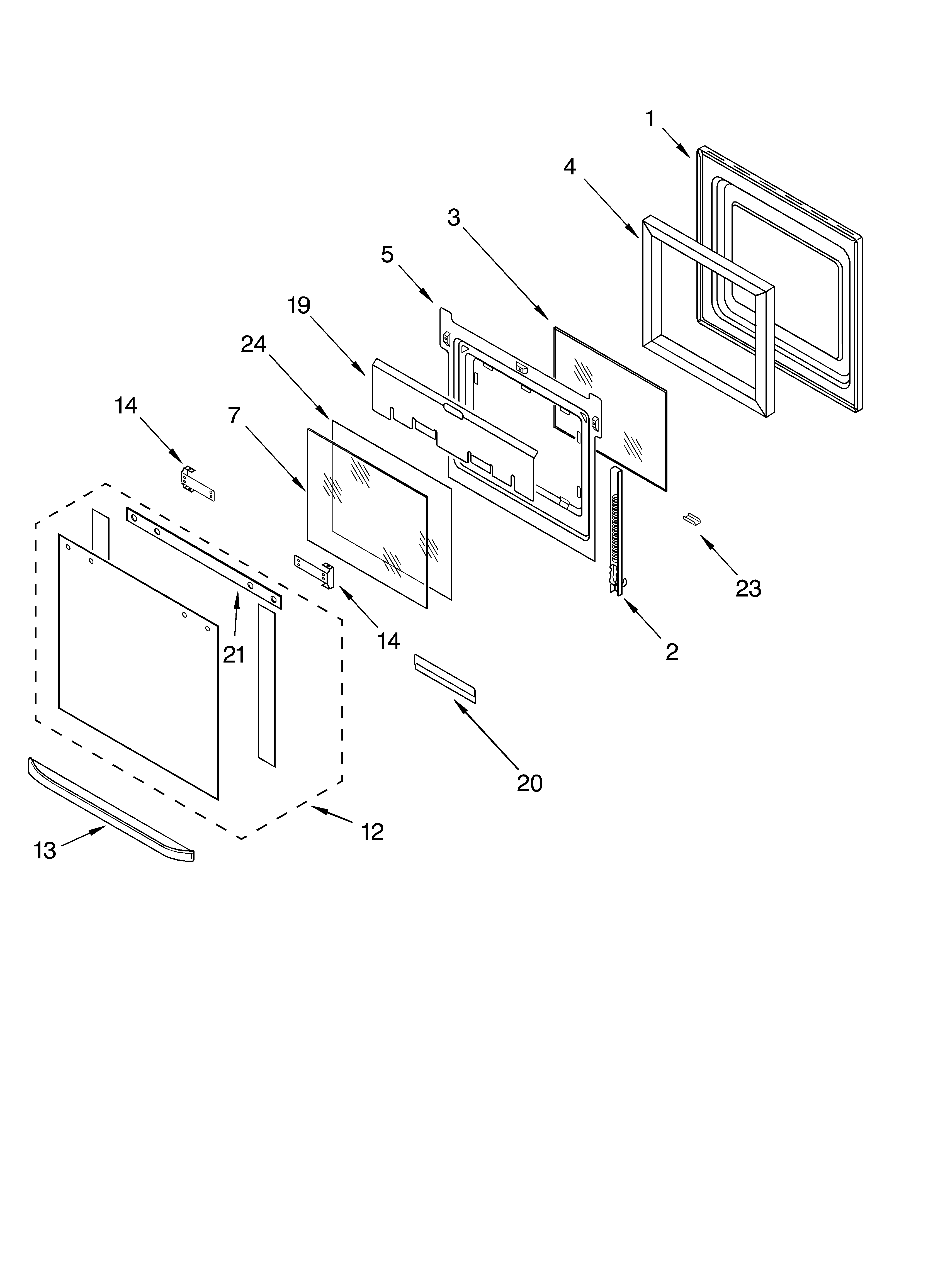

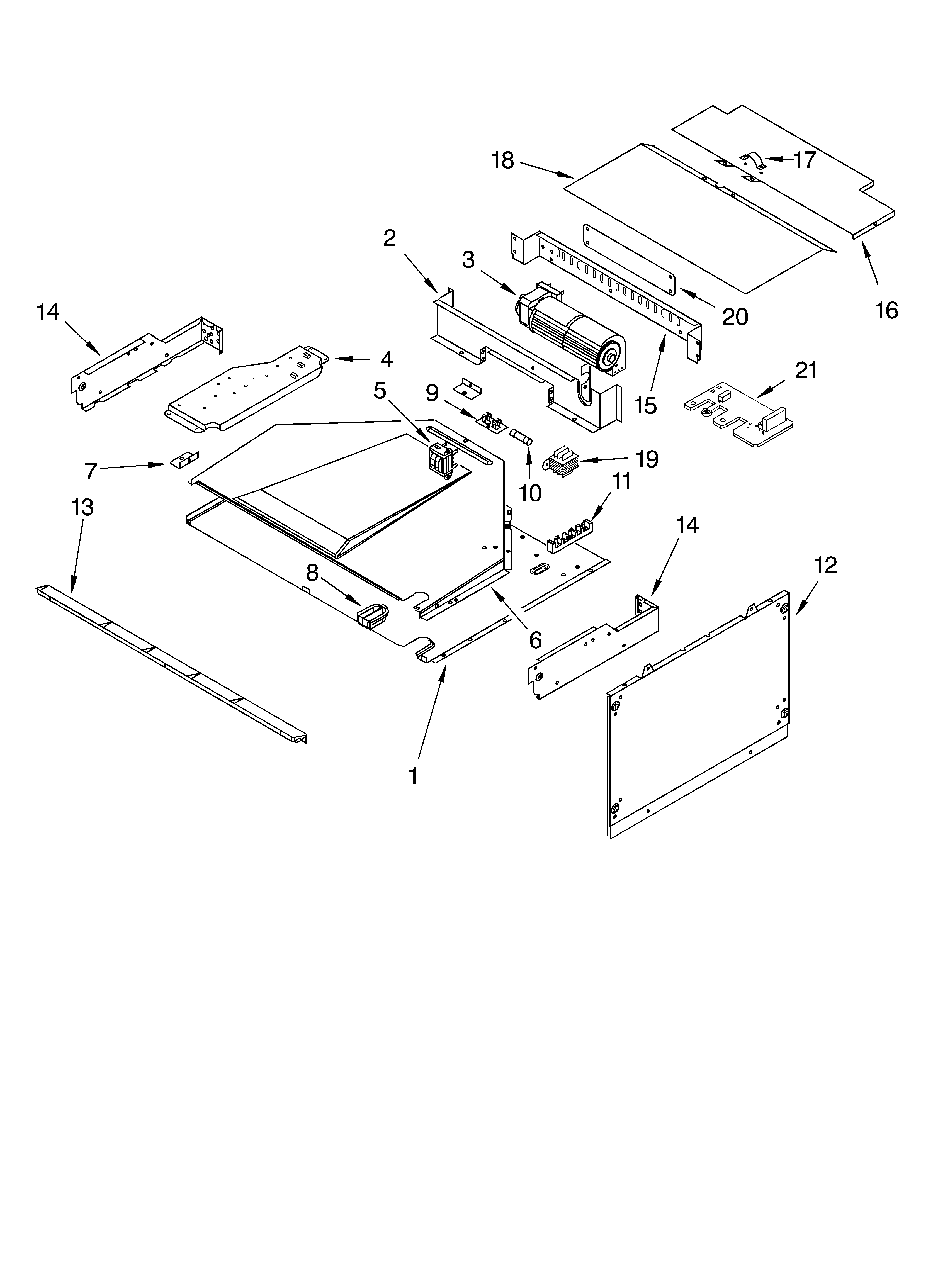

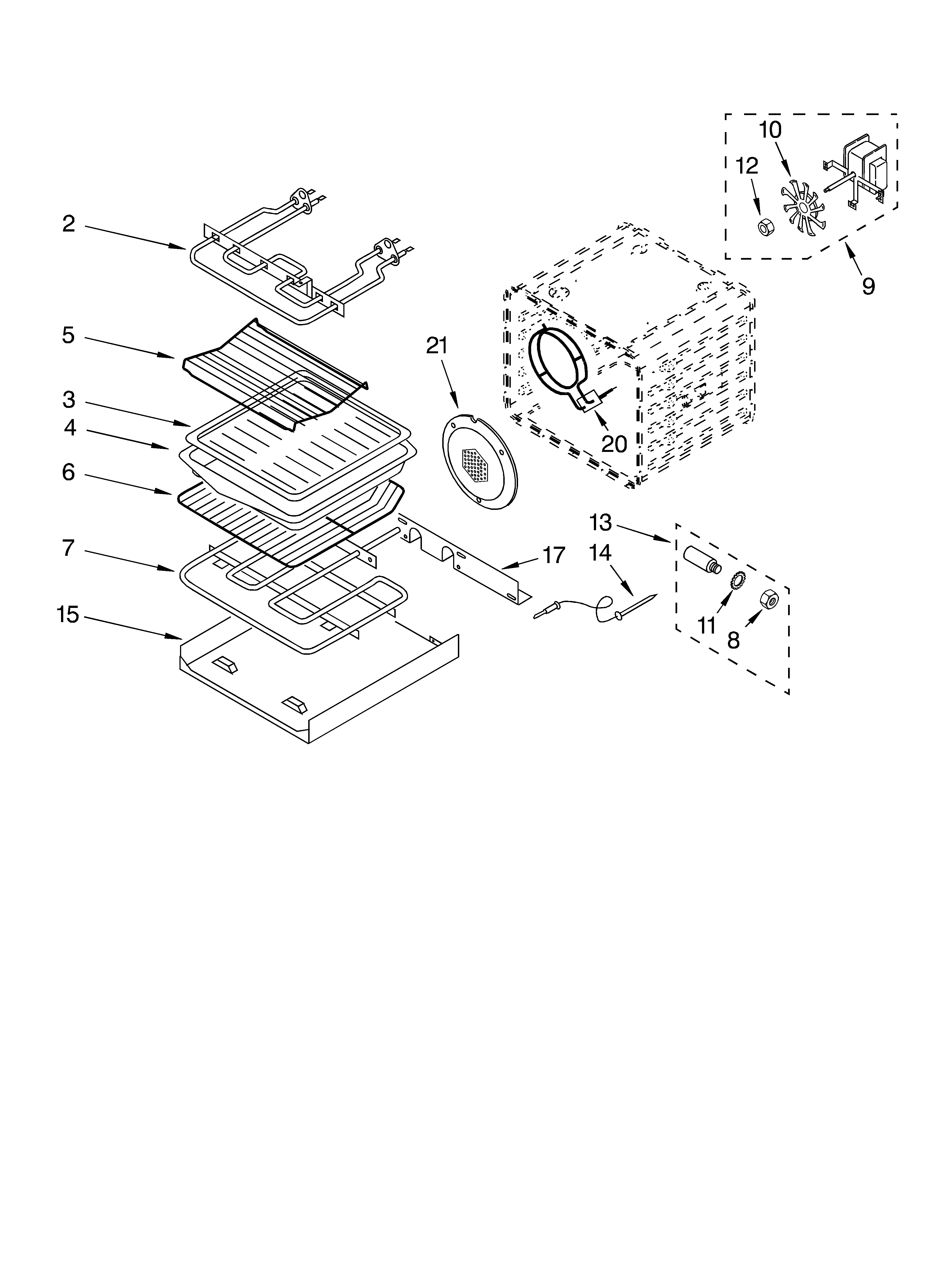

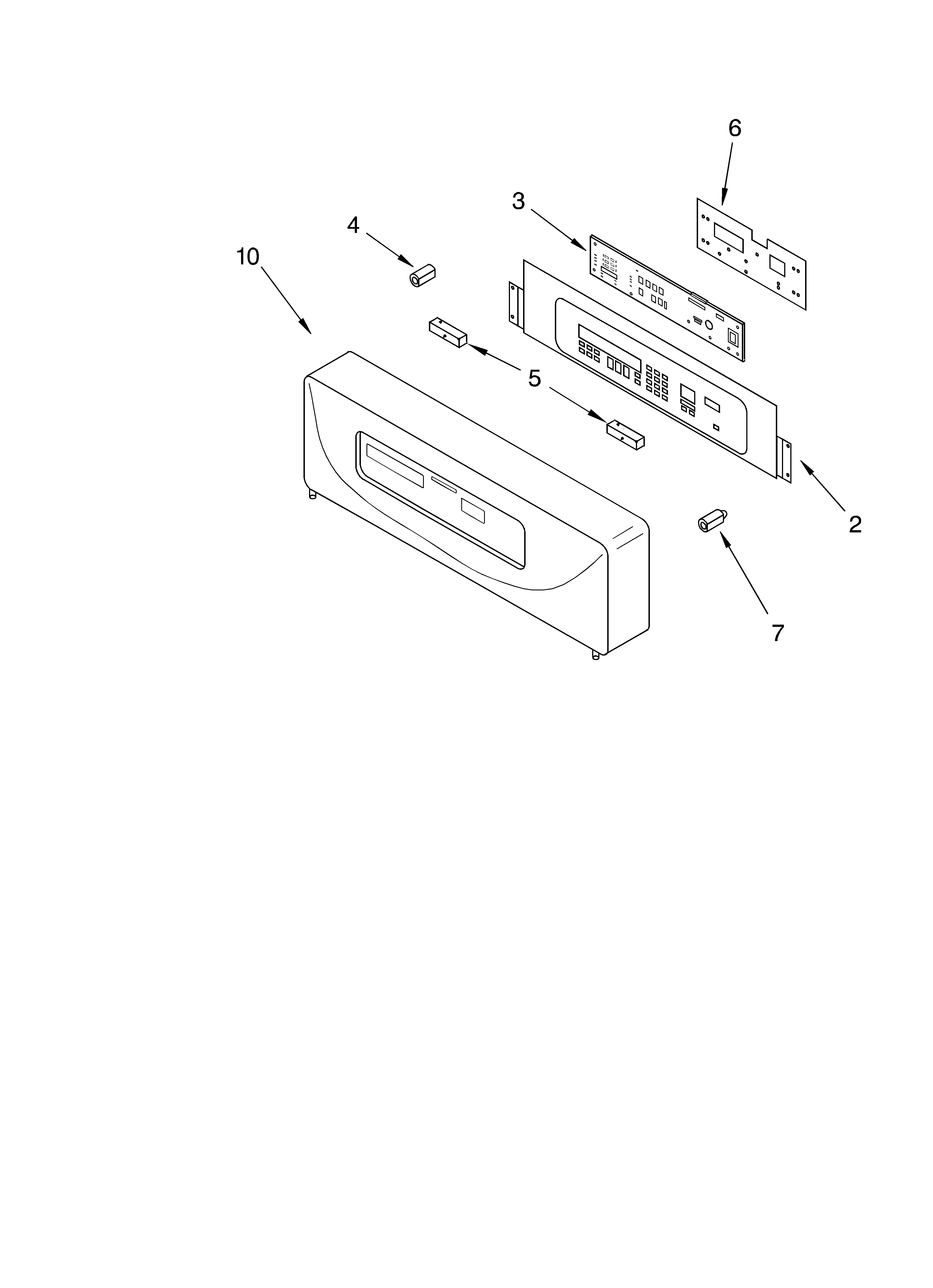

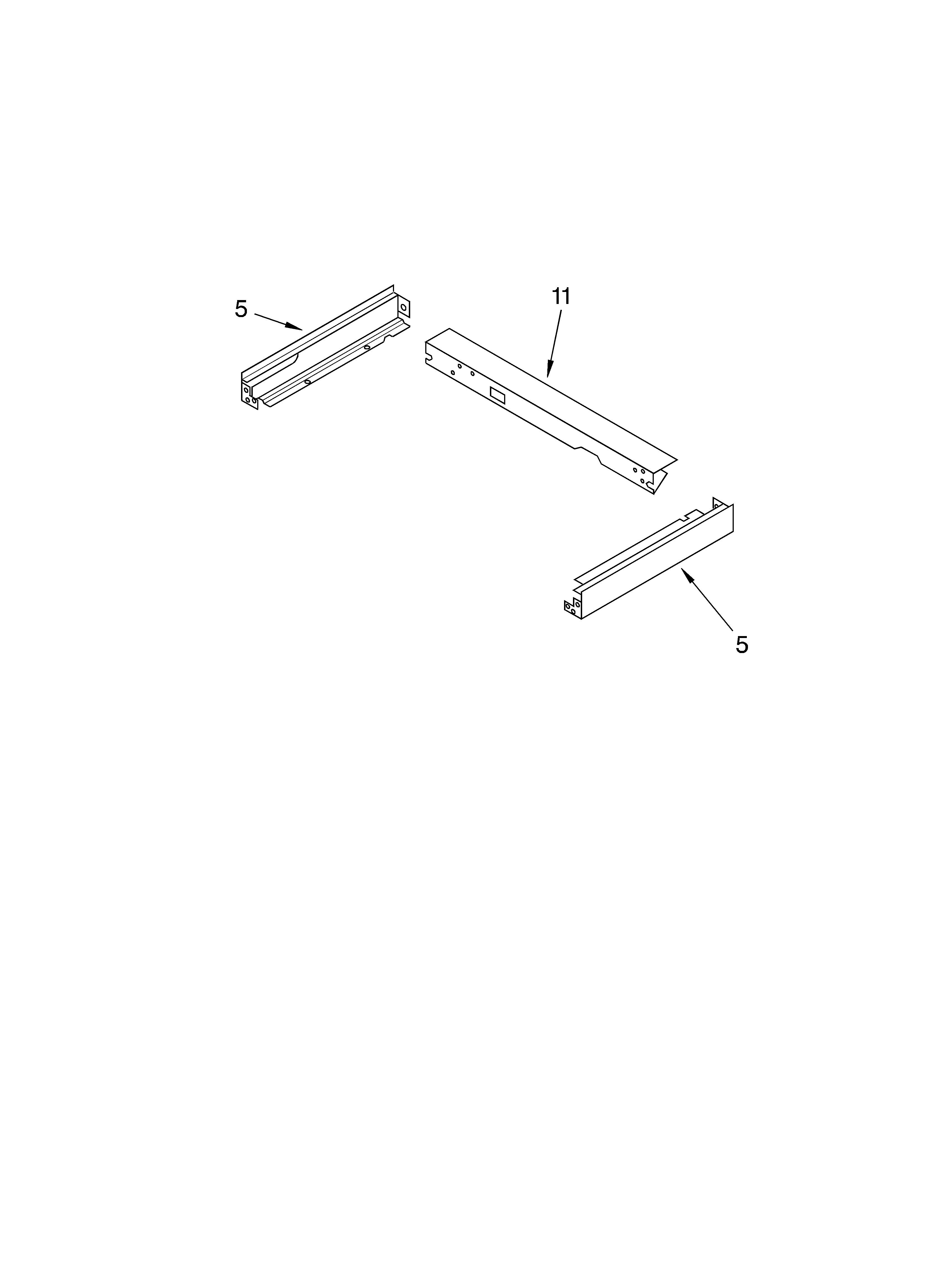

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 265 parts  |
Microwave Door Interlock Switch 4375346
#53

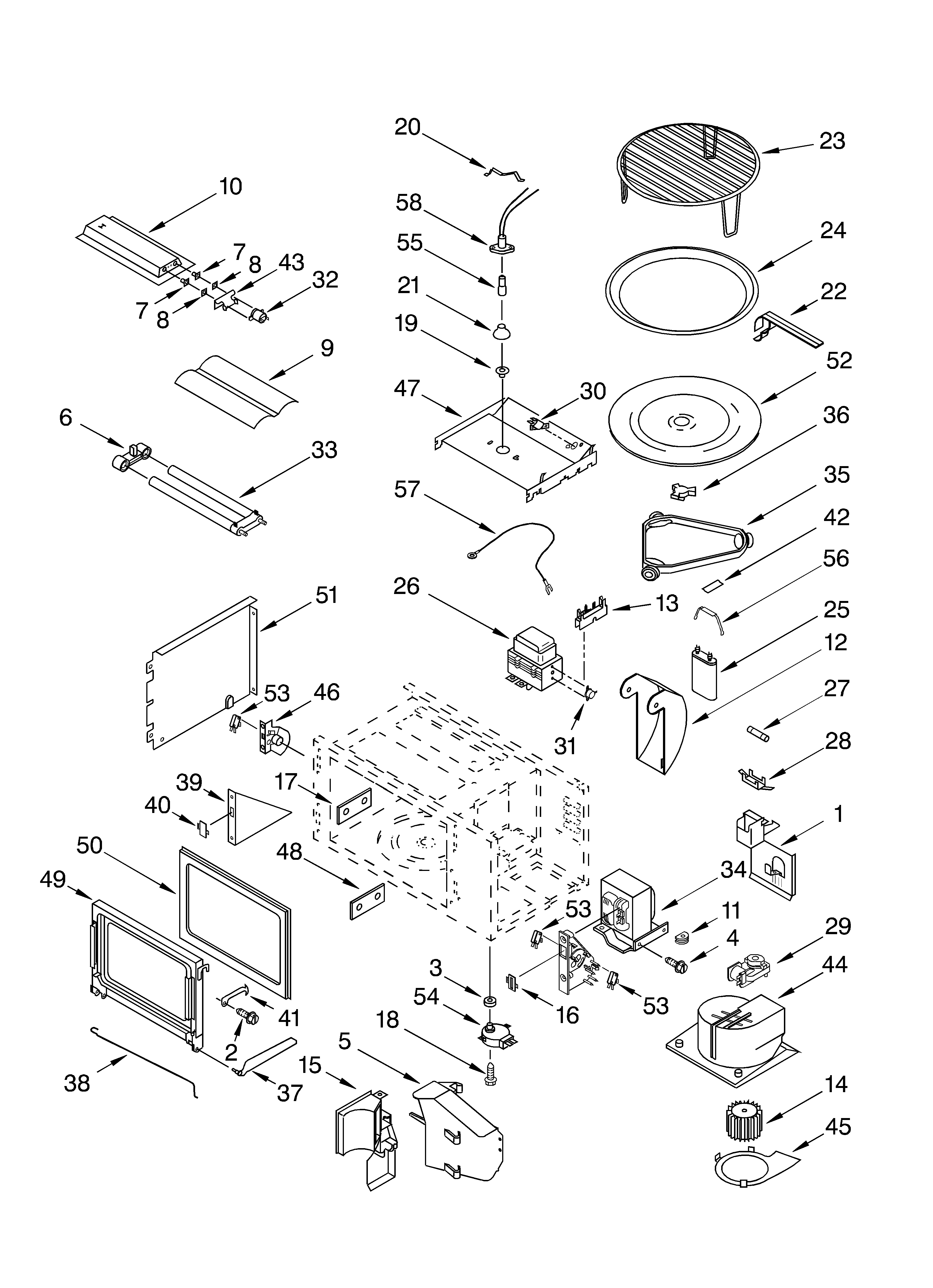

Cabinet and stirrer diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Wall Oven Temperature Sensor 4455636
#29

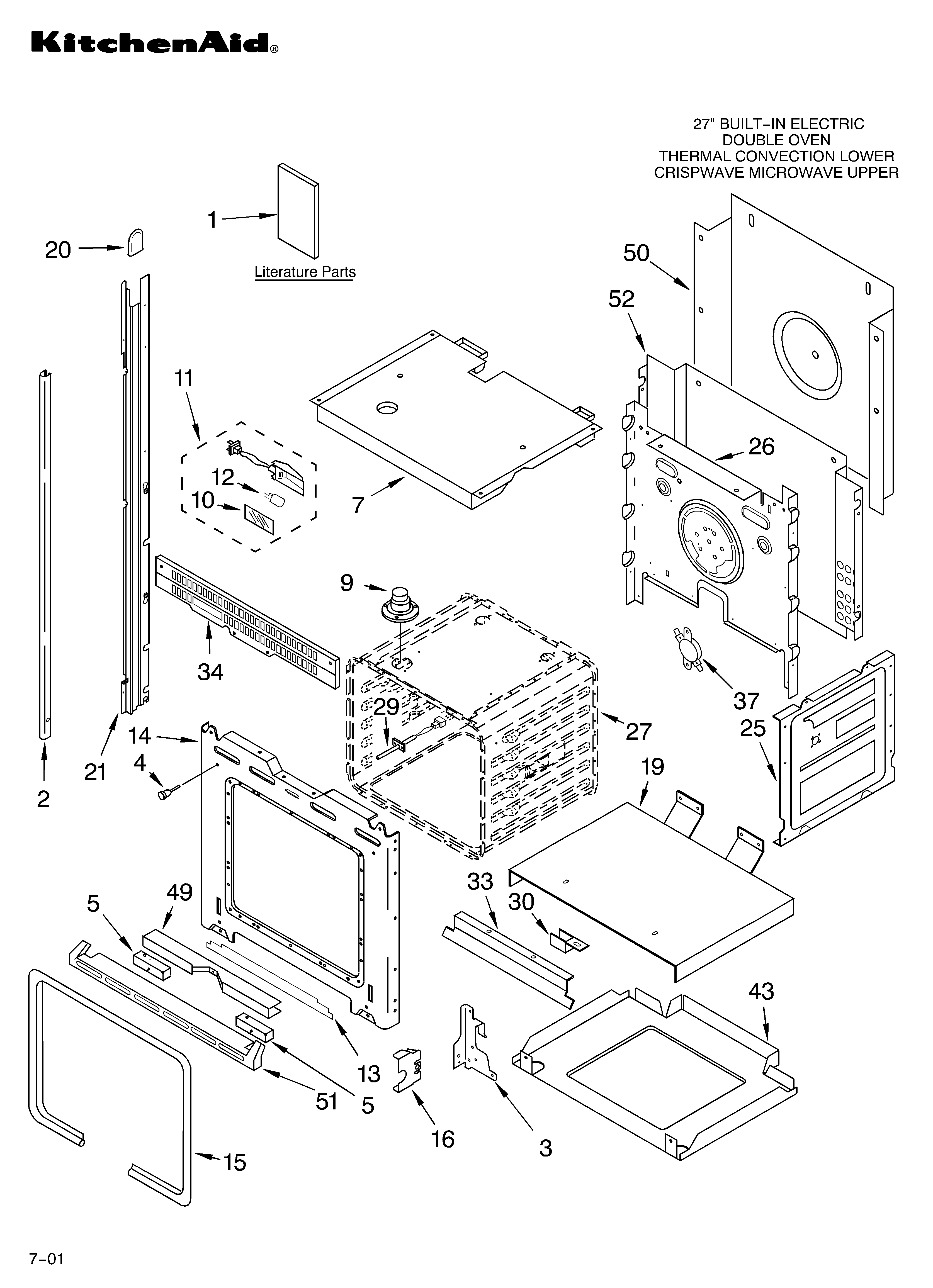

Oven/literature diagram

Wall oven temperature sensor

Part #4455636

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
BEST SELLER
$70.23 |
18% OFF MSRP : $86.00
In Stock
Appliance Touch-up Paint 72017
#NI

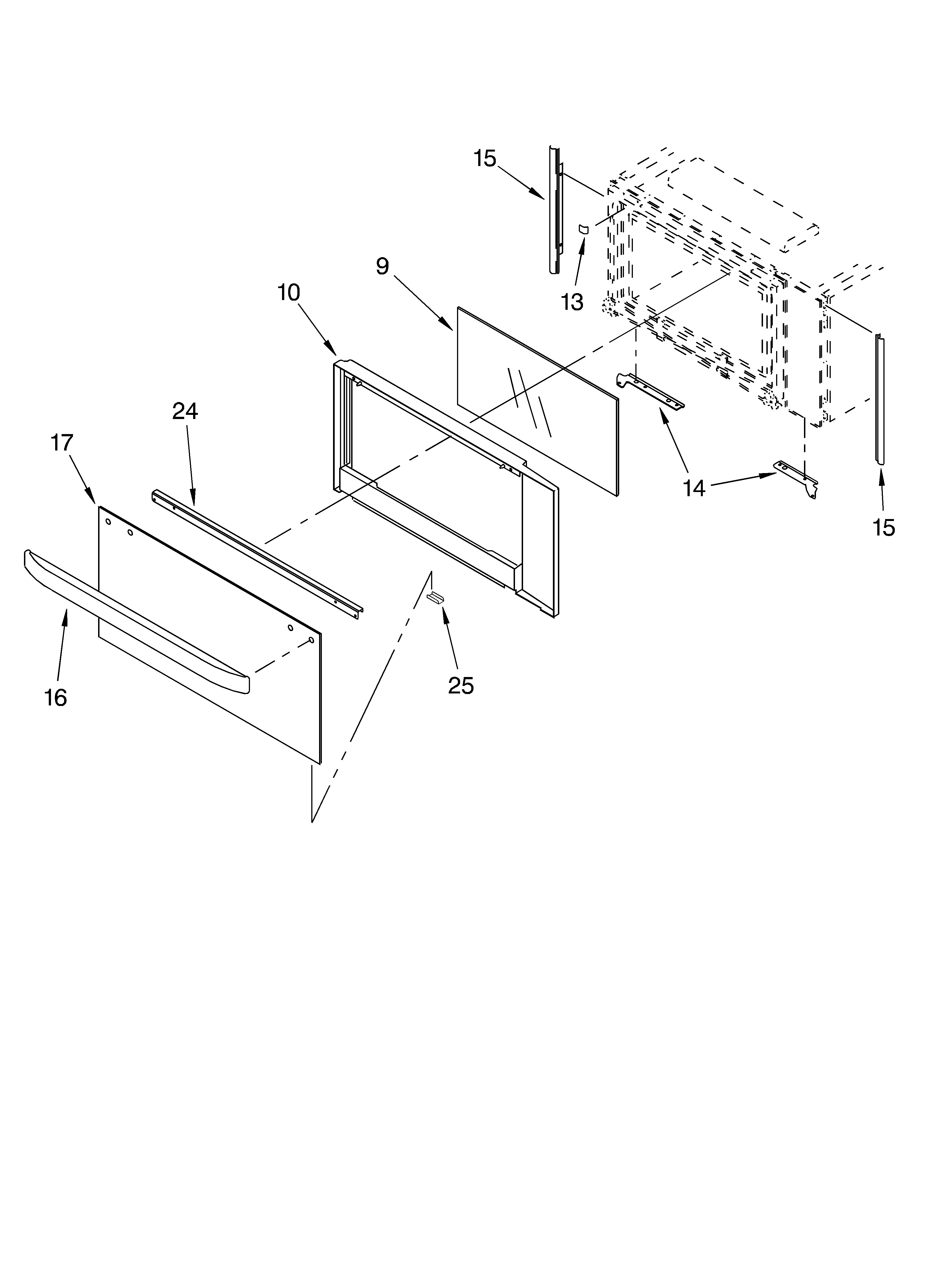

Microwave door diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Microwave door diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Magnetron 4375072
#26

Cabinet and stirrer diagram

Magnetron

Part #4375072

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Torsion Spring 4452395
#38A

Cabinet and stirrer diagram

Microwave door torsion spring

Part #4452395

Replaced by #WP4452395

?
Manufacturer substitution
This part replaces 4452395. Substitute parts can look different from the original.
BEST SELLER
$58.69 |
29% OFF MSRP : $83.00
In Stock
Microwave High-voltage Capacitor 4375020
#25

Cabinet and stirrer diagram

Microwave high-voltage capacitor

Part #4375020

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375020. Substitute parts can look different from the original.
BEST SELLER
$108.39 |
10% OFF MSRP : $120.00
In Stock
Blower 6610168
#16

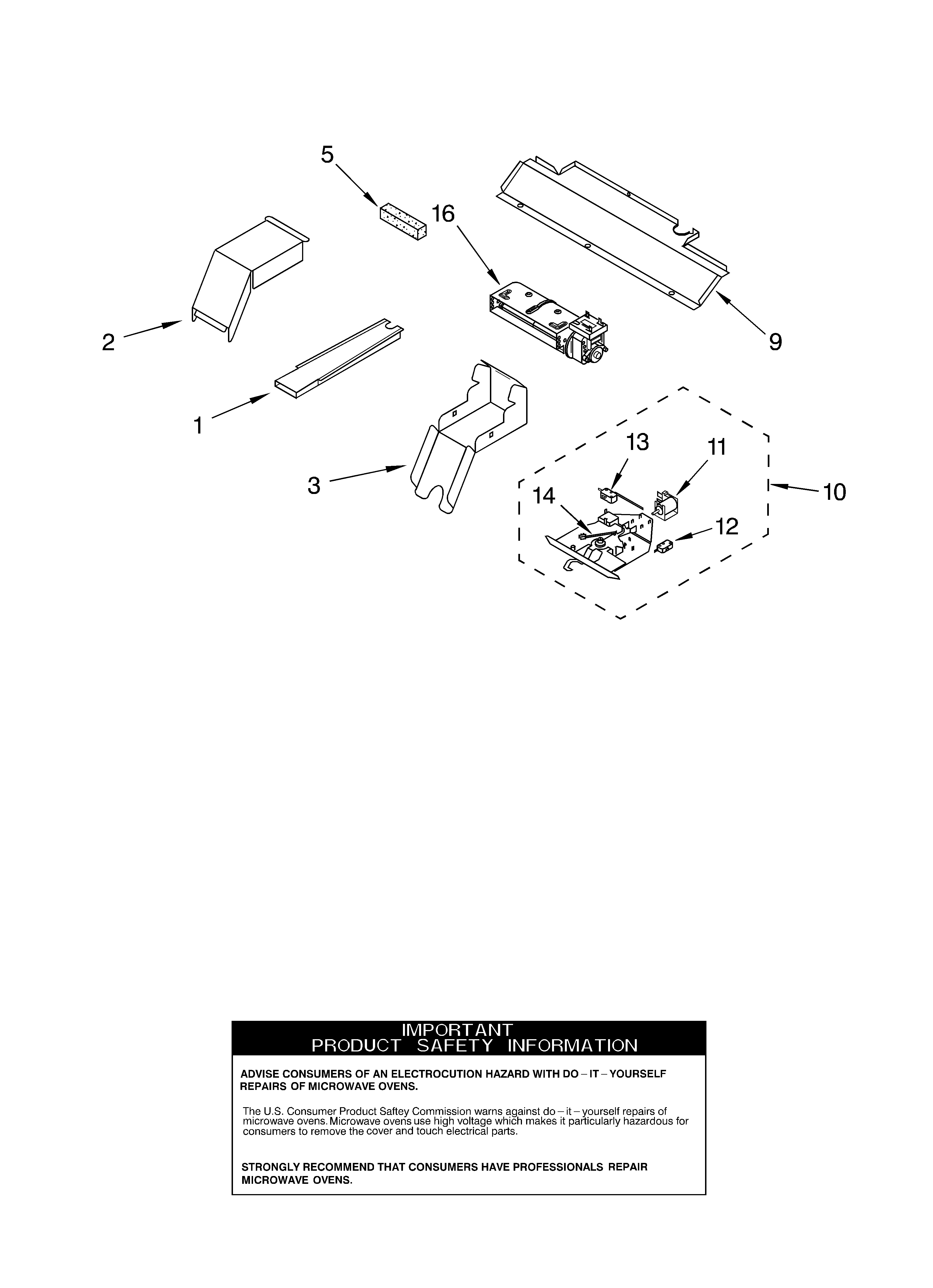

Latch diagram

Blower

Part #6610168

Replaced by #WPW10016550

?
Manufacturer substitution
This part replaces 6610168. Substitute parts can look different from the original.
BEST SELLER
$165.37 |
13% OFF MSRP : $190.00
In Stock
Touch-up Paint 4392899
#NI

Microwave door diagram

Touch-up paint

Part #4392899

Replaced by #4392899

?
Manufacturer substitution
This part replaces 4392899. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Wall Oven Light Bulb 4452164
#12

Oven/literature diagram

Wall oven light bulb

Part #4452164

Replaced by #WP4452164

?
Manufacturer substitution
This part replaces 4452164. Substitute parts can look different from the original.
$39.38 |
12% OFF MSRP : $45.00
In Stock
