Model # 4216/10/20 Official IBM printer with sheetfeed option

Here are the diagrams and repair parts for Official IBM 4216-10-20 printer with sheetfeed option, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Guide, Envelope 01F1067
#5

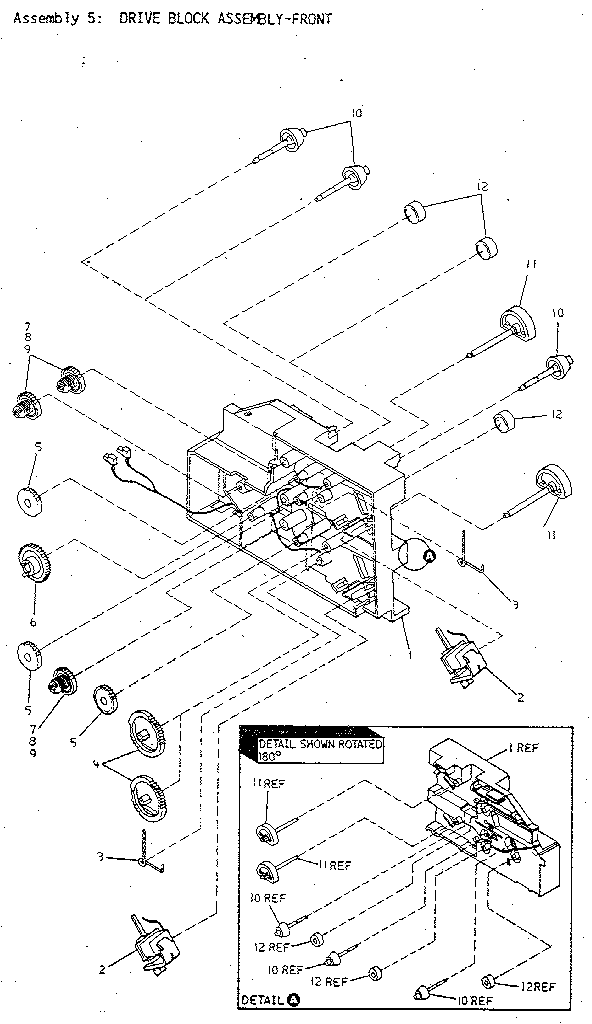

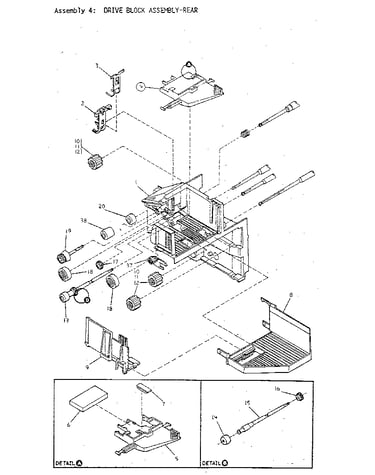

Ibm sheetfeed option 4216 diagram

Guide, envelope

Part #01F1067

The manufacturer no longer makes this part, and there's no substitute part

Ferrite, Bead Shield 15F6275
#25

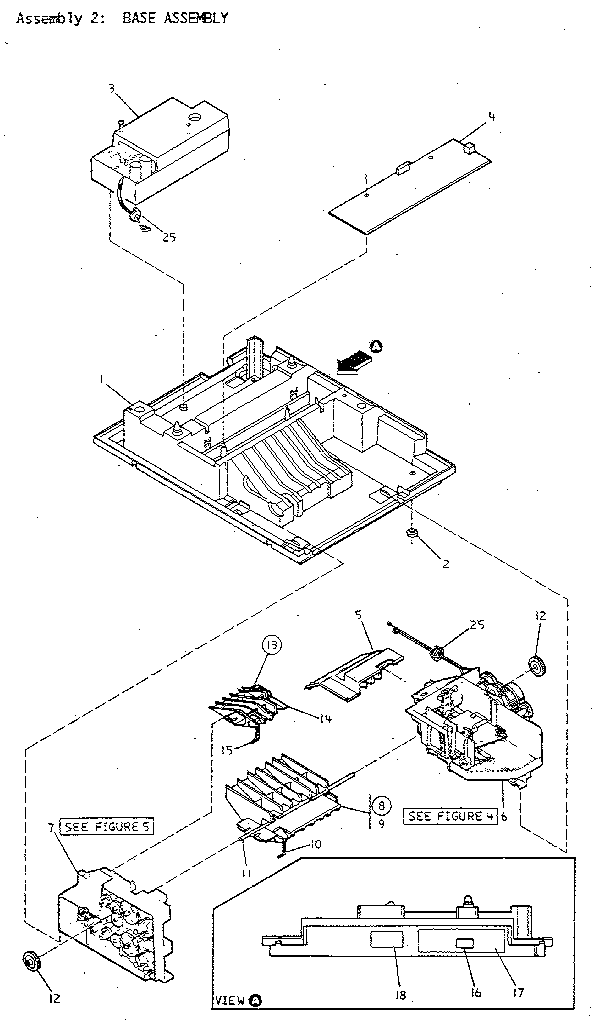

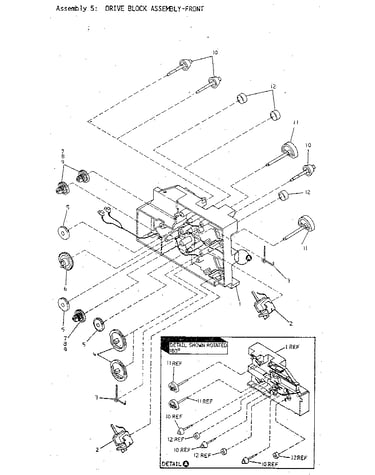

Ibm sheetfeed option 4216 diagram

Ferrite, bead shield

Part #15F6275

The manufacturer no longer makes this part, and there's no substitute part

Gear 01F1028
#31

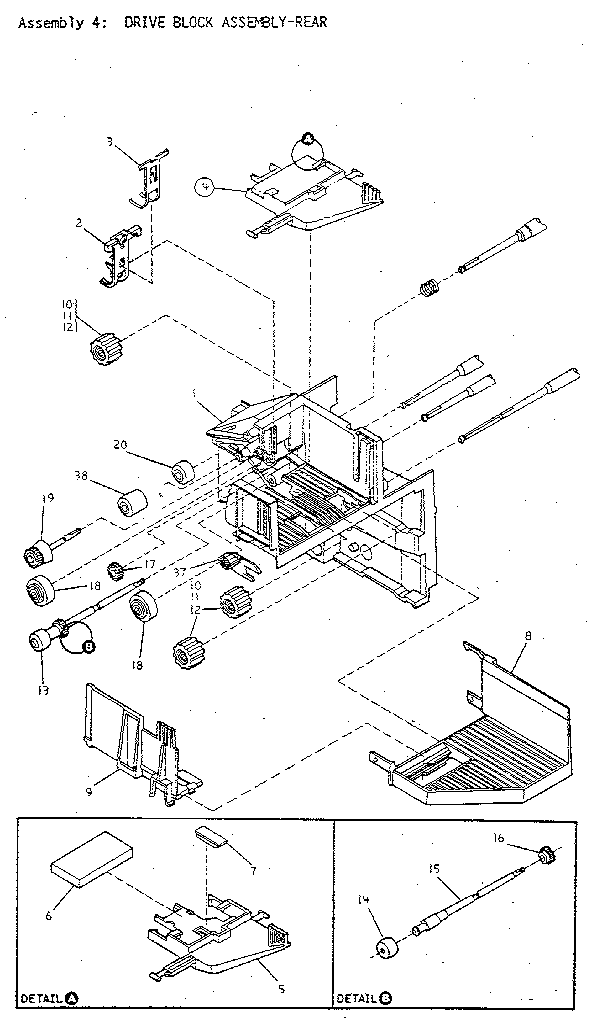

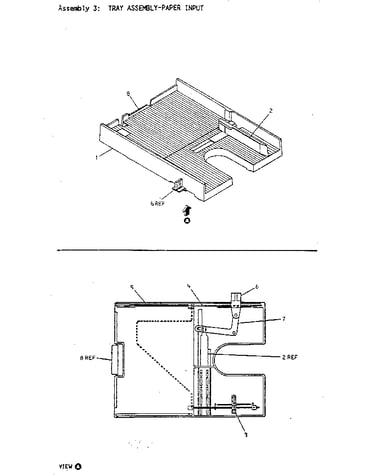

Ibm sheetfeed option 4216 diagram

Gear

Part #01F1028

The manufacturer no longer makes this part, and there's no substitute part

Handle, Width Adjustment 01F1074
#6

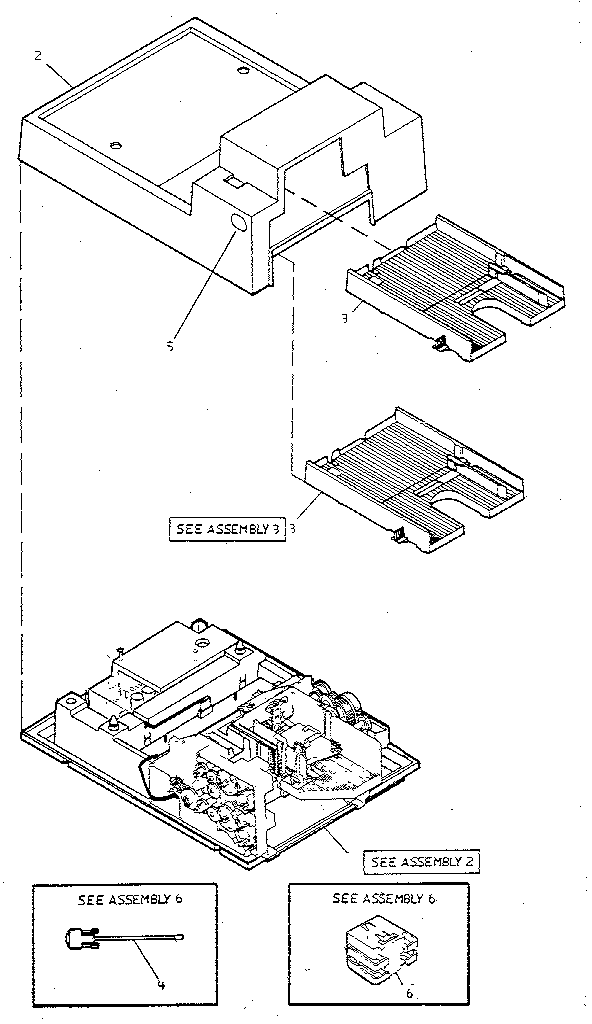

Ibm sheetfeed option 4216 diagram

Handle, width adjustment

Part #01F1074

The manufacturer no longer makes this part, and there's no substitute part

Logo 01F1096
#5

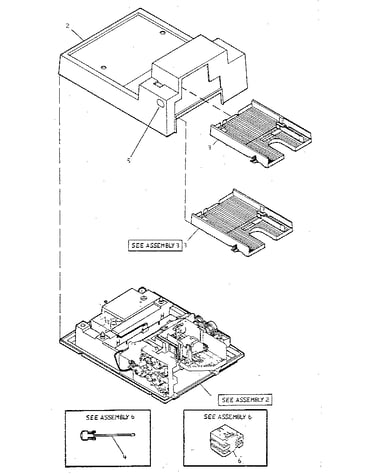

Ibm sheetfeed option 4216 diagram

Logo

Part #01F1096

The manufacturer no longer makes this part, and there's no substitute part

Roller 15F6309
#38

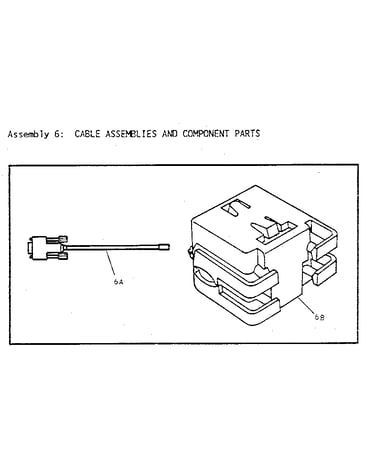

Ibm sheetfeed option 4216 diagram

Roller

Part #15F6309

The manufacturer no longer makes this part, and there's no substitute part

Arbor (see Note 1) 01F1098
#9

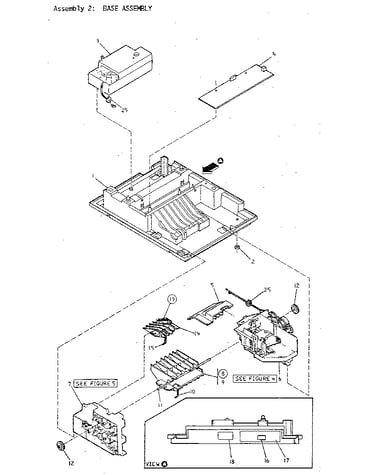

Ibm sheetfeed option 4216 diagram

Arbor (see note 1)

Part #01F1098

The manufacturer no longer makes this part, and there's no substitute part

Ferrite Assembly (see Note 2 Below) 56X9785
Ferrite assembly (see note 2 below)

Part #56X9785

The manufacturer no longer makes this part, and there's no substitute part

Pad, Envelope Restraint 01F1040
#7

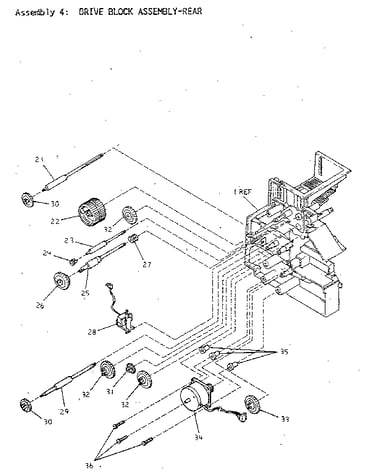

Ibm sheetfeed option 4216 diagram

Pad, envelope restraint

Part #01F1040

The manufacturer no longer makes this part, and there's no substitute part

Label, Logo, Type, S/n 15F6291
#18C

Ibm sheetfeed option 4216 diagram

Label, logo, type, s/n

Part #15F6291

The manufacturer no longer makes this part, and there's no substitute part
