White-Westinghouse
Room Air Conditioner

Model # WAS256P2K1 Official White-Westinghouse room air conditioner - 5995216396

Here are the diagrams and repair parts for Official White-Westinghouse WAS256P2K1 room air conditioner - 5995216396, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

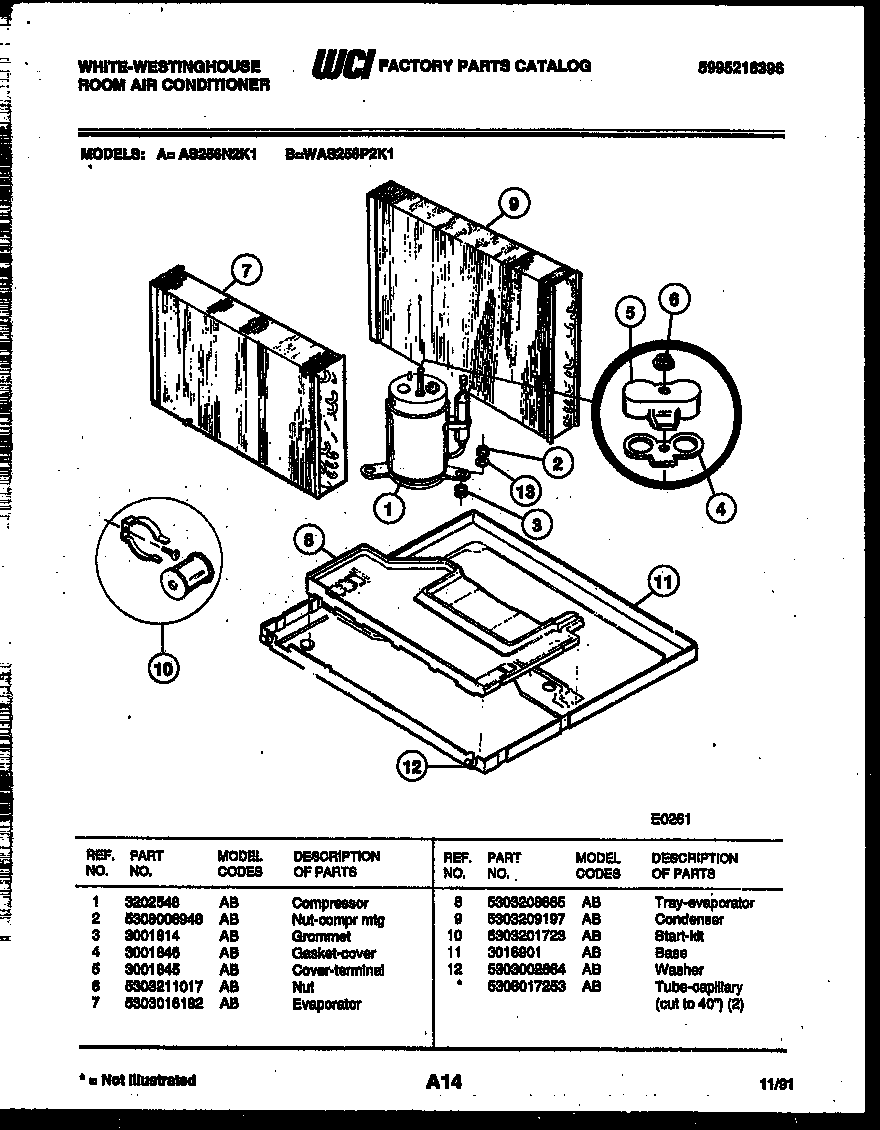

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Divider 3015321
#12

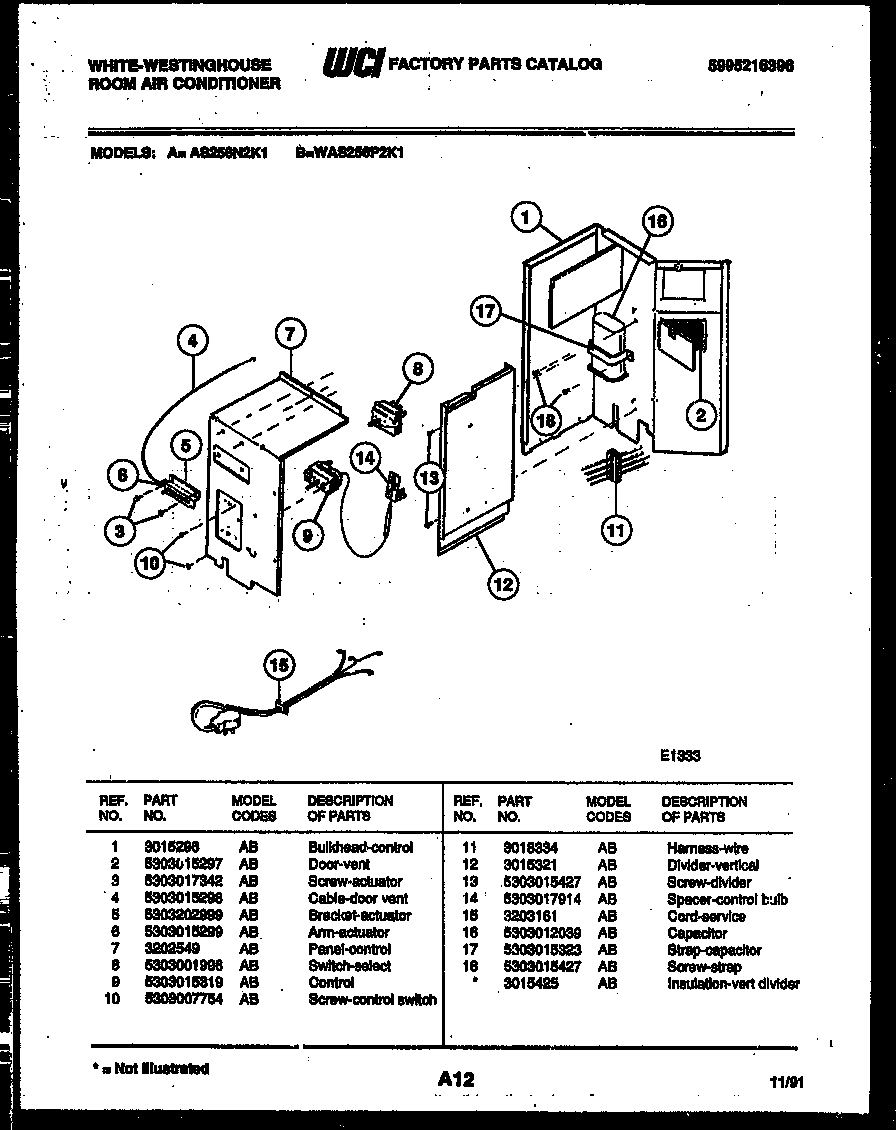

Electrical parts diagram

Divider

Part #3015321

This item is not returnable
In Stock
Screw 3202975
#2

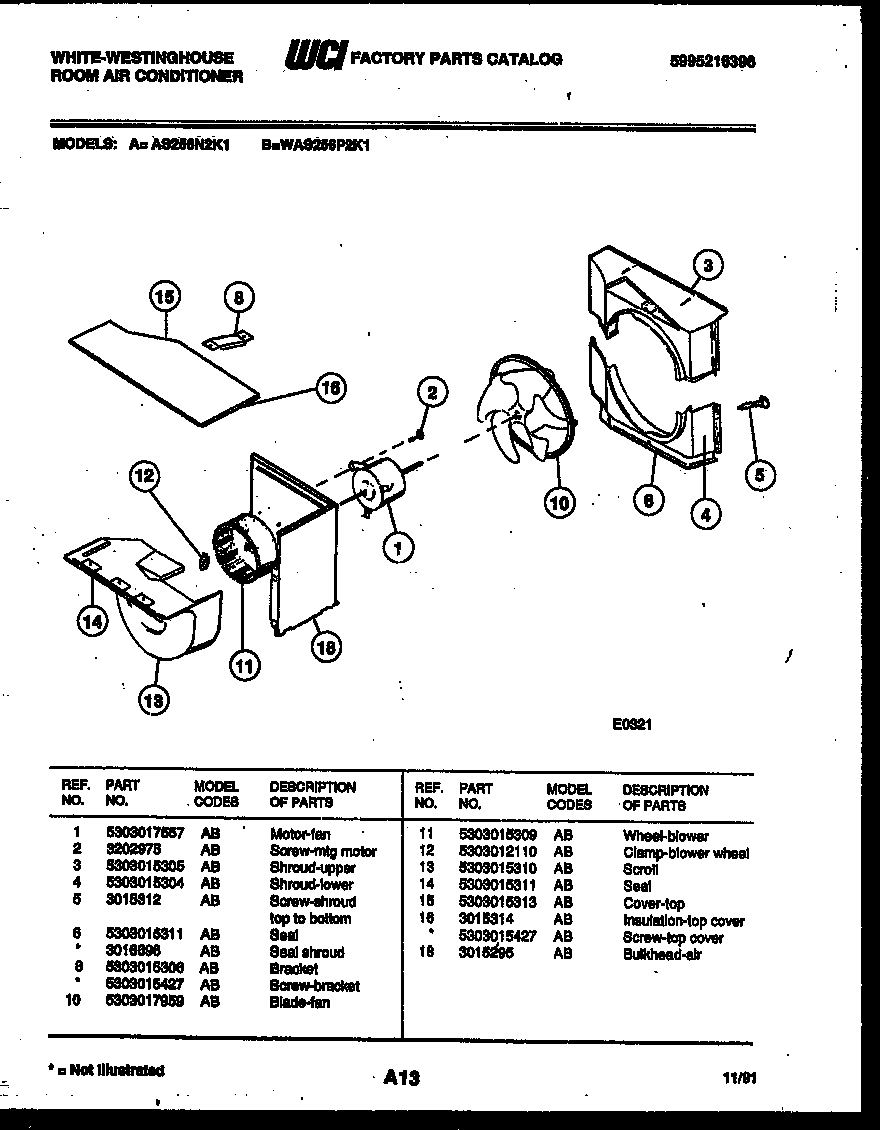

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut-hex 3017023
#12

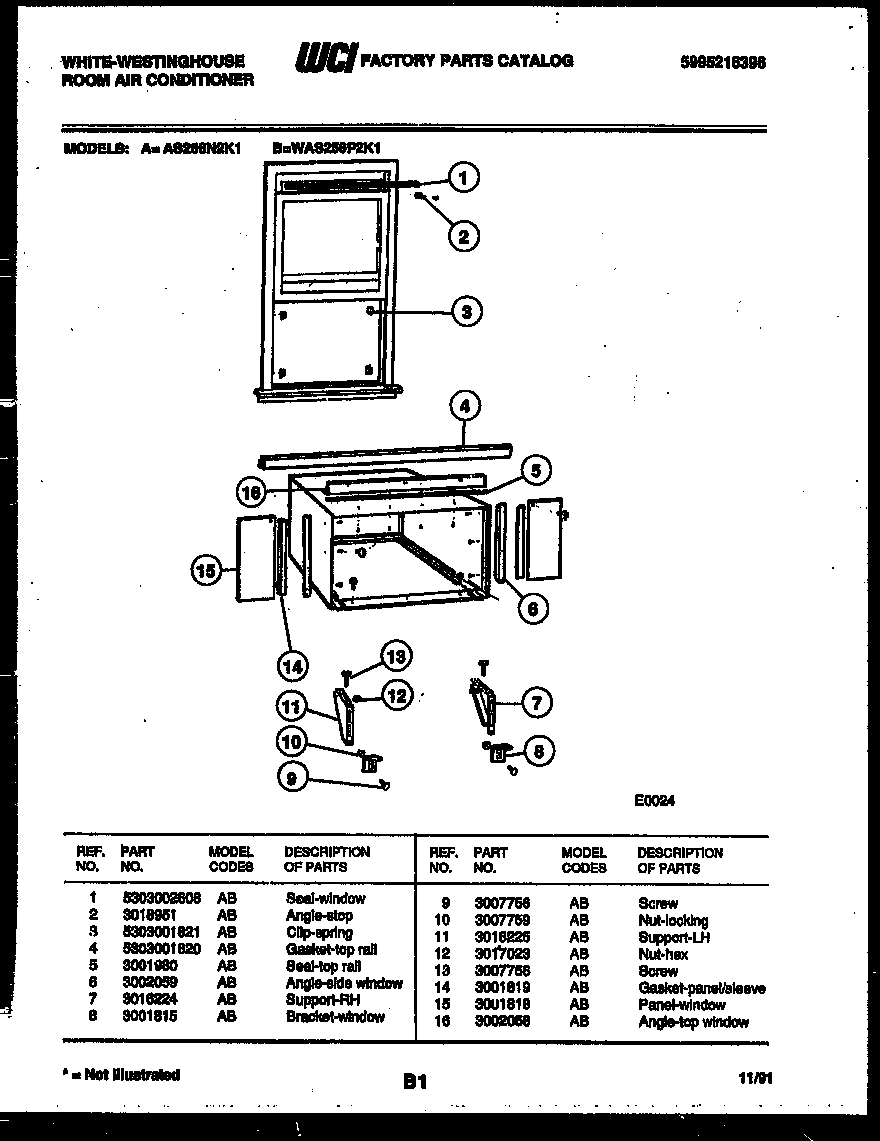

Cabinet and installation parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bracket Screw 3015312
#5

Air handling parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Motor 5303017557
#1

Air handling parts diagram

Motor

Part #5303017557

Replaced by #309630608

?
Manufacturer substitution
This part replaces 5303017557. Substitute parts can look different from the original.
In Stock
Gasket 5303001820
#4

Cabinet and installation parts diagram

Gasket

Part #5303001820

Replaced by #5303302764

?
Manufacturer substitution
This part replaces 5303001820. Substitute parts can look different from the original.
In Stock
Gasket 3001819
#14

Cabinet and installation parts diagram

Gasket

Part #3001819

Replaced by #5303302765

?
Manufacturer substitution
This part replaces 3001819. Substitute parts can look different from the original.
This item is not returnable
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Angle 3002059
#6

Cabinet and installation parts diagram

Angle

Part #3002059

The manufacturer no longer makes this part, and there's no substitute part

Frame-horiz Lvr 5303017160
#2

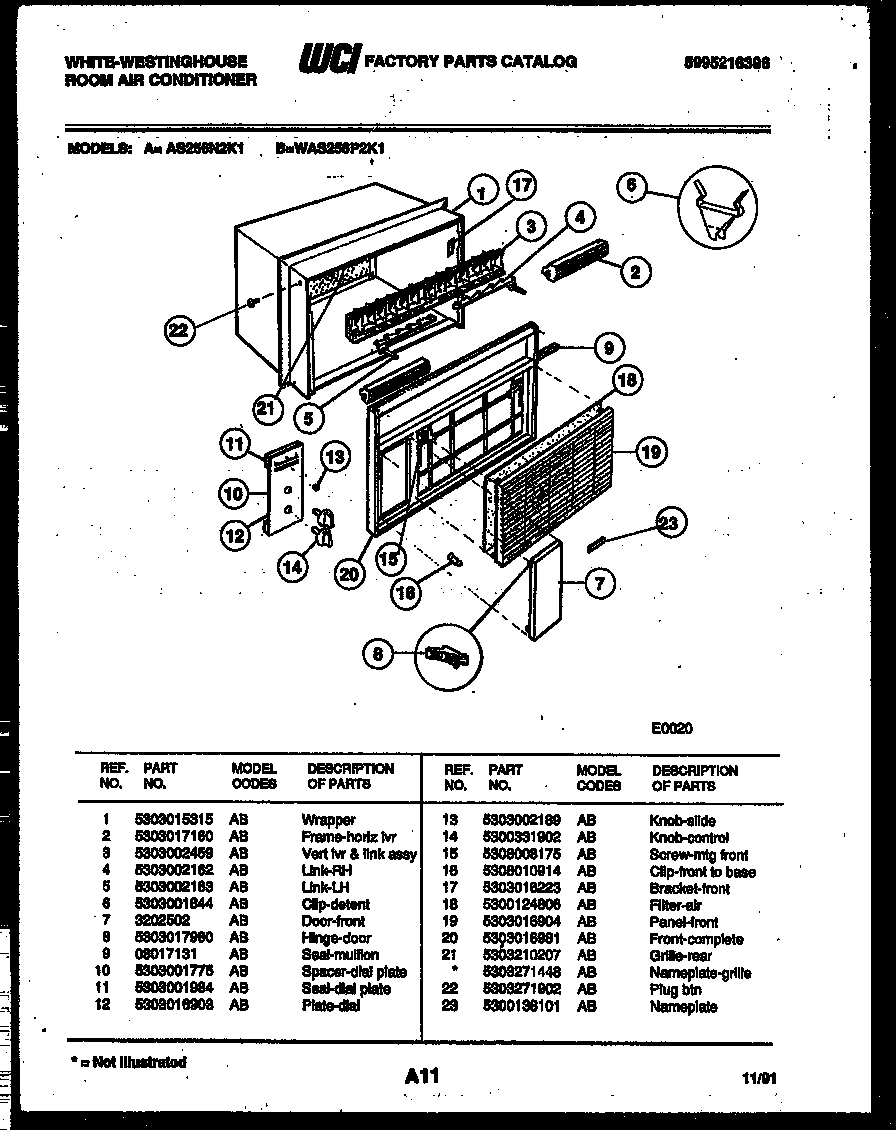

Cabinet parts diagram

Frame-horiz lvr

Part #5303017160

The manufacturer no longer makes this part, and there's no substitute part
