Model # NDC7125BKA2 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NDC7125BKA2 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Cap Rnrd 1094956
#6

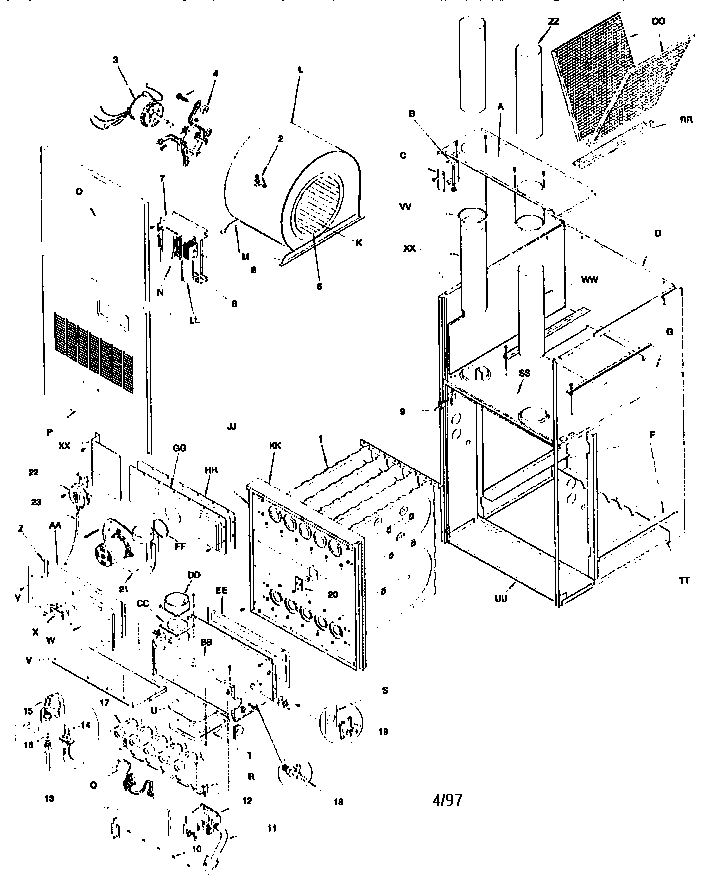

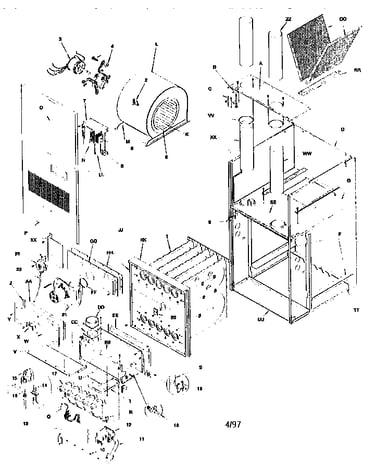

Unit parts diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Blower Assembly 1708607
#21

Unit parts diagram

Furnace blower assembly

Part #1708607

Replaced by #1013833

?
Manufacturer substitution
This part replaces 1708607. Substitute parts can look different from the original.
$237.41 |
$10.00 OFF Phone Price : $247.41
In Stock
Cont Fan Tmr 1009838
#7

Unit parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$227.07 |
$10.00 OFF Phone Price : $237.07
In Stock
Valve 1009093
#12

Unit parts diagram

Valve

Part #1009093

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009093. Substitute parts can look different from the original.
$674.90 |
$10.00 OFF Phone Price : $684.90
In Stock
Tubing 64930
#13

Unit parts diagram

Tubing

Part #64930

$77.80
In Stock
Blower Wheel 1009147
#5

Unit parts diagram

Blower wheel

Part #1009147

Replaced by #1011420

?
Manufacturer substitution
This part replaces 1009147. Substitute parts can look different from the original.
$160.43 |
6% OFF Phone Price : $170.43
In Stock
Furnace Burner 1008726
#17

Unit parts diagram

Furnace burner

Part #1008726

$142.32
In Stock
Furnace Pilot Burner 1149856
#15

Unit parts diagram

Furnace pilot burner

Part #1149856

$314.91 |
$10.00 OFF Phone Price : $324.91
In Stock
Gsket Air In 1008746
#CC

Unit parts diagram

Gsket air in

Part #1008746

This item is not returnable
$2.16
In Stock
Baffle 707010031
#F

Unit parts diagram

Baffle

Part #707010031

$49.47
In Stock
