Model # D247-300 Official Dunkirk boiler

Here are the diagrams and repair parts for Official Dunkirk D247-300 boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Control Lp 146-62-071
#21A

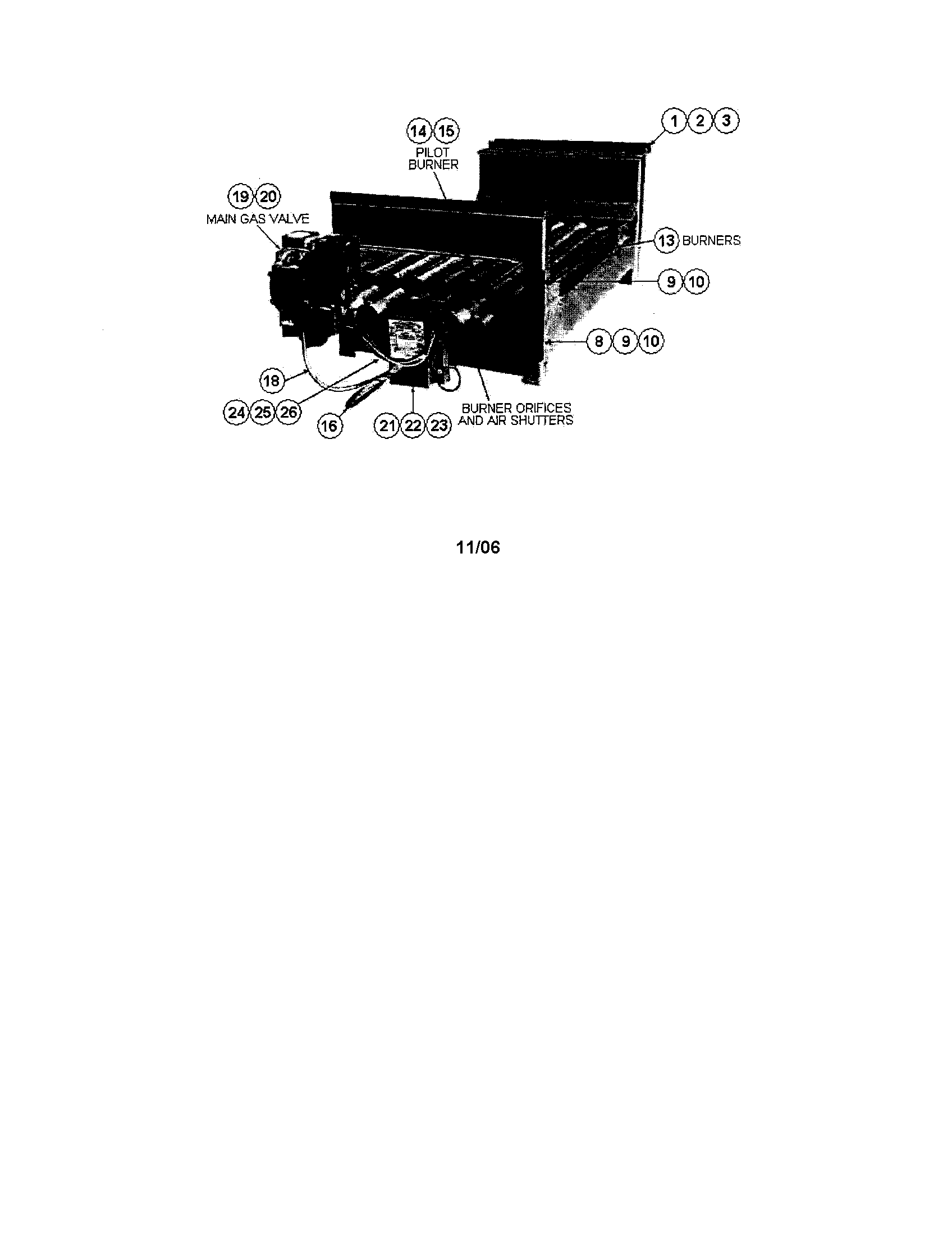

Dunkirk boiler diagram

Control lp

Part #146-62-071

Replaced by #BG1600M51EF-1AA

?
Manufacturer substitution
This part replaces 146-62-071. Substitute parts can look different from the original.
$205.62 |
5% OFF Phone Price : $215.62
In Stock
Gas Valve 146-62-058
#20C

Dunkirk boiler diagram

Gas valve

Part #146-62-058

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 146-63-001
#20A

Dunkirk boiler diagram

Gas valve

Part #146-63-001

Replaced by #700-059

?
Manufacturer substitution
This part replaces 146-63-001. Substitute parts can look different from the original.
$744.93
In Stock
Ignitn Cable 146-62-074
#16

Dunkirk boiler diagram

Ignitn cable

Part #146-62-074

The manufacturer no longer makes this part, and there's no substitute part

Pilot Tube 146-15-005
#18

Dunkirk boiler diagram

Pilot tube

Part #146-15-005

The manufacturer no longer makes this part, and there's no substitute part

#10-32 Hex Nut (qty 2) 146-95-308
#23

Dunkirk boiler diagram

#10-32 hex nut (qty 2)

Part #146-95-308

The manufacturer no longer makes this part, and there's no substitute part

Orifice 30 (300-qty 6, 400-qty 8, 500-qty 10)(not Shown) 146-15-310
#7

Dunkirk boiler diagram

Orifice 30 (300-qty 6, 400-qty 8, 500-qty 10)(not shown)

Part #146-15-310

The manufacturer no longer makes this part, and there's no substitute part

Pilot Mounting Bracket (not Shown) 425-57-029
#15A

Dunkirk boiler diagram

Pilot mounting bracket (not shown)

Part #425-57-029

The manufacturer no longer makes this part, and there's no substitute part

Main Burner 146-15-301
#14

Dunkirk boiler diagram

Main burner

Part #146-15-301

The manufacturer no longer makes this part, and there's no substitute part

5/16" X 18 X 3/4" Hex Head Machine Crew-zp (qty 4) 146-95-302
#11

Dunkirk boiler diagram

5/16" x 18 x 3/4" hex head machine crew-zp (qty 4)

Part #146-95-302

The manufacturer no longer makes this part, and there's no substitute part
