Model # 11319351 Official Craftsman 1/2-hp split-phase motor

Here are the diagrams and repair parts for Official Craftsman 11319351 1/2-hp split-phase motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

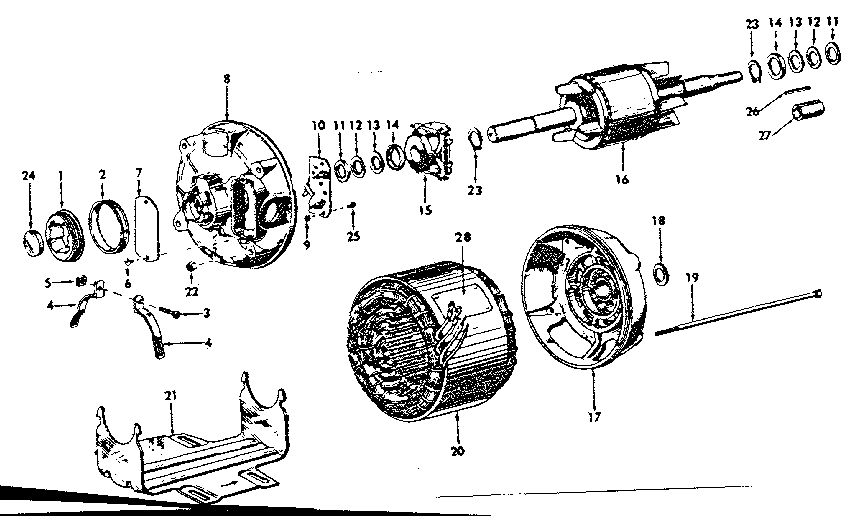

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Power Tool Washer 30767
#12

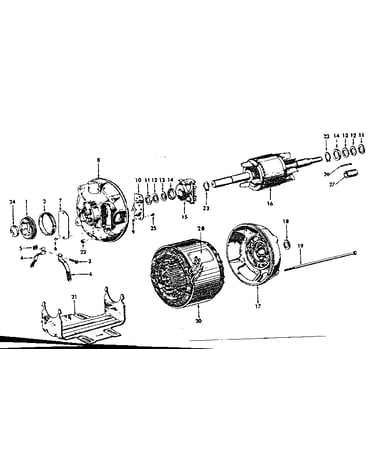

Unit diagram

Power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 30783
#23

Unit diagram

Retaining ring

Part #30783

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 30765
#10

Unit diagram

Switch assembly

Part #30765

The manufacturer no longer makes this part, and there's no substitute part

Washer 30779
#18

Unit diagram

Washer

Part #30779

The manufacturer no longer makes this part, and there's no substitute part

Label 37102
#28

Unit diagram

Label

Part #37102

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 37106
#20

Unit diagram

Stator assembly

Part #37106

The manufacturer no longer makes this part, and there's no substitute part

Stator Stud 37094
#19

Unit diagram

Stator stud

Part #37094

The manufacturer no longer makes this part, and there's no substitute part

End Shield 37098
#17

Unit diagram

End shield

Part #37098

The manufacturer no longer makes this part, and there's no substitute part

Washer-plstc 30766
#11

Unit diagram

Washer-plstc

Part #30766

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1369
#6

Unit diagram

Screw

Part #S-1369

The manufacturer no longer makes this part, and there's no substitute part
