Model # N9MSE0601410A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP N9MSE0601410A1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

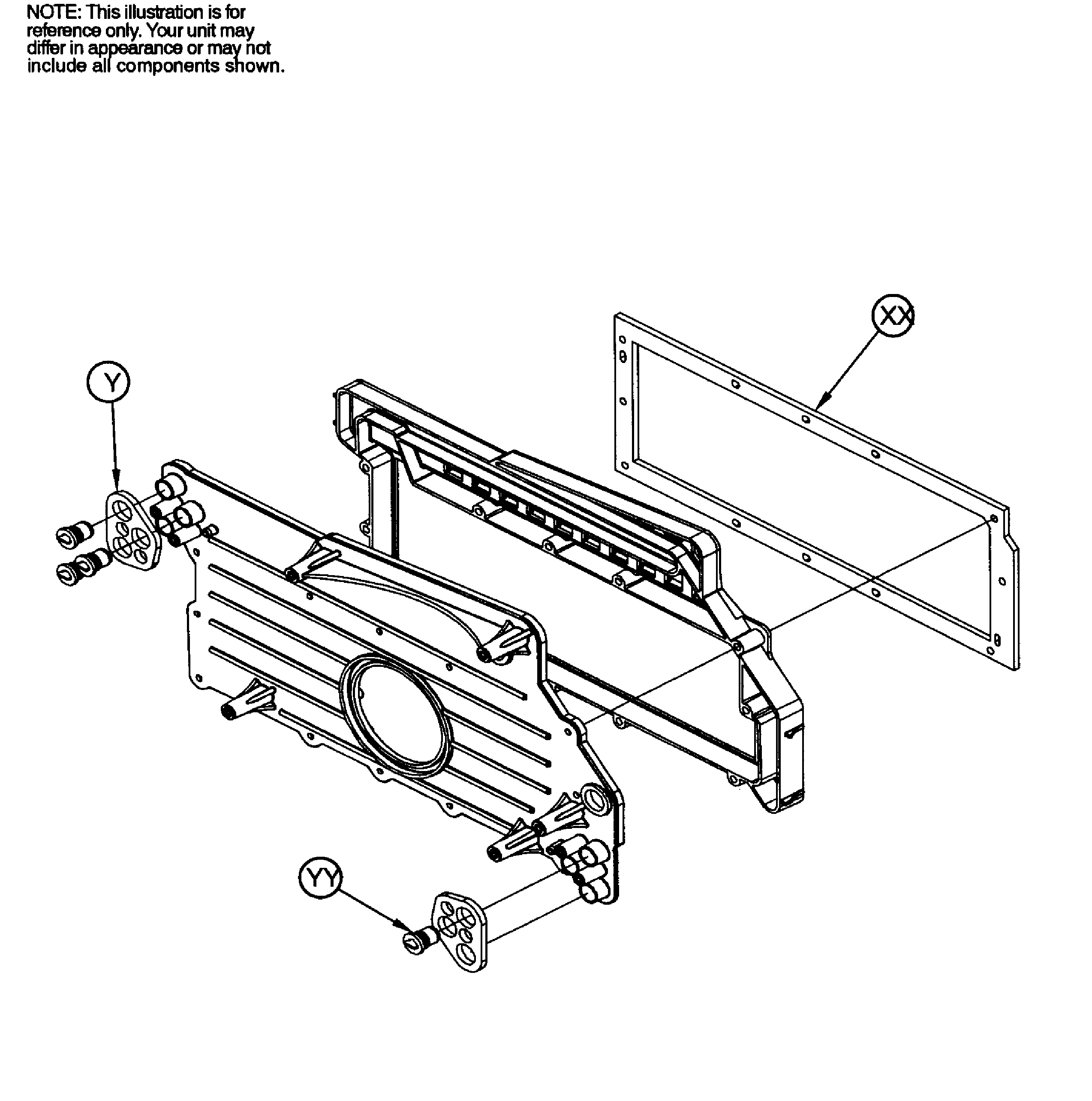

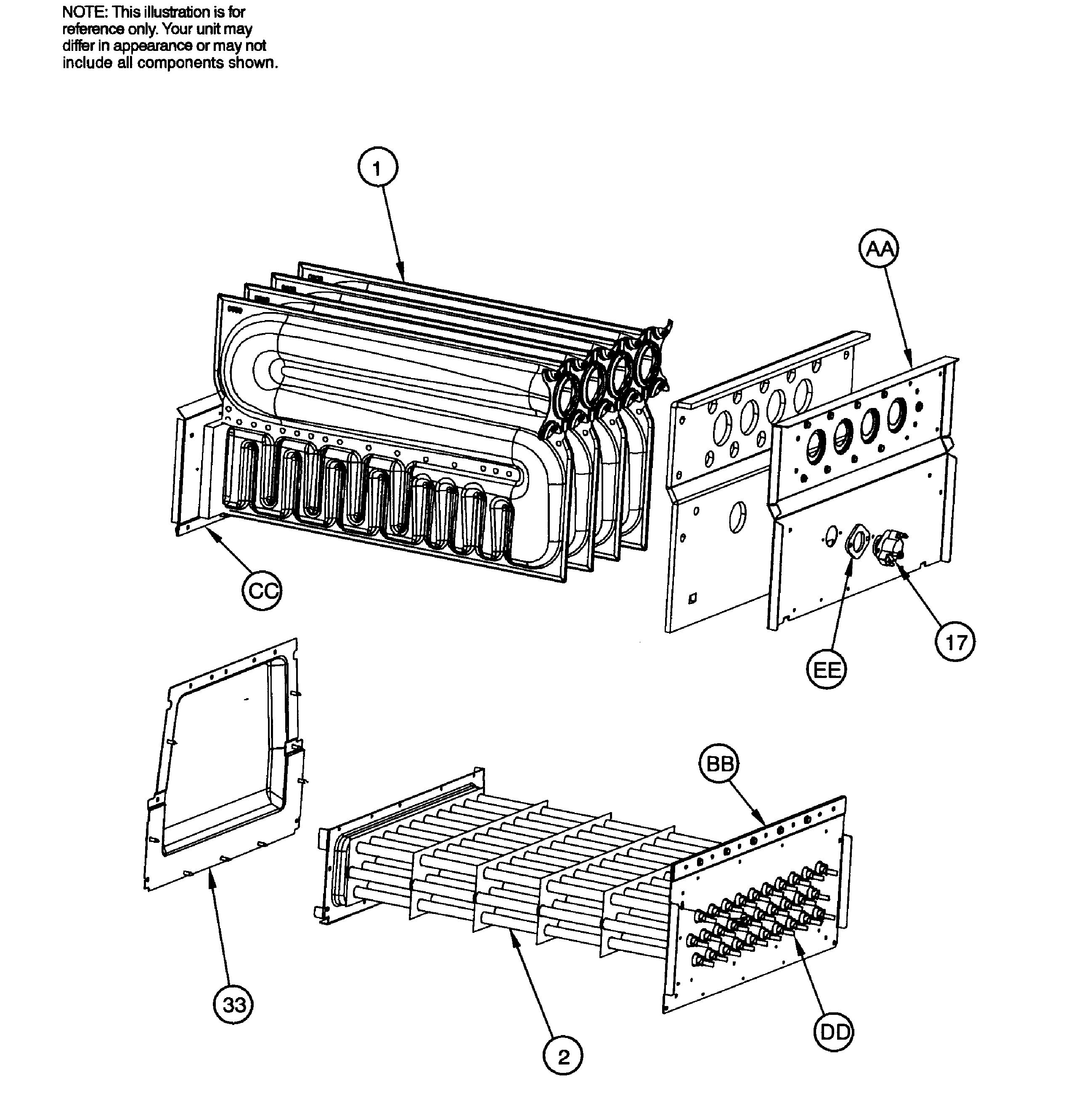

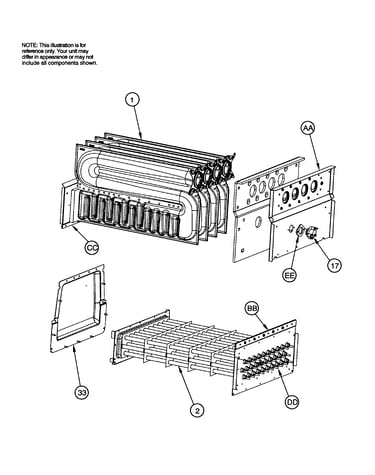

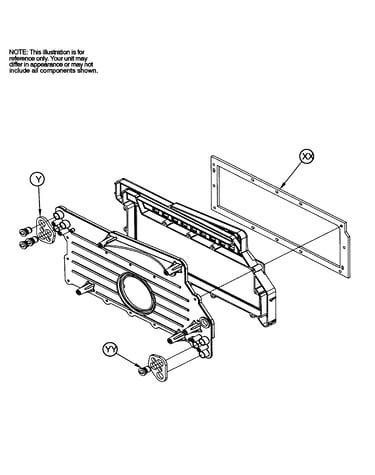

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Furnace Temperature Limit Switch 1177033
#16A

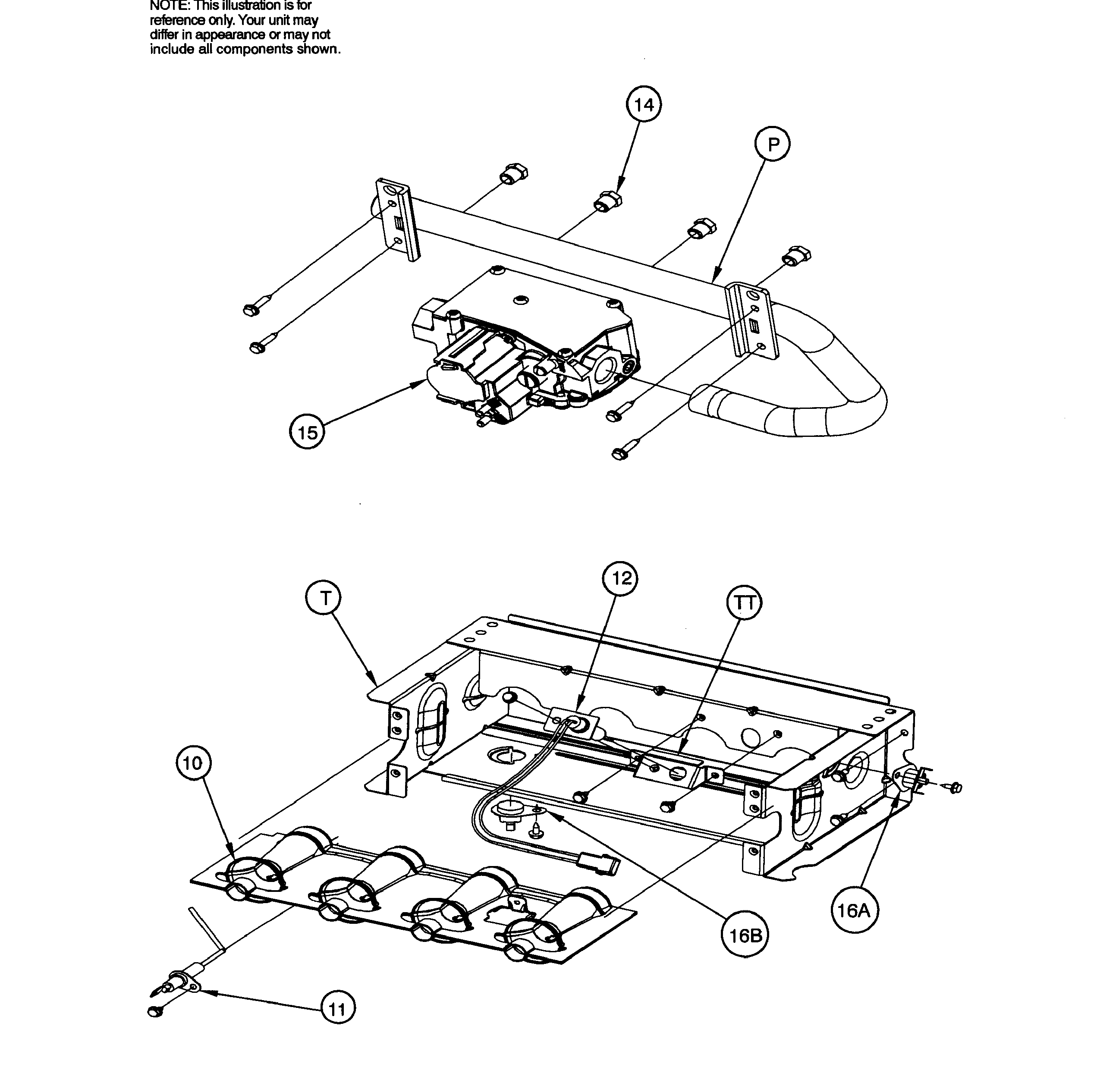

Burner assy diagram

Furnace temperature limit switch

Part #1177033

This item is not returnable
$15.00
In Stock
Furnace Burner Igniter 1176919
#12

Burner assy diagram

Furnace burner igniter

Part #1176919

$62.36
In Stock
Furnace Door Switch 1171981
#9

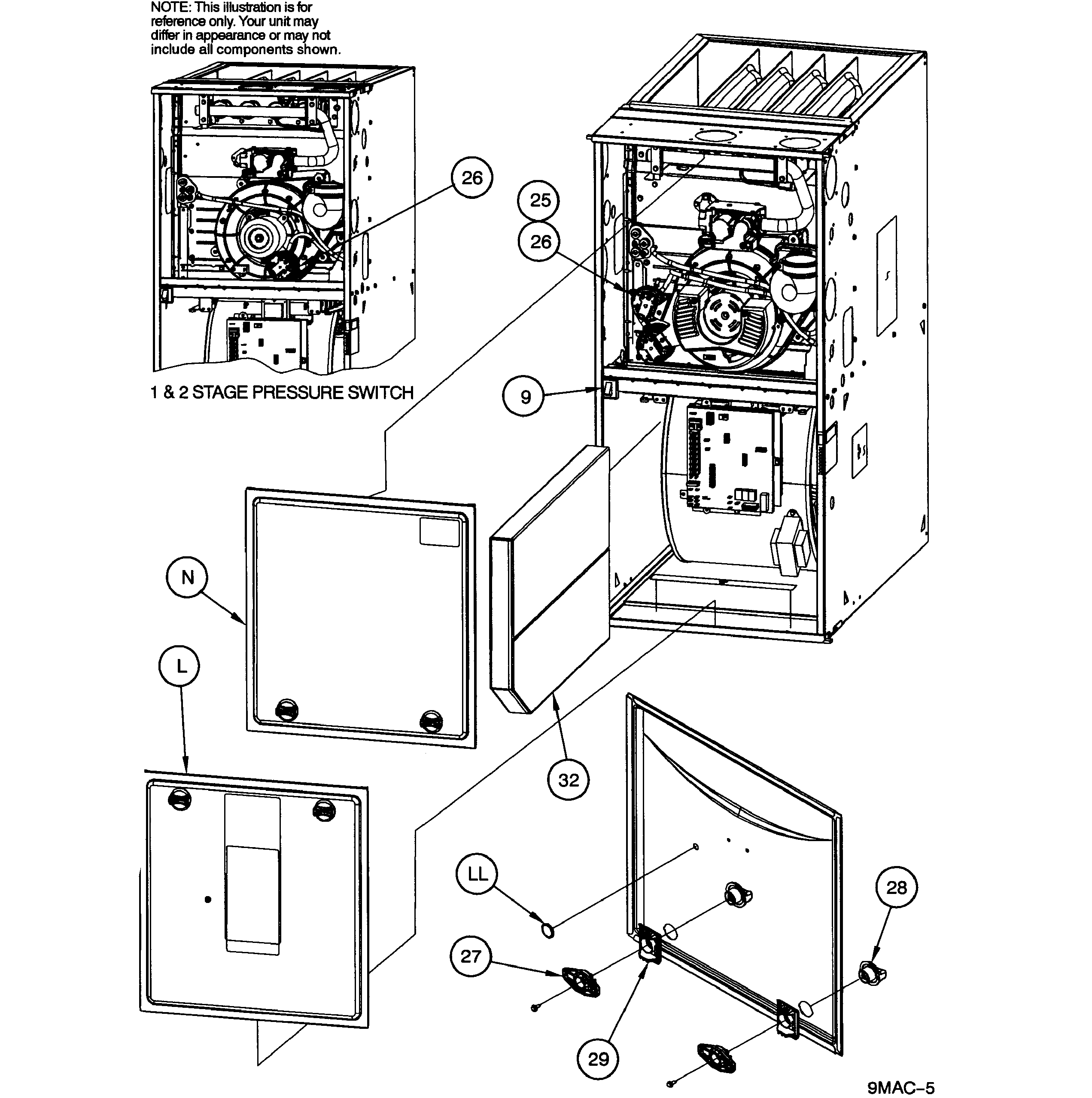

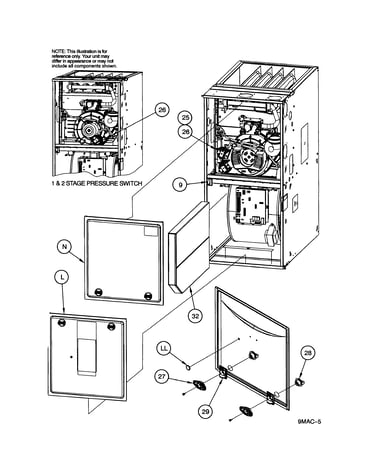

Door assy diagram

Furnace door switch

Part #1171981

$16.66
In Stock
Furnace Inducer Vent Motor Assembly 1185587
#18

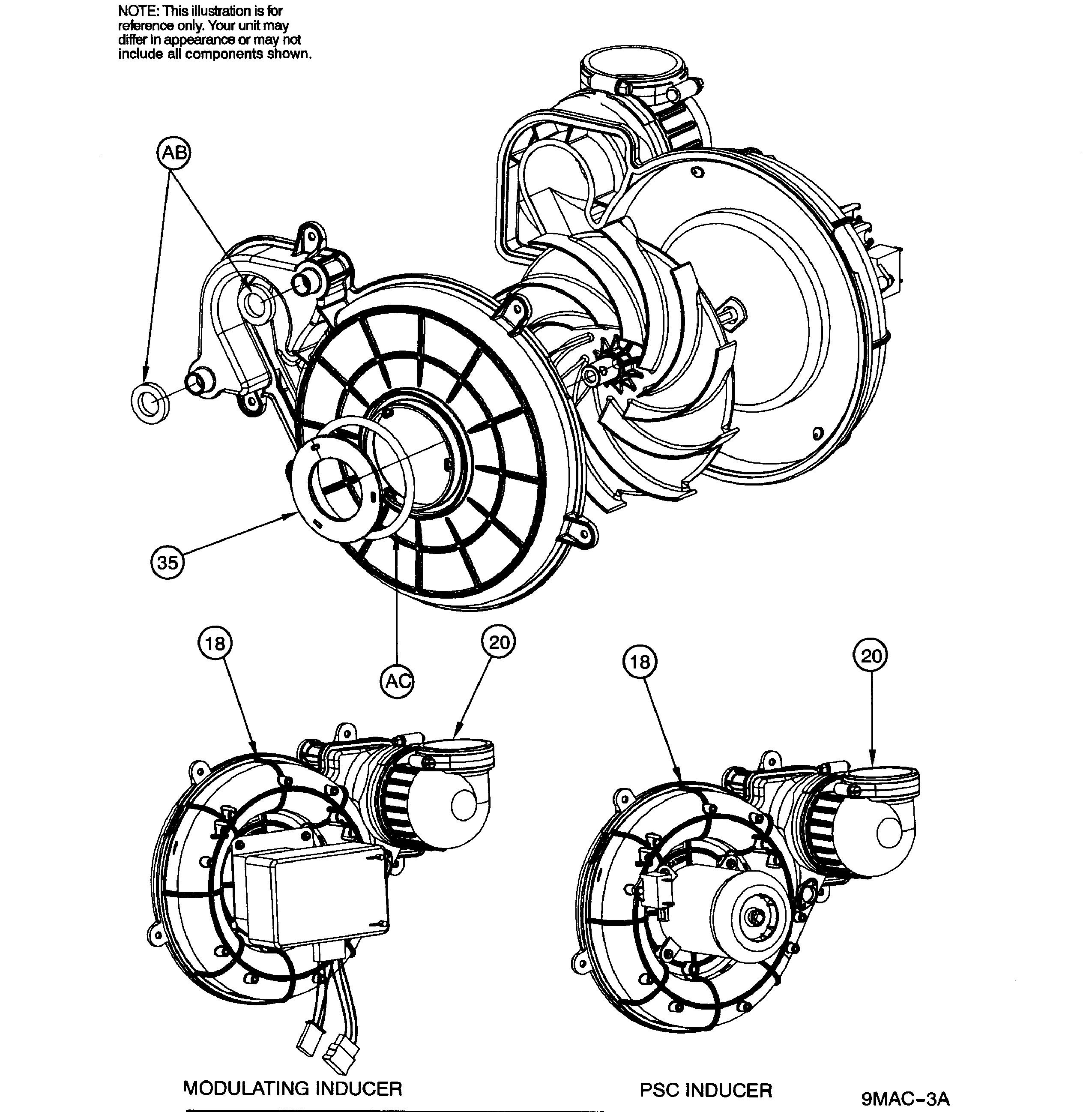

Inducer assy diagram

Furnace inducer vent motor assembly

Part #1185587

The manufacturer no longer makes this part, and there's no substitute part

Panel Assembly Filler 1185570
#PP

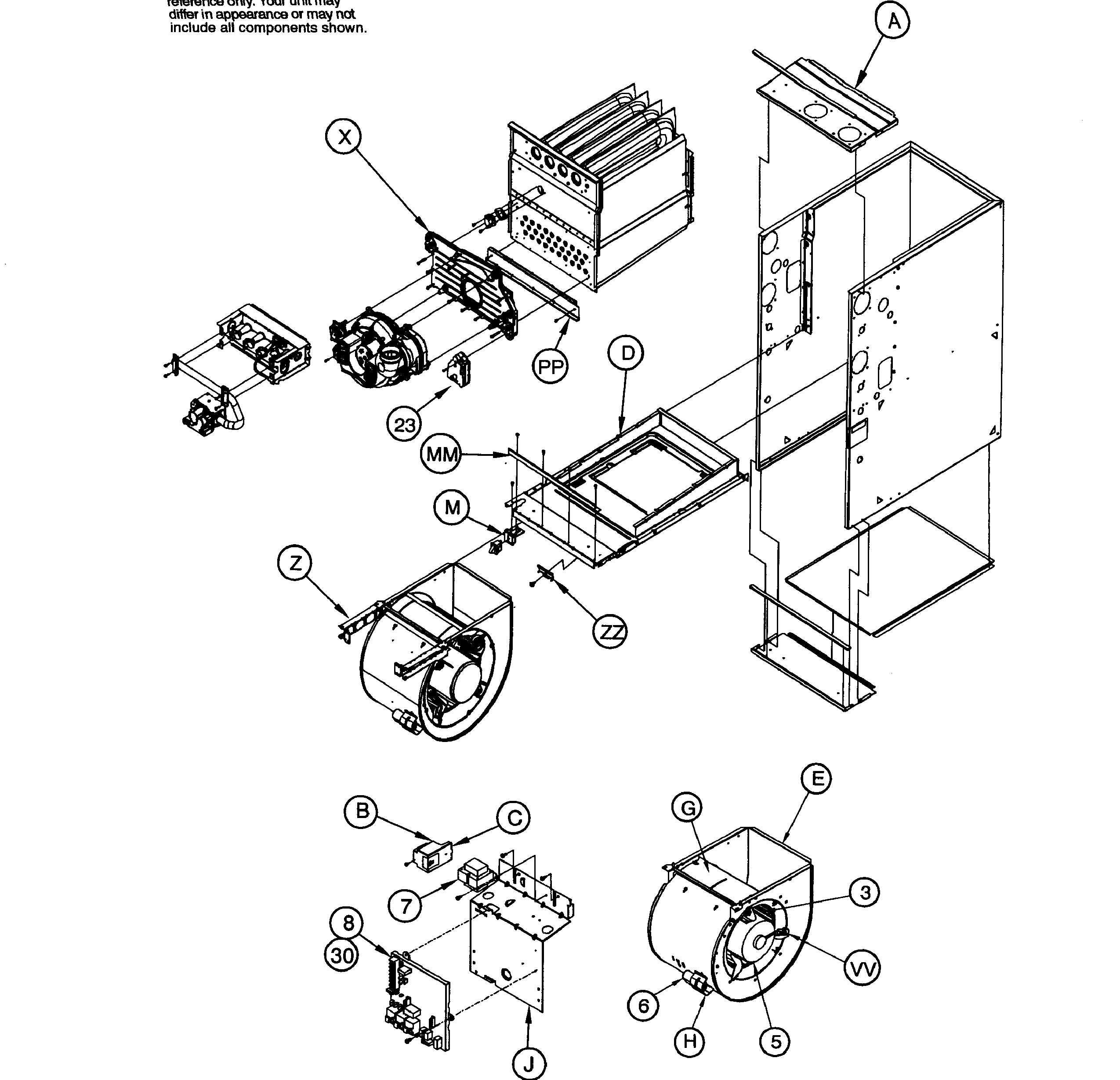

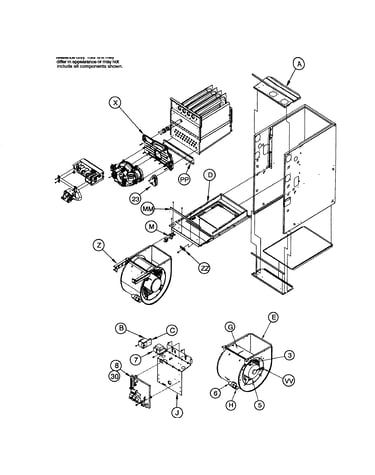

Main assy diagram

Panel assembly filler

Part #1185570

$38.18
In Stock
Support Burner Asy 1184314
#T

Burner assy diagram

Support burner asy

Part #1184314

$30.96
In Stock
Door Bracket 1185560
#MM

Main assy diagram

Door bracket

Part #1185560

$15.69
In Stock
Mtr Blr 1184660
#5

Main assy diagram

Mtr blr

Part #1184660

$370.17
In Stock
Switch Pre 1184413
#26

Door assy diagram

Switch pre

Part #1184413

The manufacturer no longer makes this part, and there's no substitute part

Trap Assembly 1184288
#23

Main assy diagram

Trap assembly

Part #1184288

$35.73
In Stock
