Haier
Room Air Conditioner

Model # HW07CB12 Official Haier air conditioner

Here are the diagrams and repair parts for Official Haier HW07CB12 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Flap AC-2850-01
#7

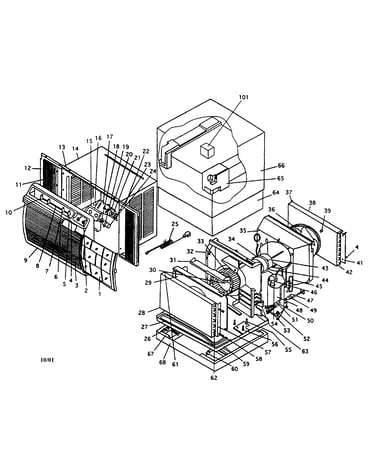

Cabinet parts diagram

Flap

Part #AC-2850-01

This item is not returnable
$2.99
In Stock
Pad AC-5100-05
#65

Cabinet parts diagram

Pad

Part #AC-5100-05

This item is not returnable
$3.49
In Stock
Seal Ring AC-0010-01C
#101C

Cabinet parts diagram

Seal ring

Part #AC-0010-01C

This item is not returnable
$2.99
In Stock
Screw AC-6150-03
#40

Cabinet parts diagram

Screw

Part #AC-6150-03

This item is not returnable
$2.99
In Stock
Pipe AC-5255-03
#44

Cabinet parts diagram

Pipe

Part #AC-5255-03

This item is not returnable
$2.99
In Stock
Nut,flare AC-4720-01
#39

Cabinet parts diagram

Nut,flare

Part #AC-4720-01

This item is not returnable
$2.99
In Stock
Switch AC-7100-01
#21

Cabinet parts diagram

Switch

Part #AC-7100-01

$27.49
In Stock
Panel Part AC-5200-02
#31

Cabinet parts diagram

Panel part

Part #AC-5200-02

This item is not returnable
$6.49
In Stock
Screw,scro AC-6150-02
#30

Cabinet parts diagram

Screw,scro

Part #AC-6150-02

This item is not returnable
$2.99
In Stock
Compressor AC-1750-03
#48B

Cabinet parts diagram

Compressor

Part #AC-1750-03

$297.99
In Stock
