Tappan
Wall Oven/Microwave Combo

Model # 57-6707-10-01 Official Tappan electric wall oven/microwave combo

Here are the diagrams and repair parts for Official Tappan 57-6707-10-01 electric wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

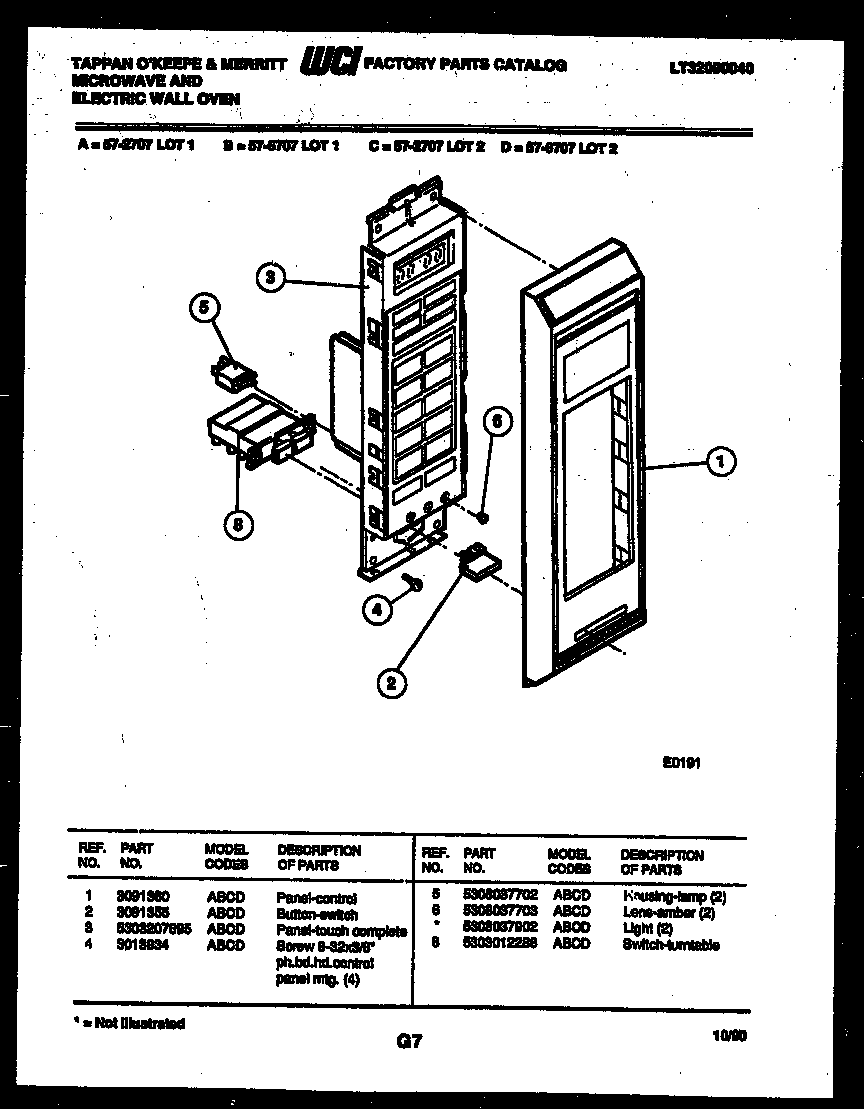

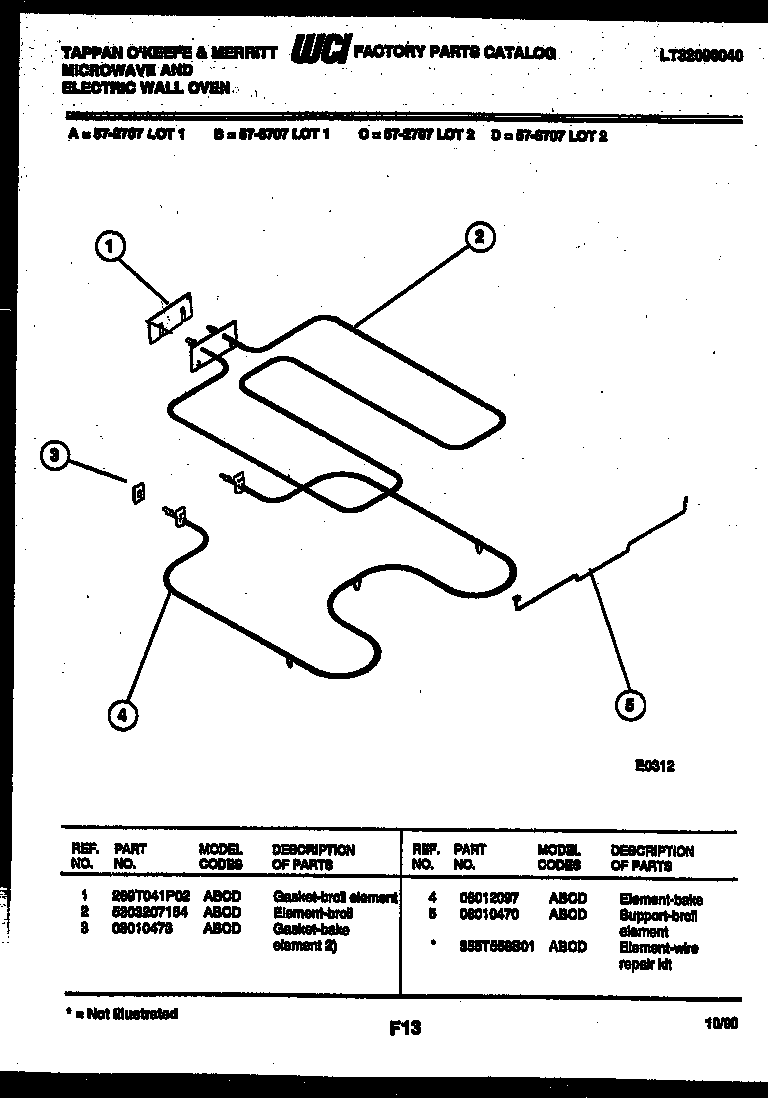

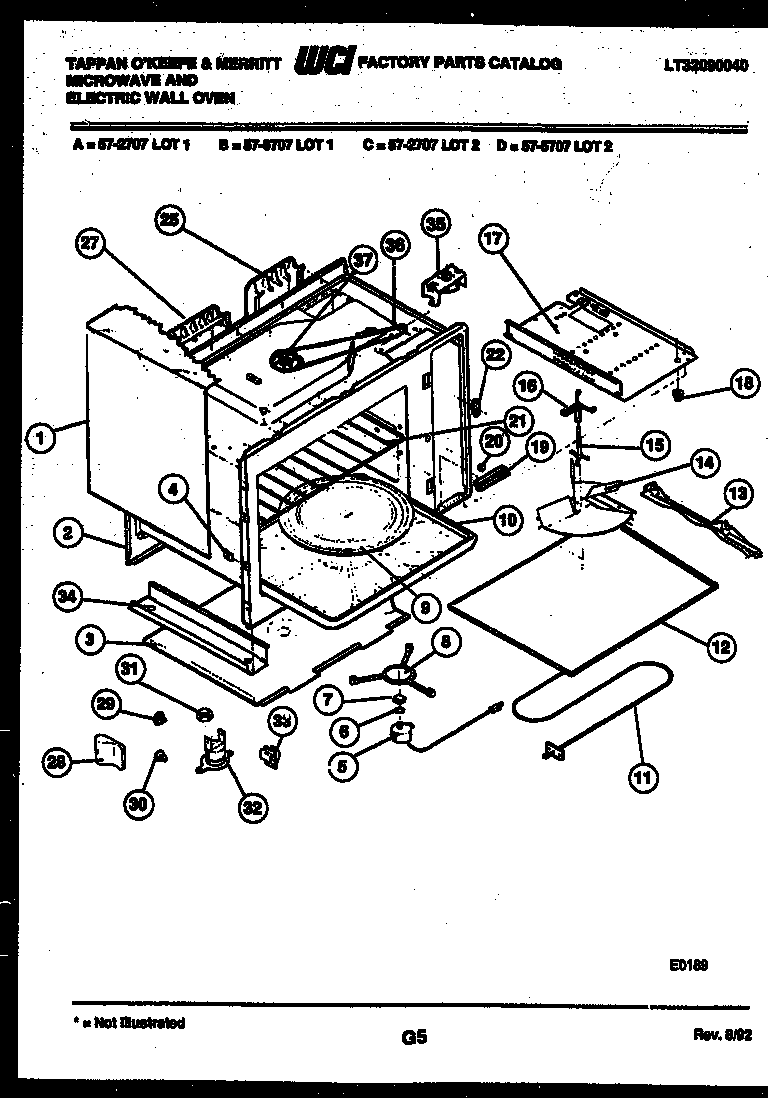

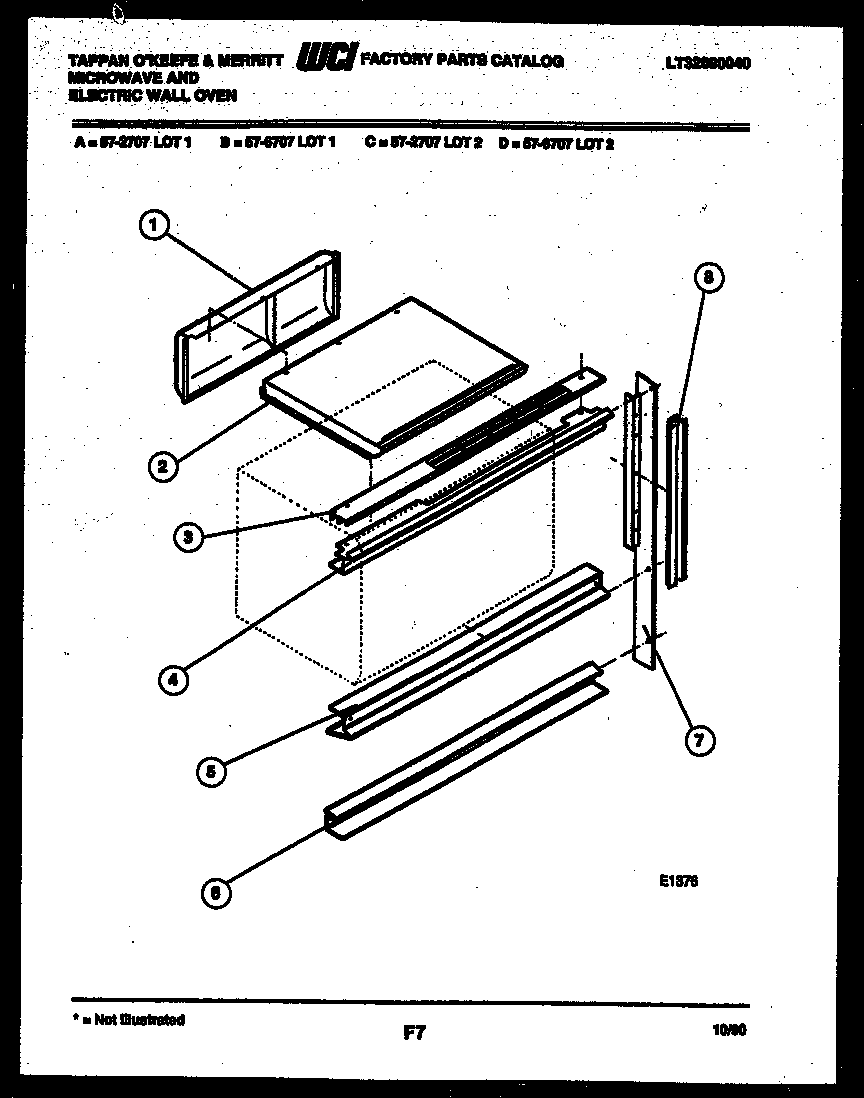

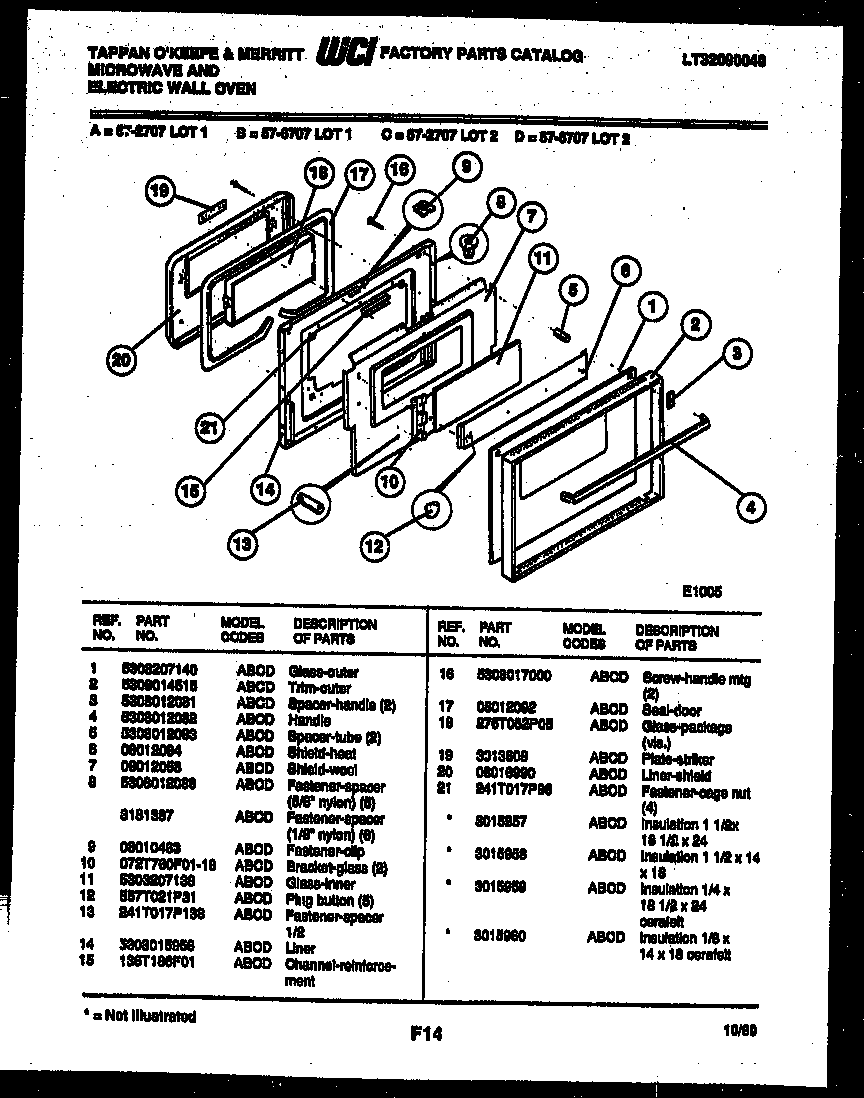

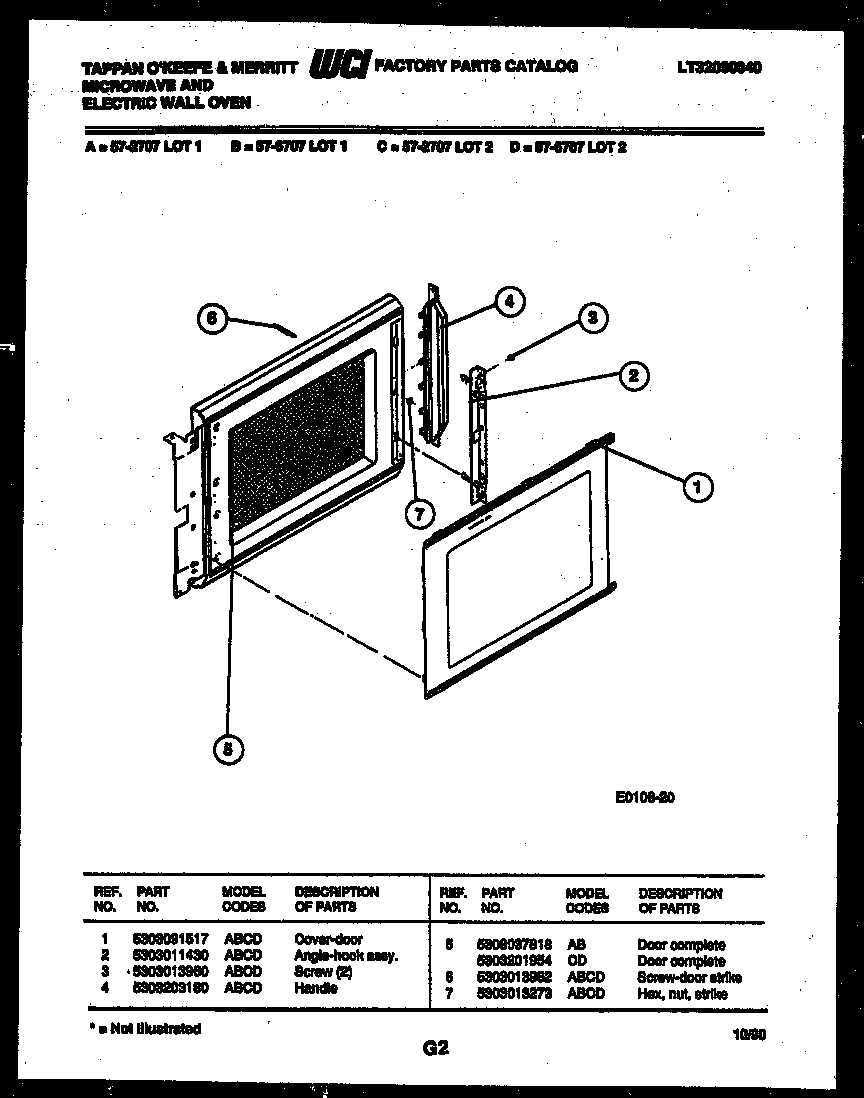

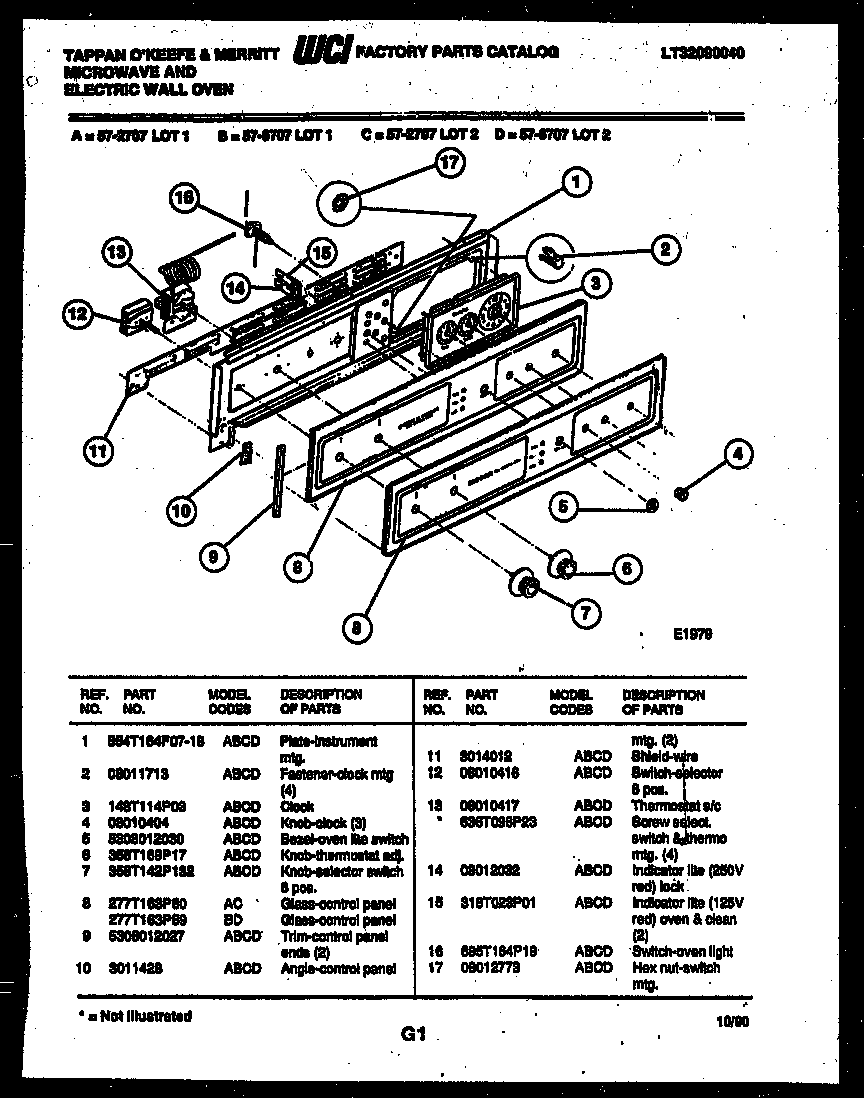

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 231 parts  |

Range Oven Light Bulb 5303013071
#49

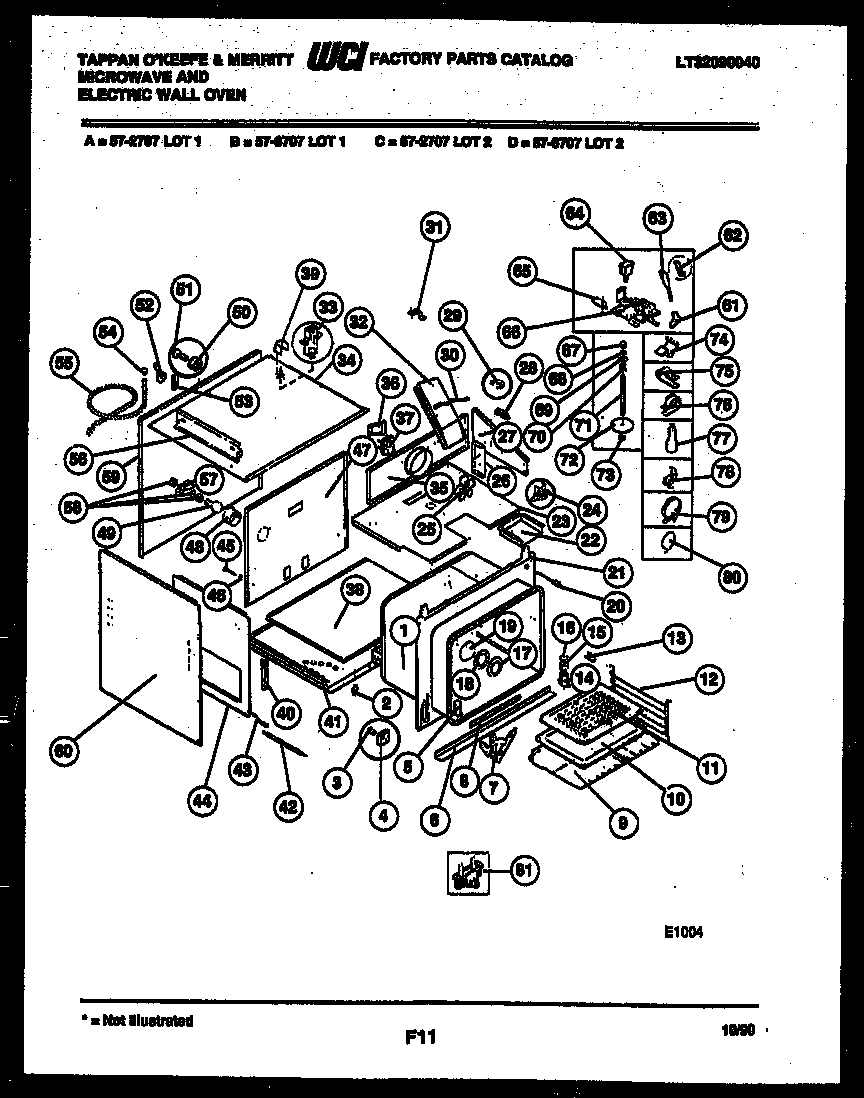

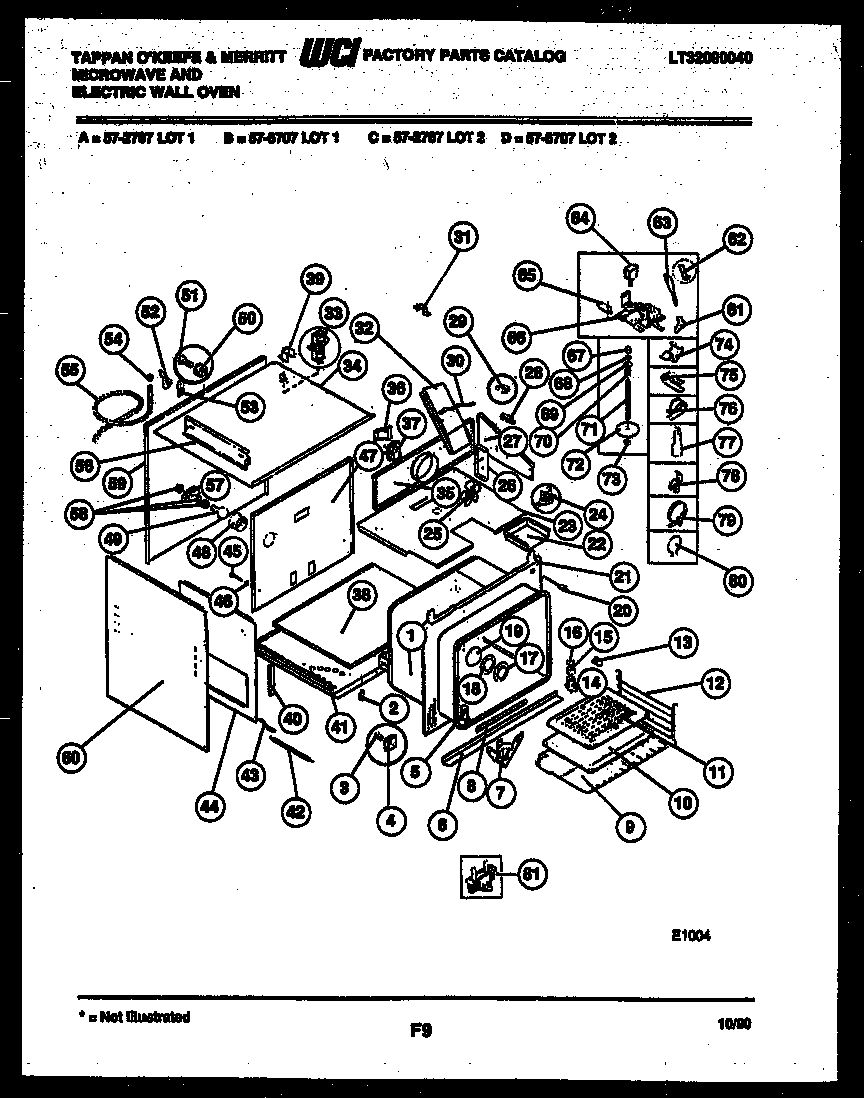

Lower body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.31
12% OFF Phone Price : $17.31
In Stock
Bracket 5301506858
#43

Lower body parts diagram

Bracket

Part #5301506858

This item is not returnable
In Stock
Bushing 08008983
#2

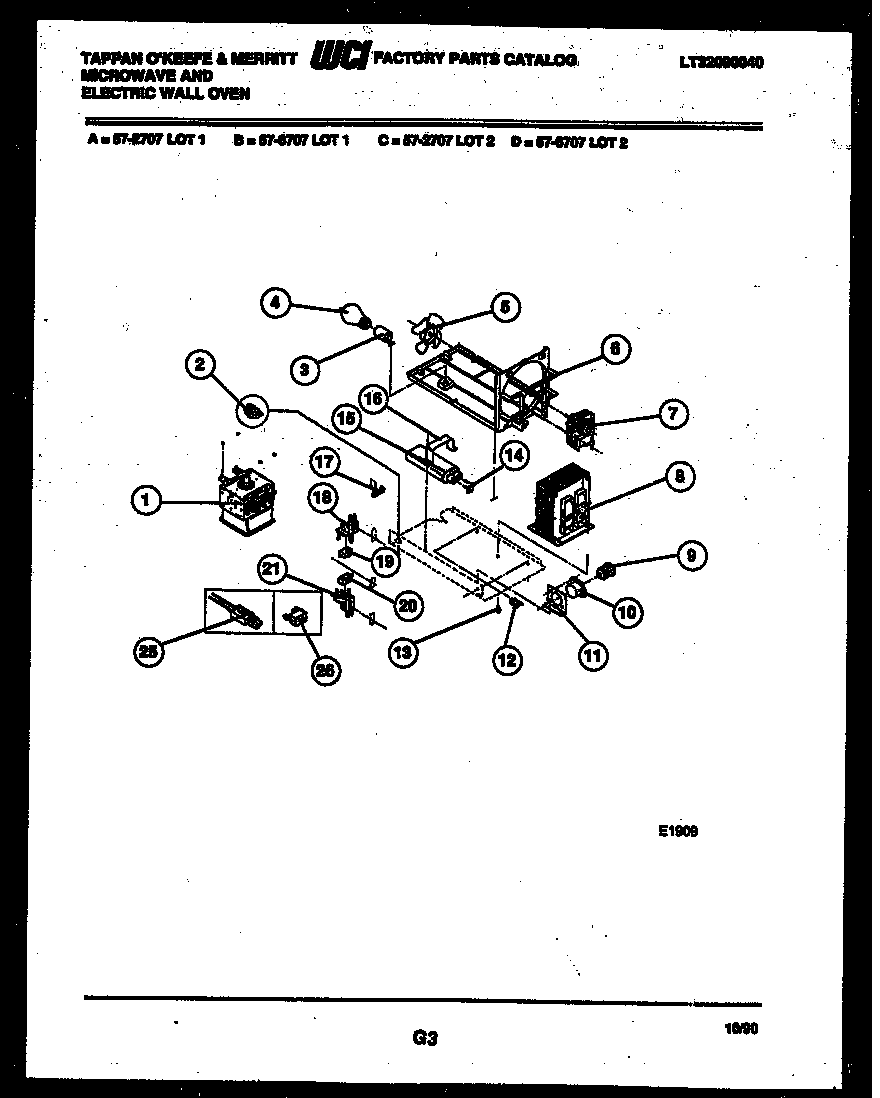

Power control diagram

Bushing

Part #08008983

This item is not returnable
In Stock
Clip 241T017P106
#79

Lower body parts diagram

Clip

Part #241T017P106

This item is not returnable
In Stock
Base 036T030W05-18
#41

Lower body parts diagram

Base

Part #036T030W05-18

In Stock
Plug 558T031P02
#33

Lower body parts diagram

Plug

Part #558T031P02

This item is not returnable
In Stock
Connector 5301506869
#52

Lower body parts diagram

Connector

Part #5301506869

In Stock
Nut 5303013273
Nut

Part #5303013273

This item is not returnable
In Stock
Switch 5303011694
#26

Power control diagram

Switch

Part #5303011694

In Stock
Screw 5308014502
#8A

Power control diagram

Screw

Part #5308014502

This item is not returnable
In Stock
