White-Westinghouse
Room Air Conditioner

Model # WAC052G7A3 Official White-Westinghouse room air conditioner - p5995304853

Here are the diagrams and repair parts for Official White-Westinghouse WAC052G7A3 room air conditioner - p5995304853, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

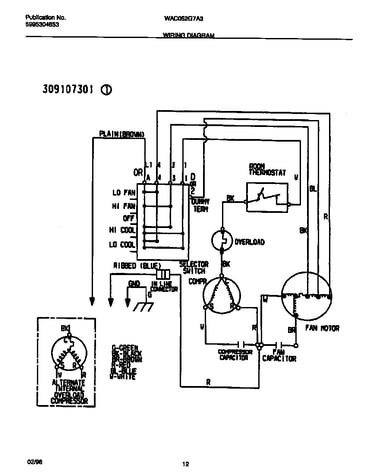

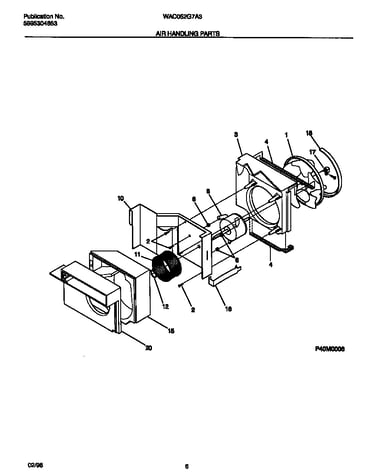

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Frame,rh 53033111283
#14

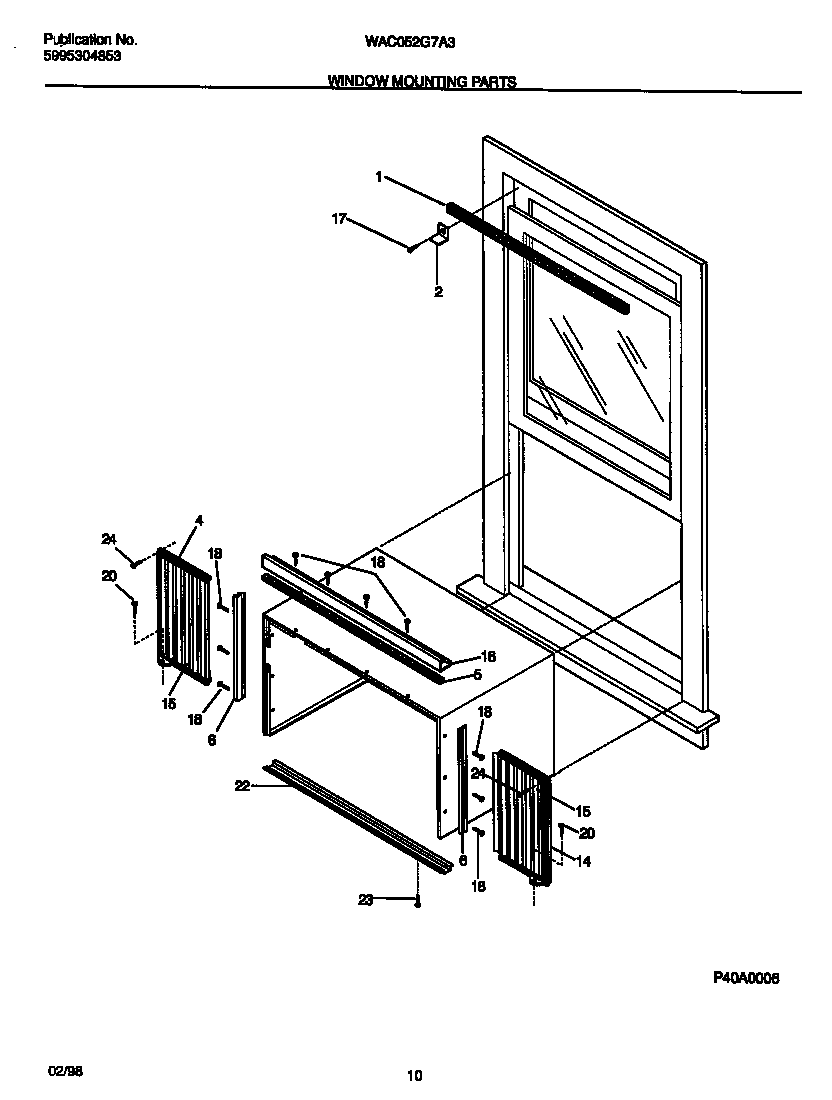

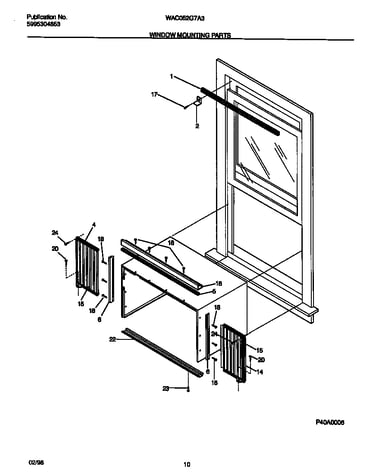

Window mounting parts diagram

Frame,rh

Part #53033111283

The manufacturer no longer makes this part, and there's no substitute part

Cover-terminal 30020343
#7A

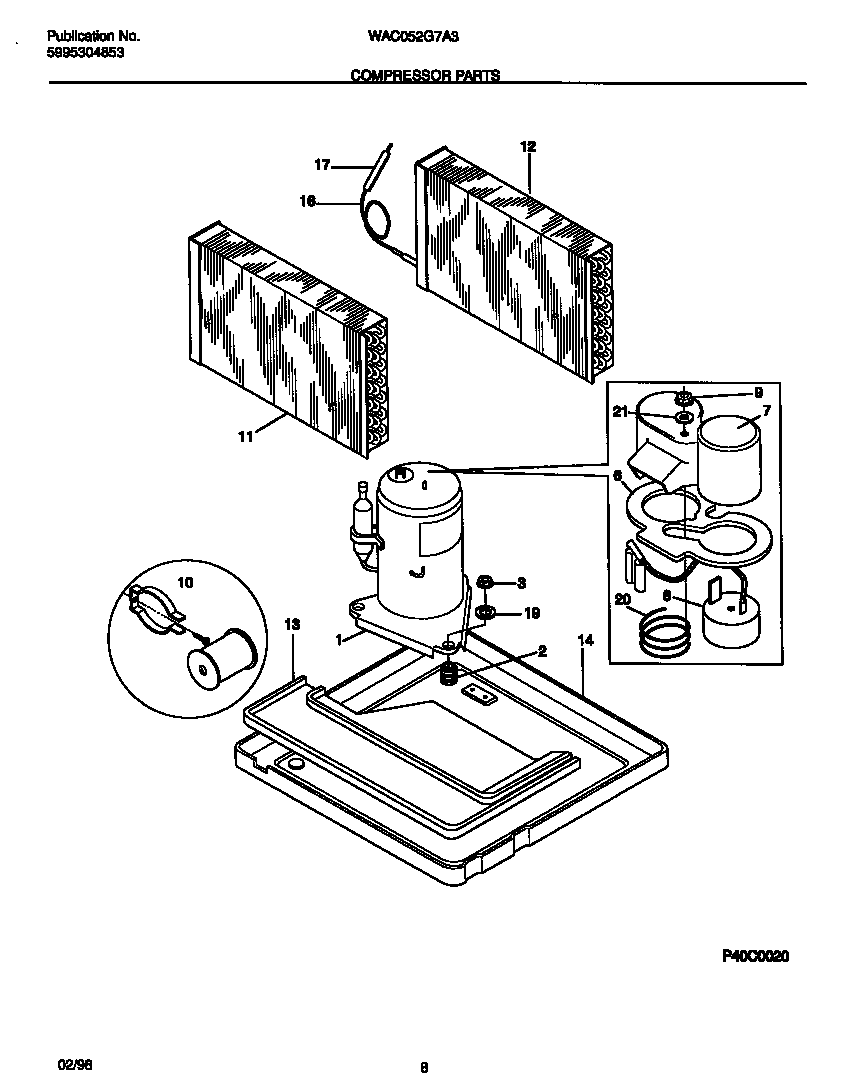

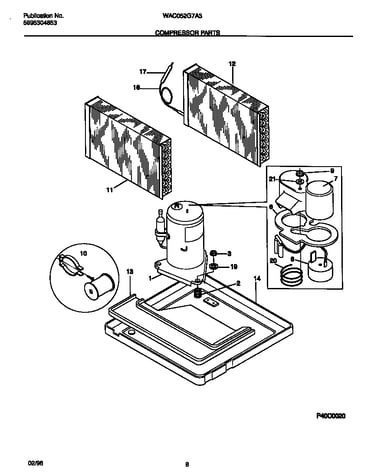

Compressor parts diagram

Cover-terminal

Part #30020343

The manufacturer no longer makes this part, and there's no substitute part

Screw 53080029743
#24

Window mounting parts diagram

Screw

Part #53080029743

The manufacturer no longer makes this part, and there's no substitute part

Control Box 3096025023
#7

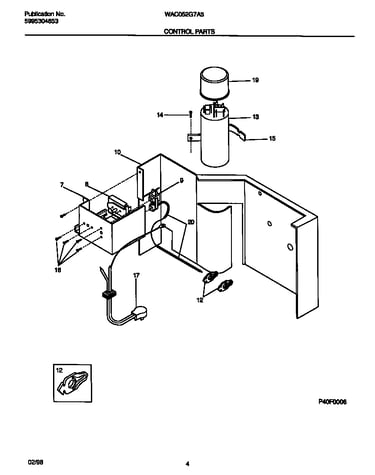

Control parts diagram

Control box

Part #3096025023

The manufacturer no longer makes this part, and there's no substitute part

Seal 080162263
#5

Window mounting parts diagram

Seal

Part #080162263

The manufacturer no longer makes this part, and there's no substitute part

Frame,lh 53033111273
#4

Window mounting parts diagram

Frame,lh

Part #53033111273

The manufacturer no longer makes this part, and there's no substitute part

Capacitor,370 V ,5+25 Mfd 53033028543
#13

Control parts diagram

Capacitor,370 v ,5+25 mfd

Part #53033028543

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 53044032853
#1

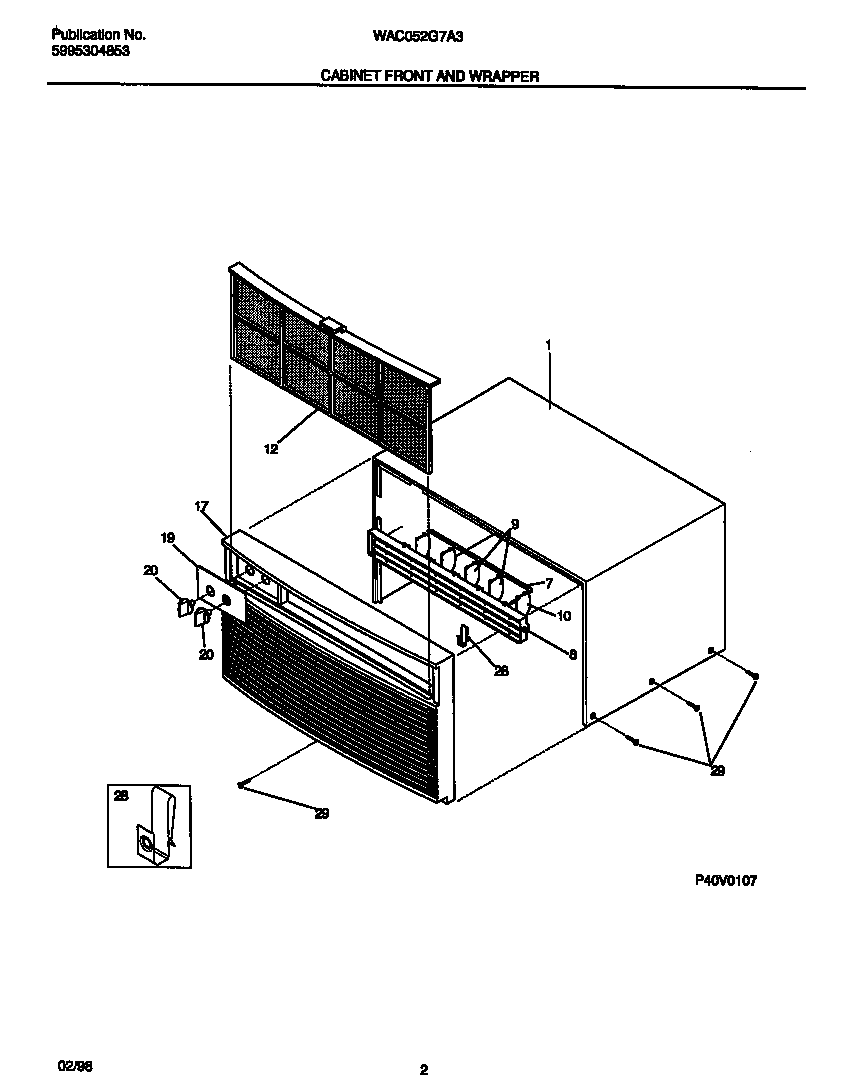

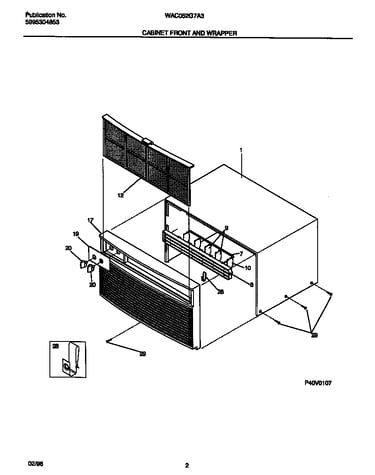

Cabinet front and wrapper diagram

Cabinet

Part #53044032853

The manufacturer no longer makes this part, and there's no substitute part

Bracket 53032110563
#2

Window mounting parts diagram

Bracket

Part #53032110563

The manufacturer no longer makes this part, and there's no substitute part

Switch-selector 53033185463
#8

Control parts diagram

Switch-selector

Part #53033185463

The manufacturer no longer makes this part, and there's no substitute part
