Model #MR1033SB/XAA Samsung microwave

Here are the diagrams and repair parts for Samsung MR1033SB-XAA microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 50 parts

Microwave Door Interlock Switch

#15

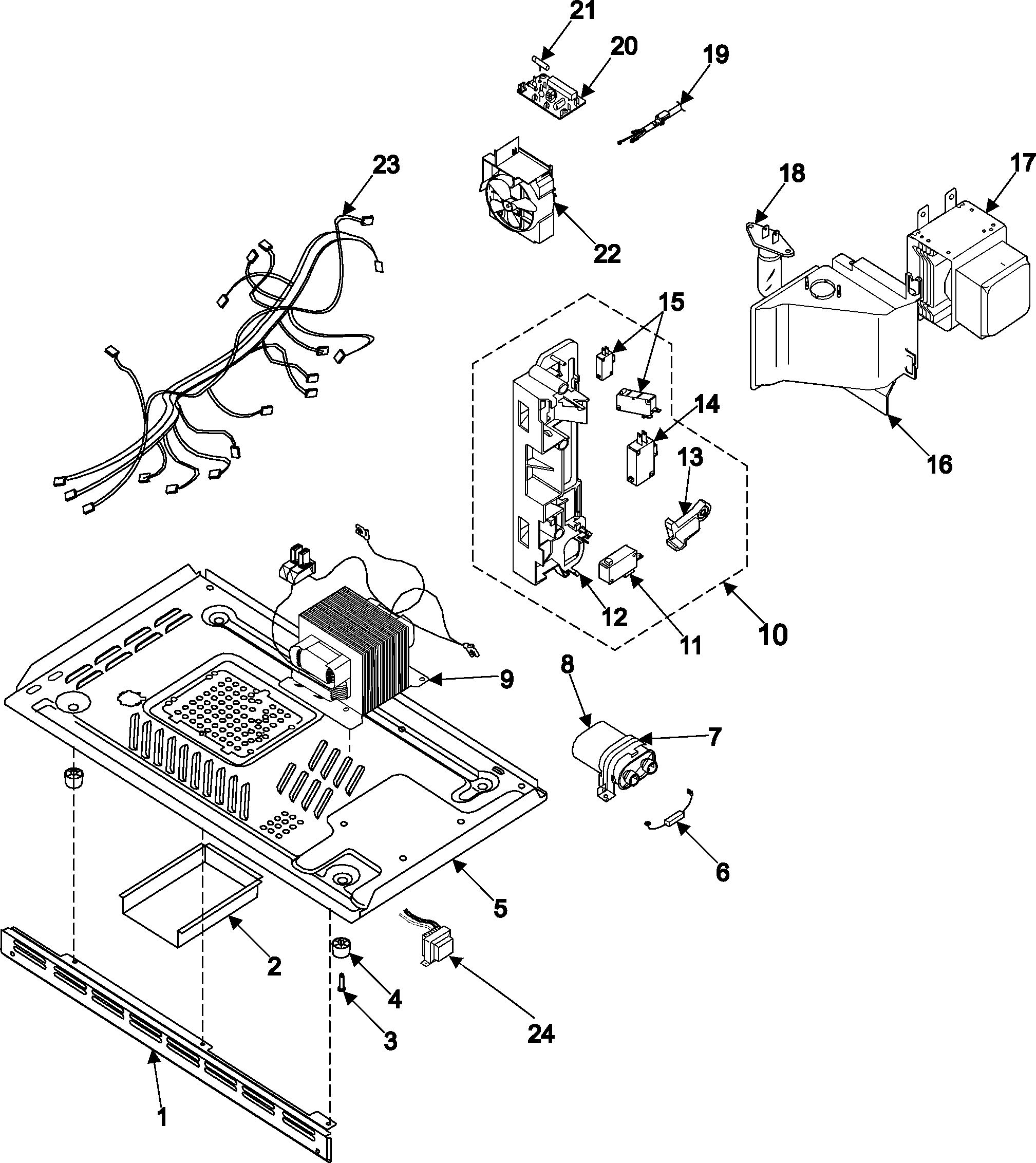

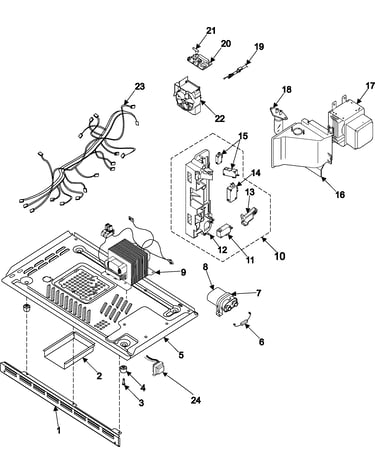

Internal control/latch asy/base Diagram

$10.04

In Stock

Microwave Door Micro-Switch

#14

Internal control/latch asy/base Diagram

Microwave door micro-switch

Part #3405-001033
$7.94

In Stock

Window

#11

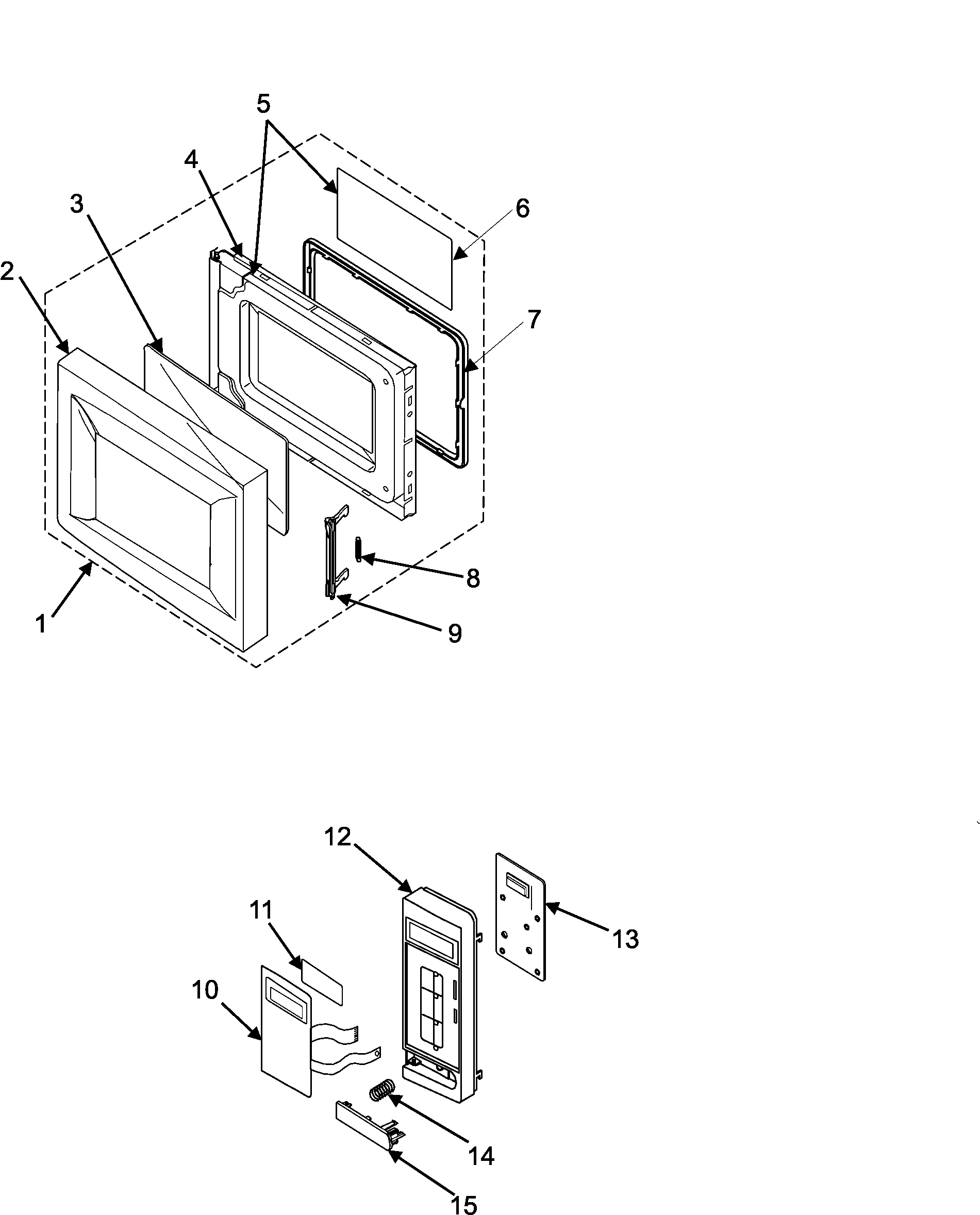

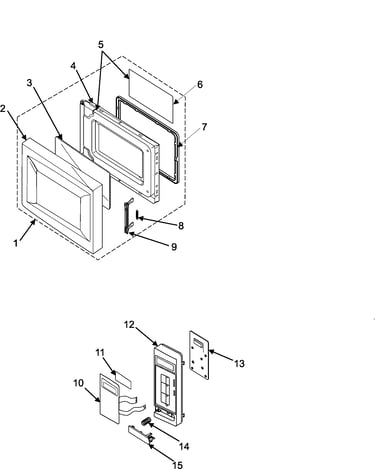

Control panel/door assembly Diagram

Window

Part #DE67-40179A
This item is not returnable
$2.56

In Stock

Microwave Fuse, 20-amp

#21

Internal control/latch asy/base Diagram

Microwave fuse, 20-amp

Part #3601-001198
This item is not returnable
$7.49

In Stock

Microwave Thermostat

#7

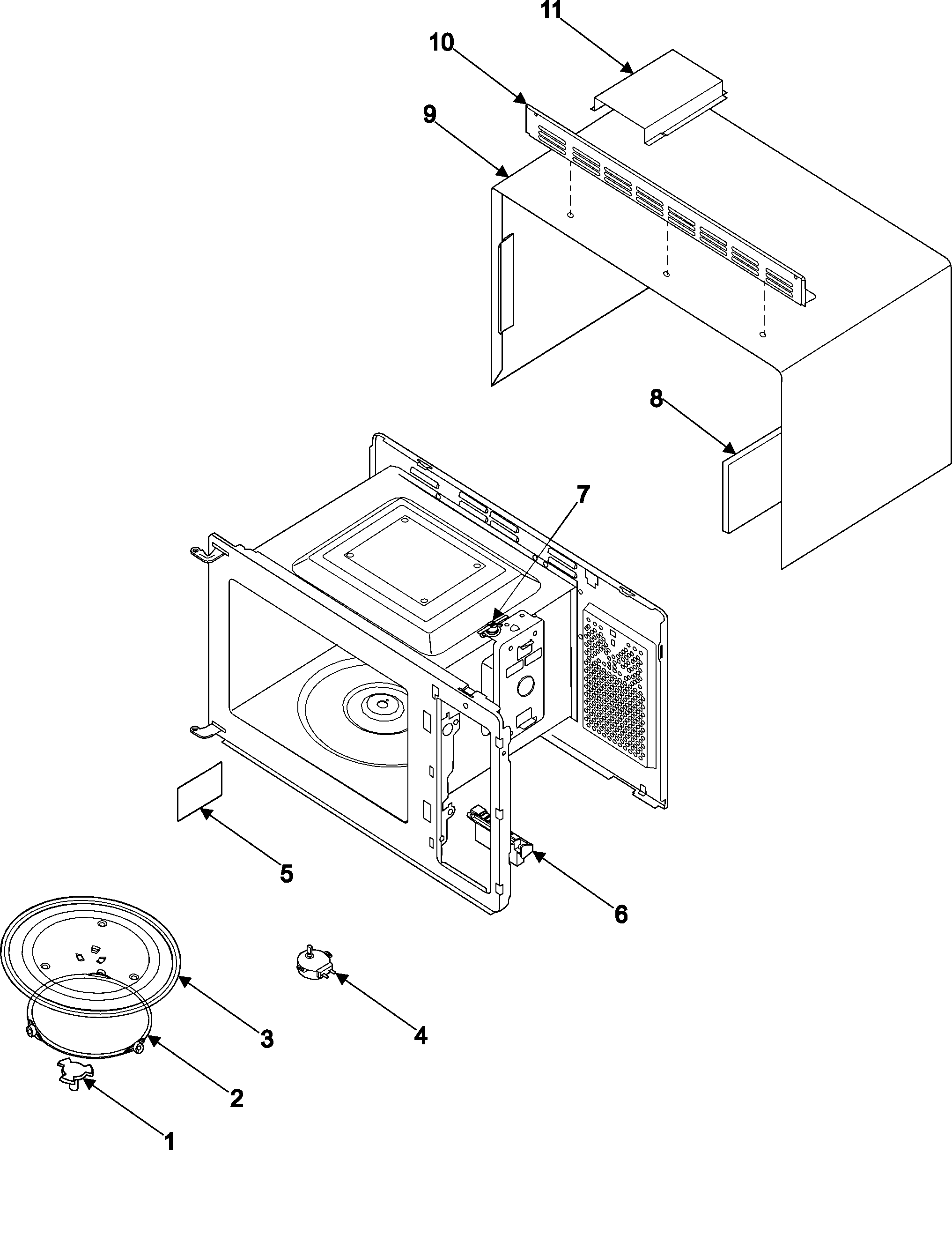

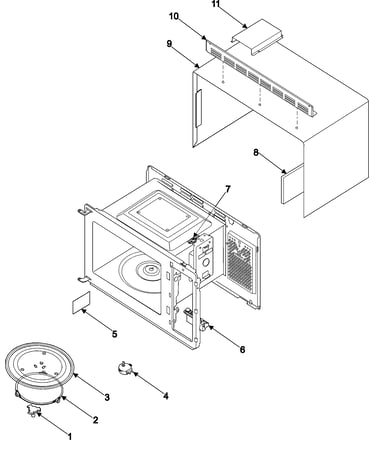

Body/cavity/elements Diagram

Microwave thermostat

Part #DE47-20173A
$8.00

In Stock

Bracket

#7

Internal control/latch asy/base Diagram

Bracket

Part #DE61-50106A
This item is not returnable
$2.58

In Stock

Wire Harness

#23

Internal control/latch asy/base Diagram

Wire harness

Part #DE39-00191A
$18.66

In Stock

Outer Panel

#9

Body/cavity/elements Diagram

Outer panel

Part #DE64-00736A
$30.06

In Stock

Choke Cover

#6

Control panel/door assembly Diagram

Choke cover

Part #DE01-00118A
$12.04

In Stock

Control Panel

#12

Control panel/door assembly Diagram

Control panel

Part #DE72-70202E
$17.54

In Stock
