Model # 842260061 Official Craftsman 36" snow blower attachment

Here are the diagrams and repair parts for Official Craftsman 842260061 36" snow blower attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

Nut GM9413447
#49

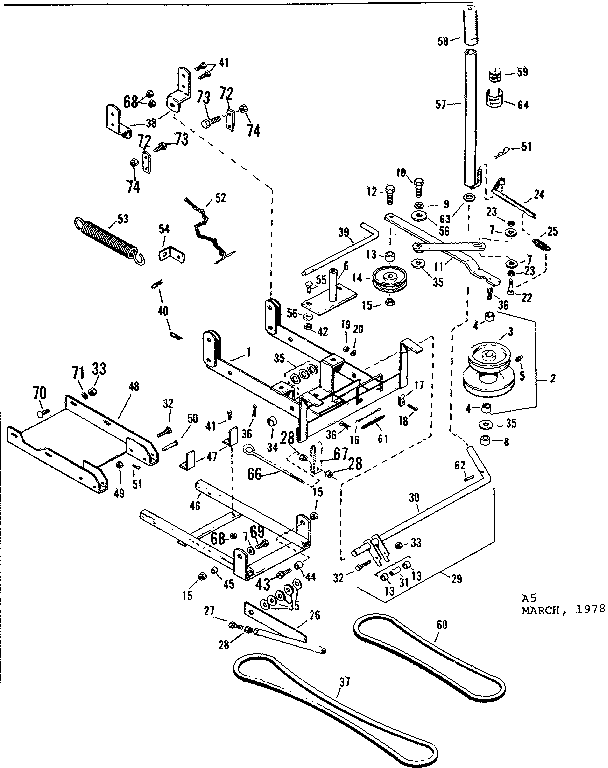

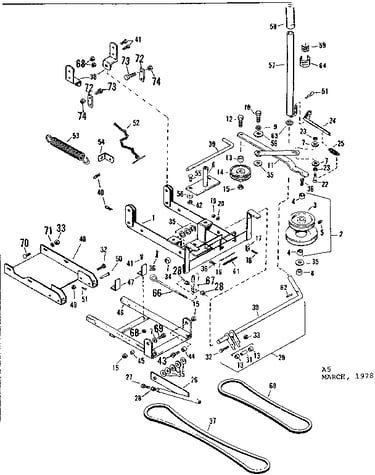

Main frame diagram

Nut

Part #GM9413447

The manufacturer no longer makes this part, and there's no substitute part

Nut GM271184
#8

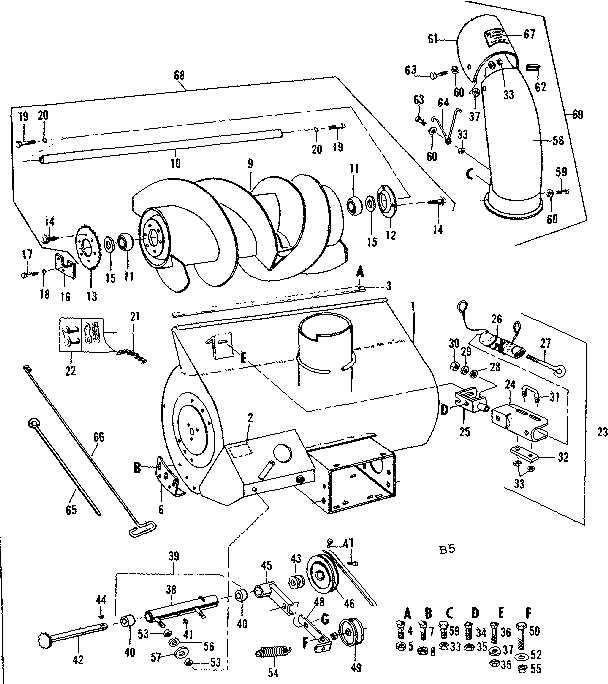

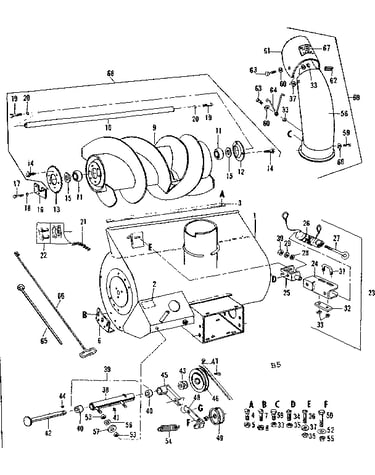

Auger assembly diagram

Nut

Part #GM271184

The manufacturer no longer makes this part, and there's no substitute part

Pin 3341
#40

Main frame diagram

Pin

Part #3341

The manufacturer no longer makes this part, and there's no substitute part

Nut GM120238
#55

Auger assembly diagram

Nut

Part #GM120238

The manufacturer no longer makes this part, and there's no substitute part

Bolt 7953
Bolt

Part #7953

The manufacturer no longer makes this part, and there's no substitute part

Pin 3090
#51

Main frame diagram

Pin

Part #3090

The manufacturer no longer makes this part, and there's no substitute part

Washer GM120214
#18

Auger assembly diagram

Washer

Part #GM120214

The manufacturer no longer makes this part, and there's no substitute part

Washer 4143
#15

Auger assembly diagram

Washer

Part #4143

The manufacturer no longer makes this part, and there's no substitute part

Spring 3059
Spring

Part #3059

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM-271184
#33

Main frame diagram

Nut washer

Part #GM-271184

The manufacturer no longer makes this part, and there's no substitute part
