Model # 22981351 Official Kenmore oil-fired hot water boiler

Here are the diagrams and repair parts for Official Kenmore 22981351 oil-fired hot water boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

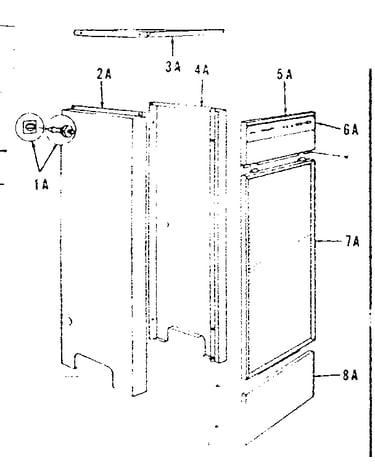

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Comb Chamber 13-135D
#12B

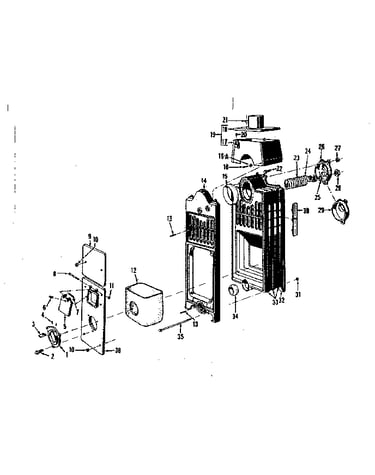

Boiler assembly parts diagram

Comb chamber

Part #13-135D

Replaced by #2272184

?
Manufacturer substitution
This part replaces 13-135D. Substitute parts can look different from the original.
$297.69 |
$10.00 OFF Phone Price : $307.69
In Stock
Gauge 13-11
#1

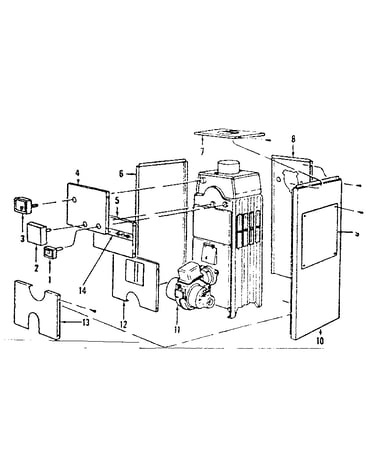

Jacket and control parts diagram

Gauge

Part #13-11

Replaced by #1260006SP

?
Manufacturer substitution
This part replaces 13-11. Substitute parts can look different from the original.
$52.91
In Stock
Burner Oil 13-300-A
#11B

Jacket and control parts diagram

Burner oil

Part #13-300-A

The manufacturer no longer makes this part, and there's no substitute part

Relay Control 13-29A
#2A

Jacket and control parts diagram

Relay control

Part #13-29A

The manufacturer no longer makes this part, and there's no substitute part

Plate 13-6A
#30

Boiler assembly parts diagram

Plate

Part #13-6A

The manufacturer no longer makes this part, and there's no substitute part

Limit Control 13-28B
#2

Jacket and control parts diagram

Limit control

Part #13-28B

The manufacturer no longer makes this part, and there's no substitute part

Burner Oil 13-200
#11A

Jacket and control parts diagram

Burner oil

Part #13-200

The manufacturer no longer makes this part, and there's no substitute part

Nipple 13-9
#15

Boiler assembly parts diagram

Nipple

Part #13-9

The manufacturer no longer makes this part, and there's no substitute part

Coil 5gpm 13-31-5
#24

Boiler assembly parts diagram

Coil 5gpm

Part #13-31-5

The manufacturer no longer makes this part, and there's no substitute part

Flue Bottom 13-118-7
#17D

Boiler assembly parts diagram

Flue bottom

Part #13-118-7

The manufacturer no longer makes this part, and there's no substitute part
