Model # 167FE097-6 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167FE097-6 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Cap 56017
#24

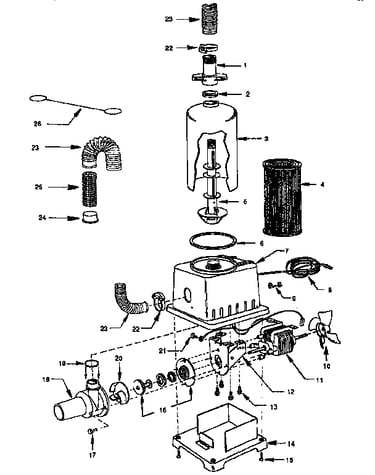

Swimming pool filter diagram

Cap

Part #56017

The manufacturer no longer makes this part, and there's no substitute part

Gsket Neop45 54019
#6

Swimming pool filter diagram

Gsket neop45

Part #54019

The manufacturer no longer makes this part, and there's no substitute part

Gasket 54008
#2

Swimming pool filter diagram

Gasket

Part #54008

The manufacturer no longer makes this part, and there's no substitute part

Motor 1/8 Hp 41037
#11

Swimming pool filter diagram

Motor 1/8 hp

Part #41037

The manufacturer no longer makes this part, and there's no substitute part

Pump Body (fe097, Fe105, Fe088) 55115
#18

Swimming pool filter diagram

Pump body (fe097, fe105, fe088)

Part #55115

The manufacturer no longer makes this part, and there's no substitute part

O-ring Pum 54076
#19

Swimming pool filter diagram

O-ring pum

Part #54076

The manufacturer no longer makes this part, and there's no substitute part

Bracket 57024
#12

Swimming pool filter diagram

Bracket

Part #57024

The manufacturer no longer makes this part, and there's no substitute part

Cover 55116
#7

Swimming pool filter diagram

Cover

Part #55116

The manufacturer no longer makes this part, and there's no substitute part

Post 45045
#5

Swimming pool filter diagram

Post

Part #45045

The manufacturer no longer makes this part, and there's no substitute part

Hose Holder 56040
#26

Swimming pool filter diagram

Hose holder

Part #56040

The manufacturer no longer makes this part, and there's no substitute part
