Model # DSC-W370 Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W370 digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |

Connector 182283721
#107

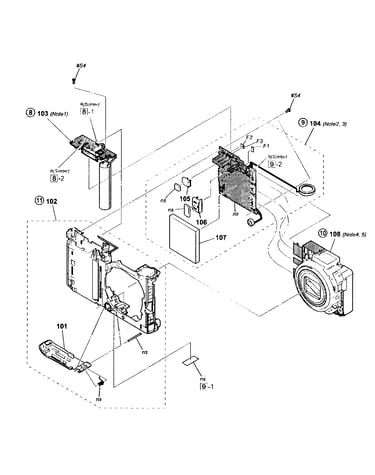

Main frame diagram

Connector

Part #182283721

Replaced by #182283741

?
Manufacturer substitution
This part replaces 182283721. Substitute parts can look different from the original.
In Stock
Tripodscrw 417923501
#55

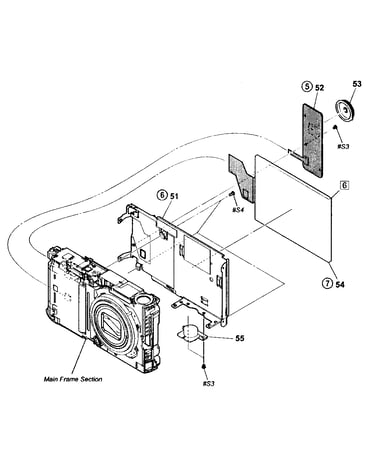

Lcd assy diagram

Tripodscrw

Part #417923501

This item is not returnable
In Stock
Cabinet Front X25471931
#1

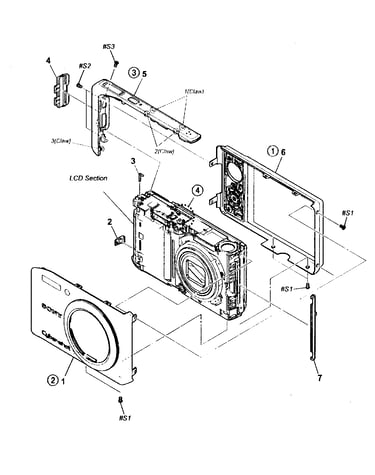

Cabinet assy diagram

Cabinet front

Part #X25471931

In Stock
Rr Cabinet X25471891
#6

Cabinet assy diagram

Rr cabinet

Part #X25471891

In Stock
Strobeunit 417923901
#103

Main frame diagram

Strobeunit

Part #417923901

In Stock
Pcb,sw Bd. 417923301
#52

Lcd assy diagram

Pcb,sw bd.

Part #417923301

In Stock
Machine Screw 417923101
#S3

Cabinet assy diagram

Machine screw

Part #417923101

This item is not returnable
In Stock
Fuse Micro 152303831
#F1

Main frame diagram

Fuse micro

Part #152303831

In Stock
Dc Door 417922801
#2

Cabinet assy diagram

Dc door

Part #417922801

In Stock
Battery Charger 148721211
#NI

Cabinet assy diagram

Battery charger

Part #148721211

In Stock
