Model # 756188751 Official Craftsman impact wrench

Here are the diagrams and repair parts for Official Craftsman 756188751 impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Air Strainer 20659037
#2

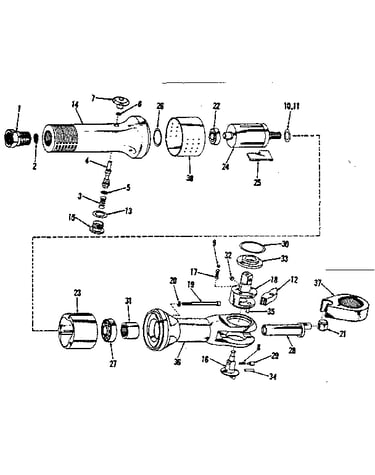

Unit parts diagram

Air strainer

Part #20659037

The manufacturer no longer makes this part, and there's no substitute part

Rotor 20646181
#24

Unit parts diagram

Rotor

Part #20646181

The manufacturer no longer makes this part, and there's no substitute part

Steel Ball (2 Req'd.) 20147611
#9

Unit parts diagram

Steel ball (2 req'd.)

Part #20147611

The manufacturer no longer makes this part, and there's no substitute part

Ratchet Pawl 20646192
#12

Unit parts diagram

Ratchet pawl

Part #20646192

The manufacturer no longer makes this part, and there's no substitute part

O-ring 201102905
#5

Unit parts diagram

O-ring

Part #201102905

The manufacturer no longer makes this part, and there's no substitute part

Dowel Pin 20646189
#35

Unit parts diagram

Dowel pin

Part #20646189

The manufacturer no longer makes this part, and there's no substitute part

Cap Assembly 20659343
#1

Unit parts diagram

Cap assembly

Part #20659343

The manufacturer no longer makes this part, and there's no substitute part

Valve 20646169
#4

Unit parts diagram

Valve

Part #20646169

The manufacturer no longer makes this part, and there's no substitute part

Spring Plug 20166311
#15

Unit parts diagram

Spring plug

Part #20166311

The manufacturer no longer makes this part, and there's no substitute part

"o" Ring (l-5670) 20150432
#6

Unit parts diagram

"o" ring (l-5670)

Part #20150432

The manufacturer no longer makes this part, and there's no substitute part
