Craftsman
Line Trimmer

Model # 315797651 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 315797651 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Tube Holder 999184-001
#8

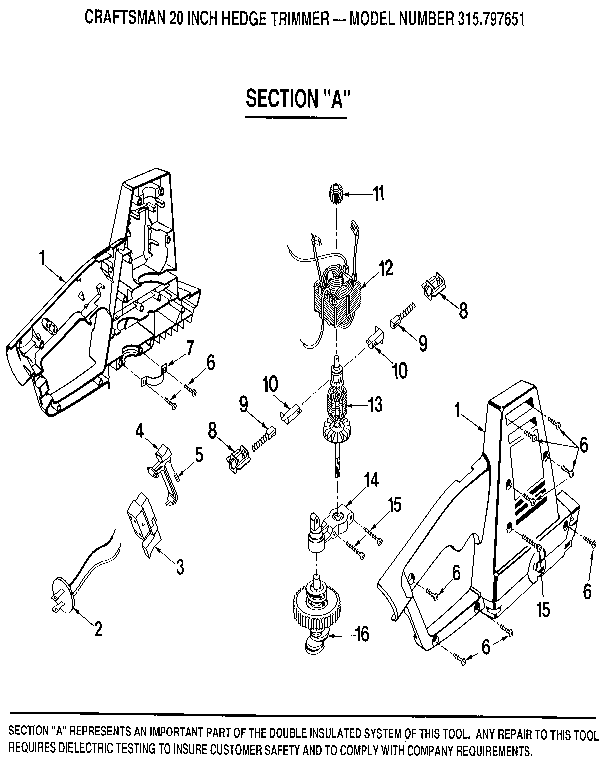

Motor diagram

Tube holder

Part #999184-001

The manufacturer no longer makes this part, and there's no substitute part

Insp Tag 611377-001
#11

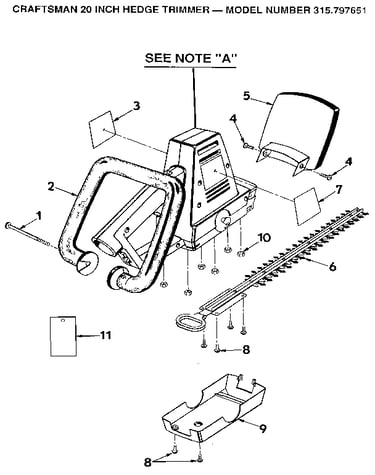

Main frame diagram

Insp tag

Part #611377-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 967778-001
#5

Motor diagram

Spring

Part #967778-001

The manufacturer no longer makes this part, and there's no substitute part

Bl Cover 967763-001
#9

Main frame diagram

Bl cover

Part #967763-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 610784-035
#9

Motor diagram

Brush assembly

Part #610784-035

The manufacturer no longer makes this part, and there's no substitute part

Bl Guard 967760-001
#5

Main frame diagram

Bl guard

Part #967760-001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 968848-000
#1

Motor diagram

Housing assembly

Part #968848-000

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 929058-020
#10

Main frame diagram

Hex nut

Part #929058-020

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 968078-001
#3

Main frame diagram

Logo plate

Part #968078-001

The manufacturer no longer makes this part, and there's no substitute part

Disc Assembly 967781-001
#2

Motor diagram

Disc assembly

Part #967781-001

The manufacturer no longer makes this part, and there's no substitute part
