Water Pump

Model # 390252157 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390252157 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Hose Clamp U19-55SS
#5

Tank only diagram

Hose clamp

Part #U19-55SS

The manufacturer no longer makes this part, and there's no substitute part

Pump Shaft Seal U109-6A
#7

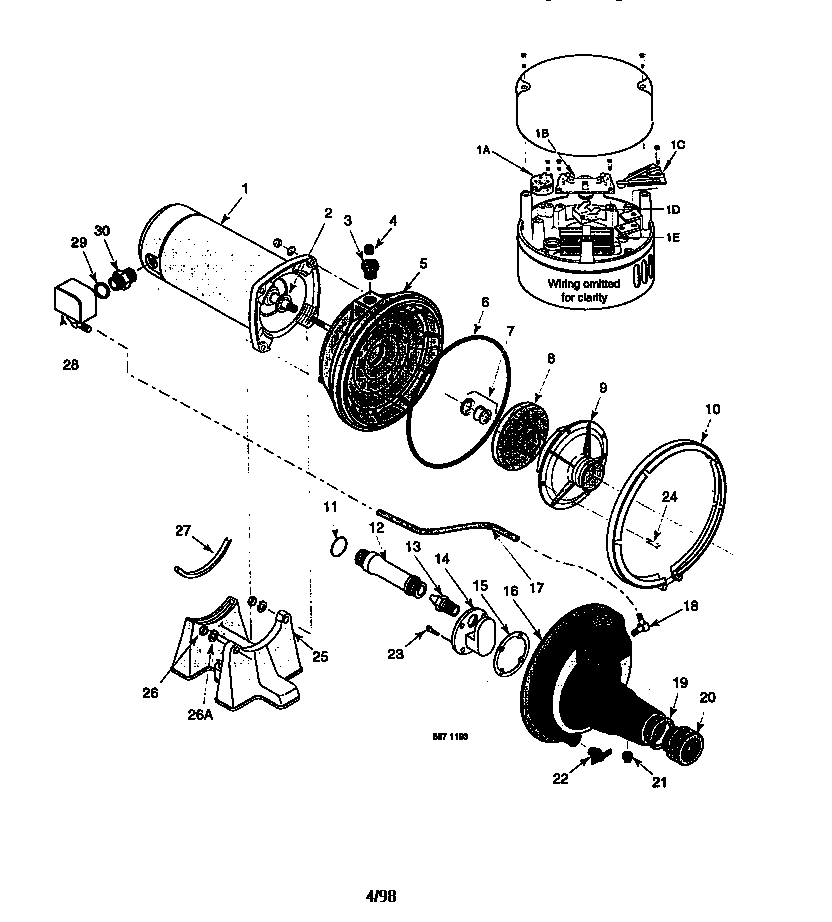

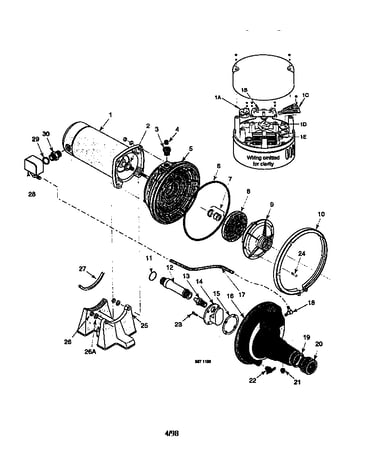

Pump only diagram

Pump shaft seal

Part #U109-6A

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U109-6A. Substitute parts can look different from the original.
$106.69 |
9% OFF Phone Price : $116.69
In Stock
Pump Pressure Switch Tube U37-673P
#17

Pump only diagram

Pump pressure switch tube

Part #U37-673P

This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Captive Air Tank Air Valve (replaces U212-159, U212-162) U212-160

#NI

All parts diagram

Captive air tank air valve (replaces u212-159, u212-162)

Part #U212-160

This item is not returnable
$25.18 |
17% OFF Phone Price : $30.18
In Stock
Pump Hose Fitting, 90-degree U111-212T
#18

Pump only diagram

Pump hose fitting, 90-degree

Part #U111-212T

This item is not returnable
$27.69 |
15% OFF Phone Price : $32.69
In Stock
Slinger C69-2
#2

Pump only diagram

Slinger

Part #C69-2

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces C69-2. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Pump Screw, #8-32 X 7/8-in U30-542SS
#24

Pump only diagram

Pump screw, #8-32 x 7/8-in

Part #U30-542SS

This item is not returnable
$5.03
In Stock
0-ring U9-226
#19

Pump only diagram

0-ring

Part #U9-226

$10.71
In Stock
Pump Impeller J105-40PE
#8

Pump only diagram

Pump impeller

Part #J105-40PE

$139.59 |
7% OFF Phone Price : $149.59
In Stock
Pump Start Switch Governor U18-128
#1D

Pump only diagram

Pump start switch governor

Part #U18-128

$214.50 |
$10.00 OFF Phone Price : $224.50
In Stock
