Model # R-5A38 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-5A38 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

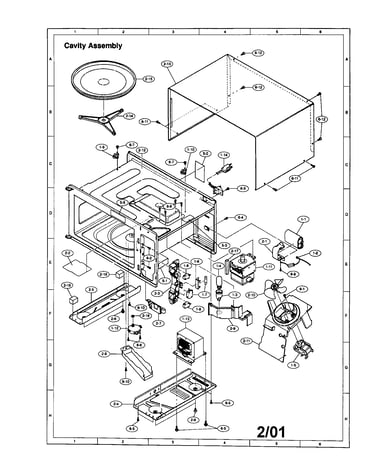

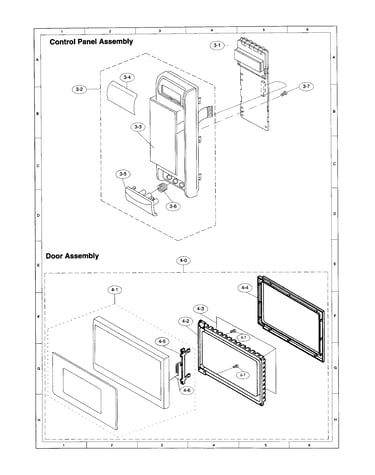

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

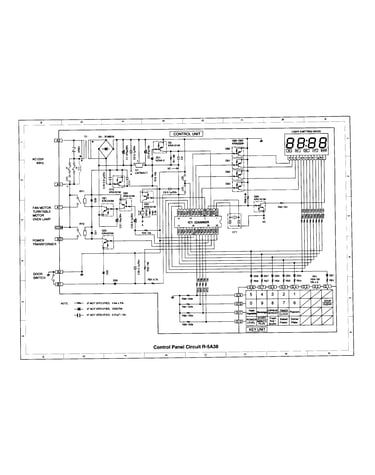

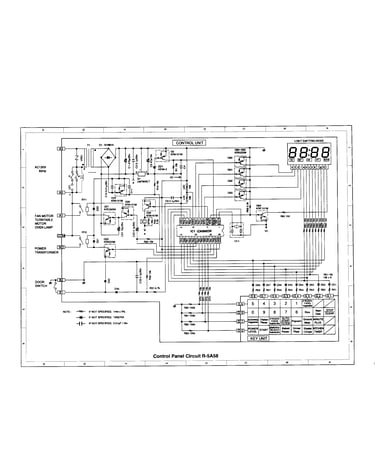

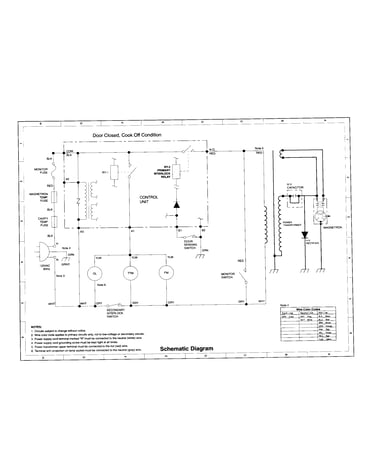

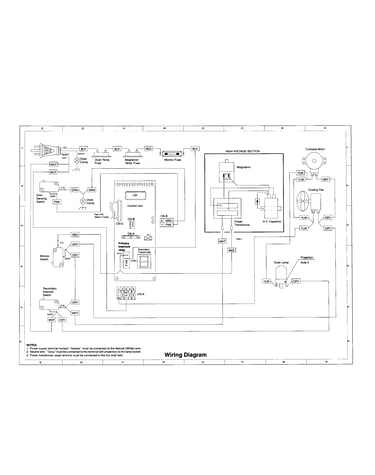

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Switch FFS-BA016/KIT

#1-07

All parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Open Button 46-16133902-

#3-05

All parts diagram

Open button

Part #46-16133902-

The manufacturer no longer makes this part, and there's no substitute part

Door CDORFB151MRK0

#4-00

All parts diagram

Door

Part #CDORFB151MRK0

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDB001MRE0

#1-14

All parts diagram

Power cord

Part #FACCDB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Transformer RV-MZA173WRE0

#1-11

All parts diagram

Transformer

Part #RV-MZA173WRE0

The manufacturer no longer makes this part, and there's no substitute part

Latch 46-177011-3

#NI

All parts diagram

Latch

Part #46-177011-3

The manufacturer no longer makes this part, and there's no substitute part

Latch LSTPPB021MRF0

#4-05

All parts diagram

Latch

Part #LSTPPB021MRF0

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor RMOTEB018MRE0

#1-05

All parts diagram

Fan motor

Part #RMOTEB018MRE0

The manufacturer no longer makes this part, and there's no substitute part

Temperature Fuse QFS-TB005MRE0

#1-09

All parts diagram

Temperature fuse

Part #QFS-TB005MRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA110WRE0

#1-08

All parts diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part
