Craftsman
Walk-Behind Mower

Model # 13191074 Official Craftsman 20" rotary power lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191074 20" rotary power lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

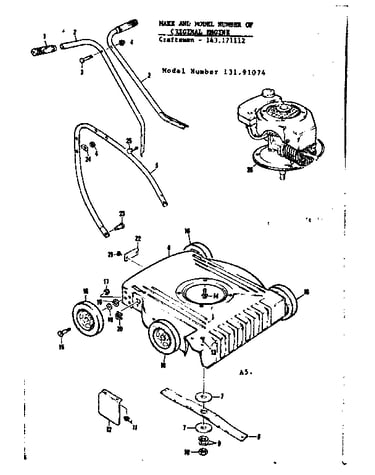

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Blade 56400
#8

Replacement parts diagram

Blade

Part #56400

Replaced by #145106

?
Manufacturer substitution
This part replaces 56400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$13.39 |
13% OFF Phone Price : $15.39
In Stock
Washer 54005
#18

Replacement parts diagram

Washer

Part #54005

The manufacturer no longer makes this part, and there's no substitute part

Bolt 52246
#15

Replacement parts diagram

Bolt

Part #52246

Replaced by #532121117

?
Manufacturer substitution
This part replaces 52246. Substitute parts can look different from the original.
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Nut 53490
#4

Replacement parts diagram

Nut

Part #53490

The manufacturer no longer makes this part, and there's no substitute part

Wheel Tire 59482
#16

Replacement parts diagram

Wheel tire

Part #59482

The manufacturer no longer makes this part, and there's no substitute part

Handle 60602
#2

Replacement parts diagram

Handle

Part #60602

The manufacturer no longer makes this part, and there's no substitute part

Screw 5/8 Lg 54562
#21

Replacement parts diagram

Screw 5/8 lg

Part #54562

The manufacturer no longer makes this part, and there's no substitute part

Handle Grip 56675
#1

Replacement parts diagram

Handle grip

Part #56675

The manufacturer no longer makes this part, and there's no substitute part

Housing 57720
#6

Replacement parts diagram

Housing

Part #57720

The manufacturer no longer makes this part, and there's no substitute part

Bolt 141525
#13

Replacement parts diagram

Bolt

Part #141525

The manufacturer no longer makes this part, and there's no substitute part
