Model # VSX-D601 Official Pioneer receiver

Here are the diagrams and repair parts for Official Pioneer VSX-D601 receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

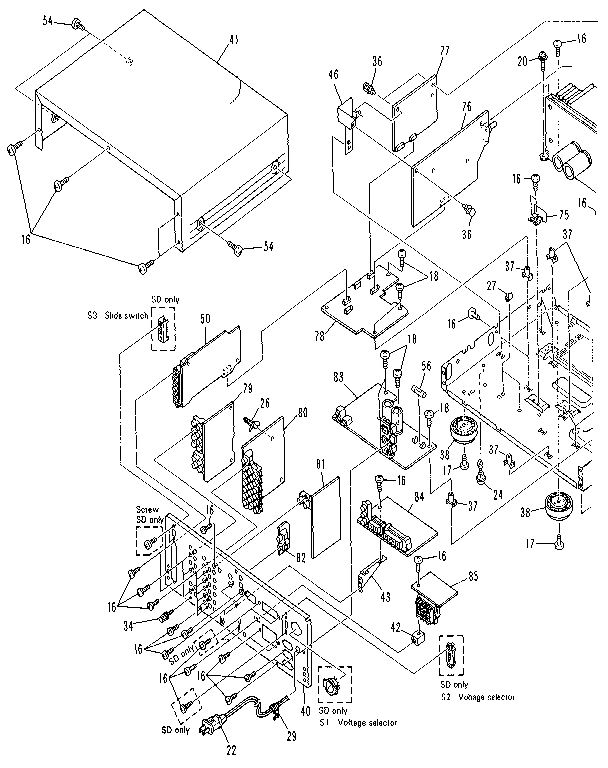

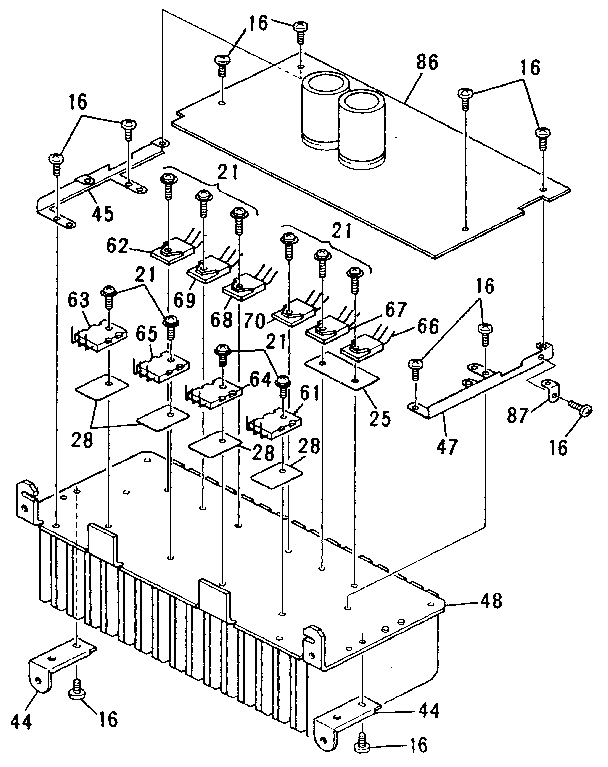

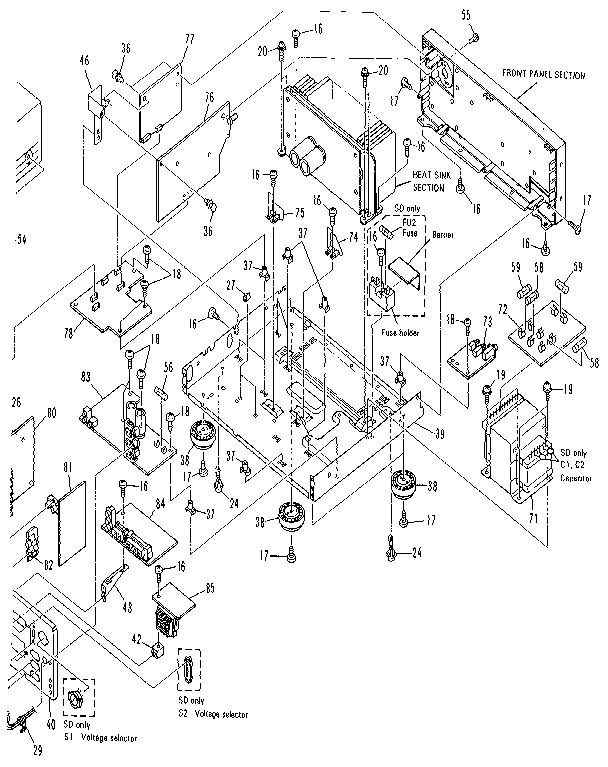

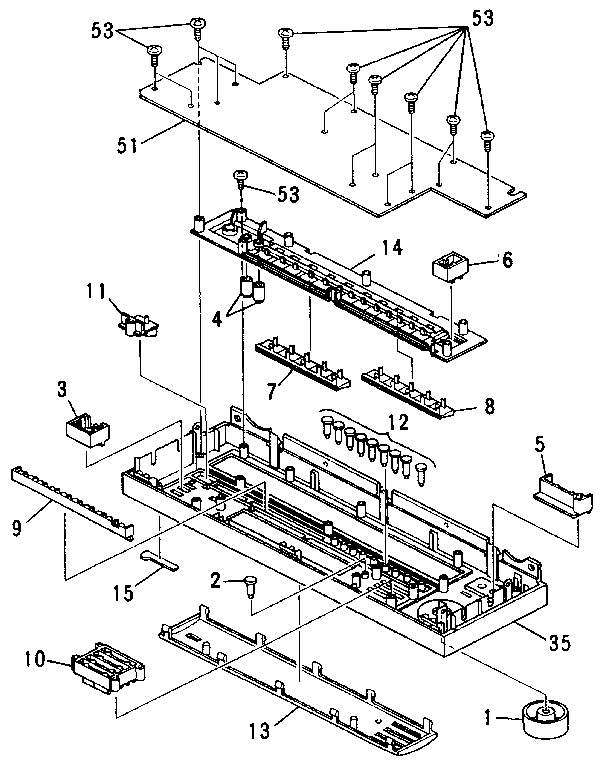

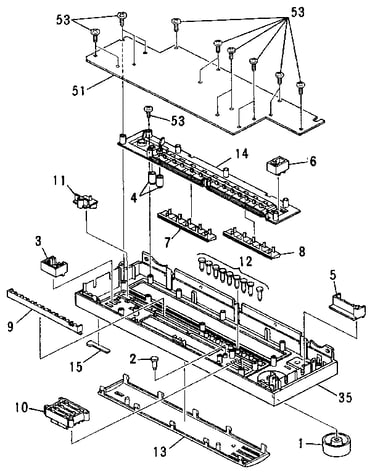

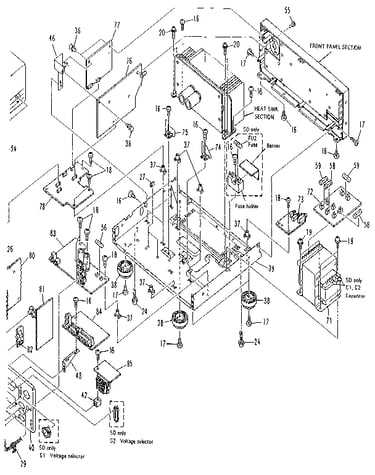

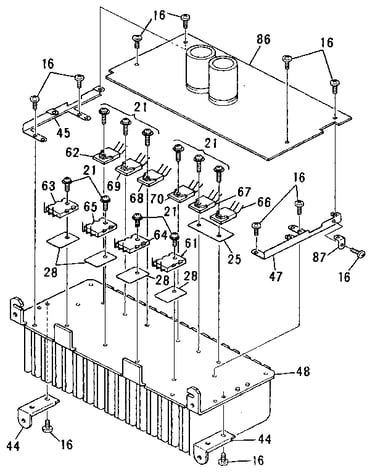

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Battery Vsx3 AEX1007

#30

All parts diagram

Battery vsx3

Part #AEX1007

The manufacturer no longer makes this part, and there's no substitute part

Button AAD2273

#12

All parts diagram

Button

Part #AAD2273

The manufacturer no longer makes this part, and there's no substitute part

Button AAD2271

#10

All parts diagram

Button

Part #AAD2271

The manufacturer no longer makes this part, and there's no substitute part

Button AAD2270

#9

All parts diagram

Button

Part #AAD2270

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly AWZ4295

#81

All parts diagram

Pcb assembly

Part #AWZ4295

The manufacturer no longer makes this part, and there's no substitute part

Button AAD2272

#11

All parts diagram

Button

Part #AAD2272

The manufacturer no longer makes this part, and there's no substitute part

Button AAD2265

#6

All parts diagram

Button

Part #AAD2265

The manufacturer no longer makes this part, and there's no substitute part

Terminal AKE-031

#34

All parts diagram

Terminal

Part #AKE-031

The manufacturer no longer makes this part, and there's no substitute part

Steel Screw ABA1053

#19

All parts diagram

Steel screw

Part #ABA1053

The manufacturer no longer makes this part, and there's no substitute part

Cord Stopper AEP-113

#29

All parts diagram

Cord stopper

Part #AEP-113

The manufacturer no longer makes this part, and there's no substitute part
