Amana RHQ3600-1B/P67850-15C remote heat pump outdoor section - erhq & rhq series Parts

Here are the diagrams and repair parts for Amana RHQ3600-1B/P67850-15C remote heat pump outdoor section - erhq & rhq series, as well as links to manuals and error code tables, if available.

Amana RHQ3600-1B/P67850-15C remote heat pump outdoor section - erhq & rhq series
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RHQ3600-1B/P67850-15C Remote Heat Pump Outdoor Section - ERHQ & RHQ Series

  • Washer Screw for Amana RHQ3600-1B/P67850-15C - Part WP90767

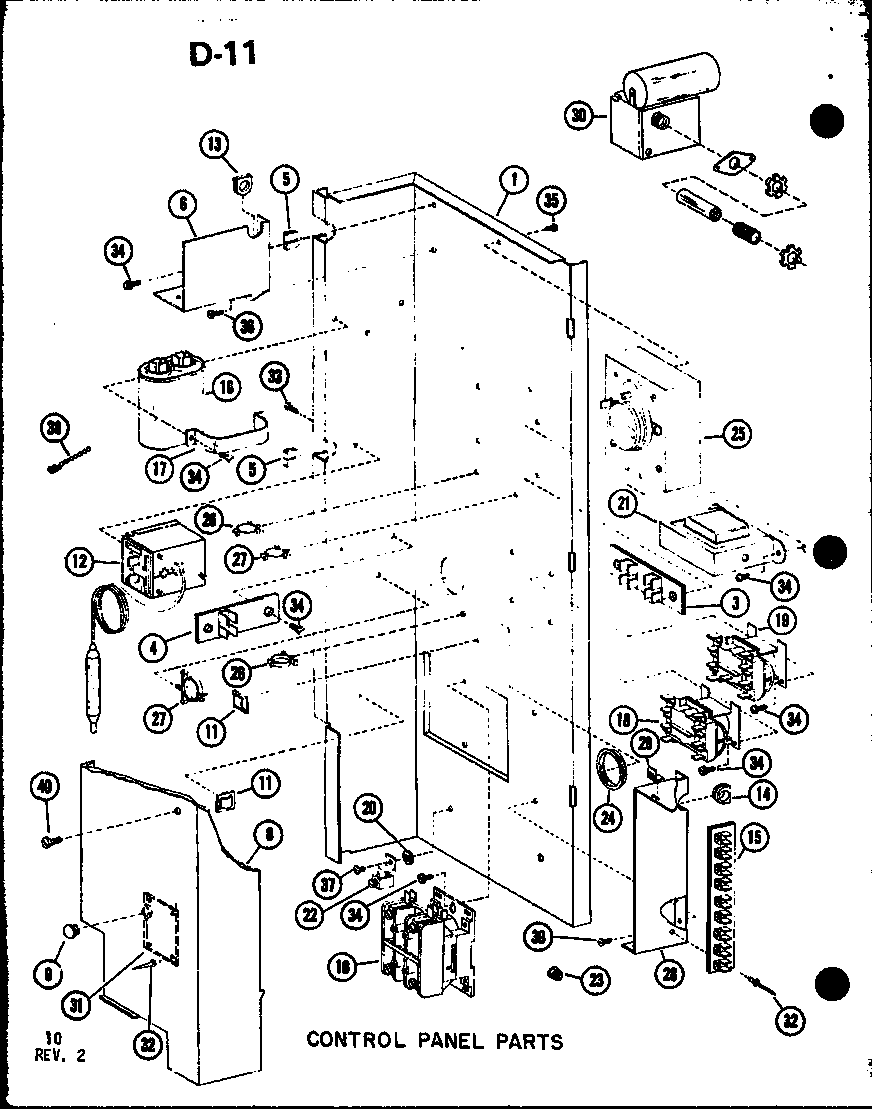

    Control panel parts diagram

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw Sm/hex for Amana RHQ3600-1B/P67850-15C - Part WP98165

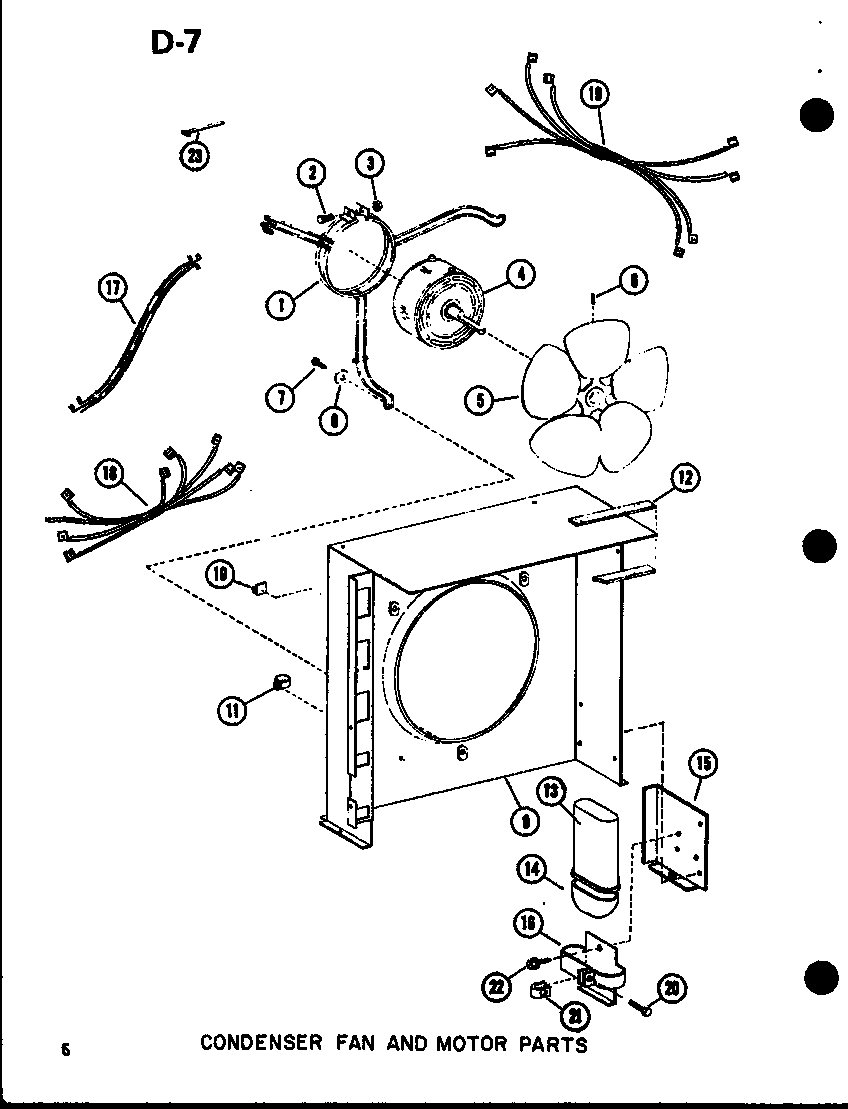

    Condenser fan and motor parts diagram

    Screw

    Part #M0211018

    Replaced by #WP98165

    Info Icon
    Manufacturer substitution
    This part replaces M0211018. Substitute parts can look different from the original.
    In Stock
    $28.39
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana RHQ3600-1B/P67850-15C - Part WP489464

    Condenser fan and motor parts diagram

    Screw

    Part #M0211317

    Replaced by #WP489464

    Info Icon
    Manufacturer substitution
    This part replaces M0211317. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Kitchenaid Refrigerator Wire Retainer for Amana RHQ3600-1B/P67850-15C - Part WPM0104106

    Control panel parts diagram

    Cord Clip

    Part #M0104101

    Replaced by #WPM0104106

    Info Icon
    Manufacturer substitution
    This part replaces M0104101. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Range Screw for Amana RHQ3600-1B/P67850-15C - Part WP12990527

    Control panel parts diagram

    Screw

    Part #M0211003

    Replaced by #WP12990527

    Info Icon
    Manufacturer substitution
    This part replaces M0211003. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.80
    17% OFF Phone Price : $5.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Reserving Valve Assembly for Amana RHQ3600-1B/P67850-15C - Part B4765601

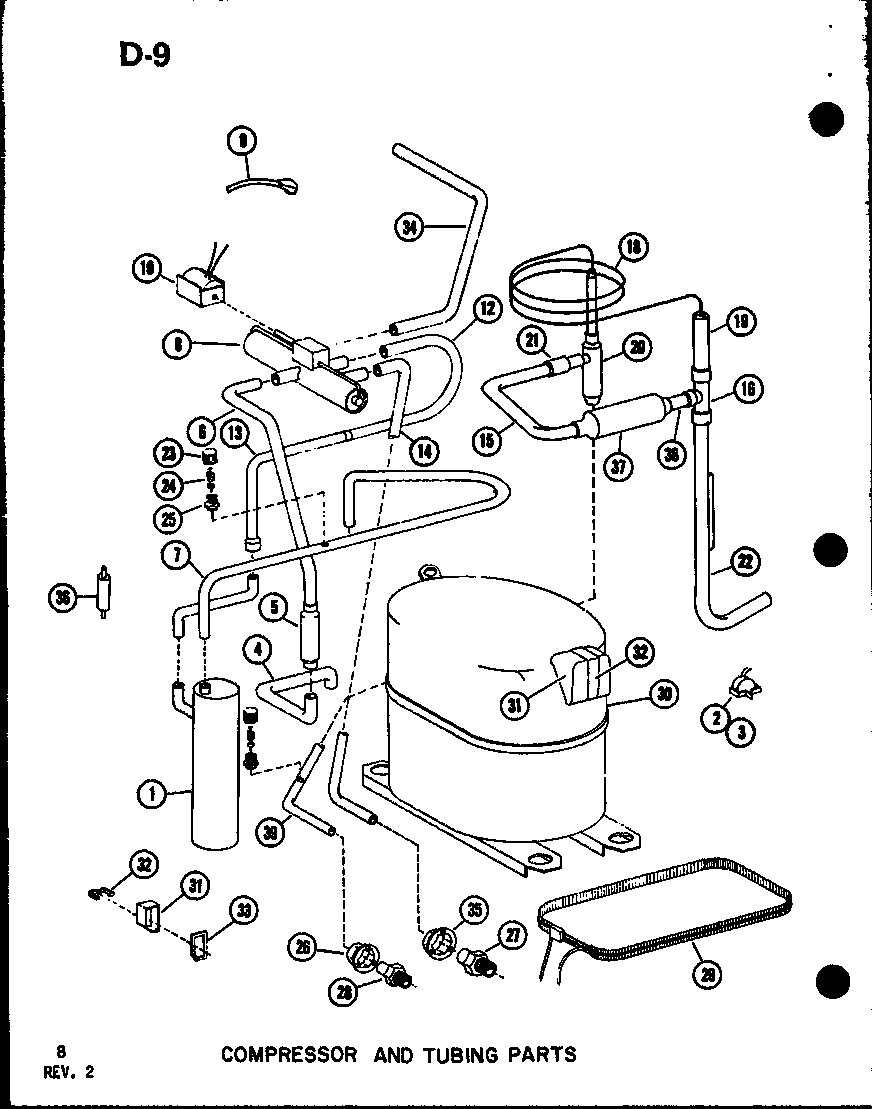

    Compressor and tubing parts diagram

    Reserving Valve Assembly

    Part #B4765601

    The manufacturer no longer makes this part, and there's no substitute part

  • Nameplate for Amana RHQ3600-1B/P67850-15C - Part B4795001

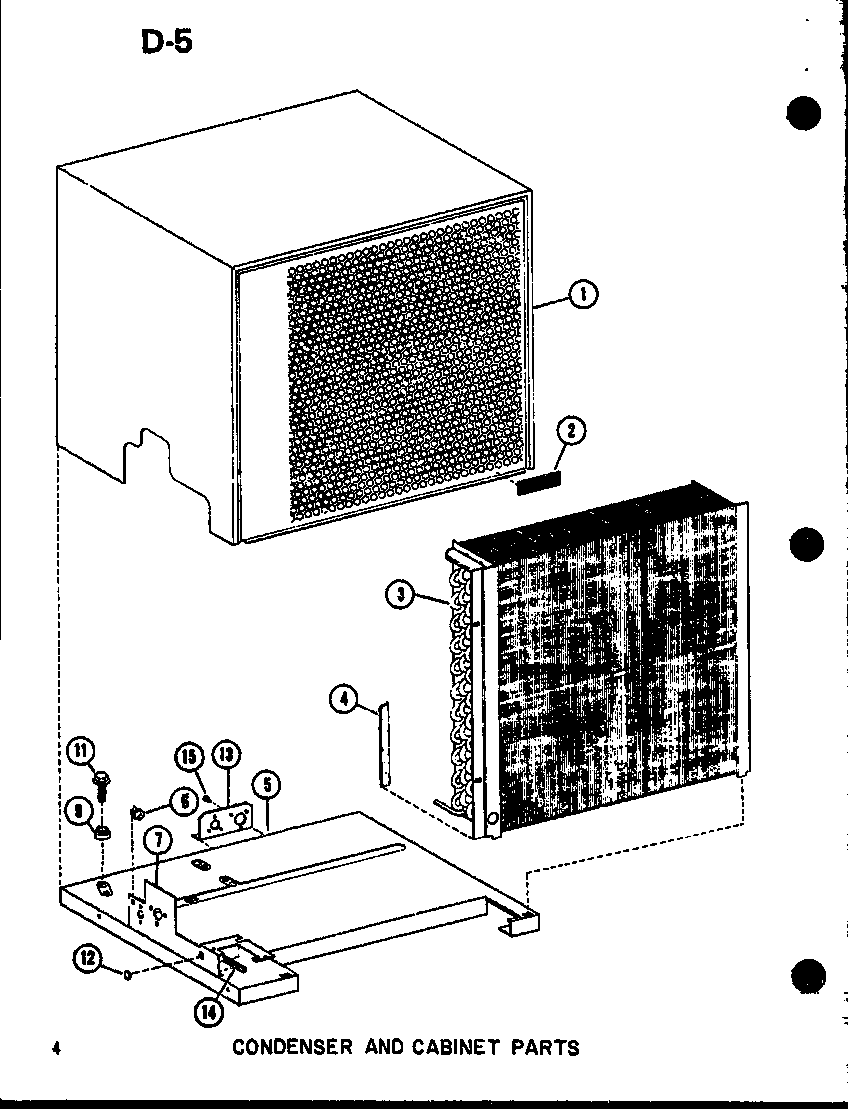

    Condenser and cabinet parts diagram

    Nameplate

    Part #B4795001

    The manufacturer no longer makes this part, and there's no substitute part

  • Blade Fan, 16" Dia., 5 Blade, 45 Degrees Pitch A1645-5 for Amana RHQ3600-1B/P67850-15C - Part C5806201

    Condenser fan and motor parts diagram

    Blade Fan, 16" Dia., 5 Blade, 45 Degrees Pitch A1645-5

    Part #C5806201

    The manufacturer no longer makes this part, and there's no substitute part

  • Partition for Amana RHQ3600-1B/P67850-15C - Part B5167901

    Control panel parts diagram

    Partition

    Part #B5167901

    The manufacturer no longer makes this part, and there's no substitute part

  • Liquid Line, Strainer To Q.c. for Amana RHQ3600-1B/P67850-15C - Part B1346101

    Compressor and tubing parts diagram

    Liquid Line, Strainer To Q.c.

    Part #B1346101

    The manufacturer no longer makes this part, and there's no substitute part
