Bosch
Angle Grinder

Model # GWS18V-50 Official Bosch angle grinder

Here are the diagrams and repair parts for Official Bosch GWS18V-50 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Seal Disk 3600150021
#80

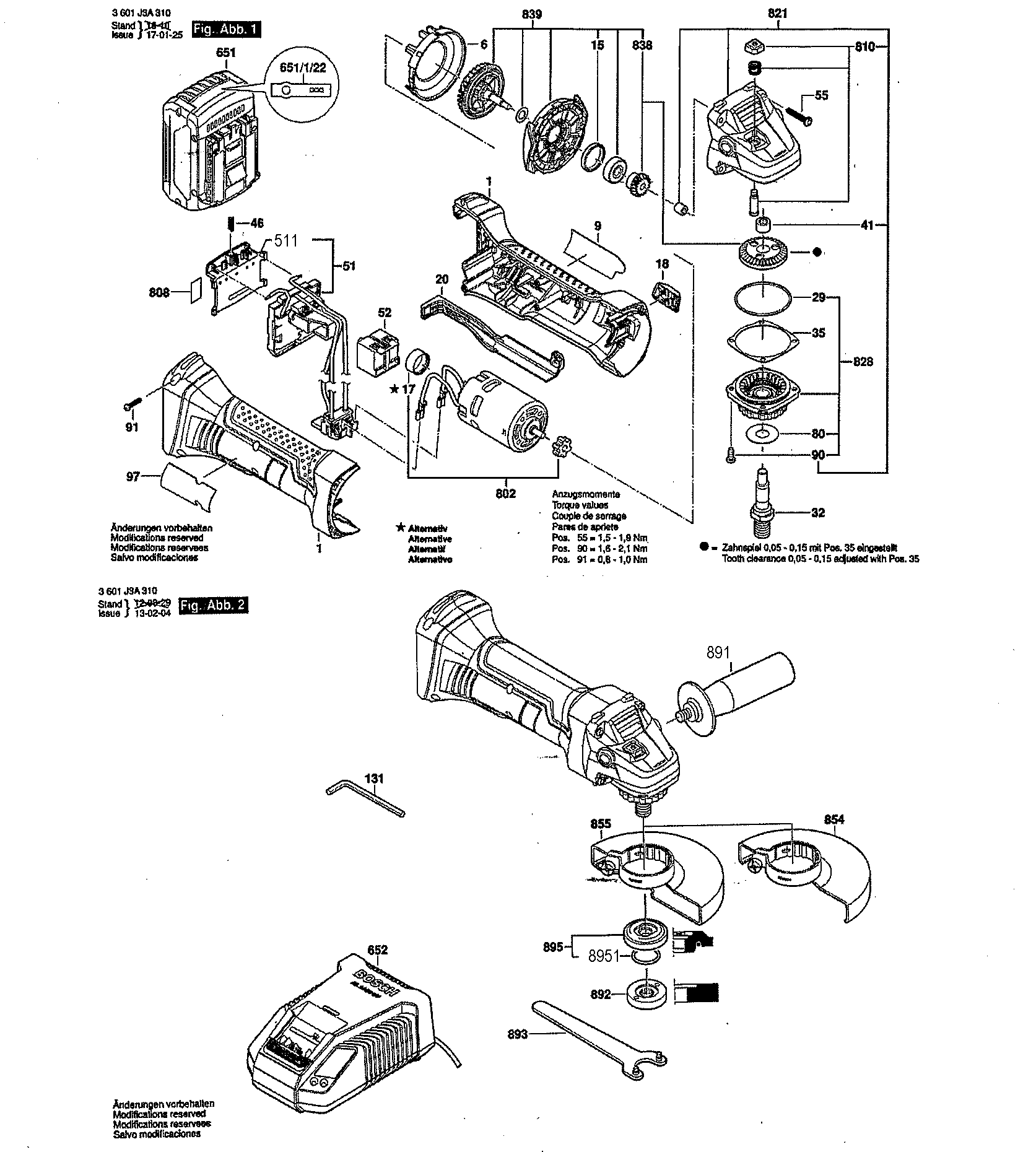

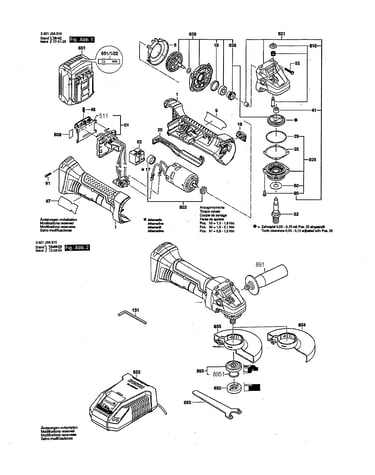

Grinder angle diagram

Seal disk

Part #3600150021

The manufacturer no longer makes this part, and there's no substitute part

Flange 1605703140
#895

Grinder angle diagram

Flange

Part #1605703140

The manufacturer no longer makes this part, and there's no substitute part

Button 16170006B1
#810

Grinder angle diagram

Button

Part #16170006B1

The manufacturer no longer makes this part, and there's no substitute part

Pin Wrench 1607950052
#893

Grinder angle diagram

Pin wrench

Part #1607950052

The manufacturer no longer makes this part, and there's no substitute part

Slide Adjusting 1602319023
#20

Grinder angle diagram

Slide adjusting

Part #1602319023

The manufacturer no longer makes this part, and there's no substitute part

Handle 1602025027
#891

Grinder angle diagram

Handle

Part #1602025027

The manufacturer no longer makes this part, and there's no substitute part

Label Warning 1601118K86
#97

Grinder angle diagram

Label warning

Part #1601118K86

The manufacturer no longer makes this part, and there's no substitute part

Shim 1619P02822
#35A

Grinder angle diagram

Shim

Part #1619P02822

The manufacturer no longer makes this part, and there's no substitute part

Module Electric 1607233340
#51

Grinder angle diagram

Module electric

Part #1607233340

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1600210253
#8951

Grinder angle diagram

O-ring

Part #1600210253

The manufacturer no longer makes this part, and there's no substitute part
