Kenmore
Water & Ice System

Model # 1988814830 Official Kenmore ice maker

Here are the diagrams and repair parts for Official Kenmore 1988814830 ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

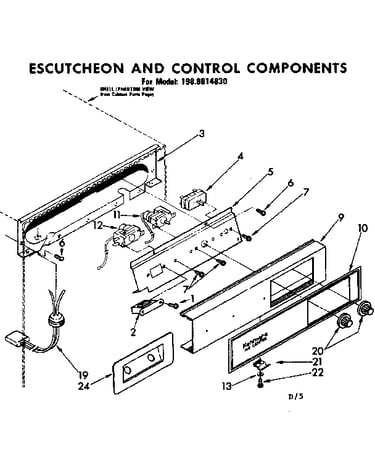

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Drier 755649
#23

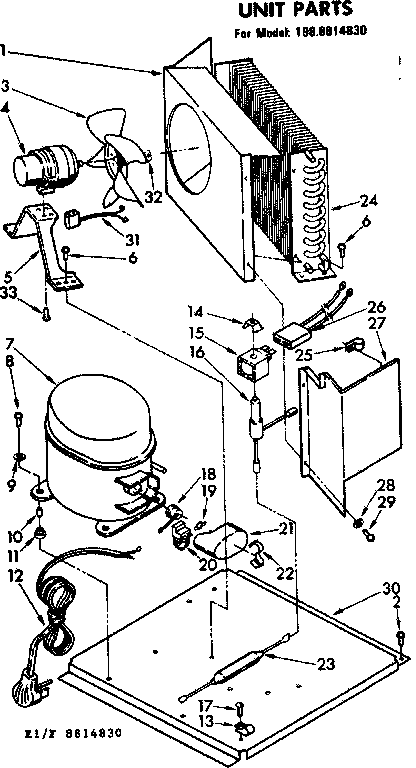

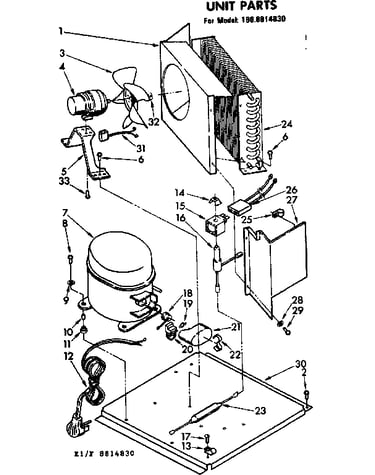

Unit parts diagram

Drier

Part #755649

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 755649. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
31% OFF MSRP : $46.00
In Stock
Tubing 992584
#27

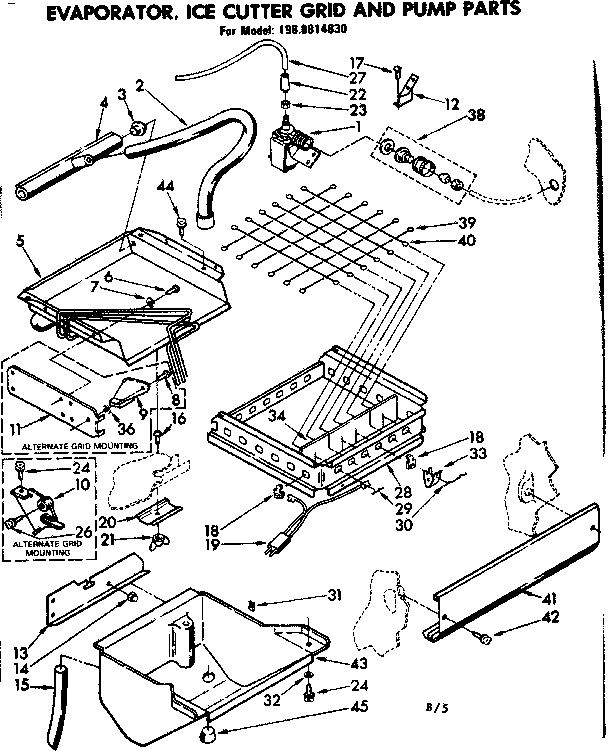

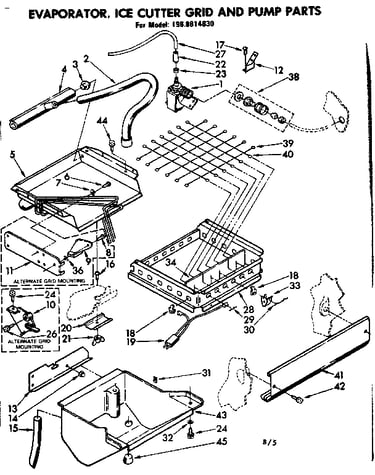

Evaporator, ice cutter grid & pump parts diagram

Tubing

Part #992584

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 992584. Substitute parts can look different from the original.
BEST SELLER
$36.10 |
12% OFF Phone Price : $41.10
In Stock
Scoop 585158
#29

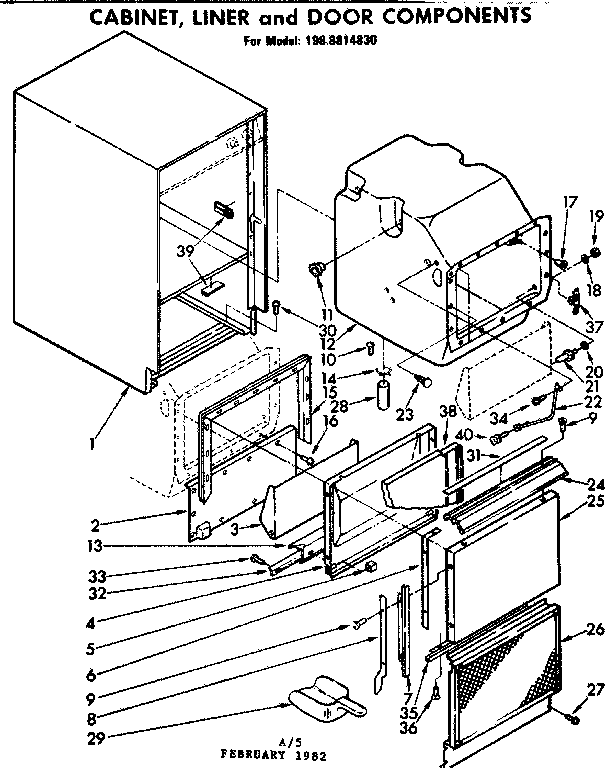

Cabinet, liner & door components diagram

Scoop

Part #585158

Replaced by #W11420408

?
Manufacturer substitution
This part replaces 585158. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.69 |
14% OFF Phone Price : $14.69
In Stock
Insert 841707
#22

Evaporator, ice cutter grid & pump parts diagram

Insert

Part #841707

Replaced by #4387491

?
Manufacturer substitution
This part replaces 841707. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Refrigerator Permagum Sealer 212643

#NI

All parts diagram

Refrigerator permagum sealer

Part #212643

This item is not returnable
$50.09 |
9% OFF Phone Price : $55.09
In Stock
Refrigerator Service Valve 978027

#NI

All parts diagram

Refrigerator service valve

Part #978027

$38.69 |
11% OFF Phone Price : $43.69
In Stock
Ice Maker Pump Mounting Screw 681390
#11

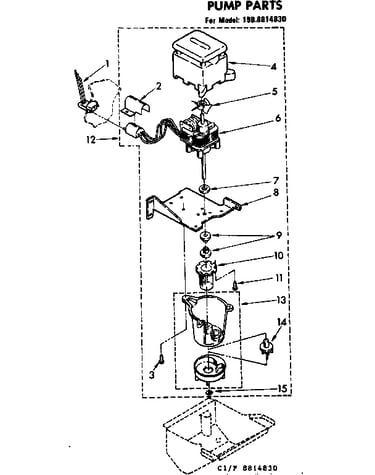

Pump parts diagram

Ice maker pump mounting screw

Part #681390

$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Service Valve, 3/4-in 978030

#NI

All parts diagram

Refrigerator service valve, 3/4-in

Part #978030

$40.49 |
33% OFF MSRP : $60.00
In Stock
Refrigerator Service Valve 978026

#NI

All parts diagram

Refrigerator service valve

Part #978026

$34.19 |
13% OFF Phone Price : $39.19
In Stock
Refrigerator Service Valve 978029

#NI

All parts diagram

Refrigerator service valve

Part #978029

$41.18
In Stock
