White-Westinghouse
Room Air Conditioner

Model # AK087K7V2 Official White-Westinghouse room air conditioner - lw34088110

Here are the diagrams and repair parts for Official White-Westinghouse AK087K7V2 room air conditioner - lw34088110, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Cap Strap 3001850
#19

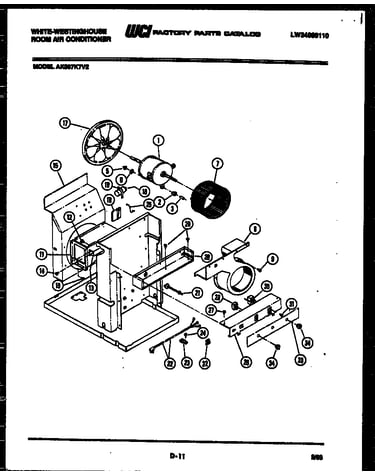

Electrical and air handling parts diagram

Cap strap

Part #3001850

This item is not returnable
$2.29
In Stock
Screw 3007620
Screw

Part #3007620

Replaced by #5303007620

?
Manufacturer substitution
This part replaces 3007620. Substitute parts can look different from the original.
$9.49
In Stock
Control Box A482702
#20

Electrical and air handling parts diagram

Control box

Part #A482702

Replaced by #08047431

?
Manufacturer substitution
This part replaces A482702. Substitute parts can look different from the original.
$21.99
In Stock
Bracket-compr Mtg A366901
#11

Electrical and air handling parts diagram

Bracket-compr mtg

Part #A366901

The manufacturer no longer makes this part, and there's no substitute part

Front-complete A494807
#30

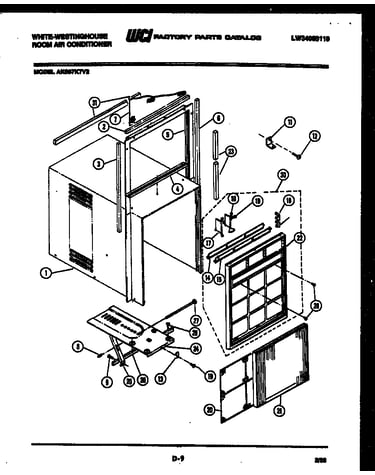

Cabinet parts diagram

Front-complete

Part #A494807

The manufacturer no longer makes this part, and there's no substitute part

Gasket Seal 3002056
#4

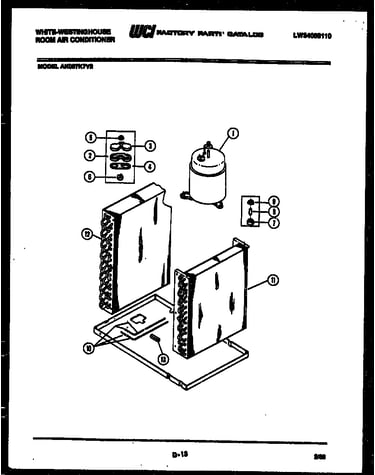

System parts diagram

Gasket seal

Part #3002056

The manufacturer no longer makes this part, and there's no substitute part

Panel-control A482805
#26

Electrical and air handling parts diagram

Panel-control

Part #A482805

The manufacturer no longer makes this part, and there's no substitute part

Motor-fan A510777
#1

Electrical and air handling parts diagram

Motor-fan

Part #A510777

The manufacturer no longer makes this part, and there's no substitute part

Nut Support A516543
#8

Cabinet parts diagram

Nut support

Part #A516543

The manufacturer no longer makes this part, and there's no substitute part

Seal-side Ch A149308-11
Seal-side ch

Part #A149308-11

The manufacturer no longer makes this part, and there's no substitute part
