Whirlpool BHAC2400FS0 air conditioner Parts

Here are the diagrams and repair parts for Whirlpool BHAC2400FS0 air conditioner, as well as links to manuals and error code tables, if available.

Whirlpool BHAC2400FS0 air conditioner
By Schematic
By Part

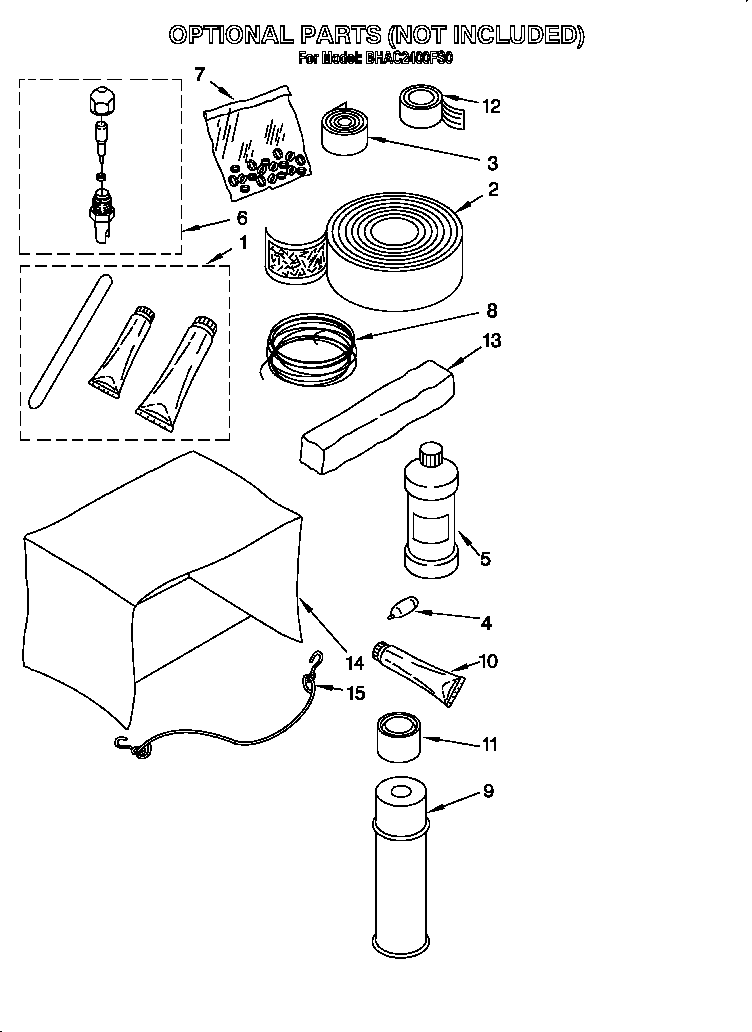

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for BHAC2400FS0 Air Conditioner

  • Cover for Whirlpool BHAC2400FS0 - Part 1183840

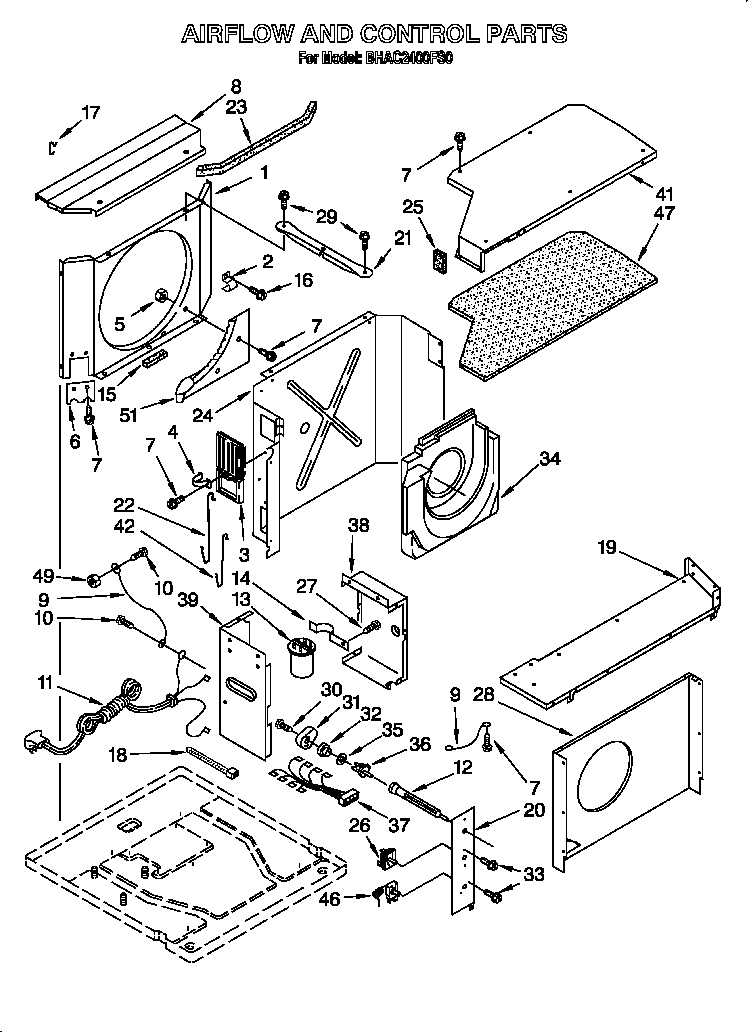

    Airflow and control diagram

    Cover

    Part #1160709

    Replaced by #1183840

    Info Icon
    Manufacturer substitution
    This part replaces 1160709. Substitute parts can look different from the original.
    In Stock
    $59.45
    Minus Item
    Qty
    Plus Item
  • Dryer Washer for Whirlpool BHAC2400FS0 - Part W11236646

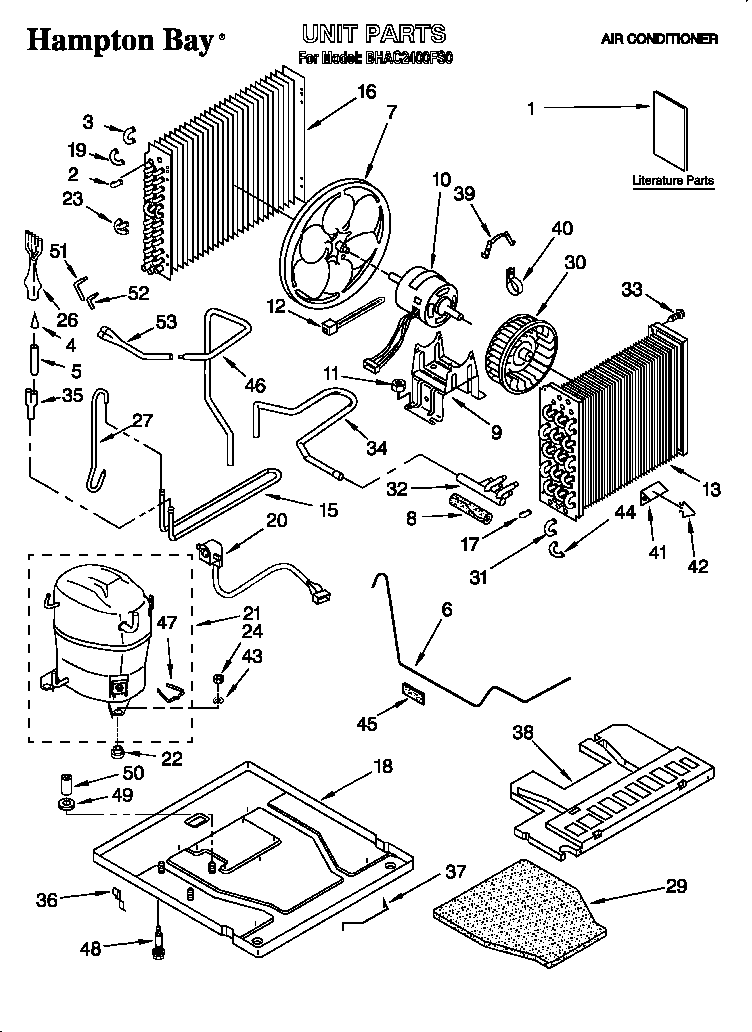

    Unit diagram

    Washer

    Part #1160880

    Replaced by #W11236646

    Info Icon
    Manufacturer substitution
    This part replaces 1160880. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $19.29
    9% OFF Phone Price : $21.29Info Icon
    Minus Item
    Qty
    Plus Item
  • Nut for Whirlpool BHAC2400FS0 - Part WP488130

    Nut

    Part #1160408

    Replaced by #WP488130

    Info Icon
    Manufacturer substitution
    This part replaces 1160408. Substitute parts can look different from the original.
    In Stock
    $28.95
    Minus Item
    Qty
    Plus Item
  • Sears Refrigerator Permagum Sealer for Whirlpool BHAC2400FS0 - Part 212643

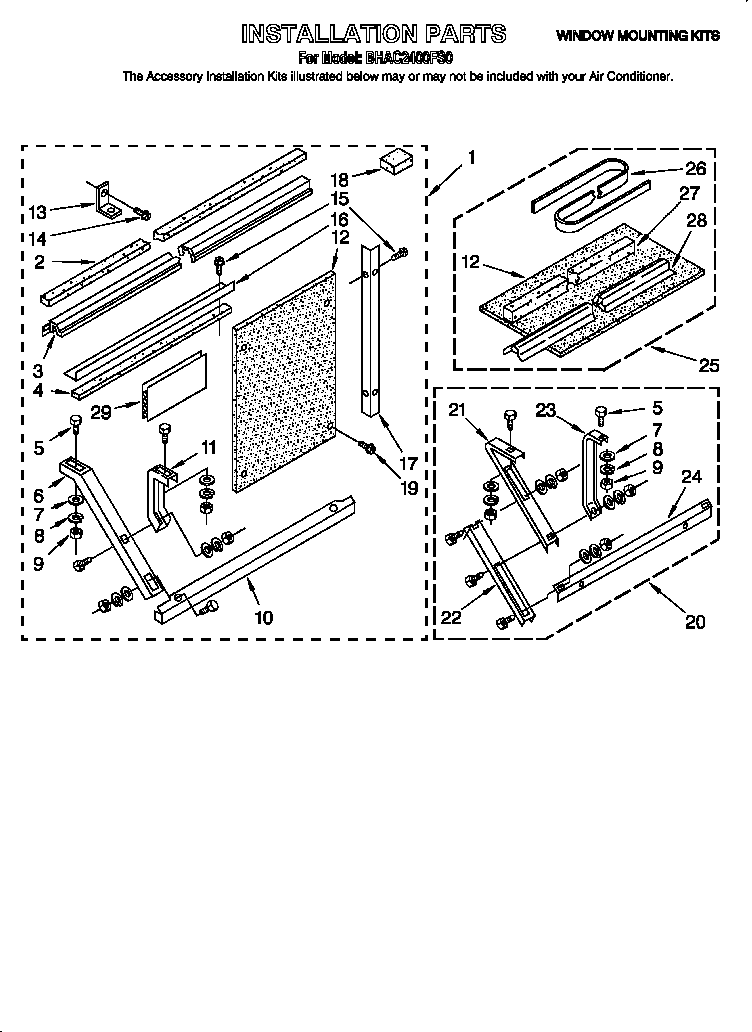

    Installation diagram

    Capacitor

    Part #470168

    Replaced by #212643

    Info Icon
    Manufacturer substitution
    This part replaces 470168. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $42.54
    12% OFF Phone Price : $48.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Jenn-air Refrigerator Permagum Sealer for Whirlpool BHAC2400FS0 - Part 4318168

    Sealer

    Part #99344

    Replaced by #4318168

    Info Icon
    Manufacturer substitution
    This part replaces 99344. Substitute parts can look different from the original.
    In Stock
    $73.30
    Minus Item
    Qty
    Plus Item
  • Dryer Motor Clamp for Whirlpool BHAC2400FS0 - Part WPY015825

    Unit diagram

    Mounting Clip

    Part #1157015

    Replaced by #WPY015825

    Info Icon
    Manufacturer substitution
    This part replaces 1157015. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $17.84
    10% OFF Phone Price : $19.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Whirlpool BHAC2400FS0 - Part WP488234

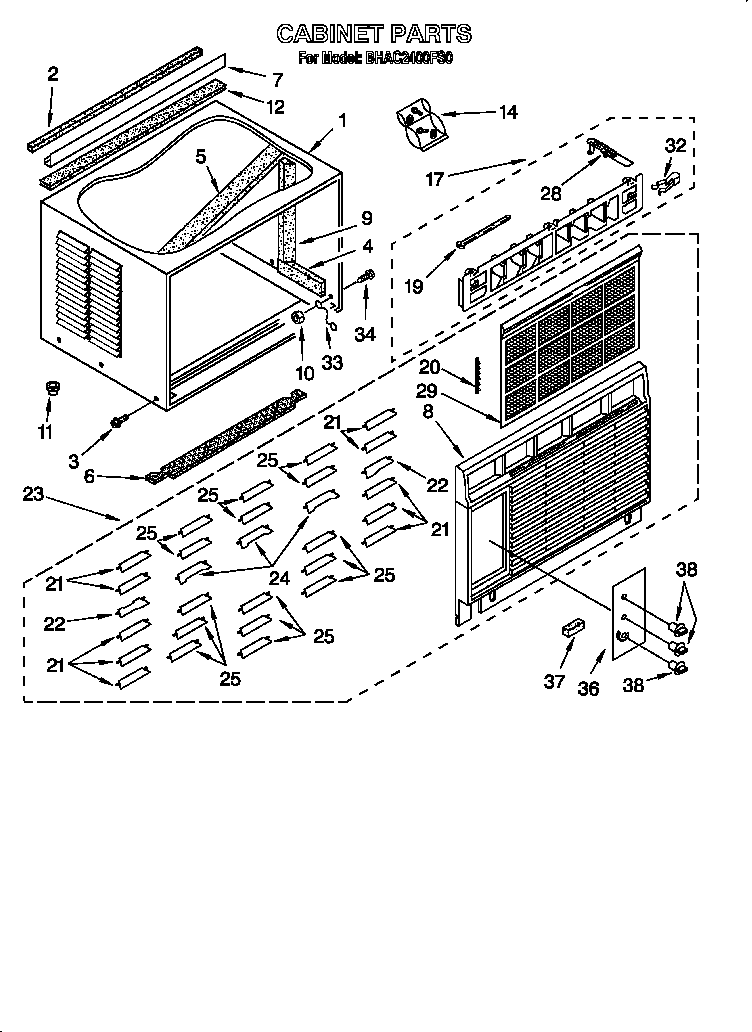

    Cabinet diagram

    Screw

    Part #488234

    Replaced by #WP488234

    Info Icon
    Manufacturer substitution
    This part replaces 488234. Substitute parts can look different from the original.
    In Stock
    $28.95
    Minus Item
    Qty
    Plus Item
  • Appliance Cable Tie for Whirlpool BHAC2400FS0 - Part WPW10339879

    Airflow and control diagram

    Wire Tie

    Part #1159130

    Replaced by #WPW10339879

    Info Icon
    Manufacturer substitution
    This part replaces 1159130. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Whirlpool BHAC2400FS0 - Part WP308685

    Airflow and control diagram

    Screw

    Part #488720

    Replaced by #WP308685

    Info Icon
    Manufacturer substitution
    This part replaces 488720. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.09
    16% OFF Phone Price : $6.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Evaporator for Whirlpool BHAC2400FS0 - Part 1164507

    Unit diagram

    Evaporator

    Part #1169765

    Replaced by #1164507

    Info Icon
    Manufacturer substitution
    This part replaces 1169765. Substitute parts can look different from the original.
    In Stock
    $374.56
    Minus Item
    Qty
    Plus Item
