Ducane UHZB100A4 1/2-hp upflow horizontal oil furnace Parts

Here are the diagrams and repair parts for Ducane UHZB100A4 1/2-hp upflow horizontal oil furnace, as well as links to manuals and error code tables, if available.

Ducane UHZB100A4 1/2-hp upflow horizontal oil furnace

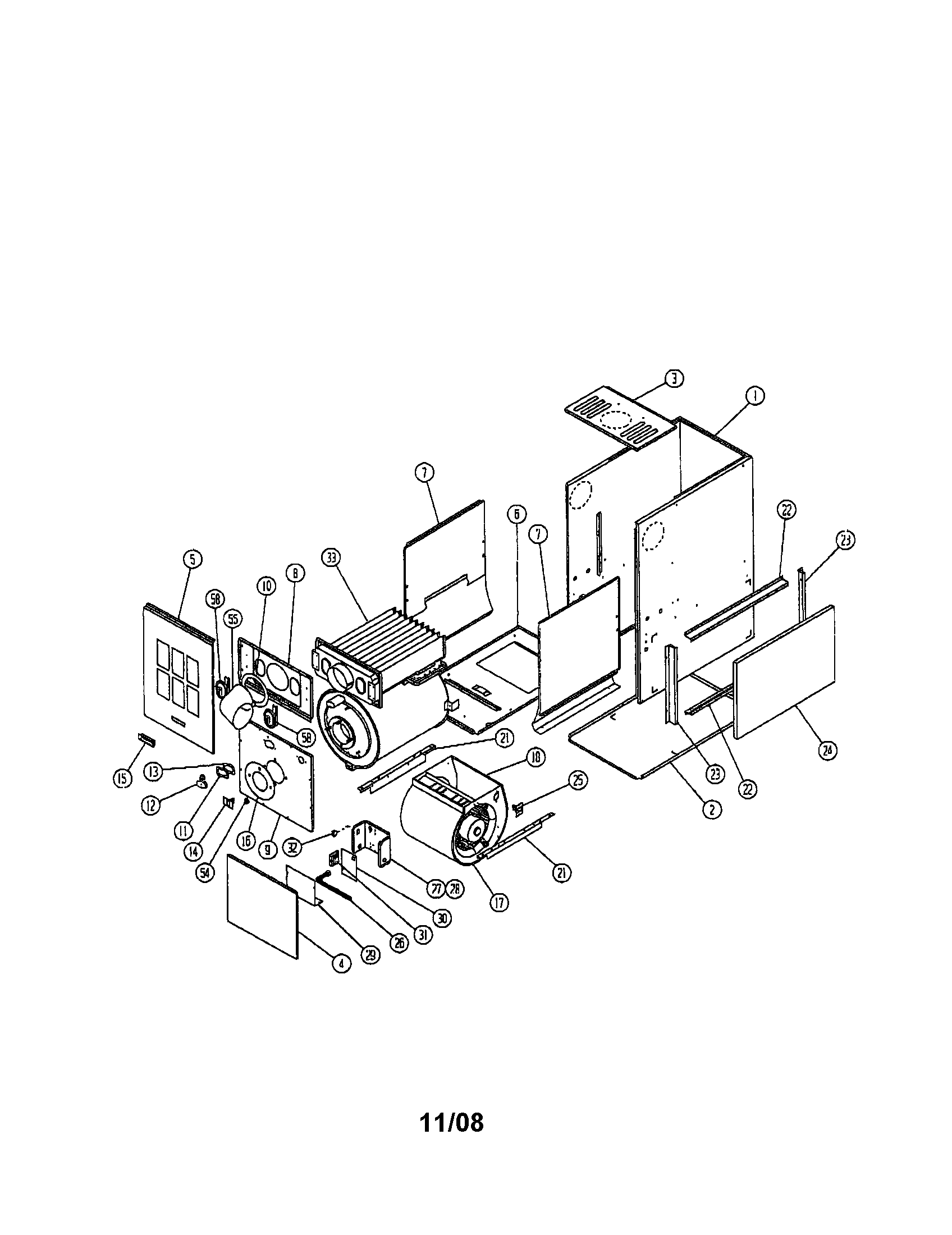

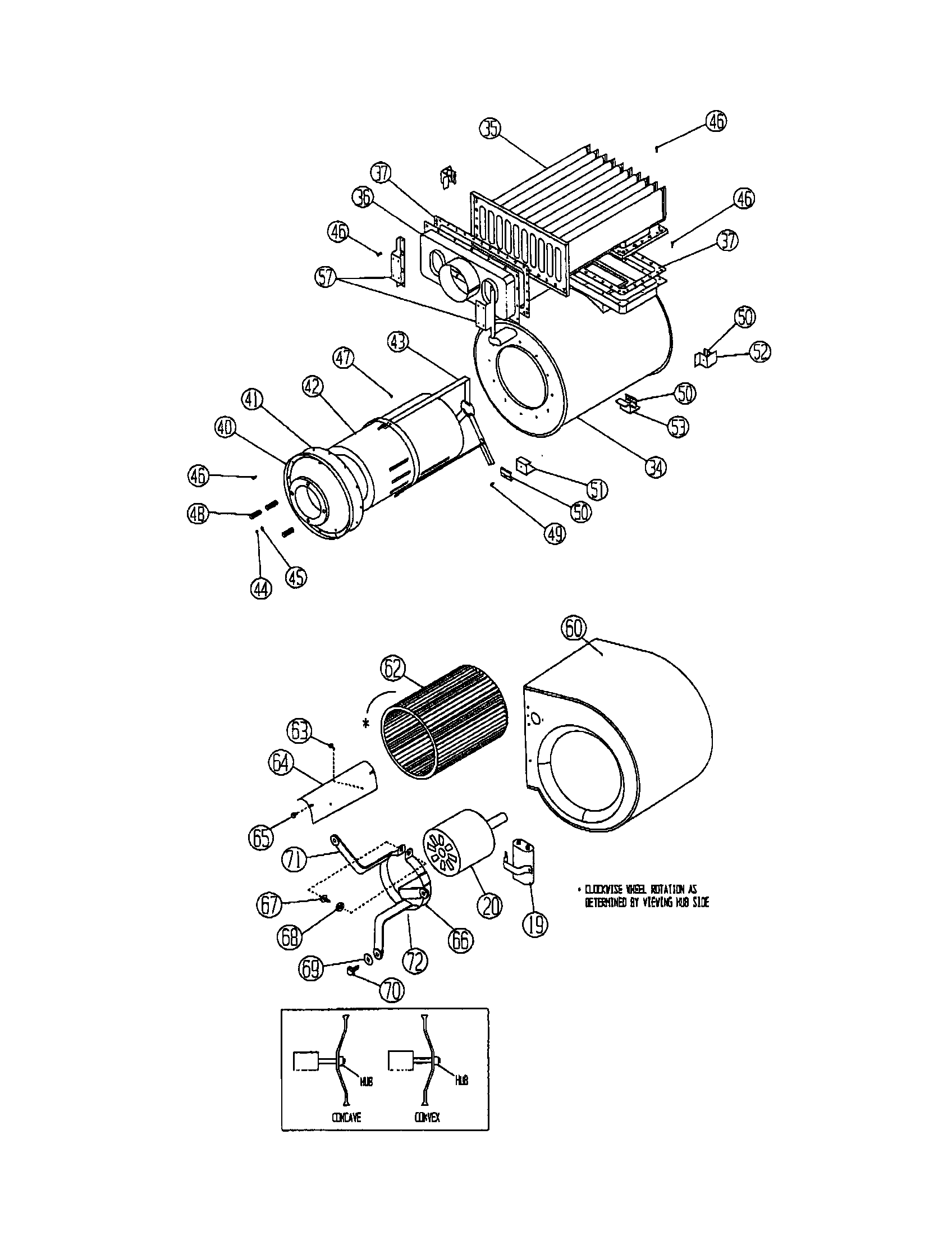

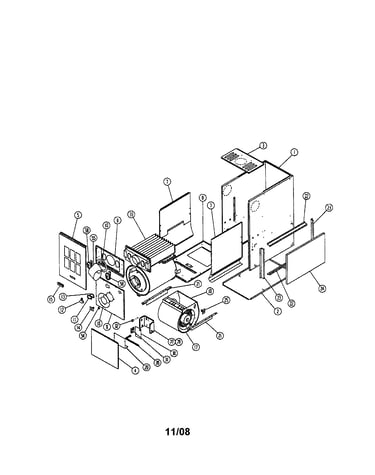

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for UHZB100A4 1/2-HP Upflow Horizontal Oil Furnace

  • Blower Housing 12 X 9 Tr for Ducane UHZB100A4 - Part 20195601

    #60

    All parts diagram

    Blower Housing 12 X 9 Tr

    Part #20195601

    The manufacturer no longer makes this part, and there's no substitute part

  • Rosette Observation Tube for Ducane UHZB100A4 - Part 20121501

    #11

    All parts diagram

    Rosette Observation Tube

    Part #20121501

    The manufacturer no longer makes this part, and there's no substitute part

  • Bottom Cover Plate for Ducane UHZB100A4 - Part 20197301

    #40

    All parts diagram

    Bottom Cover Plate

    Part #20197301

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw, #8 X 1/2 "b" Hex Slot Washer Hd (2) for Ducane UHZB100A4 - Part B1008722

    #63

    All parts diagram

    Screw, #8 X 1/2 "b" Hex Slot Washer Hd (2)

    Part #B1008722

    The manufacturer no longer makes this part, and there's no substitute part

  • Control, Fan Timer for Ducane UHZB100A4 - Part 20123101

    #30

    All parts diagram

    Control, Fan Timer

    Part #20123101

    The manufacturer no longer makes this part, and there's no substitute part

  • Bottom Rear Leg for Ducane UHZB100A4 - Part 20198002

    #53

    All parts diagram

    Bottom Rear Leg

    Part #20198002

    The manufacturer no longer makes this part, and there's no substitute part

  • Side Shield (2) for Ducane UHZB100A4 - Part 20121402

    #7

    All parts diagram

    Side Shield (2)

    Part #20121402

    The manufacturer no longer makes this part, and there's no substitute part

  • Side Leg (2) for Ducane UHZB100A4 - Part 20198001

    #52

    All parts diagram

    Side Leg (2)

    Part #20198001

    The manufacturer no longer makes this part, and there's no substitute part

  • Brassnut, 1/4-20 (3) for Ducane UHZB100A4 - Part B1008366

    #44

    All parts diagram

    Brassnut, 1/4-20 (3)

    Part #B1008366

    The manufacturer no longer makes this part, and there's no substitute part

  • 12 X 9 Dd Blower W/legs & Motor Mount for Ducane UHZB100A4 - Part 20122303

    #18

    All parts diagram

    12 X 9 Dd Blower W/legs & Motor Mount

    Part #20122303

    The manufacturer no longer makes this part, and there's no substitute part
