Model # NNE050B12G1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NNE050B12G1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Furnace Blower Assembly 1010975
#19

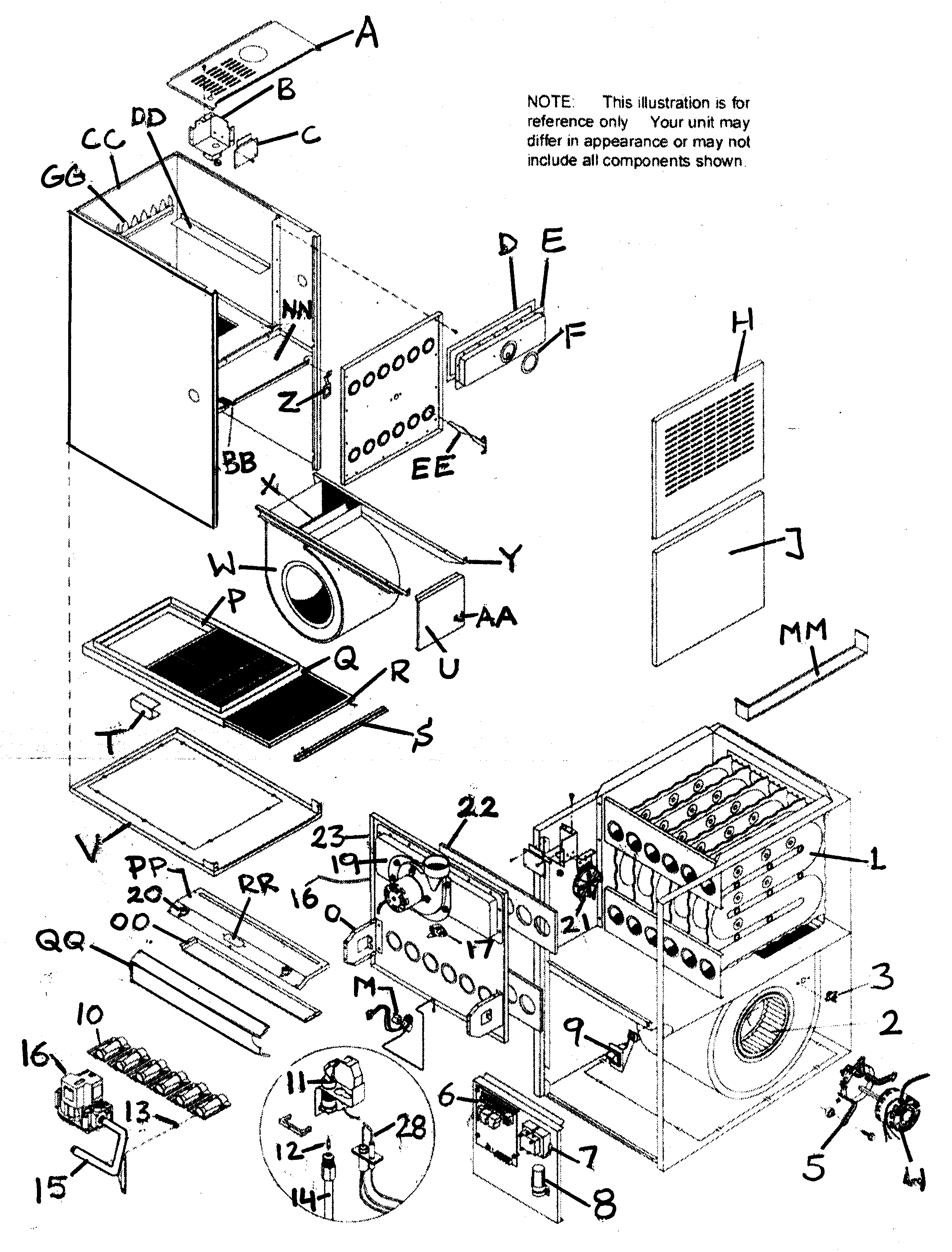

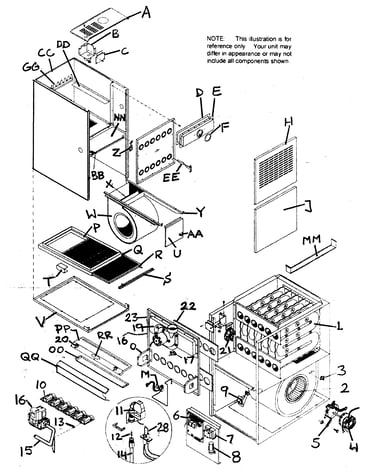

Furnace diagram

Furnace blower assembly

Part #1010975

Replaced by #1013833

?
Manufacturer substitution
This part replaces 1010975. Substitute parts can look different from the original.
$244.53 |
$10.00 OFF Phone Price : $254.53
In Stock
Board 1011927
#6

Furnace diagram

Board

Part #1011927

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1011927. Substitute parts can look different from the original.
$220.46 |
$10.00 OFF Phone Price : $230.46
In Stock
Cap Rnrd 1094954
#8

Furnace diagram

Cap rnrd

Part #1094954

Replaced by #12005

?
Manufacturer substitution
This part replaces 1094954. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Limit Switch 1005549
#20

Furnace diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Furnace diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2

Furnace diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Gas Valve 1011421
#16

Furnace diagram

Gas valve

Part #1011421

Replaced by #1170429

?
Manufacturer substitution
This part replaces 1011421. Substitute parts can look different from the original.
$765.63
In Stock
Vnt Pres Swt 1010898
#21

Furnace diagram

Vnt pres swt

Part #1010898

Replaced by #1170926

?
Manufacturer substitution
This part replaces 1010898. Substitute parts can look different from the original.
$89.93 |
5% OFF Phone Price : $94.93
In Stock
Conv Kit 1009510
#NI

Furnace diagram

Conv kit

Part #1009510

$113.20
In Stock
Rail Galv Bl 57059
#BB

Furnace diagram

Rail galv bl

Part #57059

$952.55
In Stock
