GE
Warming Drawer

Model # ZW900PQSL1SS Official GE warming drawer

Here are the diagrams and repair parts for Official GE ZW900PQSL1SS warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

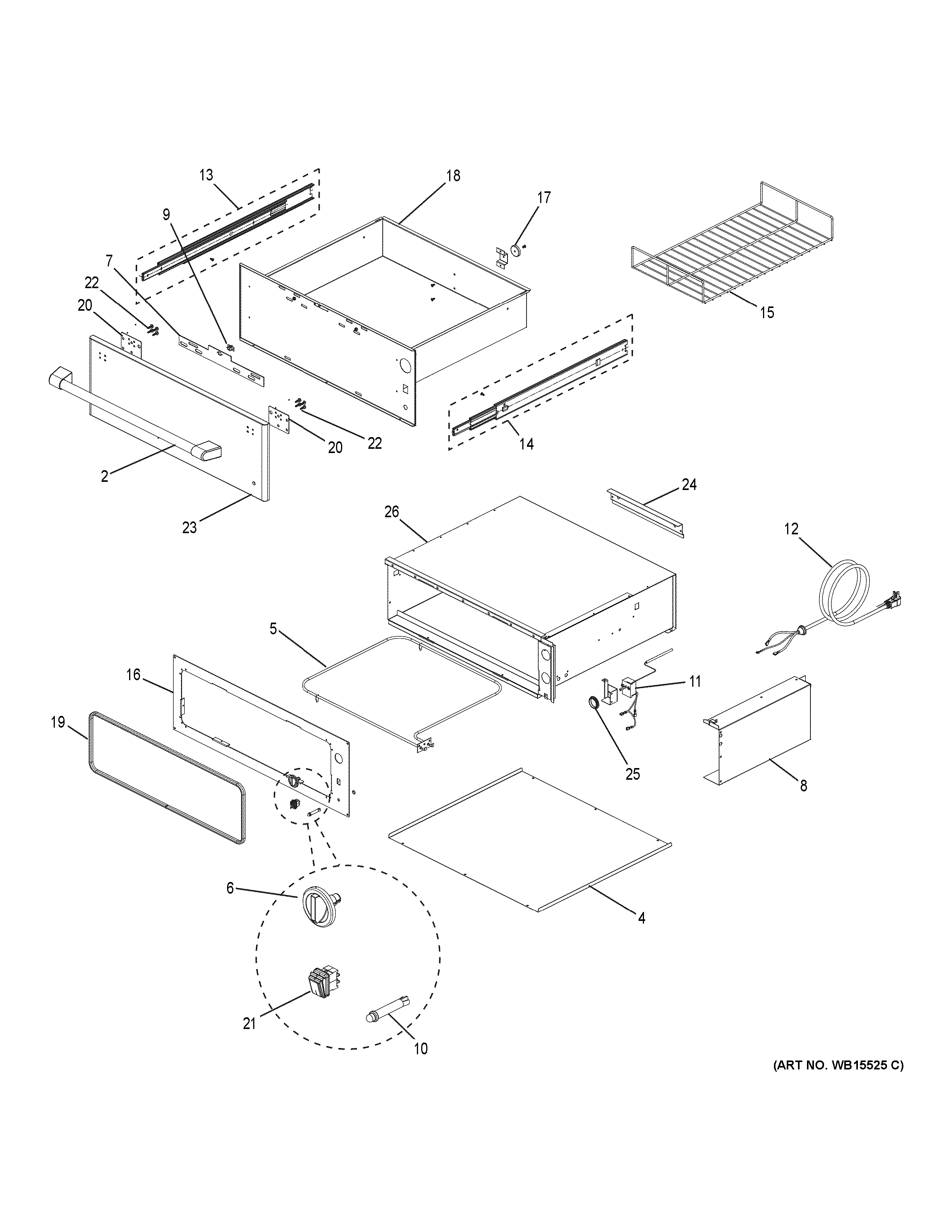

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Rocker Switch WB24X10206
#21

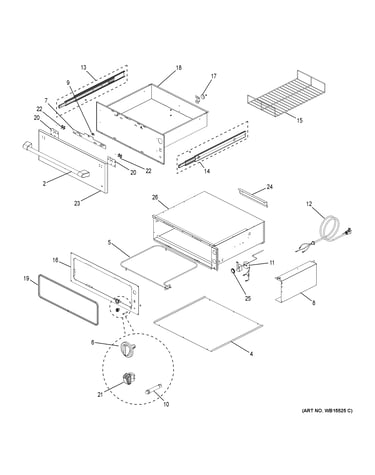

Warming drawer diagram

Rocker switch

Part #WB24X10206

$44.39
10% OFF Phone Price : $49.39
In Stock
Face Panel Asm WB56X29762
#16

Warming drawer diagram

Face panel asm

Part #WB56X29762

In Stock
Gasket Seal WB02X11289
#19

Warming drawer diagram

Gasket seal

Part #WB02X11289

$63.74
7% OFF Phone Price : $68.74
In Stock
Bracket WB02X11553
#24

Warming drawer diagram

Bracket

Part #WB02X11553

In Stock
Cover WB02X11008
#4

Warming drawer diagram

Cover

Part #WB02X11008

In Stock
Control Panel WB02X11551
#8

Warming drawer diagram

Control panel

Part #WB02X11551

In Stock
End Handle WB15X26538
#2

Warming drawer diagram

End handle

Part #WB15X26538

In Stock
Grommet Valve WB32X10019
#25

Warming drawer diagram

Grommet valve

Part #WB32X10019

In Stock
Cavity 30" WB63X10059
#26

Warming drawer diagram

Cavity 30"

Part #WB63X10059

This item is not returnable
In Stock
Wire Rack WB48X10045
#15

Warming drawer diagram

Wire rack

Part #WB48X10045

$143.09
7% OFF Phone Price : $153.09
In Stock
