Model # HCD-HDX589W Official Sony dvd recorder

Here are the diagrams and repair parts for Official Sony HCD-HDX589W dvd recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

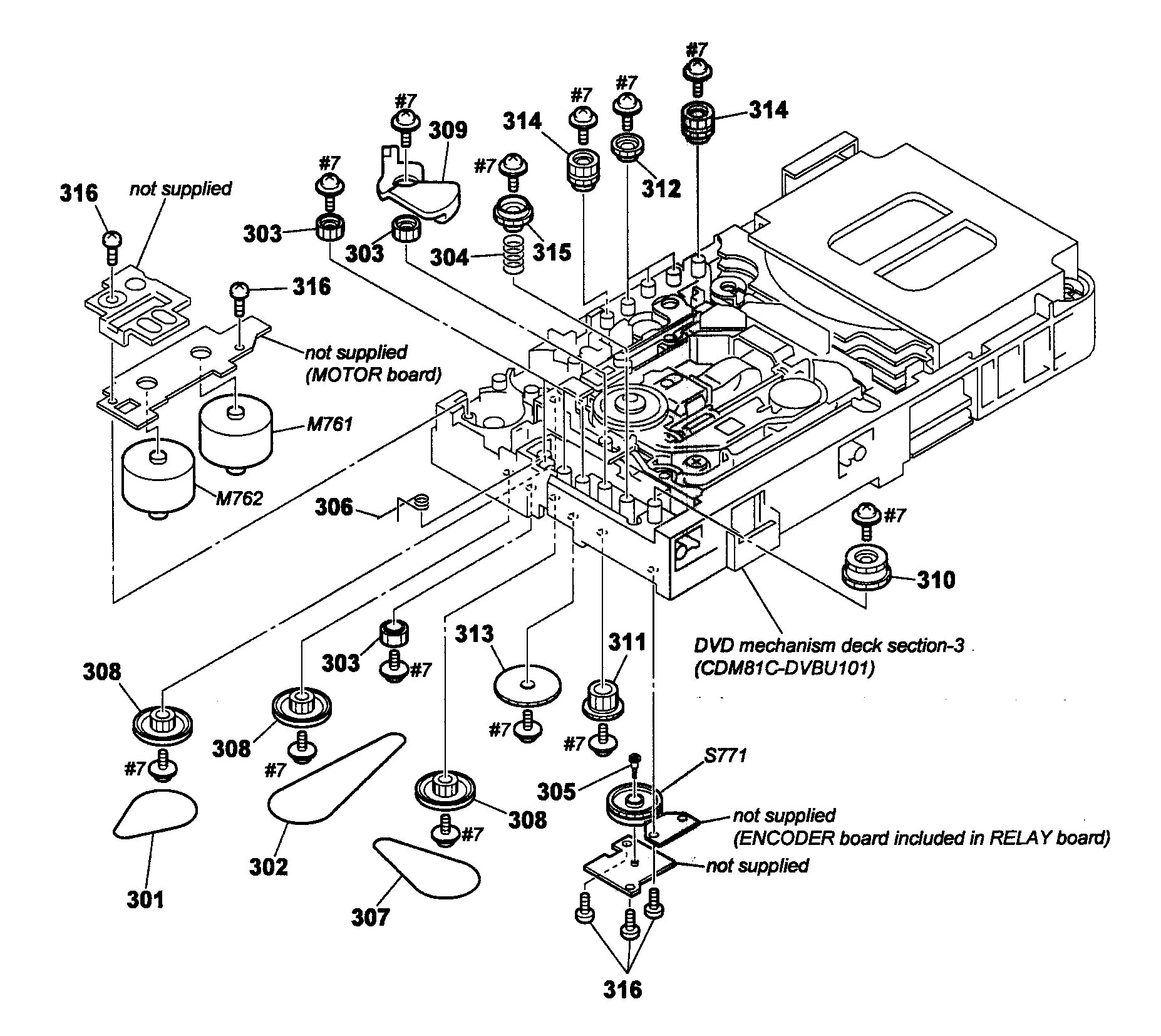

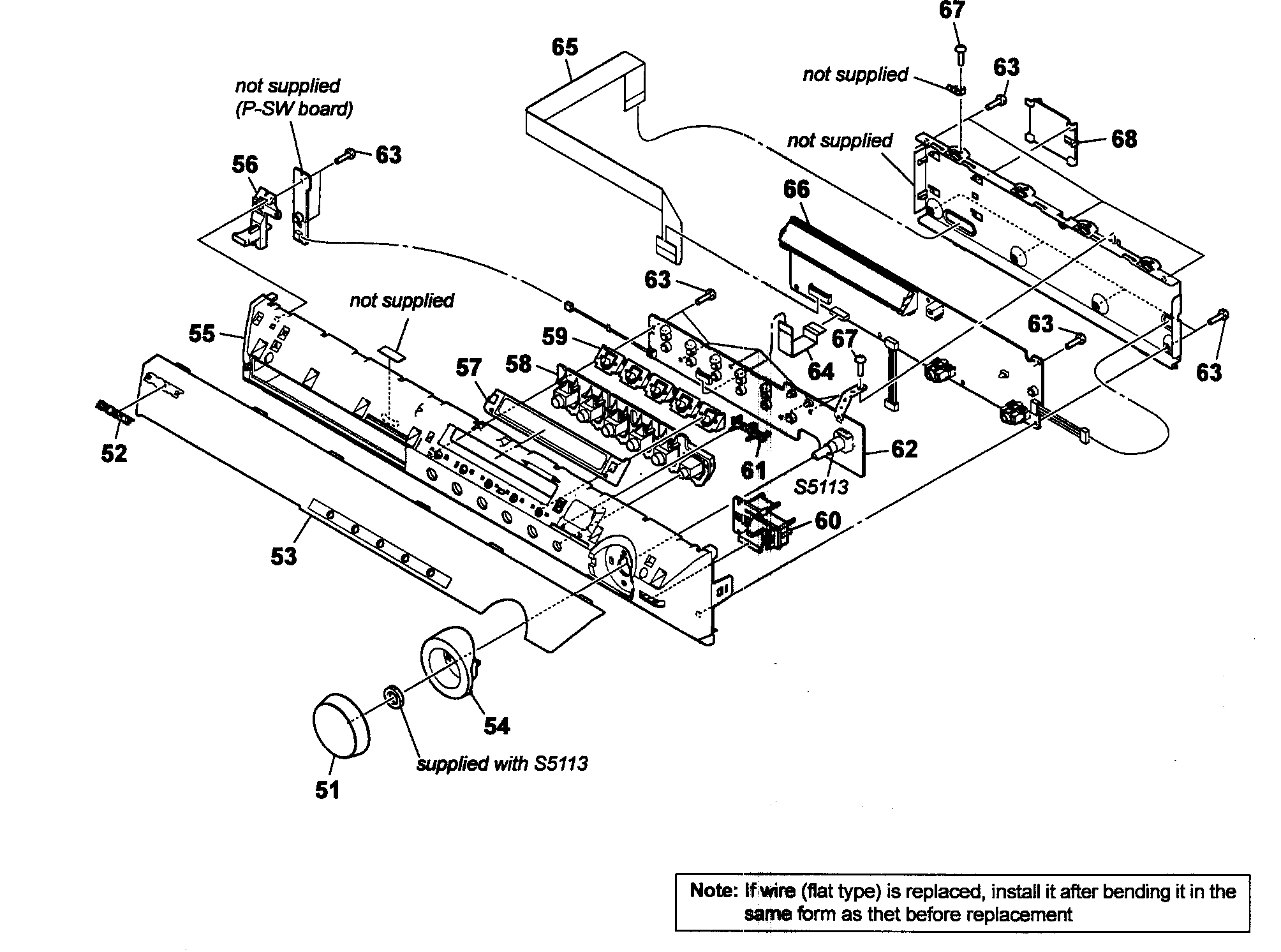

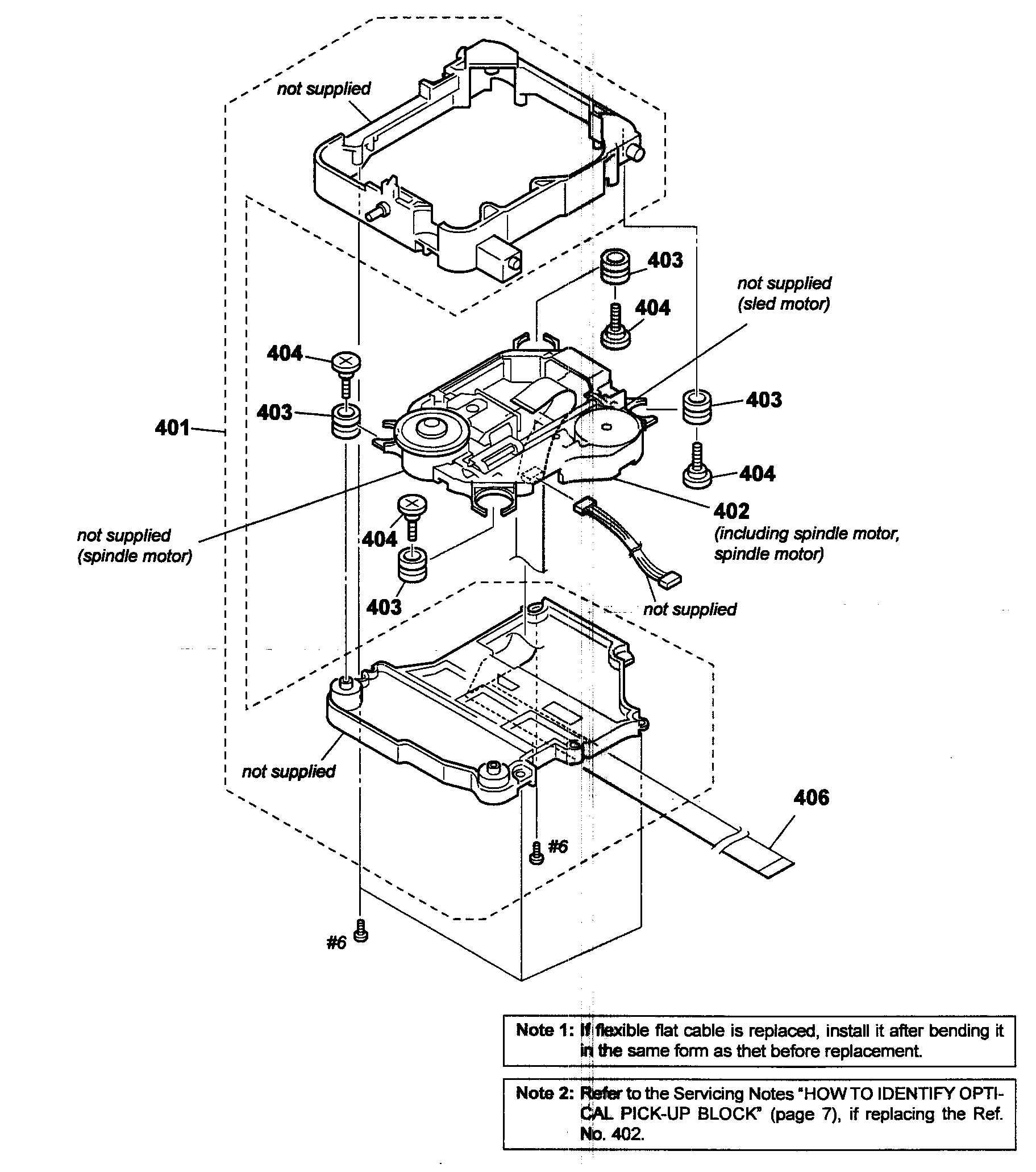

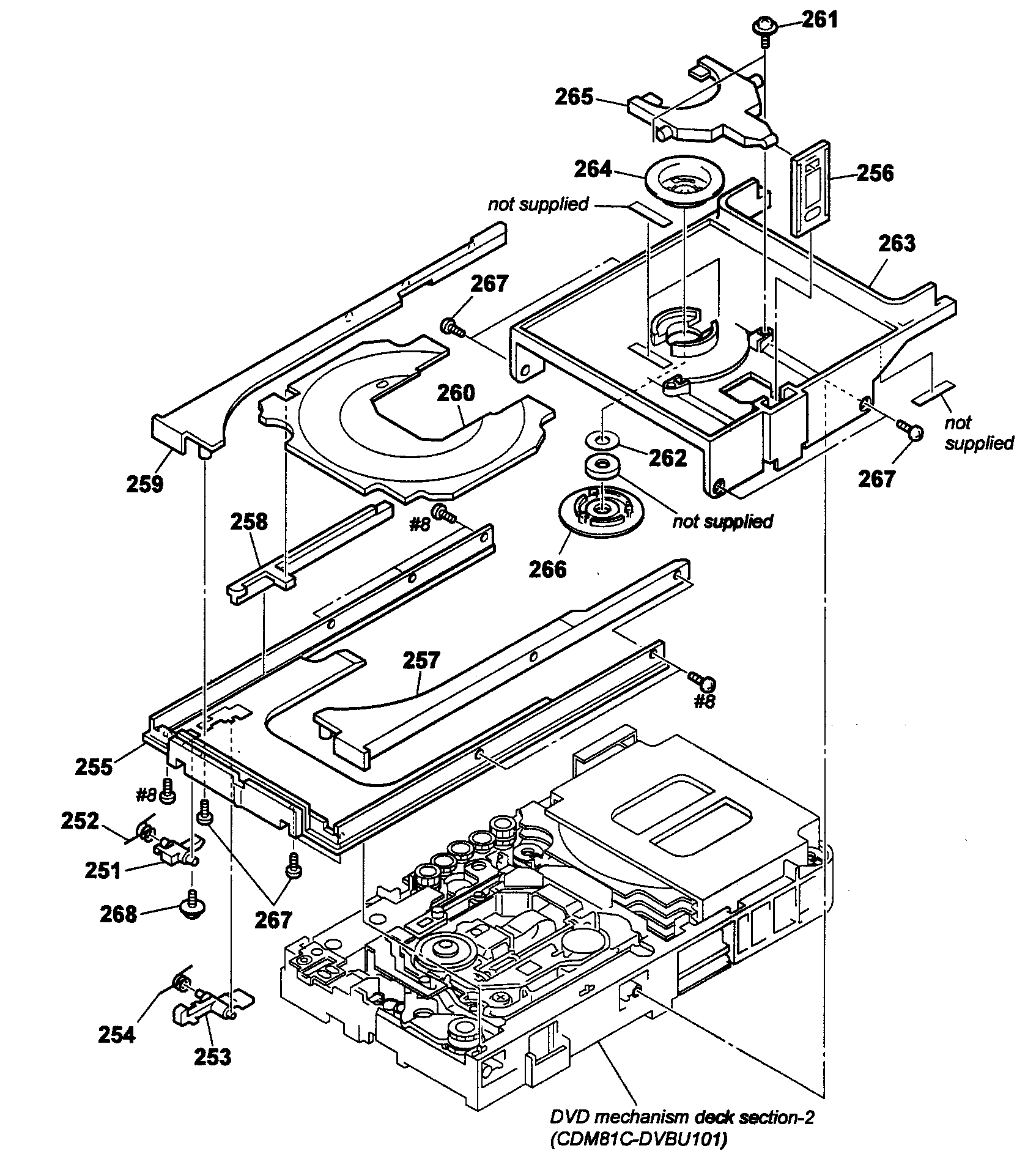

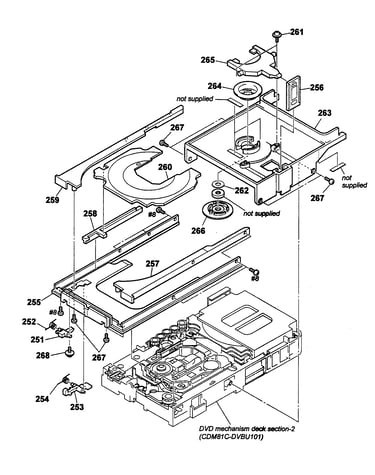

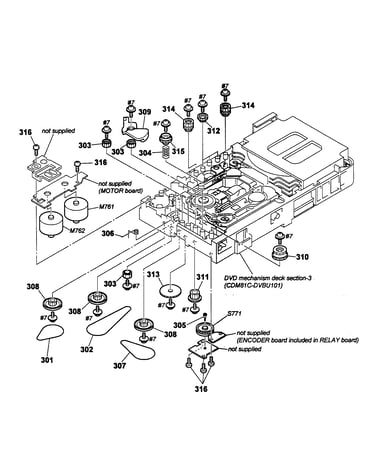

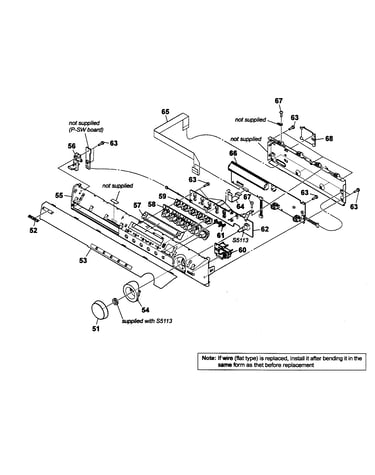

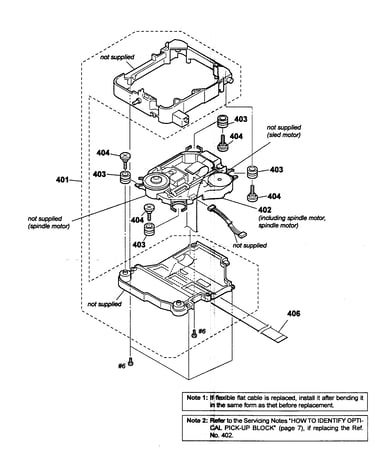

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Integrated Circuit 670520301
#NI

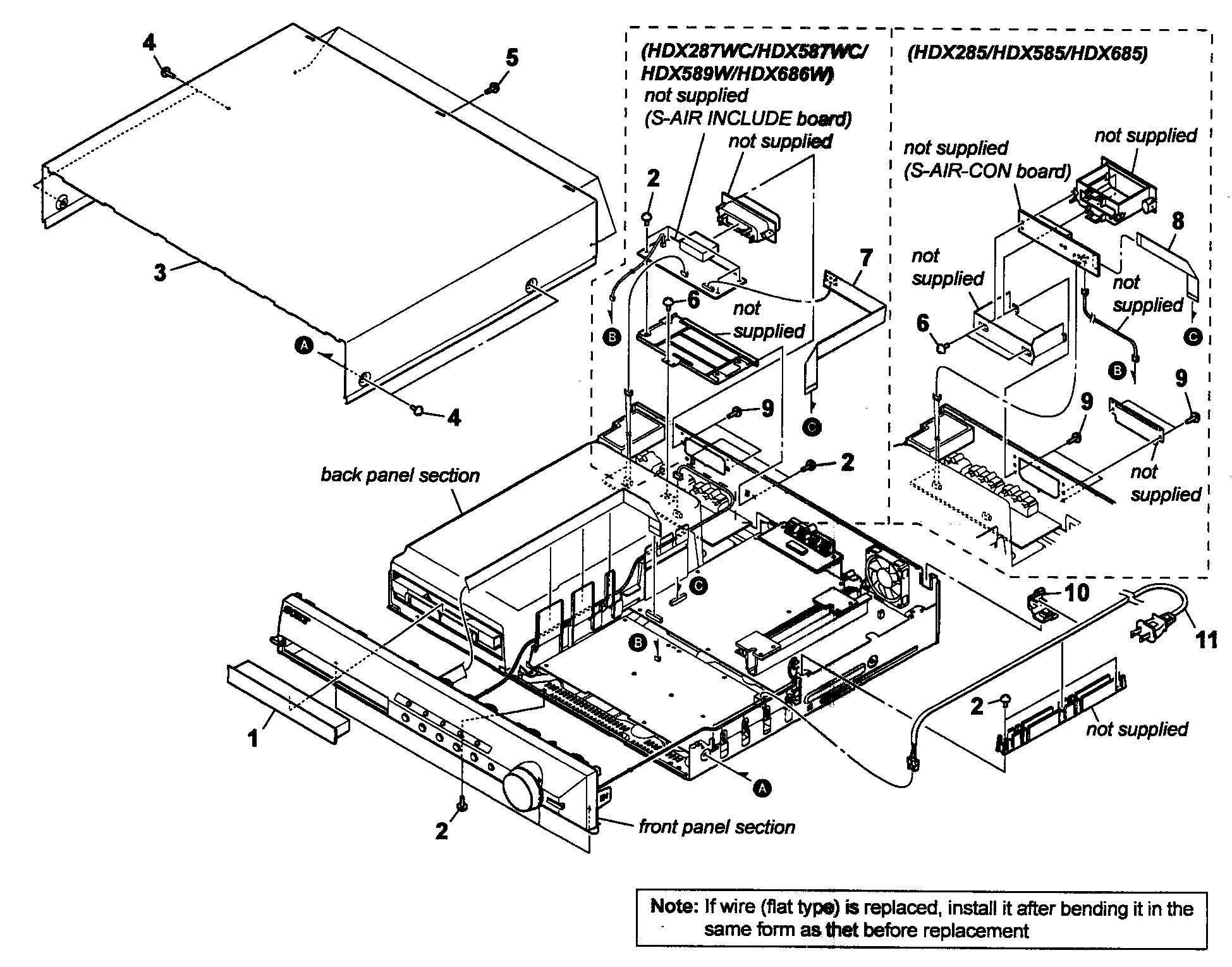

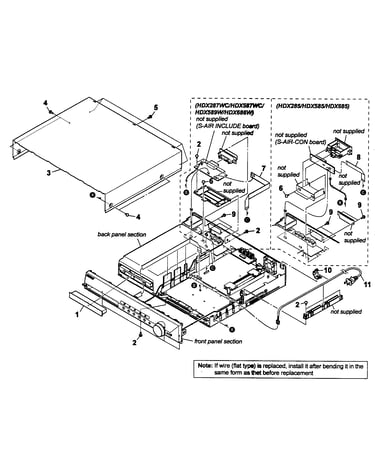

Cabinet parts diagram

Integrated circuit

Part #670520301

The manufacturer no longer makes this part, and there's no substitute part

Lever Switch 425186101
#370

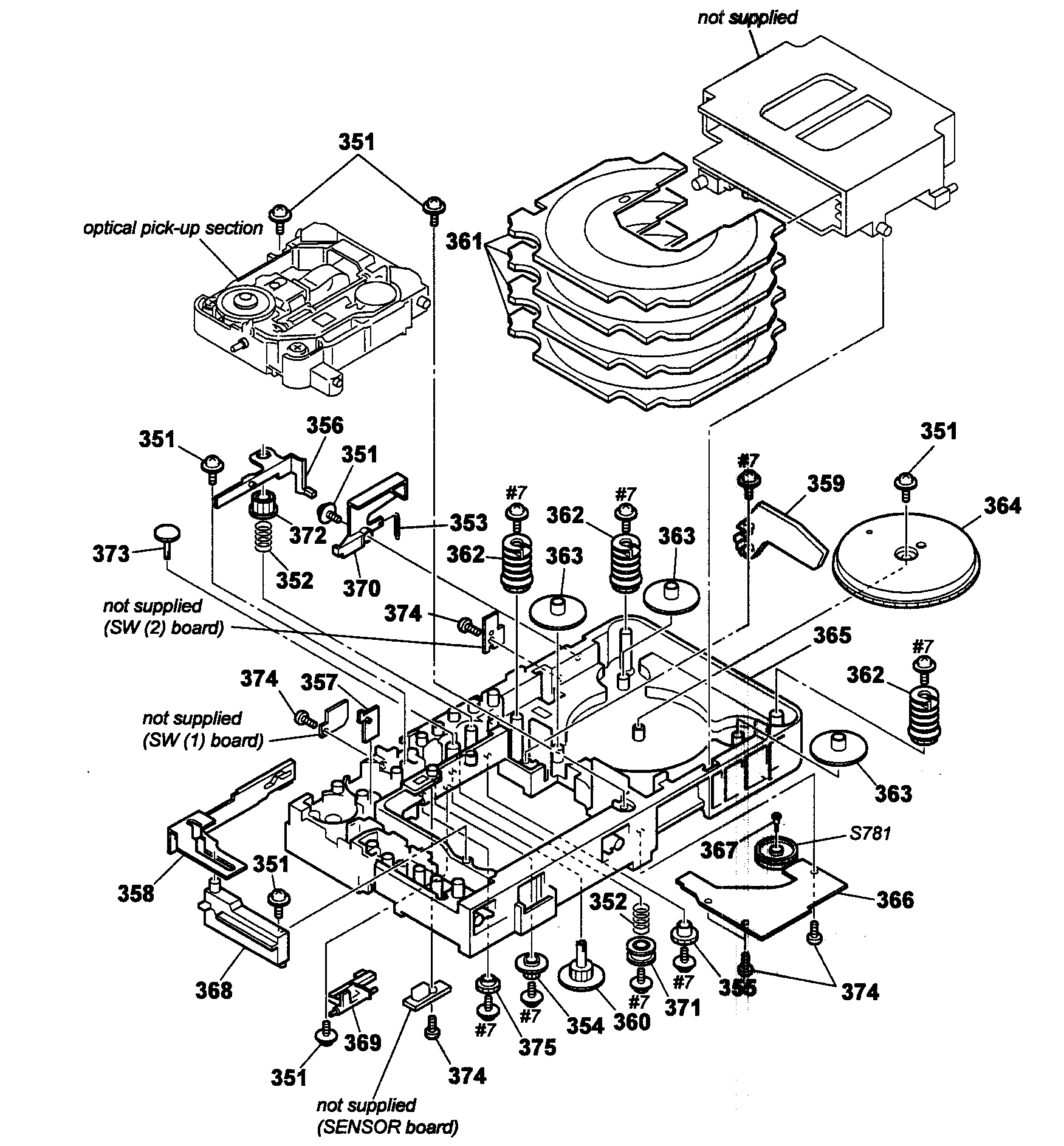

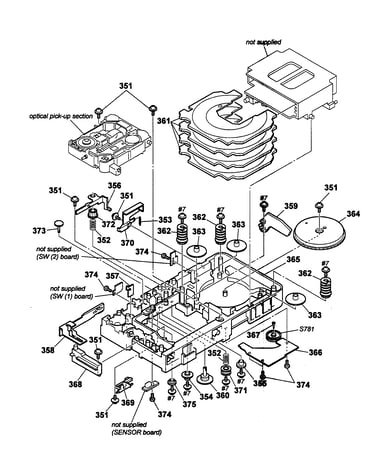

Deck 2 diagram

Lever switch

Part #425186101

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 671261301
#NI

Cabinet parts diagram

Integrated circuit

Part #671261301

The manufacturer no longer makes this part, and there's no substitute part

Res,chip 121679791
#NI

Cabinet parts diagram

Res,chip

Part #121679791

The manufacturer no longer makes this part, and there's no substitute part

Pcb,seripa A1602535A
#156

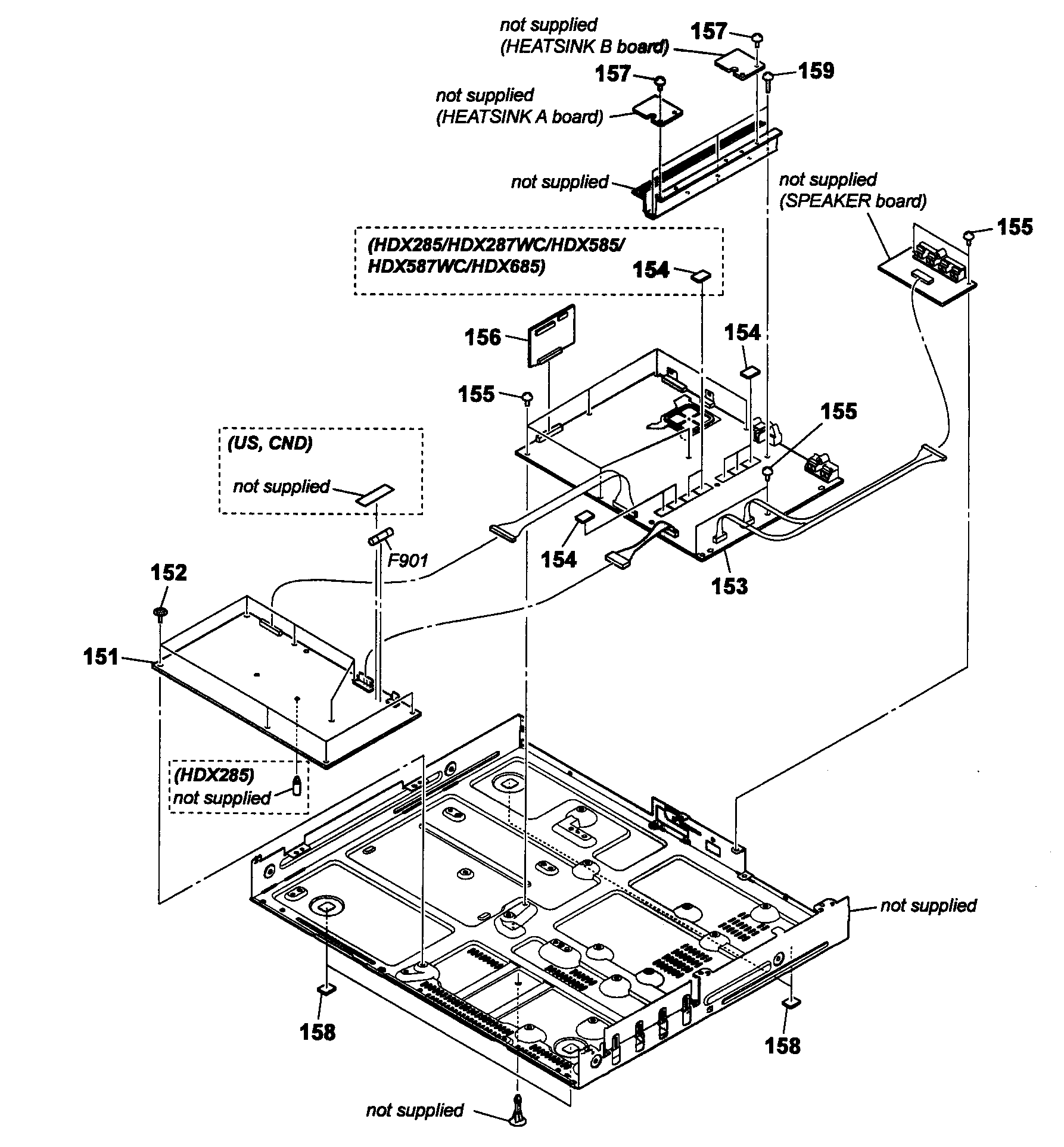

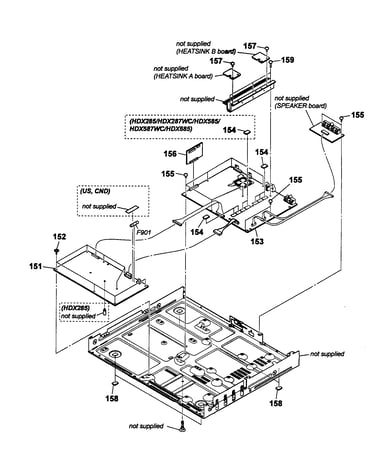

Main board diagram

Pcb,seripa

Part #A1602535A

The manufacturer no longer makes this part, and there's no substitute part

Transformer 144532011
#NI

Cabinet parts diagram

Transformer

Part #144532011

The manufacturer no longer makes this part, and there's no substitute part

Ic Tk11133 670230201
#NI

Cabinet parts diagram

Ic tk11133

Part #670230201

The manufacturer no longer makes this part, and there's no substitute part

Gear 425183501
#355

Deck 2 diagram

Gear

Part #425183501

The manufacturer no longer makes this part, and there's no substitute part

Cover 412091501
#101

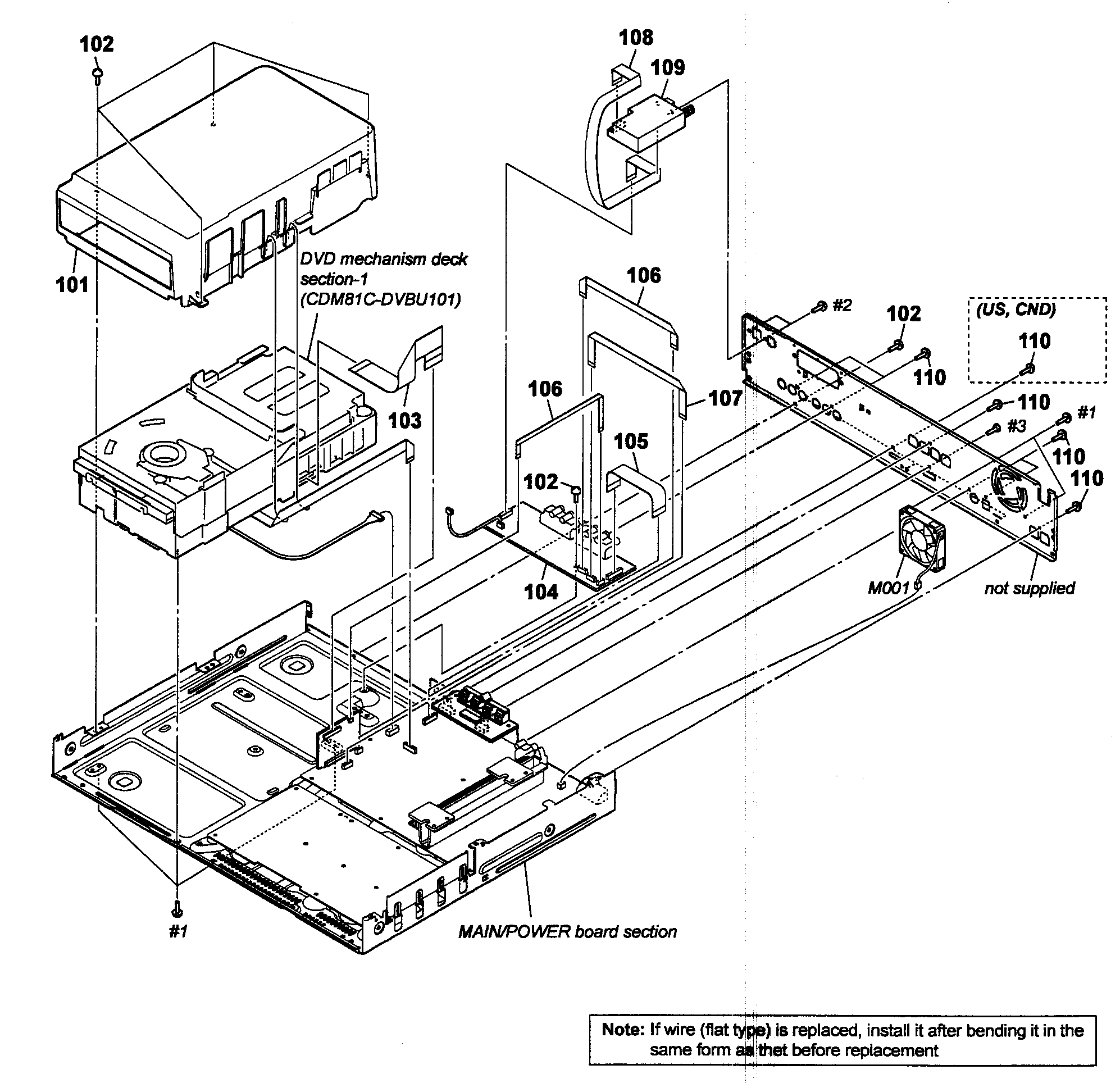

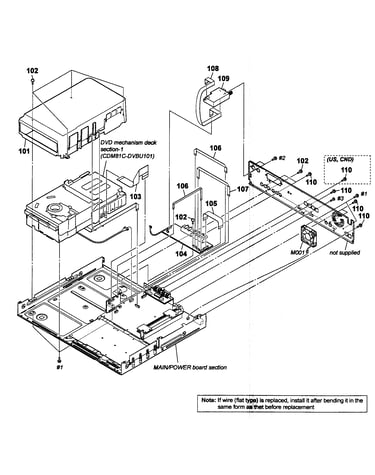

Back panel diagram

Cover

Part #412091501

The manufacturer no longer makes this part, and there's no substitute part

Cap 22uf 110793091
#NI

Cabinet parts diagram

Cap 22uf

Part #110793091

The manufacturer no longer makes this part, and there's no substitute part
