Model # 56221970250 Official LXI stereo cassette player & recorder with am/fm radio

Here are the diagrams and repair parts for Official LXI 56221970250 stereo cassette player & recorder with am/fm radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Spring 25773588

#302

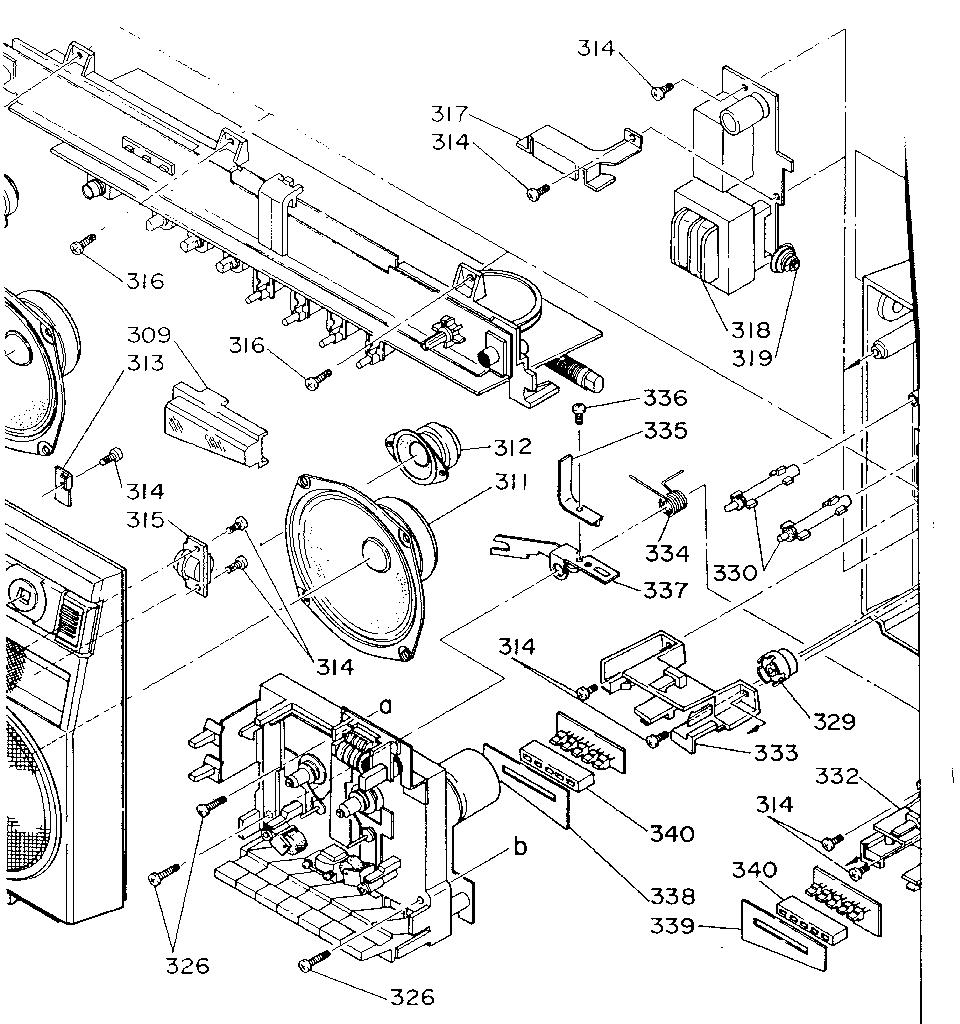

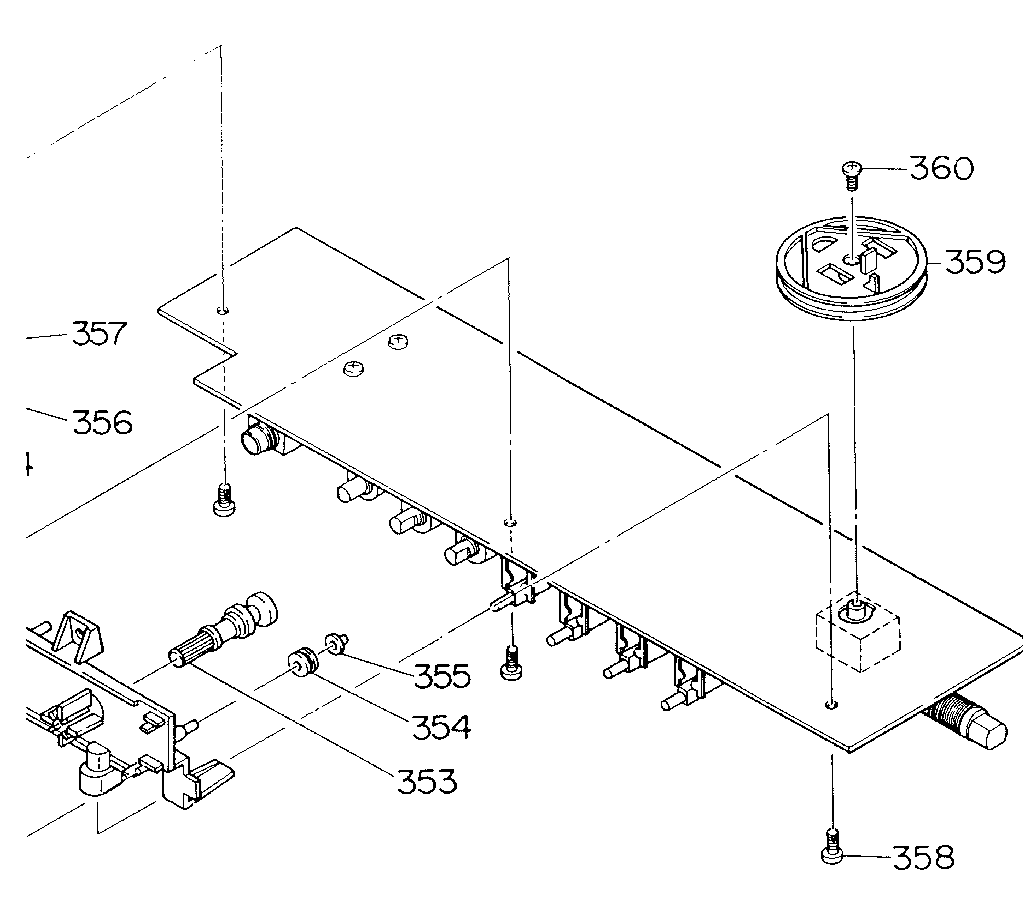

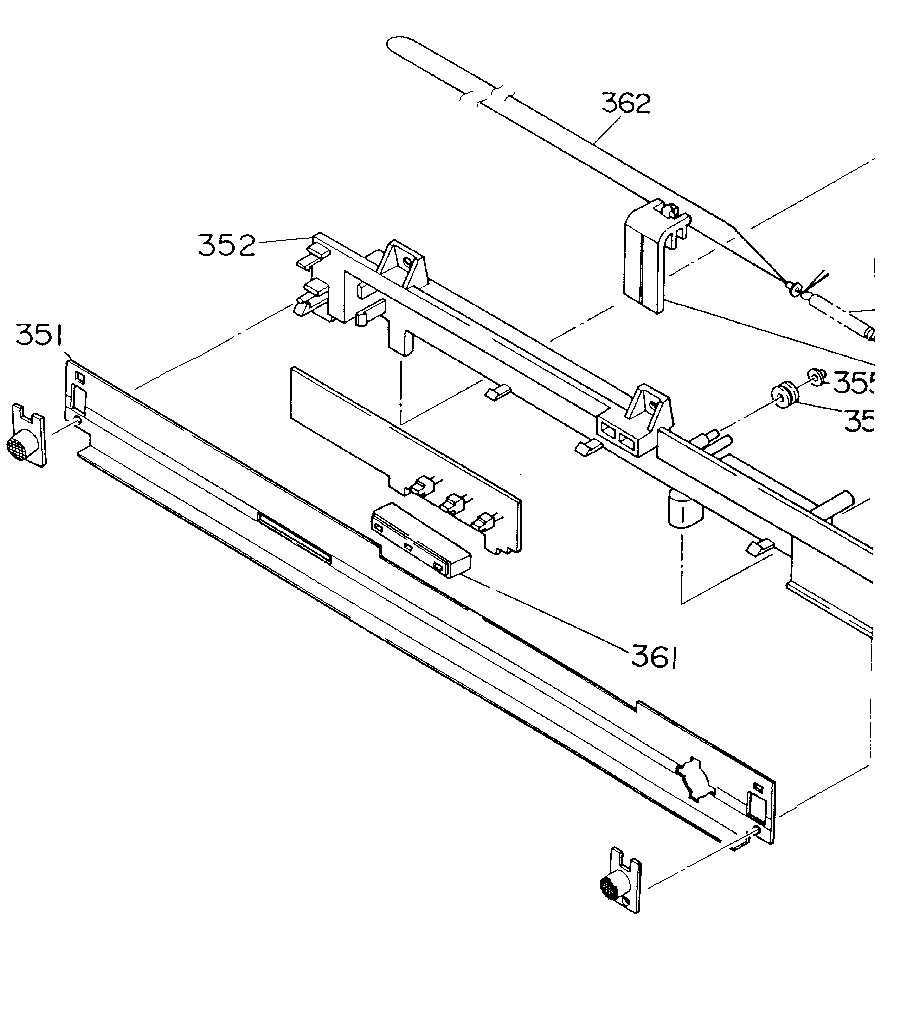

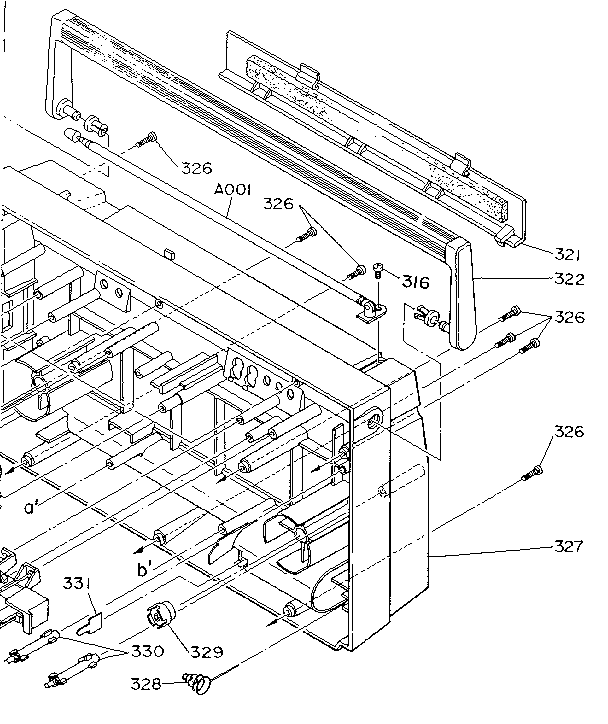

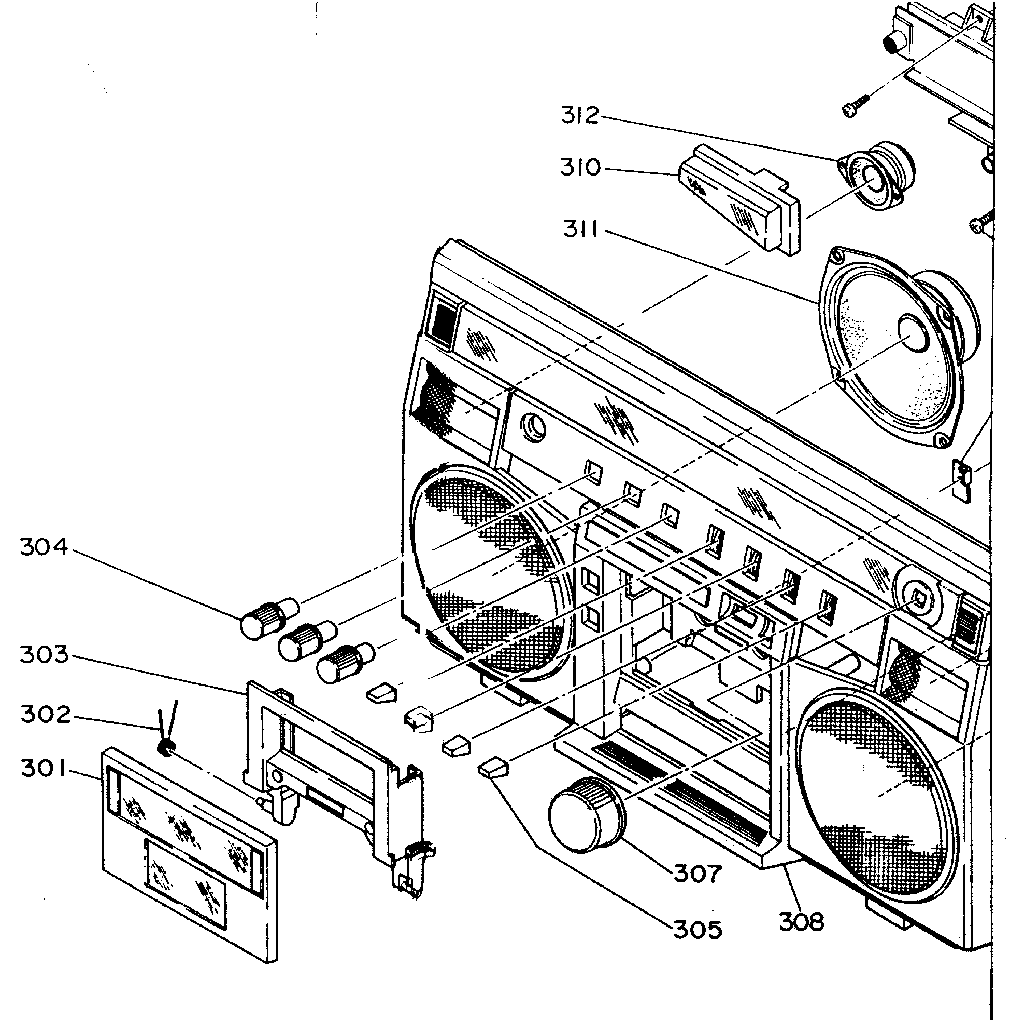

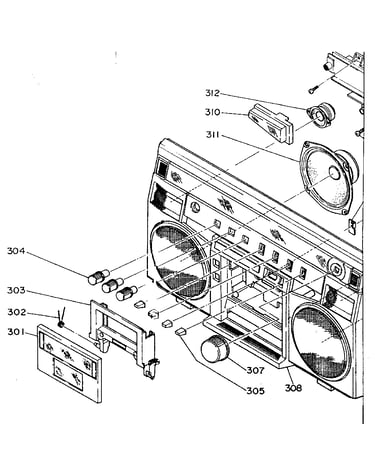

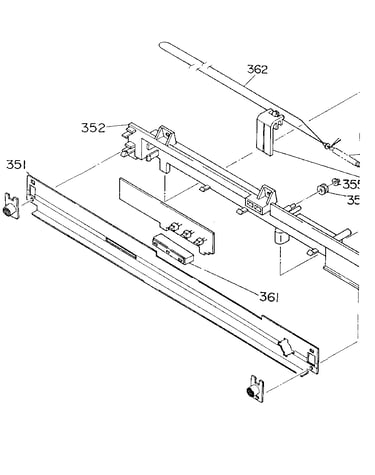

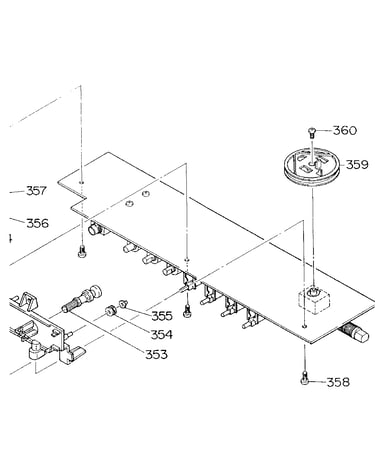

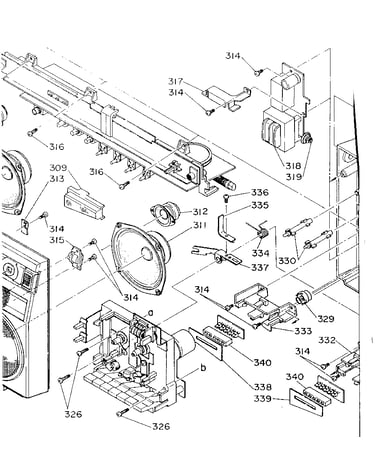

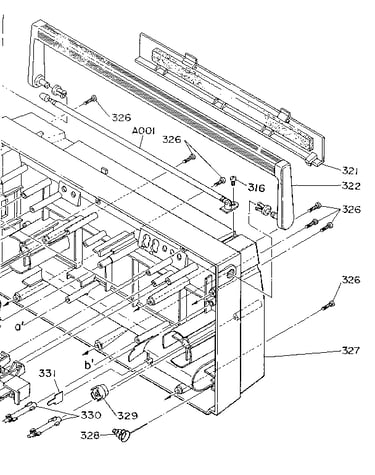

All parts diagram

Spring

Part #25773588

Replaced by #46-702000-3

?
Manufacturer substitution
This part replaces 25773588. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 22707473

#360

All parts diagram

Screw

Part #22707473

Replaced by #XSB266

?
Manufacturer substitution
This part replaces 22707473. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
String 22999222
String

Part #22999222

Replaced by #46-83306-3

?
Manufacturer substitution
This part replaces 22999222. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cord 22176604

#NI

All parts diagram

Cord

Part #22176604

The manufacturer no longer makes this part, and there's no substitute part

Spring 25779210

#335

All parts diagram

Spring

Part #25779210

Replaced by #46-702002-3

?
Manufacturer substitution
This part replaces 25779210. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Spring 25776387

#357

All parts diagram

Spring

Part #25776387

Replaced by #46-702003-3

?
Manufacturer substitution
This part replaces 25776387. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Pulley 22742110

#354

All parts diagram

Pulley

Part #22742110

Replaced by #46-392001-3

?
Manufacturer substitution
This part replaces 22742110. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Drum 22742269

#359

All parts diagram

Drum

Part #22742269

Replaced by #46-392002-3

?
Manufacturer substitution
This part replaces 22742269. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Bushing 25783195

#355

All parts diagram

Bushing

Part #25783195

Replaced by #46-222000-3

?
Manufacturer substitution
This part replaces 25783195. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Spring 25773586

#334

All parts diagram

Spring

Part #25773586

Replaced by #46-702001-3

?
Manufacturer substitution
This part replaces 25773586. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
