Model #505476811 Official Sears 20" boys' bicycle

Here are the diagrams and repair parts for Sears 505476811 20" boys' bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 72 parts

Axle#1

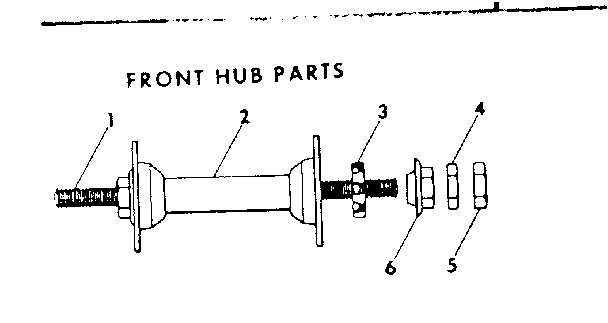

Front hub Diagram

Axle

Part #2496-B-1

The manufacturer no longer makes this part, and there's no substitute part

Cone#4

Front hub Diagram

Cone

Part #2496-B-5

The manufacturer no longer makes this part, and there's no substitute part

Bearing#3

Front hub Diagram

Bearing

Part #2496-B-2

The manufacturer no longer makes this part, and there's no substitute part

20 Inch Tube

#NI

All parts Diagram

20 inch tube

Part #16221

The manufacturer no longer makes this part, and there's no substitute part

Nut#5

Front hub Diagram

Nut

Part #2496-B-7

The manufacturer no longer makes this part, and there's no substitute part

Nut#6

Front hub Diagram

Nut

Part #2496-B-4

The manufacturer no longer makes this part, and there's no substitute part

Axle Comp#7

Front hub Diagram

Axle comp

Part #2496-B-8

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe

See All Related Diagrams

Brake shoe

Part #21869

The manufacturer no longer makes this part, and there's no substitute part

20 Inch Tube

#NI

All parts Diagram

20 inch tube

Part #16222

The manufacturer no longer makes this part, and there's no substitute part

20 Inch Tire#11

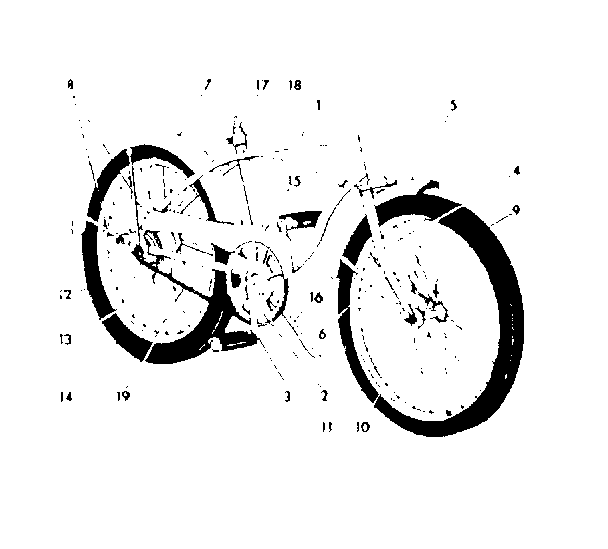

Frame assembly Diagram

20 inch tire

Part #12887

The manufacturer no longer makes this part, and there's no substitute part
