Model # 5KSB1585ZER0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB1585ZER0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Coupling W10279256
#2

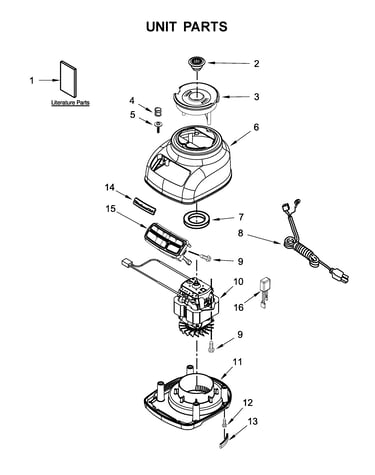

Unit parts diagram

Coupling

Part #W10279256

Replaced by #WPW10279256

?
Manufacturer substitution
This part replaces W10279256. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Lock Jar W10497275
#3

Unit parts diagram

Lock jar

Part #W10497275

Replaced by #WPW10497275

?
Manufacturer substitution
This part replaces W10497275. Substitute parts can look different from the original.
This item is not returnable
$23.69 |
17% OFF Phone Price : $28.69
In Stock
Seal 9709366
#7

Unit parts diagram

Seal

Part #9709366

Replaced by #WP9709366

?
Manufacturer substitution
This part replaces 9709366. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Empire Assembly W10646875
#1

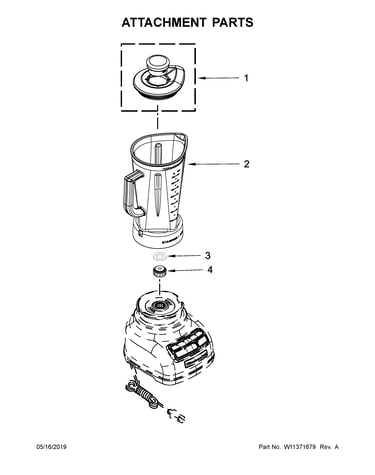

Attachment parts diagram

Empire assembly

Part #W10646875

$51.49
In Stock
Blender Nameplate W10514169
#14

Unit parts diagram

Blender nameplate

Part #W10514169

$27.79 |
15% OFF Phone Price : $32.79
In Stock
Housing-pain W10646512
#6A

Unit parts diagram

Housing-pain

Part #W10646512

$85.31
In Stock
Blender Base (black) W10497274
#11

Unit parts diagram

Blender base (black)

Part #W10497274

$36.47
In Stock
Housing-pain W10646511
#6

Unit parts diagram

Housing-pain

Part #W10646511

$85.31
In Stock
Blender Jar Lock Spring W10573822
#4

Unit parts diagram

Blender jar lock spring

Part #W10573822

$21.49
In Stock
Motor W10290347
#10

Unit parts diagram

Motor

Part #W10290347

Replaced by #WPW10290347

?
Manufacturer substitution
This part replaces W10290347. Substitute parts can look different from the original.
$45.02
In Stock
