Model # DSC-W510R Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W510R digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Screw 427357701
#S3

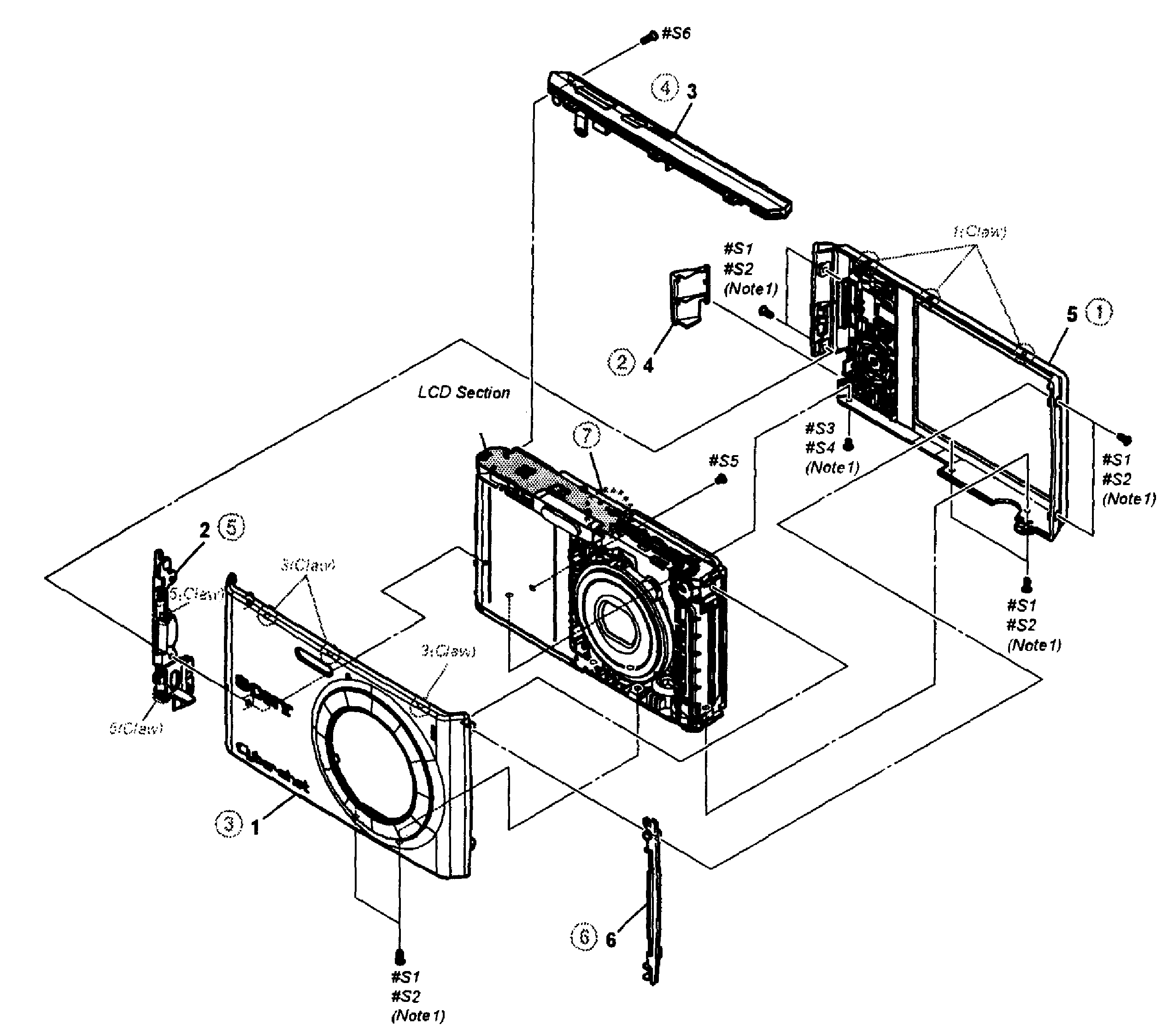

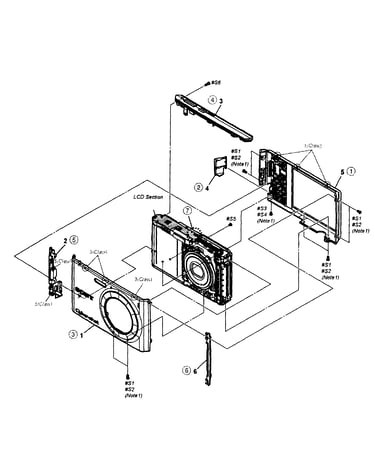

Cabinet parts diagram

Screw

Part #427357701

This item is not returnable
$2.16
In Stock
Bracket Assembly X25807221
#52

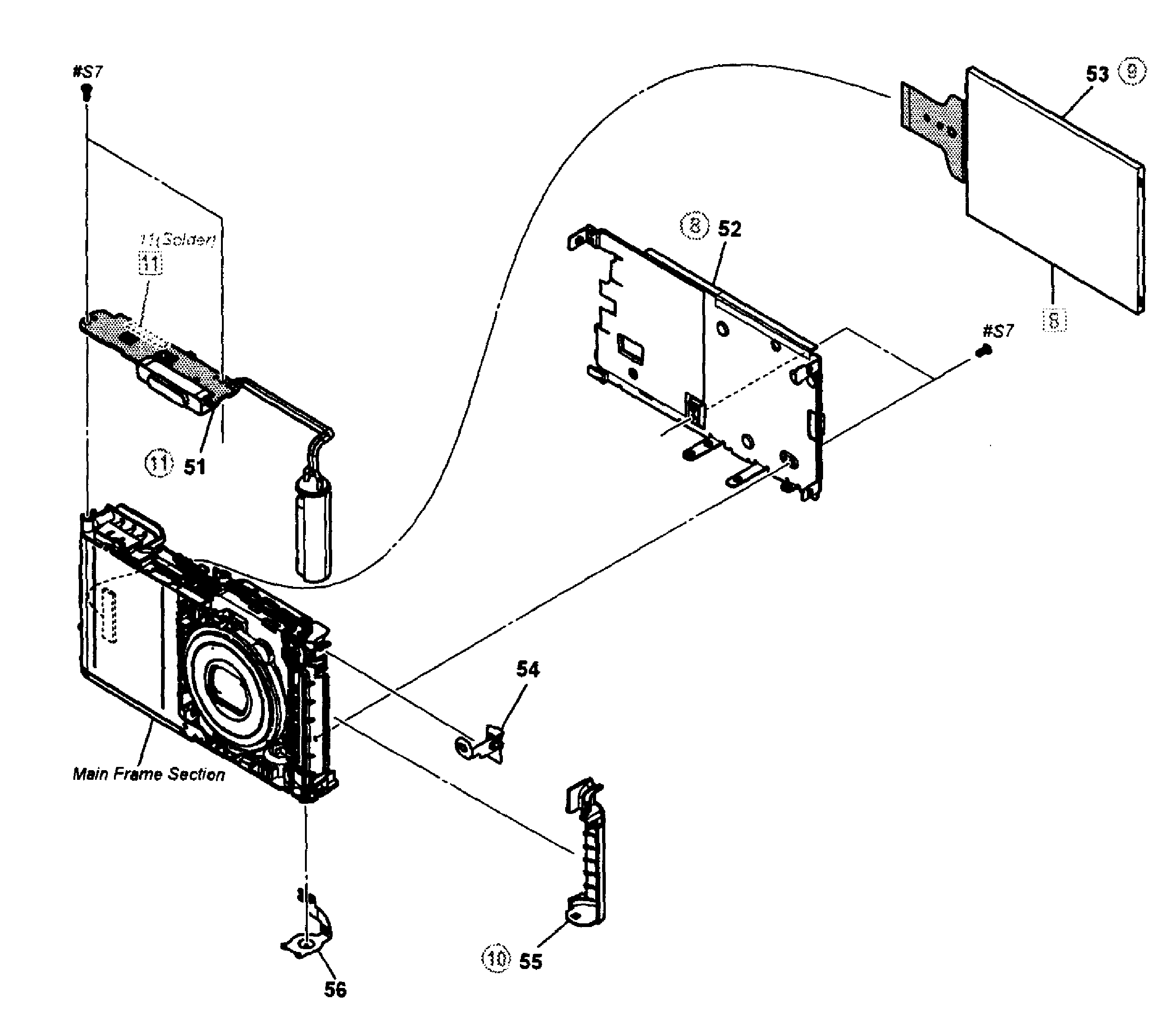

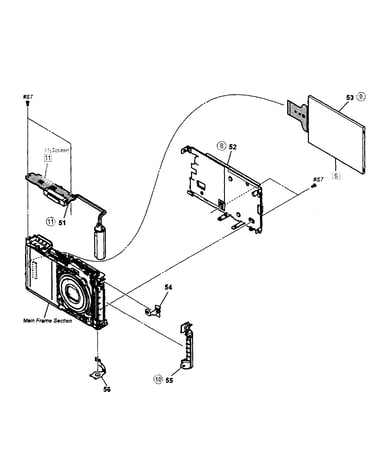

Lcd assy diagram

Bracket assembly

Part #X25807221

$62.91
In Stock
Digital Camera Battery Charger 148752321
#NI

Cabinet parts diagram

Digital camera battery charger

Part #148752321

$93.11
In Stock
Worm Motor A1743725A
#162

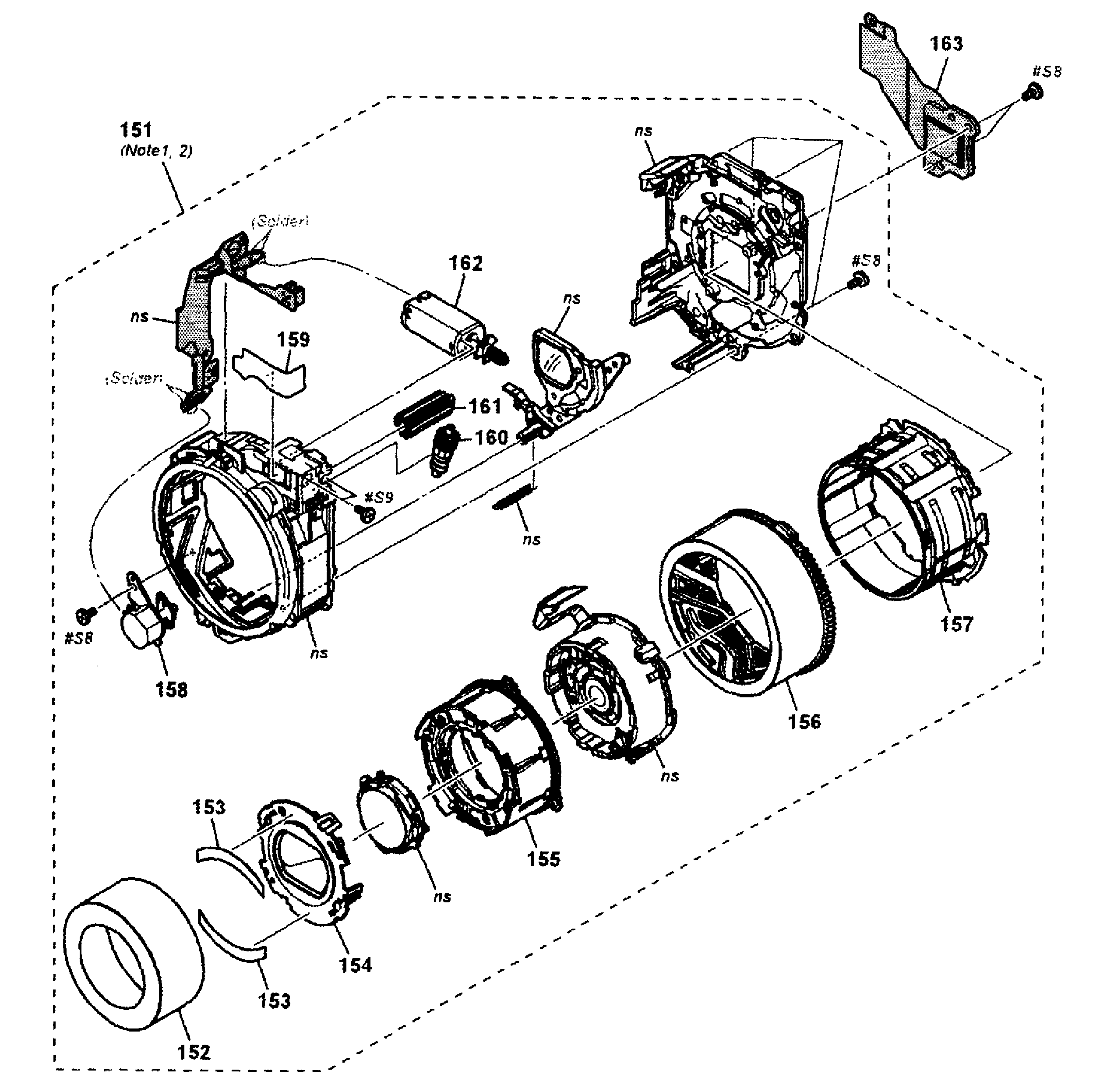

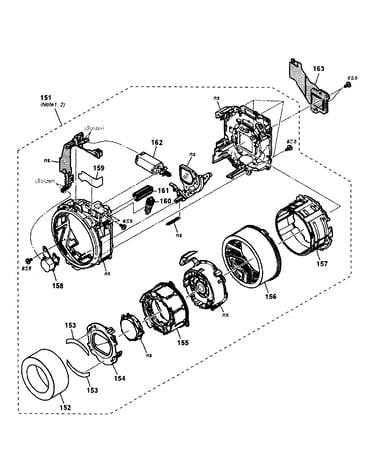

Lens assy diagram

Worm motor

Part #A1743725A

This item is not returnable
$6.51
In Stock
Main Frame X25807261
#109

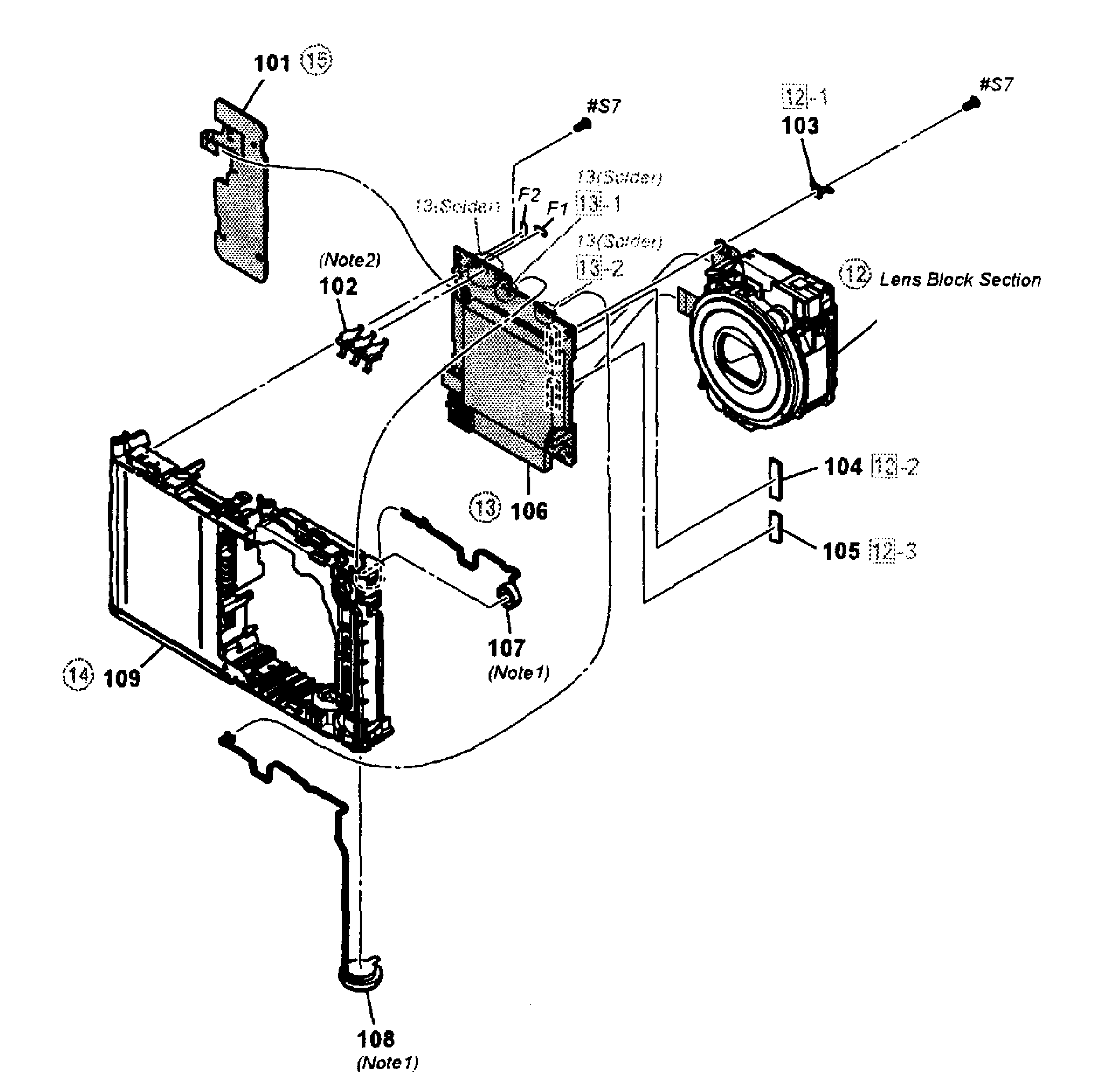

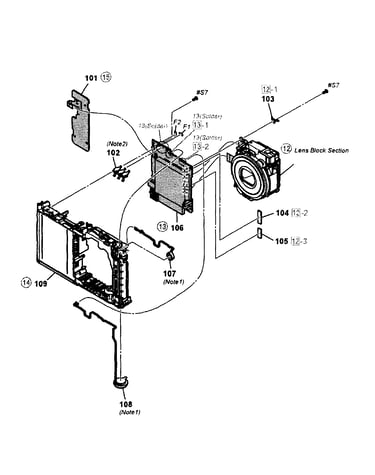

Main frame diagram

Main frame

Part #X25807261

$34.41
In Stock
Screw 427359701
Screw

Part #427359701

This item is not returnable
$2.16
In Stock
Cover X25807161
#1

Cabinet parts diagram

Cover

Part #X25807161

$62.91
In Stock
Block Assembly A1813018A
#163

Lens assy diagram

Block assembly

Part #A1813018A

$103.67
In Stock
Cushion 427359801
#104

Main frame diagram

Cushion

Part #427359801

This item is not returnable
$2.16
In Stock
Ring A 415585001
#152

Lens assy diagram

Ring a

Part #415585001

$13.24
In Stock
