Model # 867740410 Official Kenmore oil-fired counterflow furnace

Here are the diagrams and repair parts for Official Kenmore 867740410 oil-fired counterflow furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

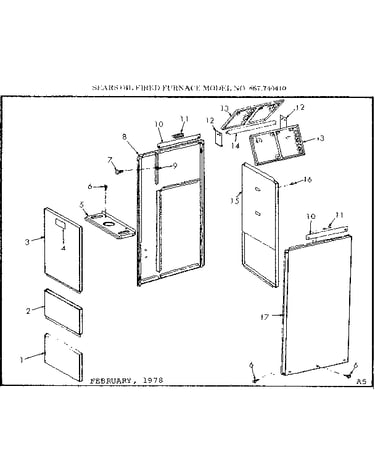

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#8

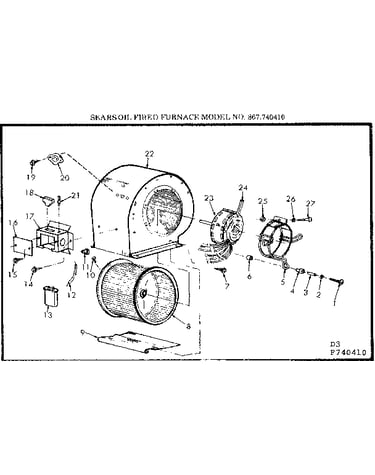

Blower diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#61

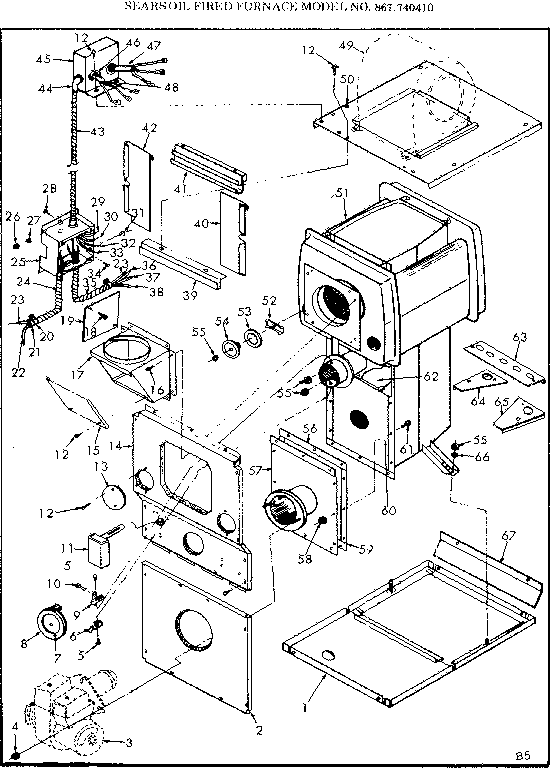

Oil burner diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 42-9295

#NI

All parts diagram

Thermostat

Part #42-9295

The manufacturer no longer makes this part, and there's no substitute part

Thermostate 42-9235

#NI

All parts diagram

Thermostate

Part #42-9235

The manufacturer no longer makes this part, and there's no substitute part

Control 91800
#11

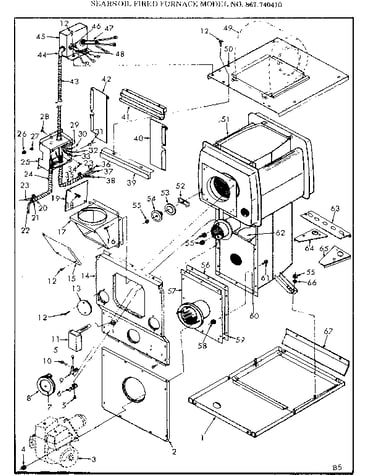

Oil burner diagram

Control

Part #91800

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#26

Blower diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Motor 604005
#23

Blower diagram

Motor

Part #604005

$928.46
In Stock
Transformer 68086
#20

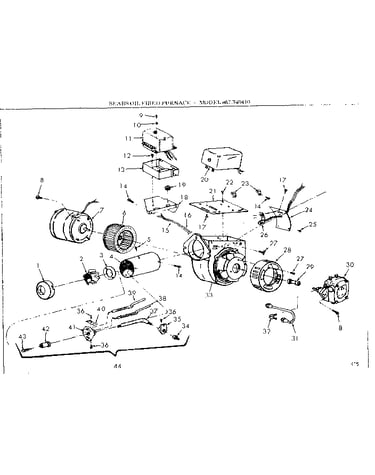

Burner diagram

Transformer

Part #68086

$107.76
In Stock
Control 604067
#20

Blower diagram

Control

Part #604067

$44.56
In Stock
Gasket 602104
#56

Oil burner diagram

Gasket

Part #602104

Replaced by #1007882

?
Manufacturer substitution
This part replaces 602104. Substitute parts can look different from the original.
$93.62
In Stock
