Sharp AF-1203M6 air conditioner Parts

Here are the diagrams and repair parts for Sharp AF-1203M6 air conditioner, as well as links to manuals and error code tables, if available.

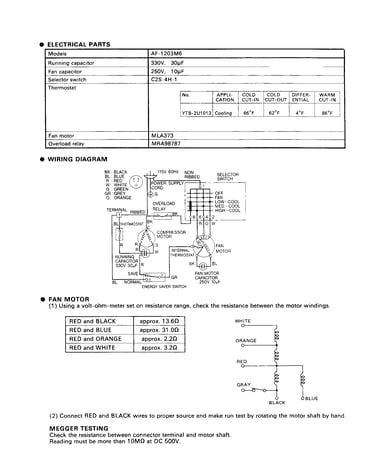

Sharp AF-1203M6 air conditioner

By Schematic

SELECT DIAGRAM

Browse Parts for AF-1203M6 Air Conditioner

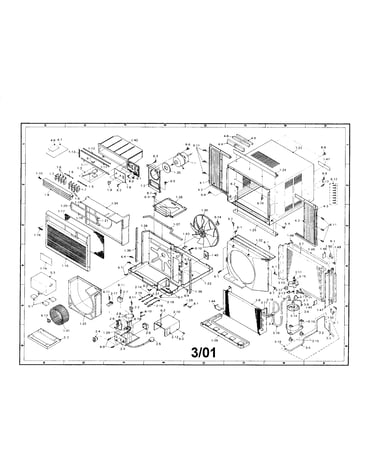

Cabinet diagram
Window Insulator
Part #PSEL-A349JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Screw For Evaporator (3), Evaporator Hold Angle (2), Condenser Shroud (6), Top Duct (2), Wire Holder (1), Tube Holder (2), End Plate (1)
Part #XYTSD40P10000
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Special Nut
Part #LX-NZA030JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Capacitor
Part #LBNDKA035JBW0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Lead Tube
Part #PPIPCB416JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Control Cover
Part #GFTA-A329JBFA
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Front Panel
Part #GWAKPA096JBFA
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Suction Tube
Part #PPIPCB437JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Wire Holder
Part #LHLDW0366JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Bottom Installation Angle
Part #LANG-A129JBTA
The manufacturer no longer makes this part, and there's no substitute part
