Sansui
LCD Television

Model # HDLCD1900 Official Sansui lcd television

Here are the diagrams and repair parts for Official Sansui HDLCD1900 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Plate Button 7A7110033A
#104

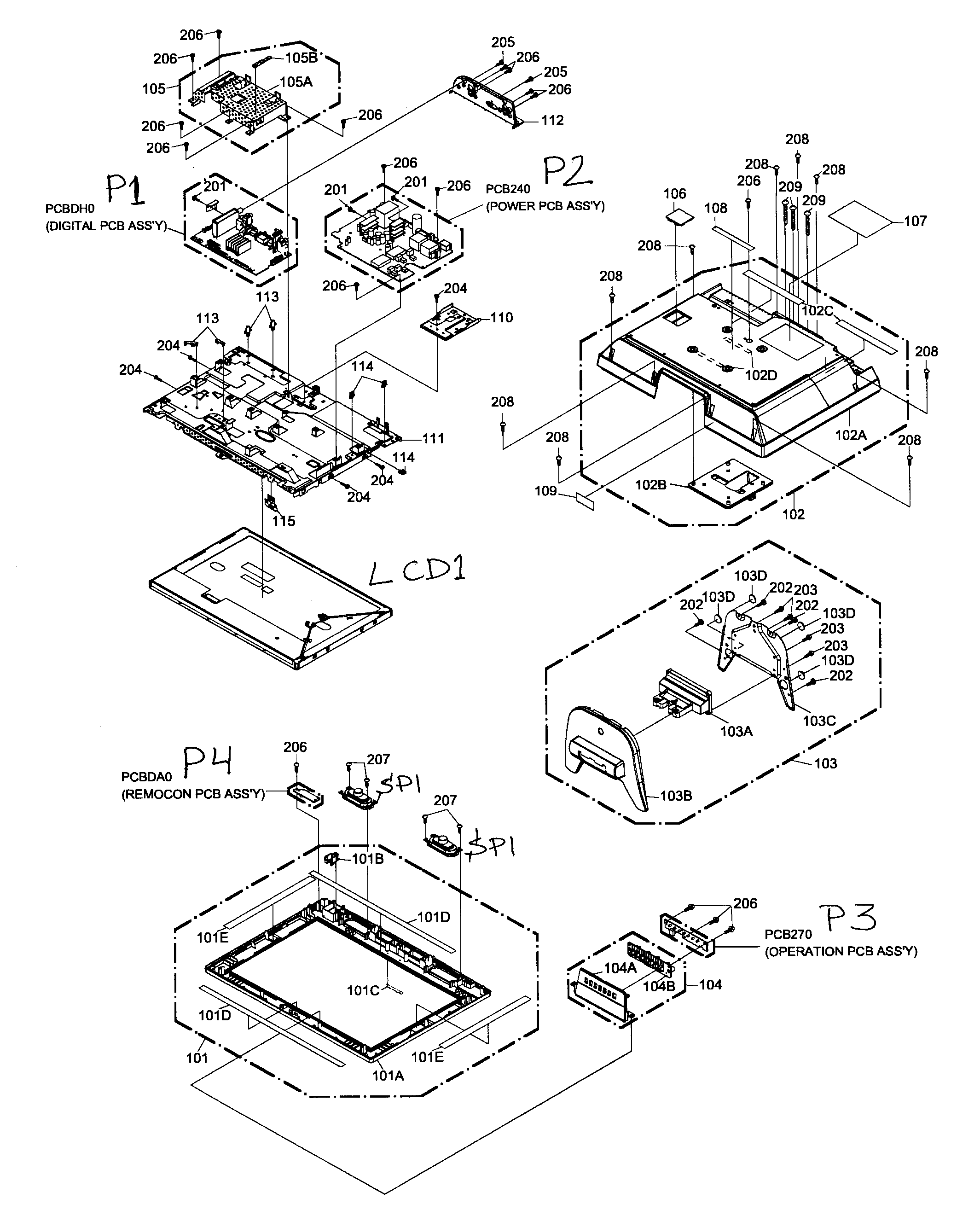

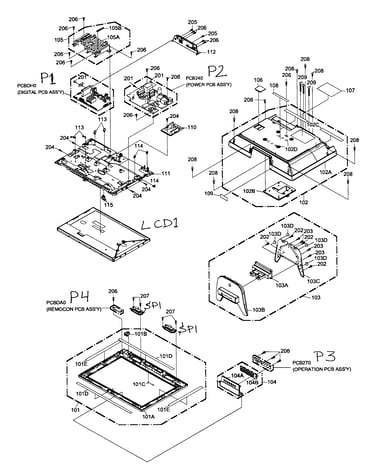

Cabinet assy diagram

Plate button

Part #7A7110033A

The manufacturer no longer makes this part, and there's no substitute part

Angle Frame 761WSA0565
#110

Cabinet assy diagram

Angle frame

Part #761WSA0565

The manufacturer no longer makes this part, and there's no substitute part

Spring 744WUA0025
#115

Cabinet assy diagram

Spring

Part #744WUA0025

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit I1KJ9A431A
#NI

Cabinet assy diagram

Integrated circuit

Part #I1KJ9A431A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit IFZJ0V3310
#NI

Cabinet assy diagram

Integrated circuit

Part #IFZJ0V3310

The manufacturer no longer makes this part, and there's no substitute part

Diode D28A10A100
#NI

Cabinet assy diagram

Diode

Part #D28A10A100

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit ICLJ022ET4
#NI

Cabinet assy diagram

Integrated circuit

Part #ICLJ022ET4

The manufacturer no longer makes this part, and there's no substitute part

Thermistor DSQE9E5R0L
#NI

Cabinet assy diagram

Thermistor

Part #DSQE9E5R0L

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit IGLJ023130
#NI

Cabinet assy diagram

Integrated circuit

Part #IGLJ023130

The manufacturer no longer makes this part, and there's no substitute part

Capacitor CD39E0M13M
#NI

Cabinet assy diagram

Capacitor

Part #CD39E0M13M

The manufacturer no longer makes this part, and there's no substitute part
