White-Westinghouse
Room Air Conditioner

Model # WAC060K7A1 Official White-Westinghouse air conditioner

Here are the diagrams and repair parts for Official White-Westinghouse WAC060K7A1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

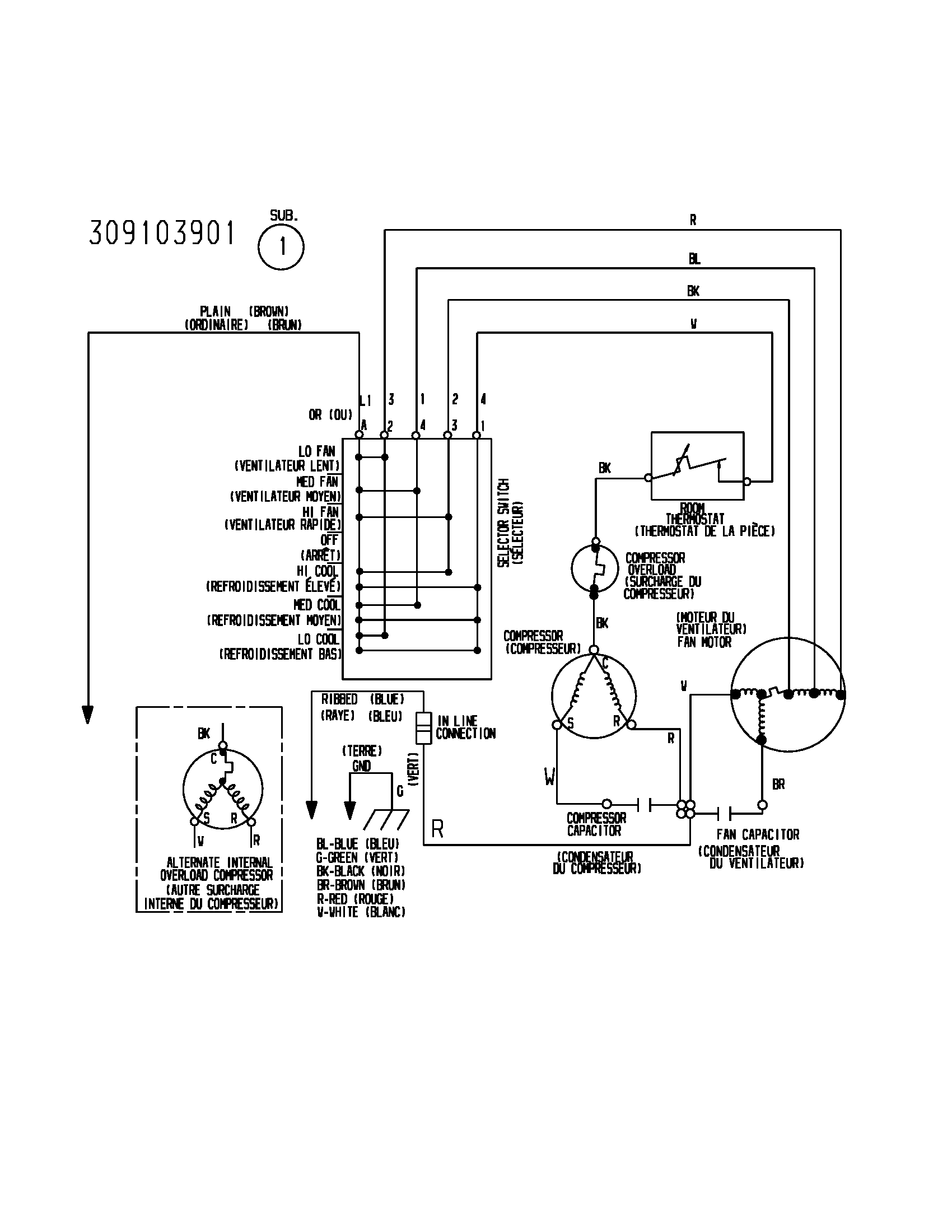

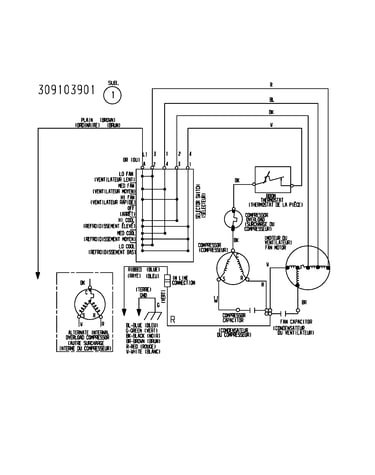

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Cover Capacitor 5303302855
#19

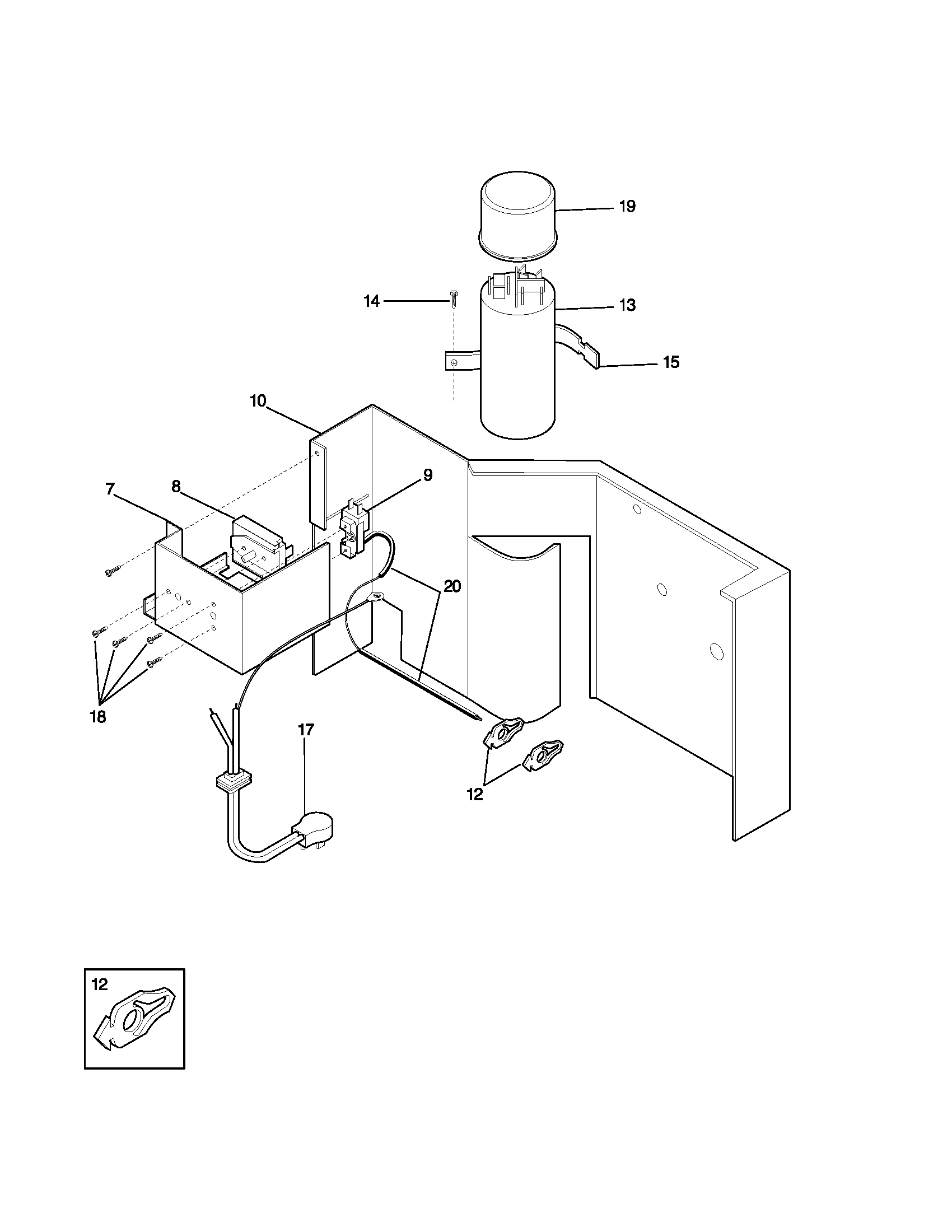

Controls diagram

Cover capacitor

Part #5303302855

$20.78
In Stock
Screw 3202975
#2

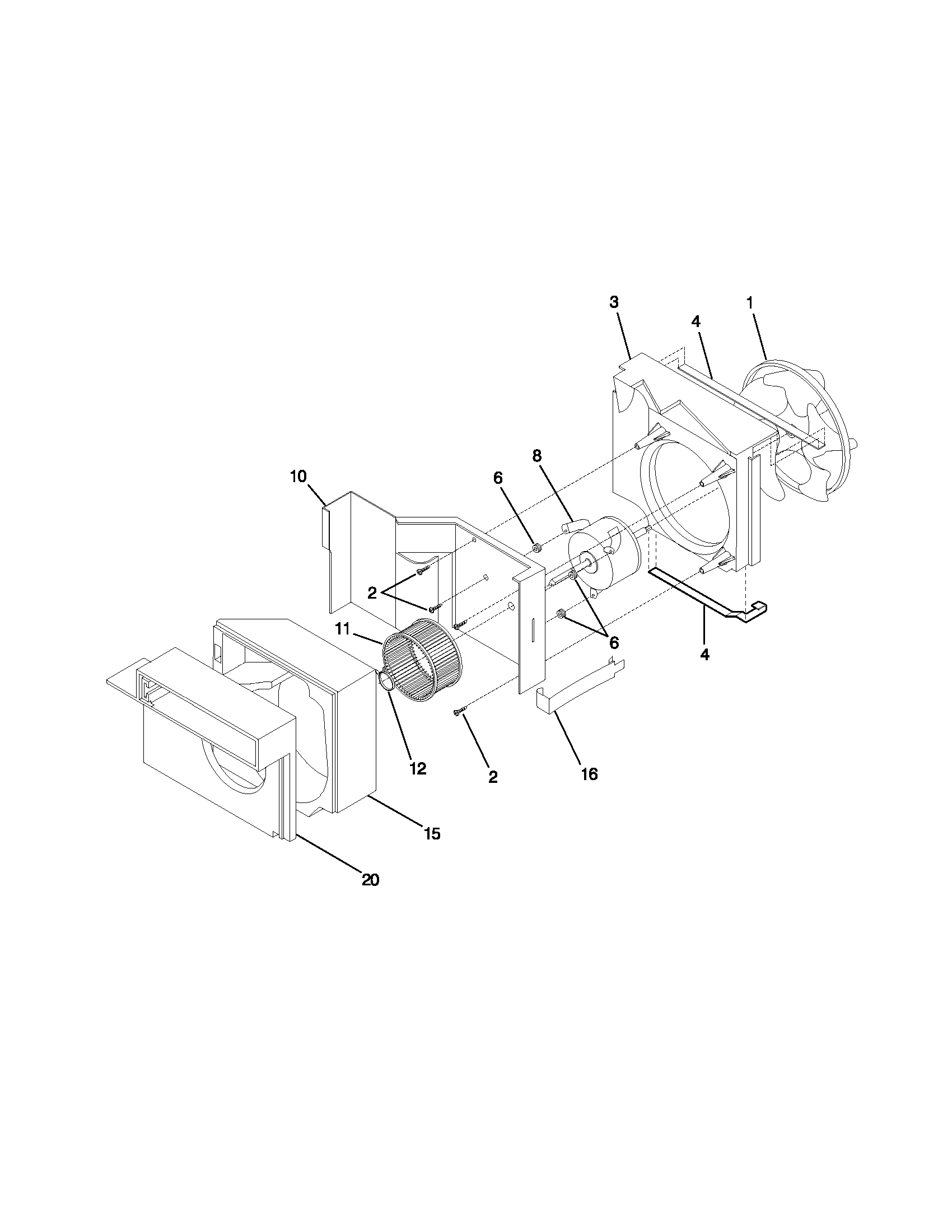

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Base-compressor 5304413780
#14

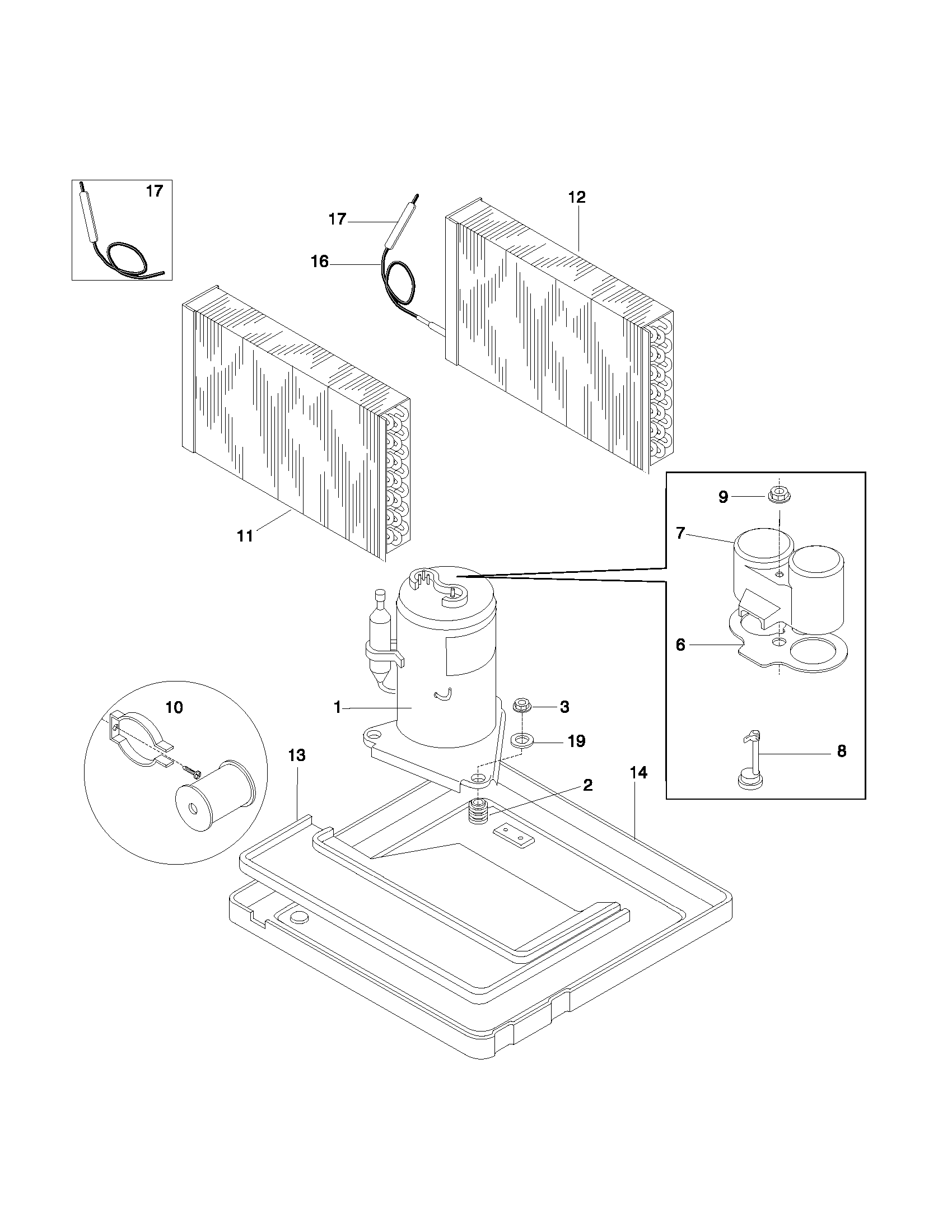

System diagram

Base-compressor

Part #5304413780

The manufacturer no longer makes this part, and there's no substitute part

Clamp-blower 5303012110
#NI

Air handling diagram

Clamp-blower

Part #5303012110

The manufacturer no longer makes this part, and there's no substitute part

Cover-terminal,compressor 5304416126
#7

System diagram

Cover-terminal,compressor

Part #5304416126

The manufacturer no longer makes this part, and there's no substitute part

Dial Plate 309342906
#19

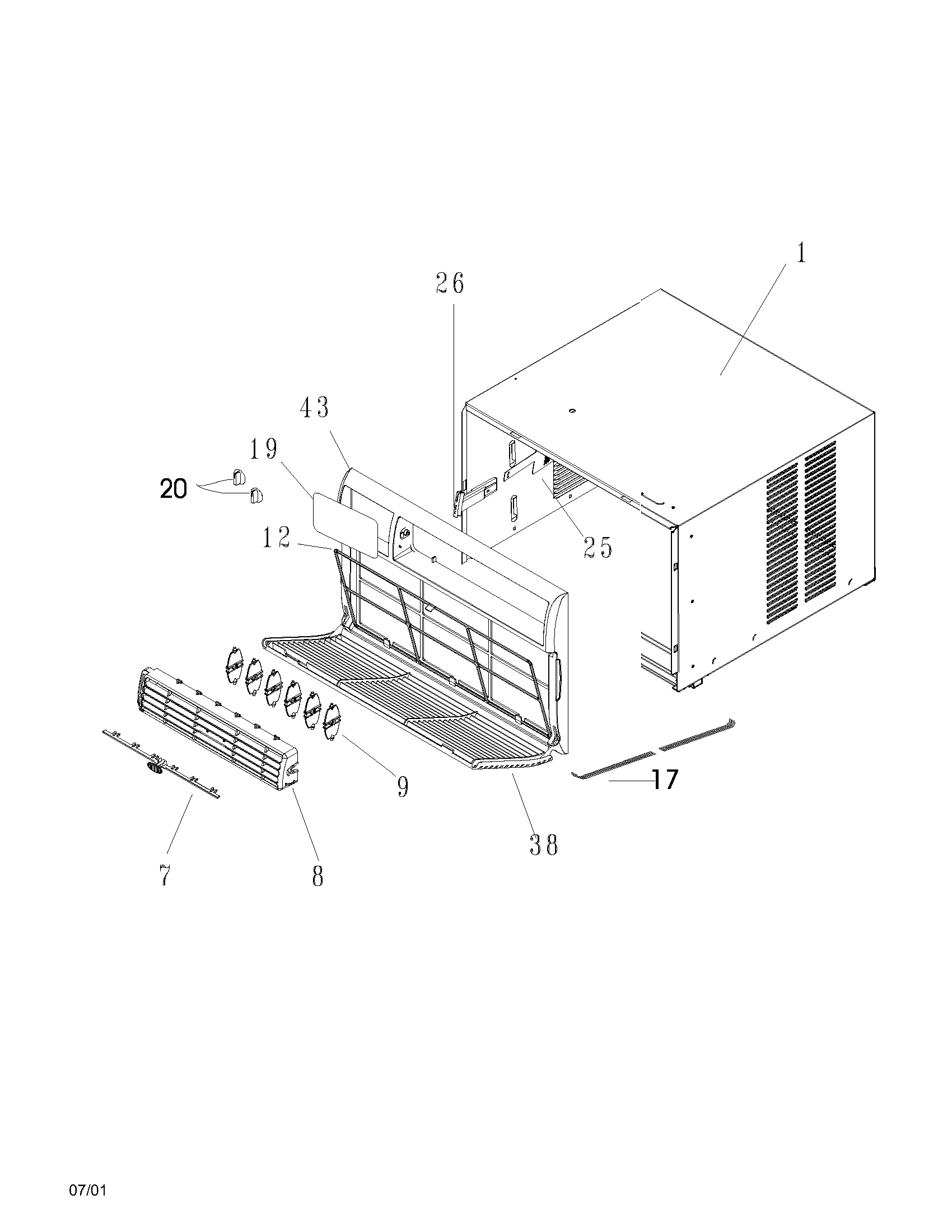

Wrapper diagram

Dial plate

Part #309342906

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Grommet 5303283877
#2

System diagram

Room air conditioner compressor grommet

Part #5303283877

The manufacturer no longer makes this part, and there's no substitute part

Capacitor,40+5/370 5304419792
#13

Controls diagram

Capacitor,40+5/370

Part #5304419792

The manufacturer no longer makes this part, and there's no substitute part

Link,vertical Louver ,with Handle 309638001
#7

Wrapper diagram

Link,vertical louver ,with handle

Part #309638001

The manufacturer no longer makes this part, and there's no substitute part

Tube 5308017120
#16

System diagram

Tube

Part #5308017120

The manufacturer no longer makes this part, and there's no substitute part
