Sharp AF-S60CX air conditioner Parts
Here are the diagrams and repair parts for Sharp AF-S60CX air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for AF-S60CX Air Conditioner
Control box parts diagram
Key Sheet(afs50cx,afs60cx)
Part #HPNLCA811JBEA
The manufacturer no longer makes this part, and there's no substitute part

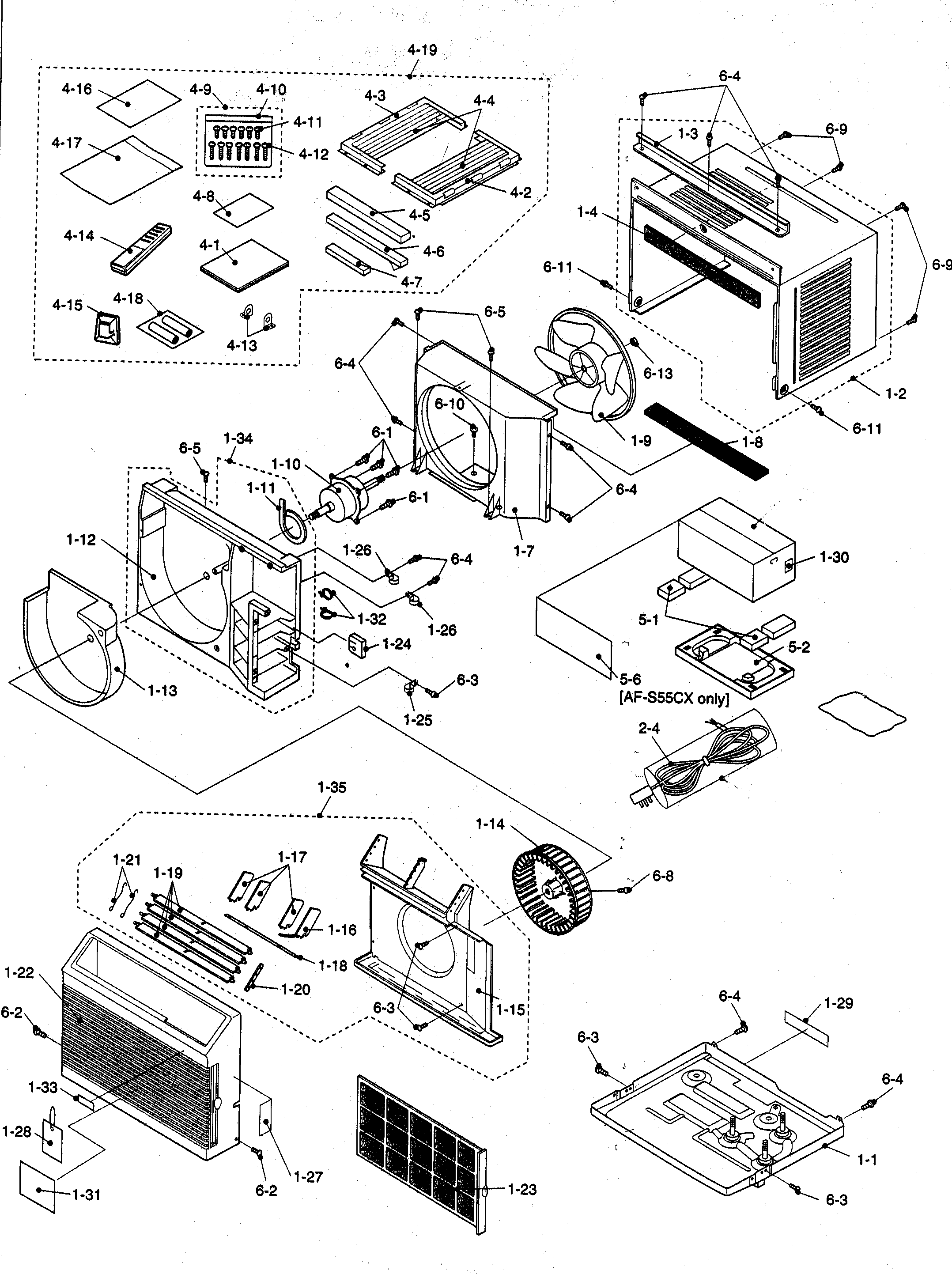

Cabinet parts diagram
Front Panel
Part #GWAKPA150JBFB
The manufacturer no longer makes this part, and there's no substitute part
Cycle parts diagram
Seal
Part #PSEL-B161JBE0
The manufacturer no longer makes this part, and there's no substitute part
Control box parts diagram
Cover Assembly
Part #DPLT-A057JBWZ
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Propeller Fan
Part #NFANPA106JBFZ
The manufacturer no longer makes this part, and there's no substitute part
Cycle parts diagram
Evaporator Insulator
Part #PSEL-C289JBEZ
The manufacturer no longer makes this part, and there's no substitute part
Control box parts diagram
Control Panel
Part #HPNLCA802JBFB
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Vertical Louver B
Part #MLOV-A322JBFB
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Louver Link
Part #MJNTPA090JBFB
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Horizontal Louver
Part #MLOV-A323JBFB
The manufacturer no longer makes this part, and there's no substitute part
