Model # NTC5075BFD1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NTC5075BFD1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

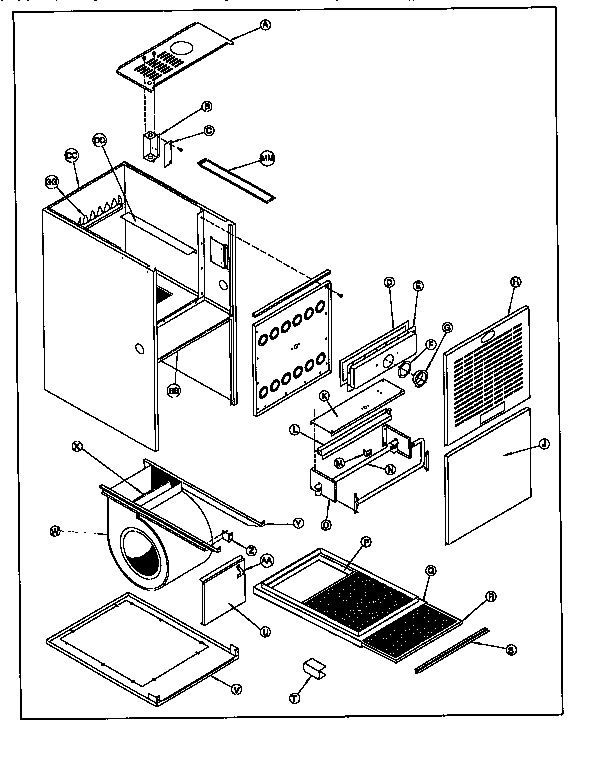

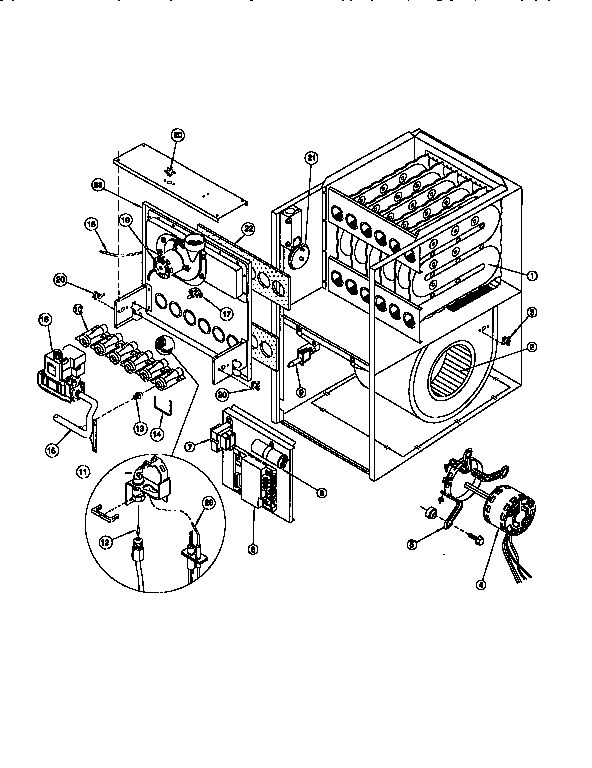

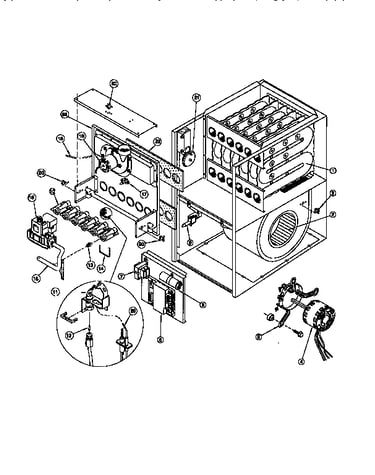

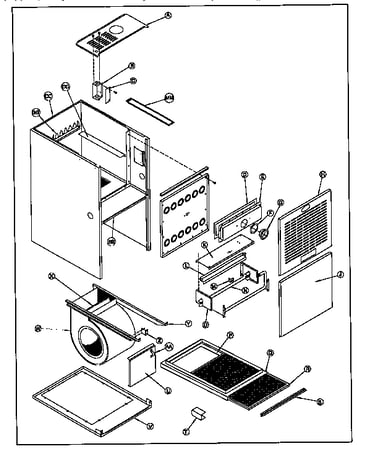

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Furnace Blower Comb 1010324
#19

Functional replacement diagram

Furnace blower comb

Part #1010324

Replaced by #1013833

?
Manufacturer substitution
This part replaces 1010324. Substitute parts can look different from the original.
$237.41 |
$10.00 OFF Phone Price : $247.41
In Stock
Cont Fan Tmr 1009838
#6

Functional replacement diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$227.07 |
$10.00 OFF Phone Price : $237.07
In Stock
Switch 1010897
#21

Functional replacement diagram

Switch

Part #1010897

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1010897. Substitute parts can look different from the original.
$58.09 |
8% OFF Phone Price : $63.09
In Stock
Valve 1009093
#16

Functional replacement diagram

Valve

Part #1009093

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009093. Substitute parts can look different from the original.
$674.90 |
$10.00 OFF Phone Price : $684.90
In Stock
Cap Rnrd 1094954
#8

Functional replacement diagram

Cap rnrd

Part #1094954

Replaced by #12005

?
Manufacturer substitution
This part replaces 1094954. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Limit Switch 1005549
#20

Functional replacement diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Burner (replaces 1012383, 1149463) 1008724
#10

Functional replacement diagram

Furnace burner (replaces 1012383, 1149463)

Part #1008724

$78.81 |
6% OFF Phone Price : $83.81
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2

Functional replacement diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Functional replacement diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Tubing 64930
#14

Functional replacement diagram

Tubing

Part #64930

$77.80
In Stock
