Model # 407777-0119-E1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 407777-0119-E1 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

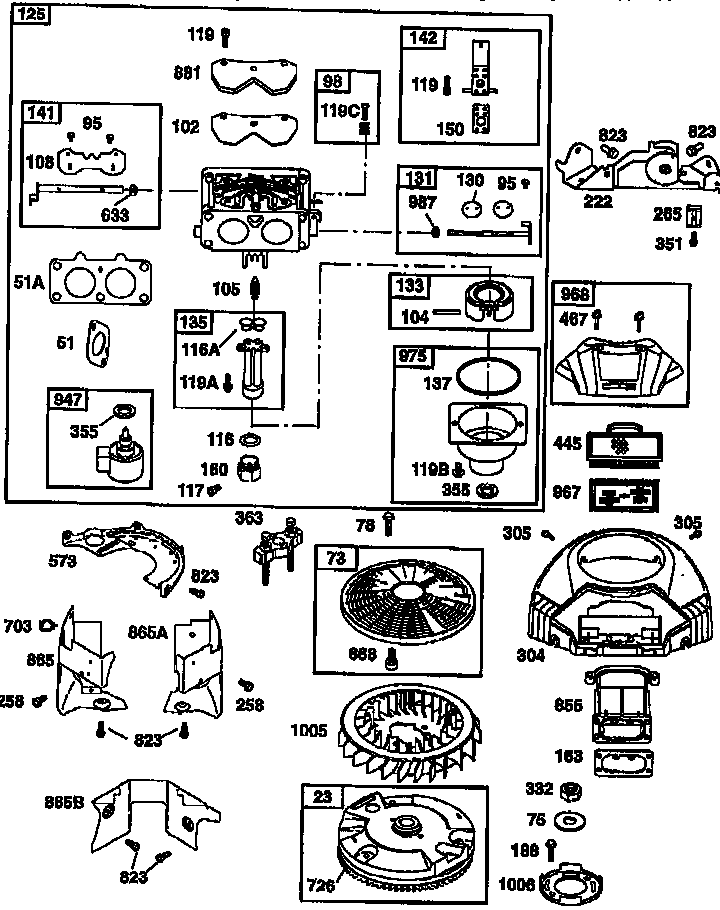

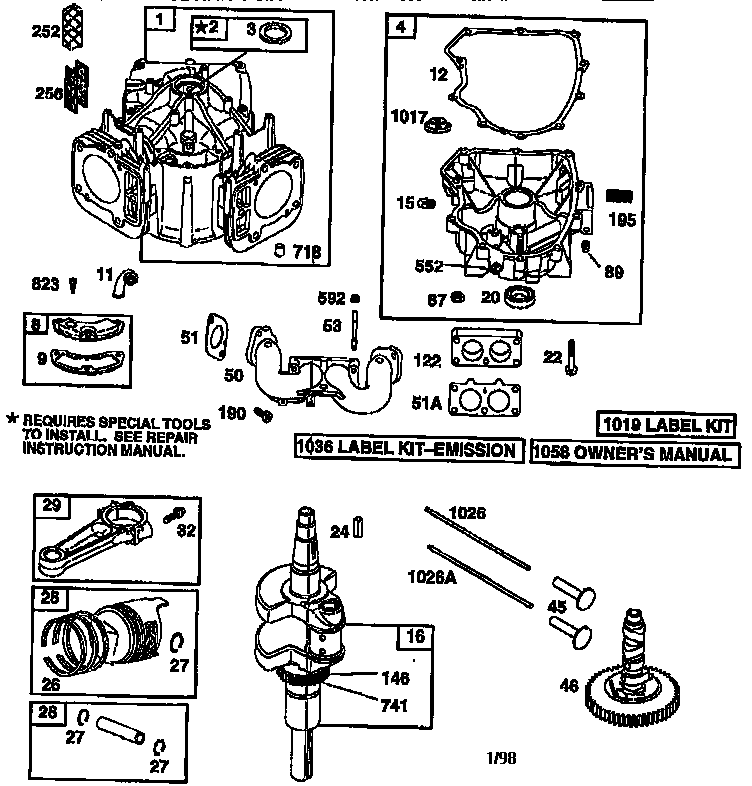

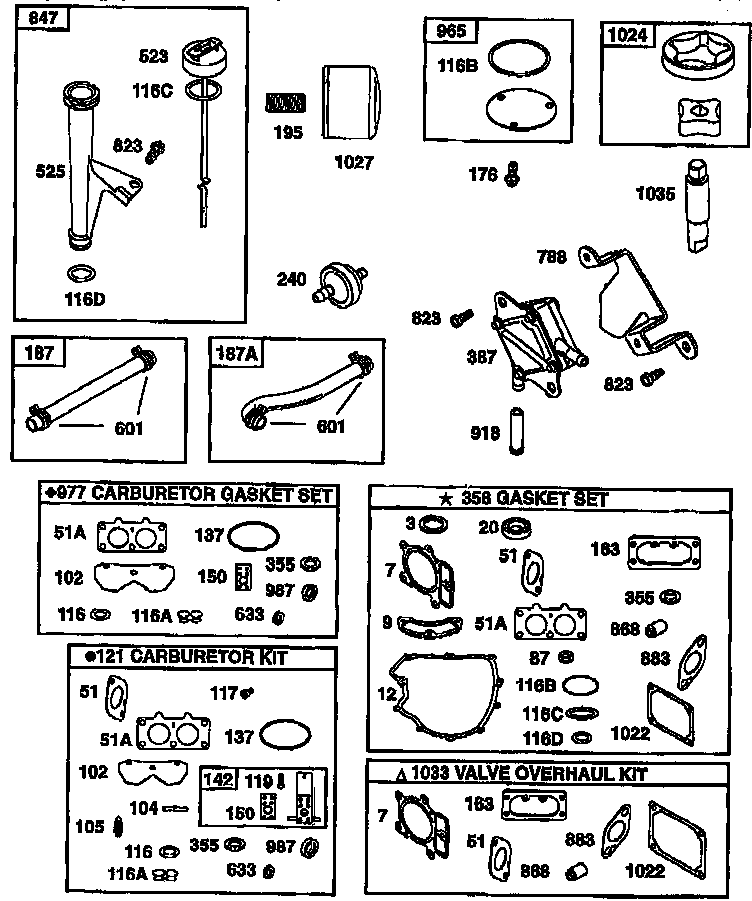

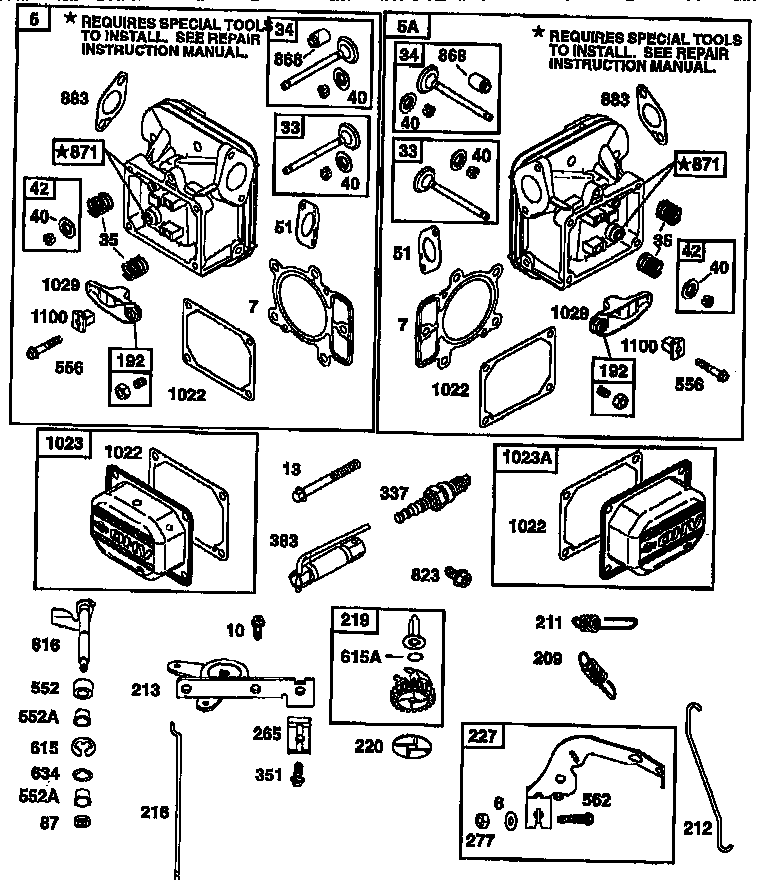

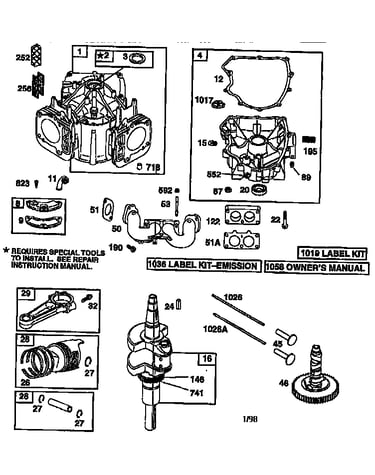

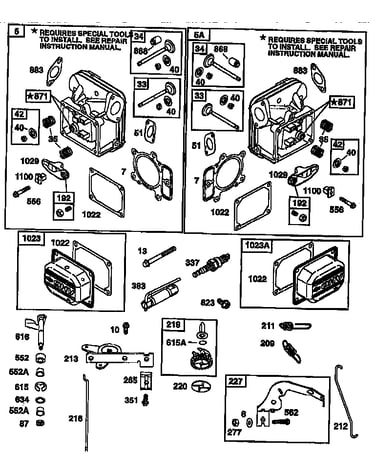

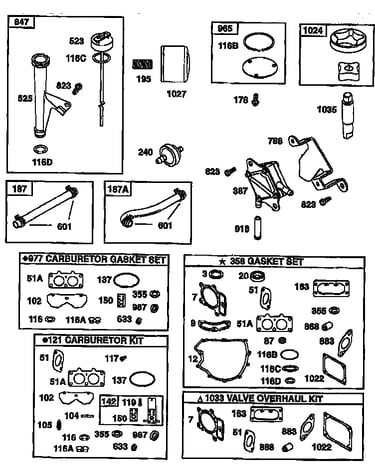

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Lawn & Garden Equipment Engine Inline Fuel Filter 691035

#240

All parts diagram

Lawn & garden equipment engine inline fuel filter

Part #691035

Replaced by #84001895

?
Manufacturer substitution
This part replaces 691035. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Oil Filter 691041

#1027

All parts diagram

Oil filter

Part #691041

Replaced by #492932S

?
Manufacturer substitution
This part replaces 691041. Substitute parts can look different from the original.
BEST SELLER
$15.30 |
12% OFF Phone Price : $17.30
In Stock
Fuel Line (red) 691050

#187

All parts diagram

Fuel line (red)

Part #691050

Replaced by #791766

?
Manufacturer substitution
This part replaces 691050. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Pre-cleaner 691016

#967

All parts diagram

Pre-cleaner

Part #691016

Replaced by #273638S

?
Manufacturer substitution
This part replaces 691016. Substitute parts can look different from the original.
BEST SELLER
$7.60 |
12% OFF Phone Price : $8.60
In Stock
Fuel Pump 691034

#387

All parts diagram

Fuel pump

Part #691034

Replaced by #597338

?
Manufacturer substitution
This part replaces 691034. Substitute parts can look different from the original.
BEST SELLER
$32.29 |
13% OFF Phone Price : $37.29
In Stock
Oil Seal 690947

#20

All parts diagram

Oil seal

Part #690947

Replaced by #795387

?
Manufacturer substitution
This part replaces 690947. Substitute parts can look different from the original.
BEST SELLER
$9.02 |
10% OFF Phone Price : $10.02
In Stock

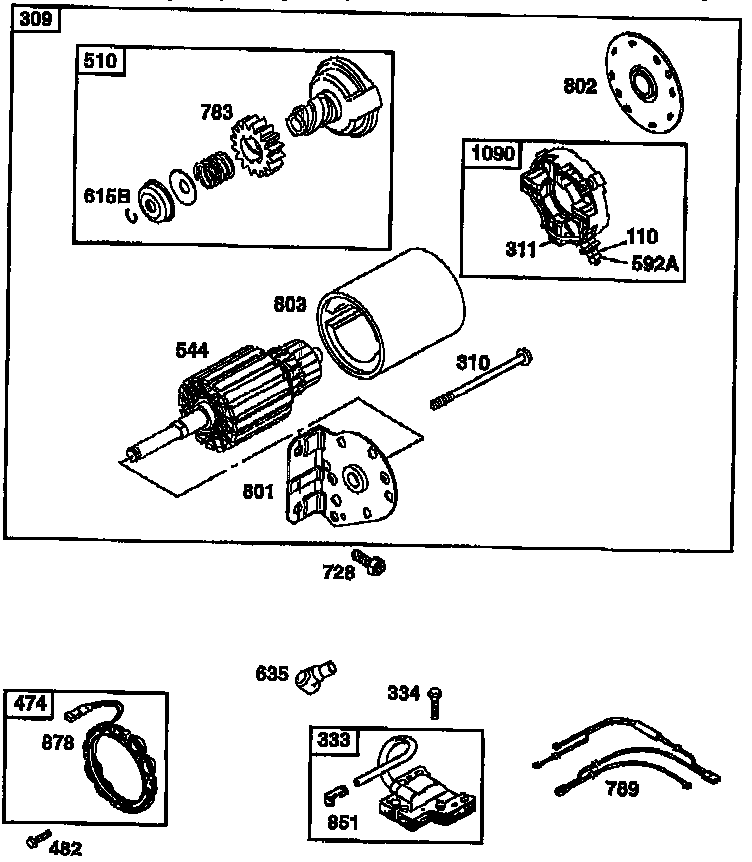

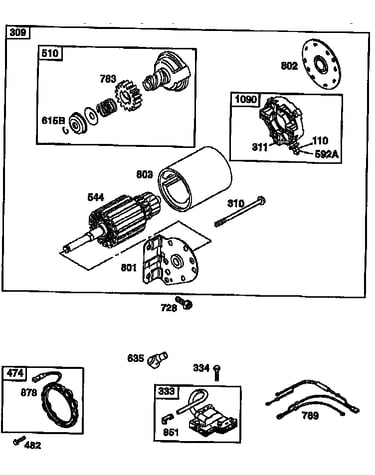

Starter Motor 691262

#309

All parts diagram

Starter motor

Part #691262

Replaced by #795121

?
Manufacturer substitution
This part replaces 691262. Substitute parts can look different from the original.
BEST SELLER
$170.50 |
6% OFF Phone Price : $180.50
In Stock
Flywheel Key 690974

#24

All parts diagram

Flywheel key

Part #690974

Replaced by #222698S

?
Manufacturer substitution
This part replaces 690974. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.29 |
23% OFF Phone Price : $4.29
In Stock
Starter Gear 691280

#783

All parts diagram

Starter gear

Part #691280

Replaced by #695708

?
Manufacturer substitution
This part replaces 691280. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
27% OFF Was : $11.29
In Stock
Lawn & Garden Equipment Engine Ignition Coil 691060

#333

All parts diagram

Lawn & garden equipment engine ignition coil

Part #691060

Replaced by #592846

?
Manufacturer substitution
This part replaces 691060. Substitute parts can look different from the original.
BEST SELLER
$58.60 |
8% OFF Phone Price : $63.60
In Stock
