Countertop Microwave

Model # JE693TWH01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE693TWH01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Fuse WB27X713
#1626

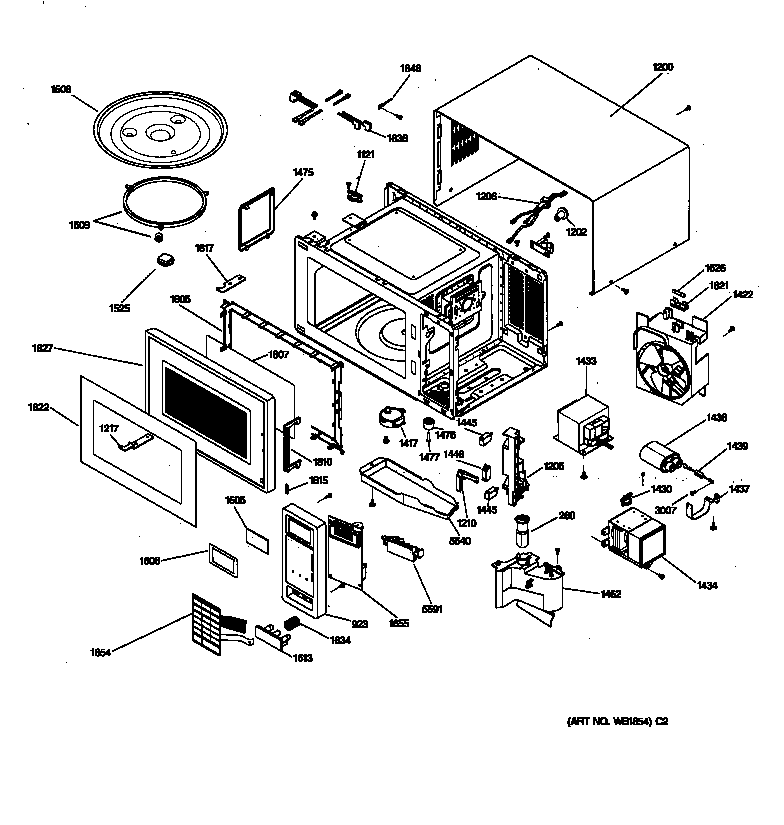

Microwave diagram

Fuse

Part #WB27X713

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X713. Substitute parts can look different from the original.
BEST SELLER
$9.73
9% OFF Phone Price : $10.73
In Stock
Primary Switch WB24X439
#1445

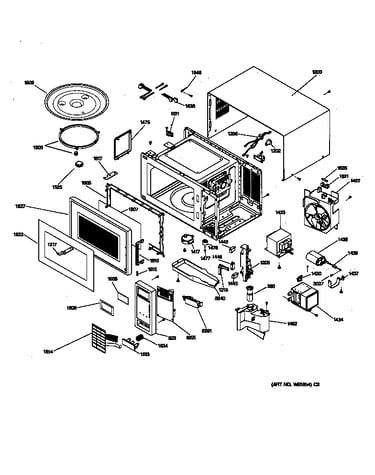

Microwave diagram

Primary switch

Part #WB24X439

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X439. Substitute parts can look different from the original.
BEST SELLER
$33.20
13% OFF Phone Price : $38.20
In Stock
Sw-secondary WB24X796
#1446

Microwave diagram

Sw-secondary

Part #WB24X796

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X796. Substitute parts can look different from the original.
BEST SELLER
$33.20
13% OFF Phone Price : $38.20
In Stock
Diode WB27X330
#1439

Microwave diagram

Diode

Part #WB27X330

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X330. Substitute parts can look different from the original.
$84.28
6% OFF Phone Price : $89.28
In Stock
Use And Care Guide 49-8341

#NI

All parts diagram

Use and care guide

Part #49-8341

In Stock
Flame Sensor WB20X141
#1121

Microwave diagram

Flame sensor

Part #WB20X141

Replaced by #WB27X10195

?
Manufacturer substitution
This part replaces WB20X141. Substitute parts can look different from the original.
$22.40
18% OFF Phone Price : $27.40
In Stock
Sc Washer WB1X1436
#3007

Microwave diagram

Sc washer

Part #WB1X1436

Replaced by #WB01X10084

?
Manufacturer substitution
This part replaces WB1X1436. Substitute parts can look different from the original.
$6.51
13% OFF Phone Price : $7.51
In Stock
Out Frame WB55X862
#1827

Microwave diagram

Out frame

Part #WB55X862

The manufacturer no longer makes this part, and there's no substitute part

Film Wind WB6X203
#1608

Microwave diagram

Film wind

Part #WB6X203

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness WB18X439
#1638

Microwave diagram

Wire harness

Part #WB18X439

The manufacturer no longer makes this part, and there's no substitute part
