Model #31518051 Craftsman 16" hedge trimmer

Here are the diagrams and repair parts for Craftsman 31518051 16" hedge trimmer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 59 parts

Logo Plate

#58

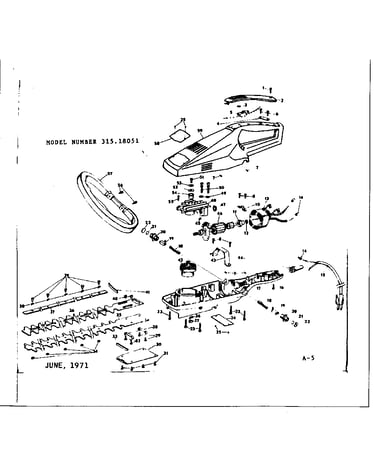

Unit parts Diagram

Logo plate

Part #606444-001
?
Manufacturer substitution
This part replaces 2-606444-01. Substitute parts can look different from the original.
This part replaces 2-606444-01
This item is not returnable
$2.16

In Stock

Machine Screw

#29

Unit parts Diagram

Machine screw

Part #STD510805
?
Manufacturer substitution
This part replaces 1-615486-01. Substitute parts can look different from the original.
This part replaces 1-615486-01
This item is not returnable
$2.15

Back Order

Mach. Screw

#55

Unit parts Diagram

Mach. screw

Part #1-737983-04

The manufacturer no longer makes this part, and there's no substitute part

Twist-On Wire Connector (Gray)

#14

Unit parts Diagram

Twist-on wire connector (gray)

Part #STD375004
?
Manufacturer substitution
This part replaces 1-623173-01. Substitute parts can look different from the original.
This part replaces 1-623173-01
This item is not returnable
$2.16

In Stock

Hex Lock Nut, 8-pack

#34

Unit parts Diagram

Hex lock nut, 8-pack

Part #STD541408
?
Manufacturer substitution
This part replaces 1-623281-12. Substitute parts can look different from the original.
This part replaces 1-623281-12
This item is not returnable
$6.25

Back Order

Thread-Forming Screw, 8-pack

#8

Unit parts Diagram

Thread-forming screw, 8-pack

Part #STD610805
?
Manufacturer substitution
This part replaces 1-616081-13. Substitute parts can look different from the original.
This part replaces 1-616081-13
This item is not returnable
$2.55

In Stock

Data Plate

#24

Unit parts Diagram

Data plate

Part #606443-001
?
Manufacturer substitution
This part replaces 2-606443-01. Substitute parts can look different from the original.
This part replaces 2-606443-01
This item is not returnable
$2.16

In Stock

Screw

#56

Unit parts Diagram

Screw

Part #1-616711-01

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap

#22

Unit parts Diagram

Brush cap

Part #1-614008-01

The manufacturer no longer makes this part, and there's no substitute part

Screw

#51

Unit parts Diagram

Screw

Part #1-606021-01

The manufacturer no longer makes this part, and there's no substitute part
