Craftsman 580323600 ac generator Parts

Craftsman generators are a good choice for powering essentials during outages when they are sized correctly and maintained on schedule. For the Craftsman model 580323600 (3600-watt AC generator), performance depends on staying within the generator’s total wattage rating, using clean fuel, and following the service steps in the 580323600 owner's manual.

What “good” means for the Craftsman 580323600

This model is built for emergency household and residential use, not as a primary power source. It also has a strict total output limit; even if a receptacle is rated higher, the generator’s overall rating is what protects the alternator and engine.

Key takeaways

• Plan loads around 3,600 watts total.
• Avoid overloading; it damages components and creates safety risks.
• In cold, humid weather, carburetor or breather icing can occur; oil choice and sheltering help.
• Oil checks and changes on schedule are the biggest reliability factor.
• If output seems unstable, check cords and connections before replacing major parts.

Quick sizing guide (typical essentials)

Use this to estimate loads; always account for motor starting watts.

Load type	Typical running watts	Typical starting watts	Notes
Lights (LED)	50 to 300	Same	Steady load
Refrigerator/freezer	150 to 800	600 to 2,000+	Start surge
Sump pump (1/3 HP)	800 to 1,200	1,600 to 3,000	High surge
Microwave	900 to 1,500	Same	Heavy steady load

Maintenance and setup that improve reliability

• Use clean, fresh fuel; do not run old storage fuel.
• Check oil before each run; follow the manual’s oil type guidance.
• Keep total load under the rated output; stagger motor starts.
• Inspect outlets and cords for heat damage or looseness.

Why it matters

Most “bad generator” complaints trace back to overload, stale fuel, or low oil. Staying within the 580323600’s rated output and following the maintenance schedule delivers dependable emergency power.

Last updated: February 2026

Yes, repairing a generator is worth it when the core engine and alternator are in good shape and the repair restores reliable power at a reasonable cost. For the Craftsman 580323600 generator, we also factor in safety, maintenance condition, and whether the issue is a wear item versus a major electrical failure.

Quick decision checklist

• Repair when the problem is routine maintenance (spark plug, air filter, fuel system cleaning) or a single failed component.
• Repair when the unit starts easily, runs smoothly, and produces stable voltage at governed speed.
• Replace when the generator has repeated major failures (engine compression issues, severe alternator damage) or frequent breakdowns.
• Replace when repair cost approaches about half the cost of a comparable new generator.
• Repair when parts are available and the fix is straightforward (for example, a damaged outlet or wiring harness).

What we look at on the Craftsman 580323600

The manual highlights that the generator delivers correct frequency and voltage only at governed speed and should not be modified; that makes “unstable power” complaints especially important to diagnose correctly. Use the 580323600 owner’s manual to follow the maintenance schedule and operating guidance before deciding on a major repair.

Common repairable issues (often worth fixing)

Symptom	Likely area	Typical fix type
No output at receptacles	Outlet, wiring	Replace receptacle or harness
Output cuts in and out	Loose connections	Inspect, tighten, repair wiring
Runs rough, surges	Tune-up items	Spark plug, air filter, fuel service
Overheats or shuts down	Airflow blockage	Clean cooling slots, remove debris

If you suspect an electrical connection problem, a replacement harness such as the briggs & stratton harness 190356GS is a common “restore reliability” repair when the existing wiring is damaged.

Why it matters

A generator that is poorly maintained or overloaded can become unreliable and unsafe. Following the manual’s fueling and operating warnings (cool-down before refueling, outdoor fueling, avoid overload, disconnect spark plug wire before repair) protects the alternator, engine, and your connected equipment.

Last updated: February 2026

For the Craftsman generator model 580323600, the engine is a Briggs & Stratton engine. The owner’s documentation for this 3600-watt AC generator lists a 7.0 HP Briggs & Stratton engine for the unit (engine model 120412); see the 580323600 owner's manual.

What you will see on this specific generator

On Craftsman 580323600 units, Briggs & Stratton is the engine brand you will typically confirm by:

• The engine label on the recoil starter housing or valve cover
• The engine model and type numbers stamped on the blower housing
• The parts breakdown showing the engine as a Briggs & Stratton assembly
• Service parts and wiring routed through the control panel and harness

Why Craftsman engine brands can vary by model

Craftsman is the equipment brand, and the engine supplier can vary across different generator models and production years. For 580323600, the manual calls out Briggs & Stratton specifically, so you can use that as your match point when buying tune-up parts or looking up engine service information.

Quick reference table

Item	What it means	Where to confirm
Equipment brand	Craftsman	Generator frame label and model tag
Engine brand (this model)	Briggs & Stratton	Engine shroud label and manual
Engine size (this model)	7.0 HP	Manual engine section
Engine model (this model)	120412	Manual engine exploded view

Related parts you may replace during electrical troubleshooting

If you are diagnosing “runs but no power” or intermittent output, these model-matched electrical parts are commonly involved:

• Briggs & stratton rotor 191685GS (rotating field that helps generate output)
• Snapper generator stator 191686AGS (stationary windings that produce AC power)
• Briggs & stratton harness 190356GS (wiring connections between components)

Why it matters

Matching the correct engine brand and generator model number helps you get the right maintenance parts and the correct diagrams for troubleshooting fuel, ignition, and AC output issues.

Last updated: February 2026

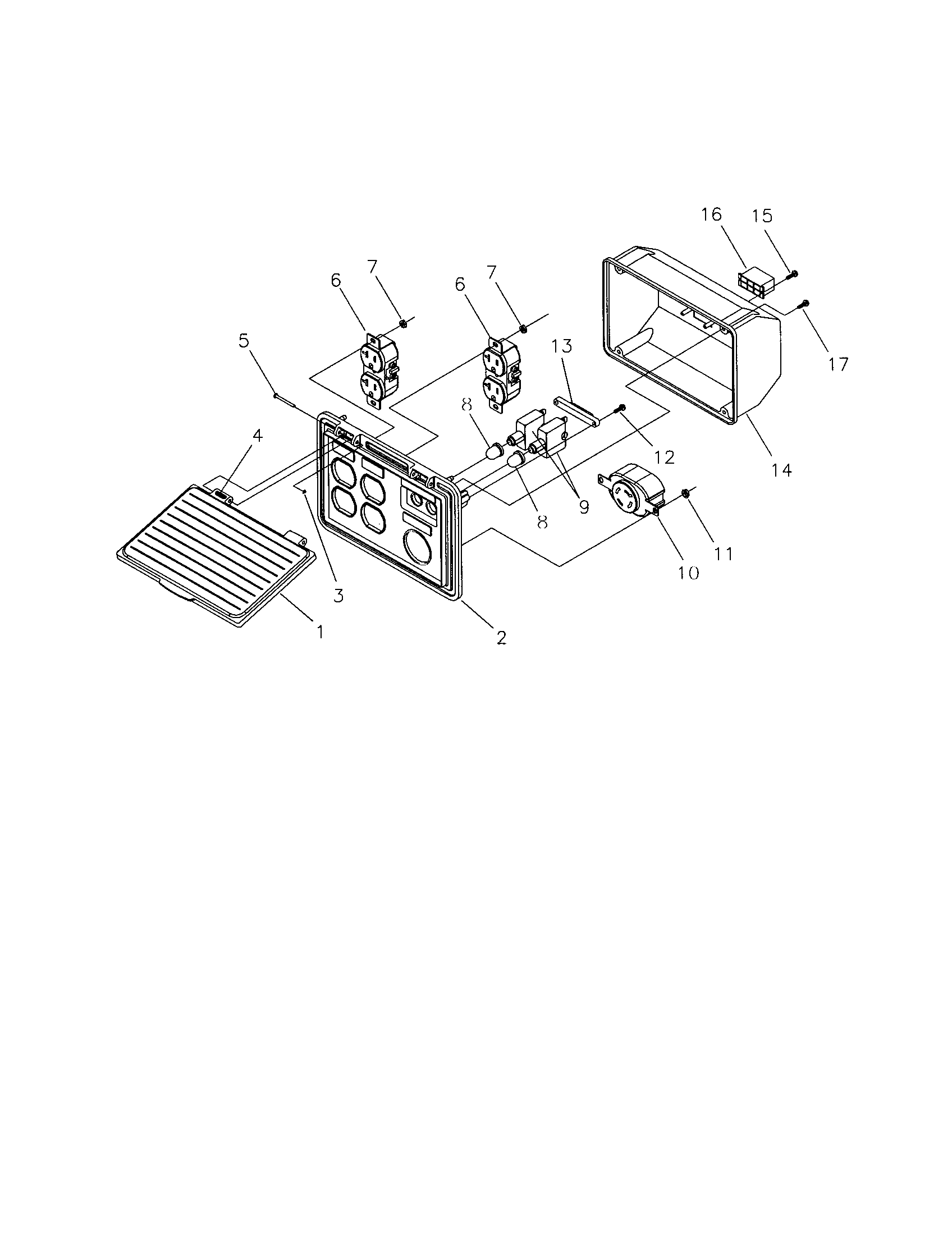

For your Craftsman AC generator model 580323600, we recommend buying replacement parts from Sears PartsDirect using your exact model number to match the correct alternator, control panel, and engine-related components. Your 580323600 owner's manual also lists replacement parts and diagrams to help you identify what you need.

Best places to buy Craftsman replacement parts

• Sears PartsDirect (model-based lookup for the best fit)
• Craftsman-authorized retailers (online and in-store)
• Major home improvement retailers that carry Craftsman
• Reputable small-engine and generator parts suppliers (helpful for Briggs and Stratton engine items)

How to make sure you order the right part

Use these checks before you buy:

• Confirm the full model number: 580323600
• Use the exploded views and parts lists to match the part description
• Match the electrical connection style (plug, receptacle, harness) when replacing wiring parts
• For alternator output issues, identify whether you need a rotor, stator, or control panel component
• Replace mounting hardware with the correct size and type (lock nuts, washers, cap screws)

Common parts customers replace on model 580323600

What you are fixing	Part type to look up	Example part for this model
No power at outlets	Receptacle or AC socket	Generac generator receptacle 68759GS or snapper ac socket 68867GS
Intermittent power, damaged wiring	Wiring harness	Briggs & stratton harness 190356GS
Excessive vibration, broken mounts	Engine mount	Troybilt generator engine mount 70642GS

Why it matters

Generators often share similar-looking parts across different series, but small differences in wiring, outlet style, and alternator components can cause poor fit or unsafe operation. Using the model 580323600 parts list helps you get the correct Craftsman-compatible replacement the first time.

Last updated: February 2026

For the Craftsman AC generator model 580323600, the owner’s documentation is branded Craftsman and the alternator and engine are covered under a Sears warranty; the engine shown for this model is a Briggs & Stratton 7.0 HP engine. For manufacturer and component identification details, use the 580323600 owner’s manual.

What we can confirm for model 580323600

The manual for this 3600-watt Craftsman generator identifies key components and how the unit is supported:

• The generator is a Craftsman 3600 Watt AC Generator, model 580323600.
• The engine listed for this model is Briggs & Stratton (7.0 HP, model family 120412).

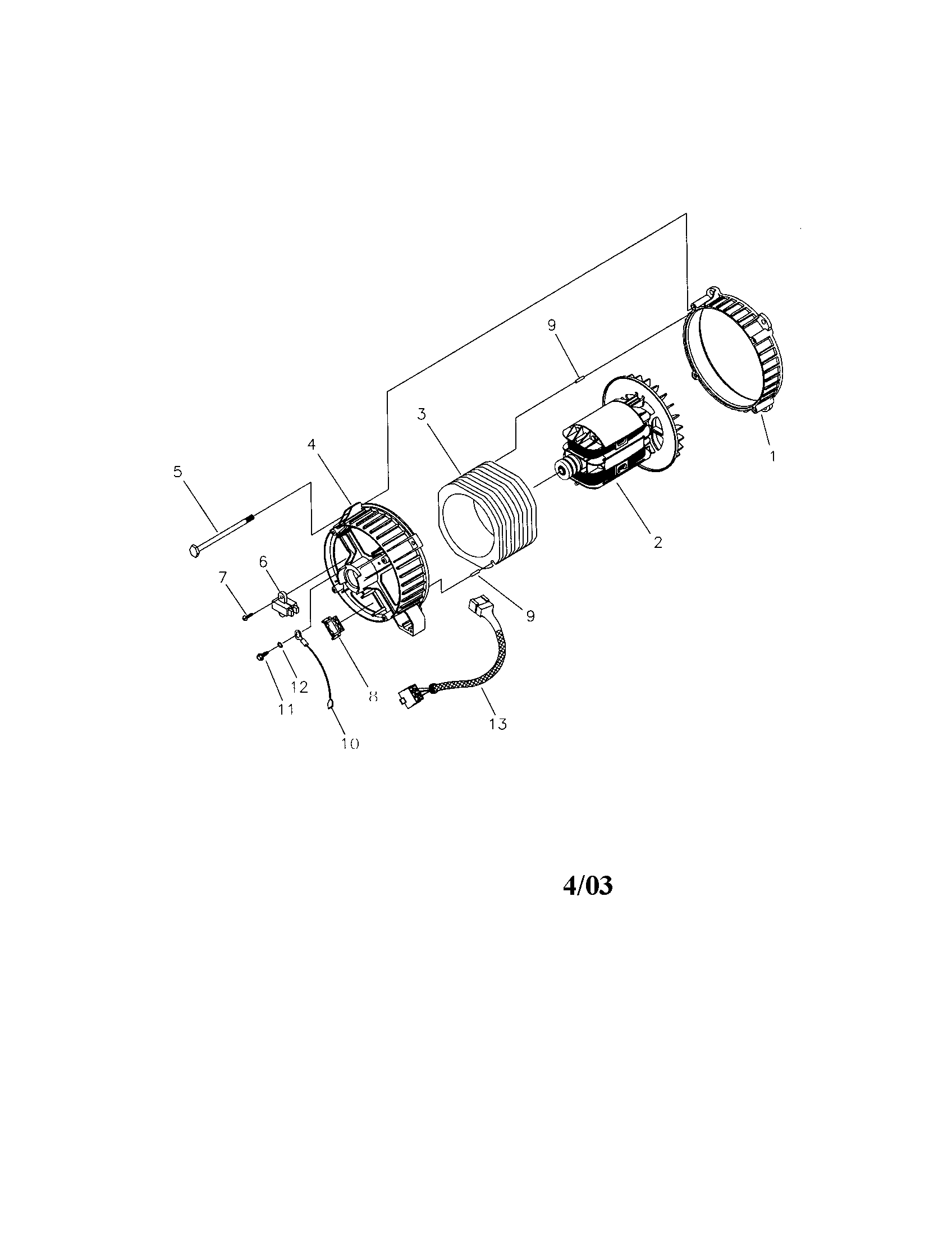

• The alternator section includes serviceable alternator components such as rotor, stator, and wiring harness.
• Warranty language is provided by Sears for the alternator and engine (consumer and commercial terms differ).

How to tell who made your specific unit (practical checks)

Because portable generators are often built from major components sourced from different suppliers, we recommend confirming the maker by checking the unit itself:

• Data plate or rating label on the frame or control panel (often lists a manufacturer or compliance info)
• Engine shroud label (Briggs & Stratton branding and engine model/type/code)
• Alternator/control panel parts list in the manual for component names and identifiers
• Parts cross-references when ordering (for example, the briggs & stratton harness 190356GS)

Common “manufacturer” scenarios (what the name can mean)

What you mean by “manufacturer”	Where to look	Example for 580323600
Brand on the product	Owner documentation and decals	Craftsman branding in the manual
Engine maker	Engine label and manual engine section	Briggs & Stratton engine shown
Alternator/component supplier	Alternator parts list	Rotor, stator, harness listed

Why it matters

Knowing whether you are identifying the brand, the engine maker, or the alternator/component supplier helps you order the right parts and follow the correct service procedures, especially for electrical items like a harness, receptacle, rotor, or stator.

Last updated: February 2026
