Kenmore
Humidifier

Model # 75874190 Official Kenmore console home humidifier

Here are the diagrams and repair parts for Official Kenmore 75874190 console home humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Hose Clamp 14076
#31

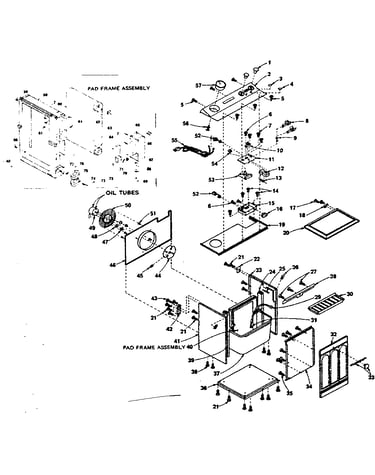

Pad frame assembly diagram

Hose clamp

Part #14076

The manufacturer no longer makes this part, and there's no substitute part

Control Plate 20192-01
#11

Pad frame assembly diagram

Control plate

Part #20192-01

The manufacturer no longer makes this part, and there's no substitute part

Knob 20254
#1

Pad frame assembly diagram

Knob

Part #20254

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Pad 34-7278
#60

Pad frame assembly diagram

Evaporator pad

Part #34-7278

The manufacturer no longer makes this part, and there's no substitute part

Panel 18186
#32

Pad frame assembly diagram

Panel

Part #18186

The manufacturer no longer makes this part, and there's no substitute part

Screw STD600803
#7

Pad frame assembly diagram

Screw

Part #STD600803

The manufacturer no longer makes this part, and there's no substitute part

Connector 11743
#16

Pad frame assembly diagram

Connector

Part #11743

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 20598

#NI

All parts diagram

Owner's manual

Part #20598

The manufacturer no longer makes this part, and there's no substitute part

Hinge 17541
#42

Pad frame assembly diagram

Hinge

Part #17541

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly 11619
#29

Pad frame assembly diagram

Hose assembly

Part #11619

The manufacturer no longer makes this part, and there's no substitute part
