Sharp AF-604M6 air conditioner

Sharp AF-604M6 air conditioner Parts

Here are the diagrams and repair parts for Sharp AF-604M6 air conditioner, as well as links to manuals and error code tables, if available.

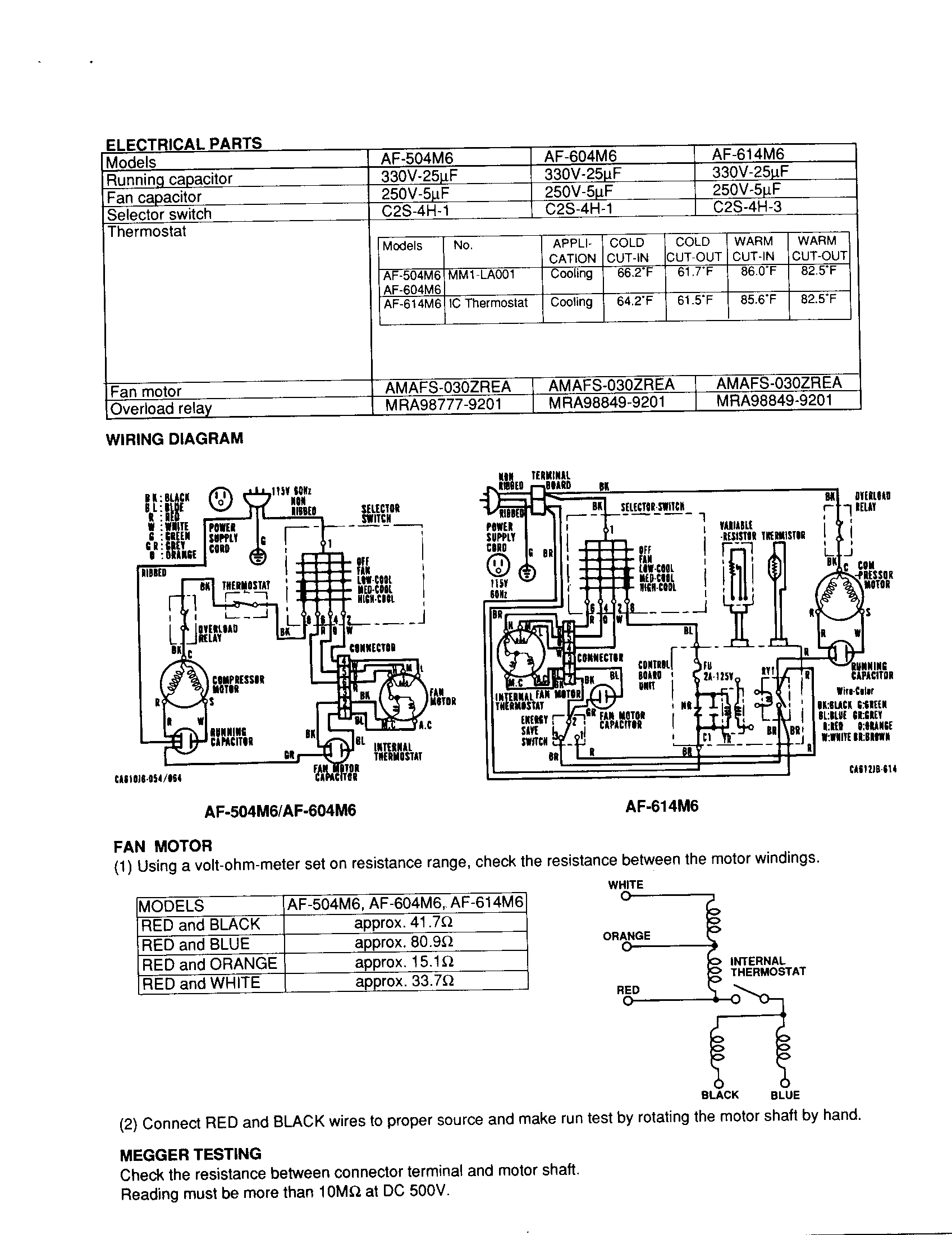

By Schematic

SELECT DIAGRAM

Browse Parts for AF-604M6 Air Conditioner

#4-03

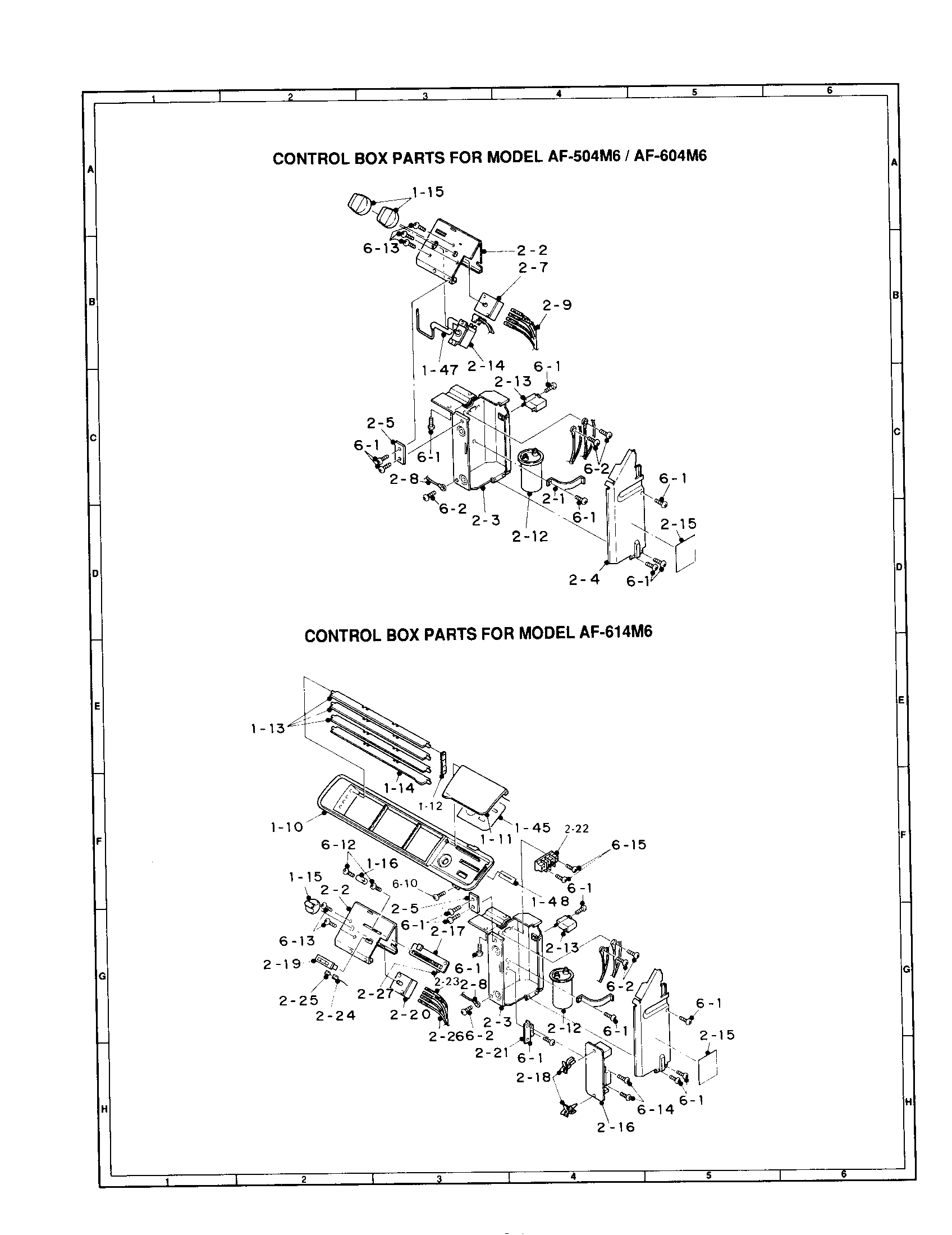

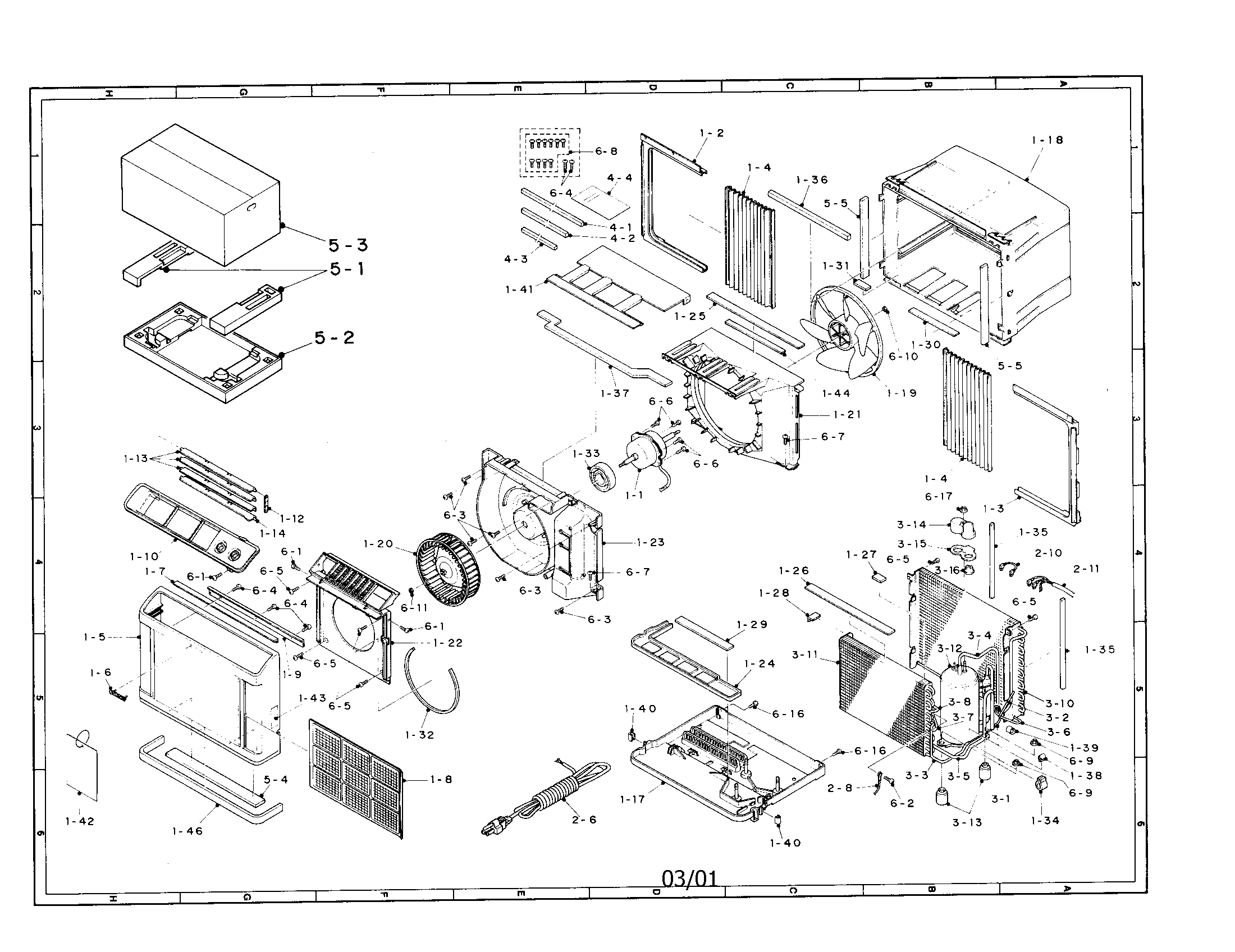

All parts diagram
Insulator
Part #PSEL-A351JBE0
The manufacturer no longer makes this part, and there's no substitute part
#2-25
All parts diagram
Lead Wire
Part #QW-VZC065JBE0
The manufacturer no longer makes this part, and there's no substitute part
#1-14
All parts diagram
Horizontal Louver C
Part #MLOV-A147JBFA
The manufacturer no longer makes this part, and there's no substitute part
#1-10A
All parts diagram
Top Duct
Part #GWAKPA107JBFA
The manufacturer no longer makes this part, and there's no substitute part
#1-13
All parts diagram
Horizontal Louver A (3)
Part #MLOV-A145JBFA
The manufacturer no longer makes this part, and there's no substitute part
#1-12
All parts diagram
Louver Line
Part #MJNTPA044JBFA
The manufacturer no longer makes this part, and there's no substitute part
#3-05A
All parts diagram
Suction Tube (af-604m6) (af-614m6)
Part #PPIPCB573JB10
The manufacturer no longer makes this part, and there's no substitute part
#6-17
All parts diagram
Special Nu
Part #LX-NZA076JBE0
The manufacturer no longer makes this part, and there's no substitute part
#2-22
All parts diagram
Terminal Block
Part #QTAN-A129JBE0
The manufacturer no longer makes this part, and there's no substitute part
#1-05
All parts diagram
Cabinet Front
Part #GWAKPA104JBFA
The manufacturer no longer makes this part, and there's no substitute part
