Model # BD-H5900/ZA-JK04 Official Samsung dvd player

Here are the diagrams and repair parts for Official Samsung BD-H5900-ZA-JK04 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Netwrk Wif AH59-02605A
#4

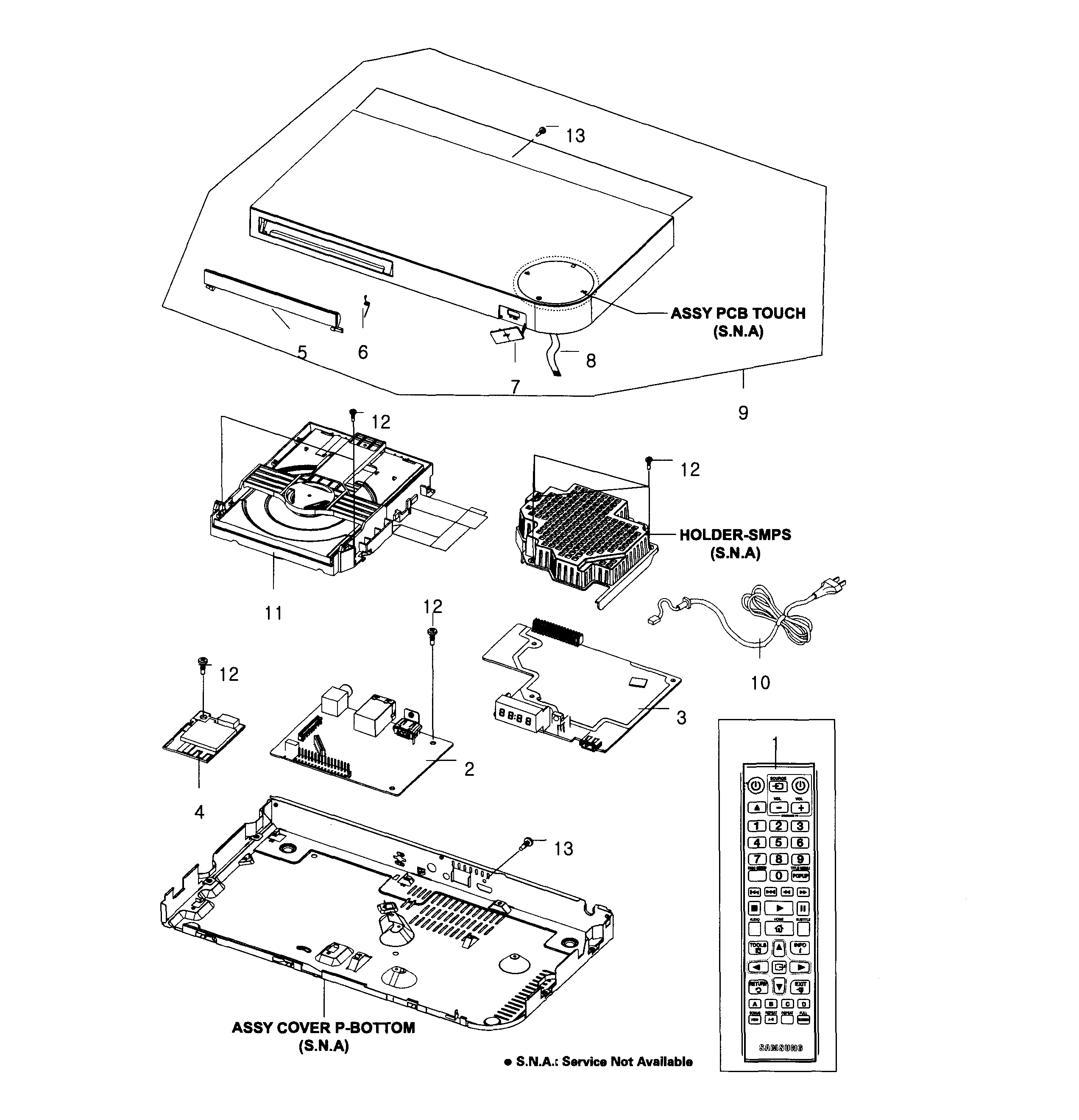

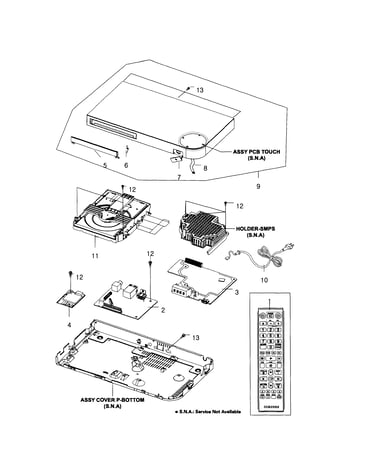

Main assy diagram

Netwrk wif

Part #AH59-02605A

Replaced by #AH59-02605A

?
Manufacturer substitution
This part replaces AH59-02605A. Substitute parts can look different from the original.
$28.64
In Stock
Main Pcb AK94-00696A
#2

Main assy diagram

Main pcb

Part #AK94-00696A

Replaced by #AK94-00696A

?
Manufacturer substitution
This part replaces AK94-00696A. Substitute parts can look different from the original.
$163.00
In Stock
Screw-tapt 6003-001561
#12

Main assy diagram

Screw-tapt

Part #6003-001561

Replaced by #6003-001561

?
Manufacturer substitution
This part replaces 6003-001561. Substitute parts can look different from the original.
This item is not returnable
$2.58
In Stock
Remote Control AK59-00149A
#1

Main assy diagram

Remote control

Part #AK59-00149A

The manufacturer no longer makes this part, and there's no substitute part

Usb Cover AK63-00958A
#7

Main assy diagram

Usb cover

Part #AK63-00958A

Replaced by #AK63-00958A

?
Manufacturer substitution
This part replaces AK63-00958A. Substitute parts can look different from the original.
This item is not returnable
$3.89
In Stock
Ic,cat853s 1203-007107
#NI

Main assy diagram

Ic,cat853s

Part #1203-007107

Replaced by #1203-007107

?
Manufacturer substitution
This part replaces 1203-007107. Substitute parts can look different from the original.
This item is not returnable
$2.60
In Stock
Flat Cable AK96-02276A
#8

Main assy diagram

Flat cable

Part #AK96-02276A

Replaced by #AK96-02276A

?
Manufacturer substitution
This part replaces AK96-02276A. Substitute parts can look different from the original.
This item is not returnable
$3.89
In Stock
Varistor 1405-001192
#NI

Main assy diagram

Varistor

Part #1405-001192

Replaced by #1405-001192

?
Manufacturer substitution
This part replaces 1405-001192. Substitute parts can look different from the original.
This item is not returnable
$2.58
In Stock
Cover AK96-02207A
#9

Main assy diagram

Cover

Part #AK96-02207A

Replaced by #AK96-02207A

?
Manufacturer substitution
This part replaces AK96-02207A. Substitute parts can look different from the original.
$76.58
In Stock
Spring AK61-00137A
#6

Main assy diagram

Spring

Part #AK61-00137A

Replaced by #AK61-00137A

?
Manufacturer substitution
This part replaces AK61-00137A. Substitute parts can look different from the original.
This item is not returnable
$3.89
In Stock
