Model # 158882 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 158882 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

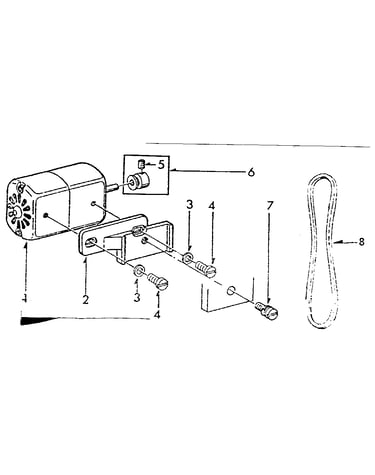

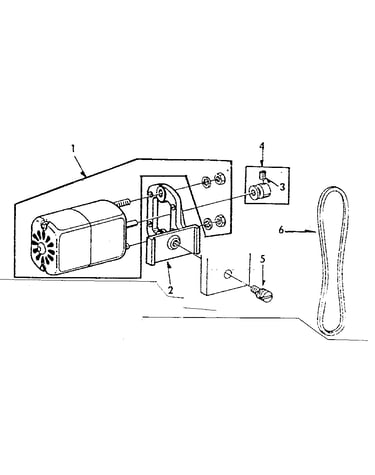

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 397 parts  |

Collar 8132
#38

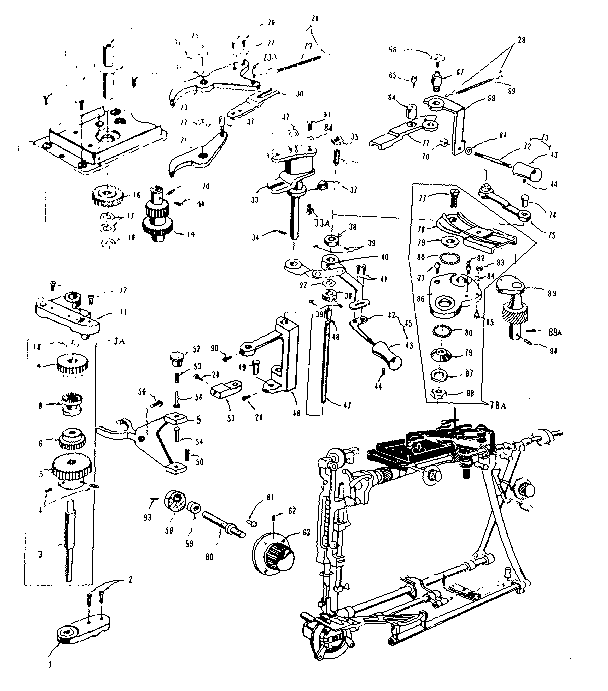

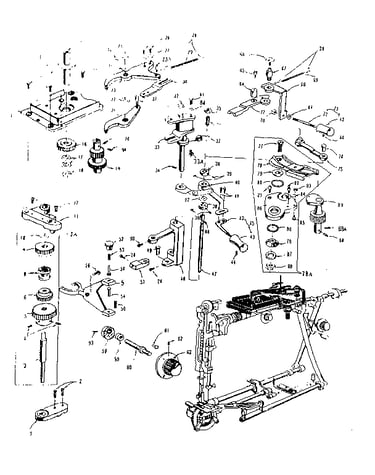

Zigzag guide assembly diagram

Collar

Part #8132

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 8391
#26

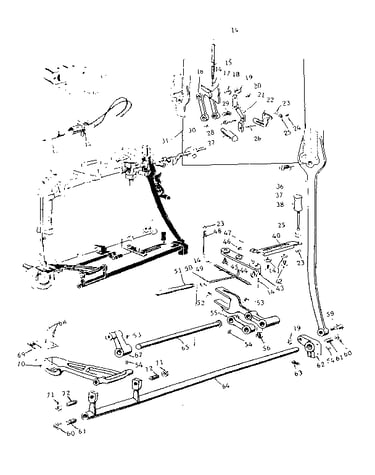

Feed regulator assembly diagram

Sewing machine set screw

Part #8391

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 8538
#3A

Zigzag guide assembly diagram

Gear assembly

Part #8538

The manufacturer no longer makes this part, and there's no substitute part

Washer 8049
Washer

Part #8049

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 8472
#44

Zigzag guide assembly diagram

Set screw

Part #8472

The manufacturer no longer makes this part, and there's no substitute part

Washer 4844
#56

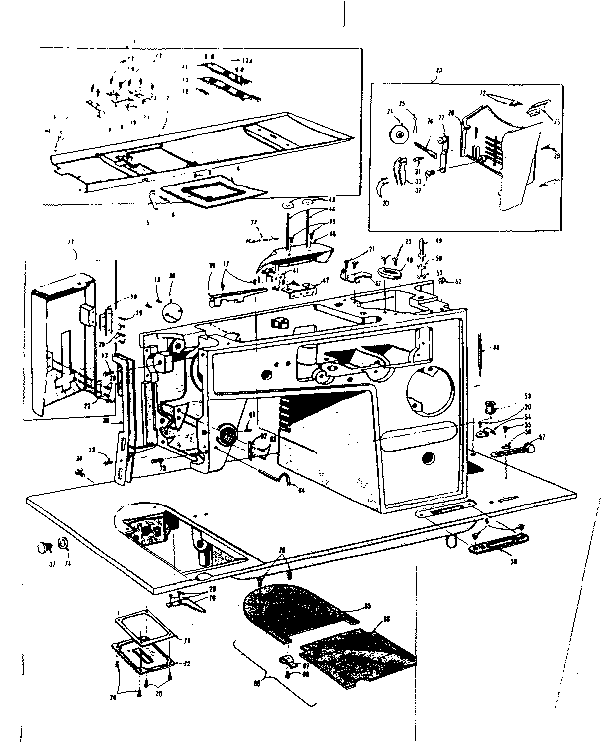

Unit parts diagram

Washer

Part #4844

The manufacturer no longer makes this part, and there's no substitute part

Pin 8607
#48

Feed regulator assembly diagram

Pin

Part #8607

The manufacturer no longer makes this part, and there's no substitute part

Block 8037
#1

Zigzag guide assembly diagram

Block

Part #8037

The manufacturer no longer makes this part, and there's no substitute part

Bushing 8271
#54

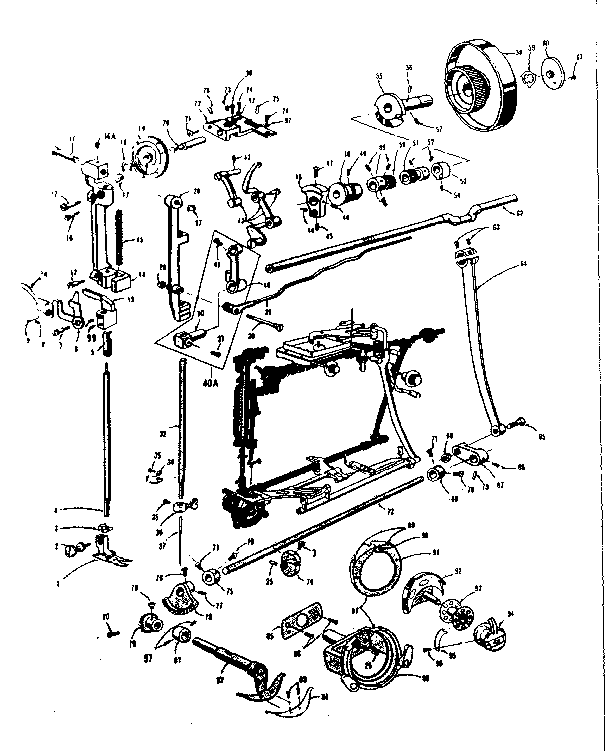

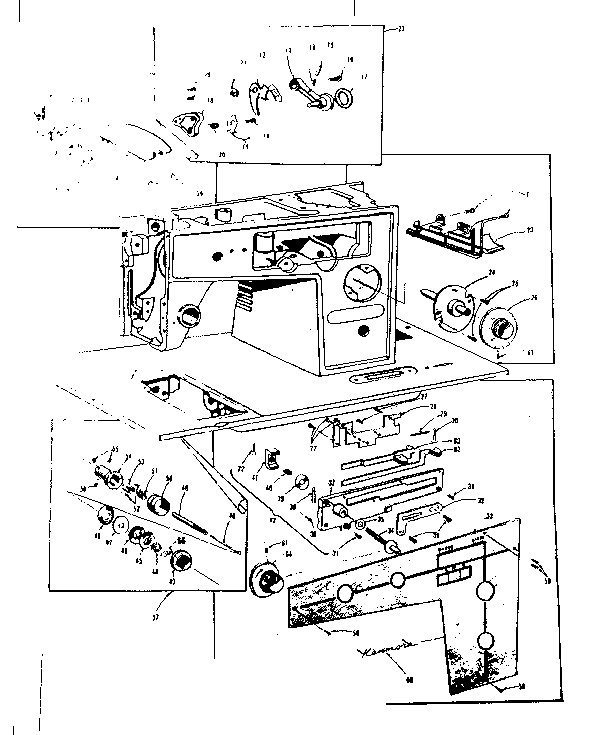

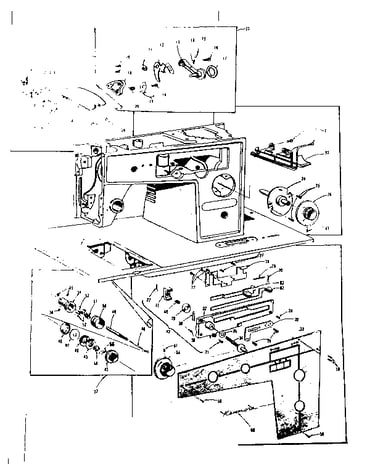

Bobbin winder and tension assembly diagram

Bushing

Part #8271

The manufacturer no longer makes this part, and there's no substitute part

Nut 40
#68

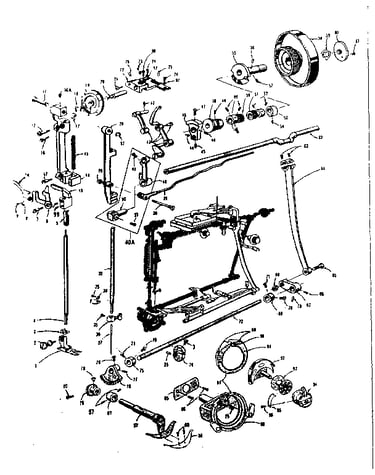

Presser bar and shuttle assembly diagram

Nut

Part #40

The manufacturer no longer makes this part, and there's no substitute part
